Blackmagic Design

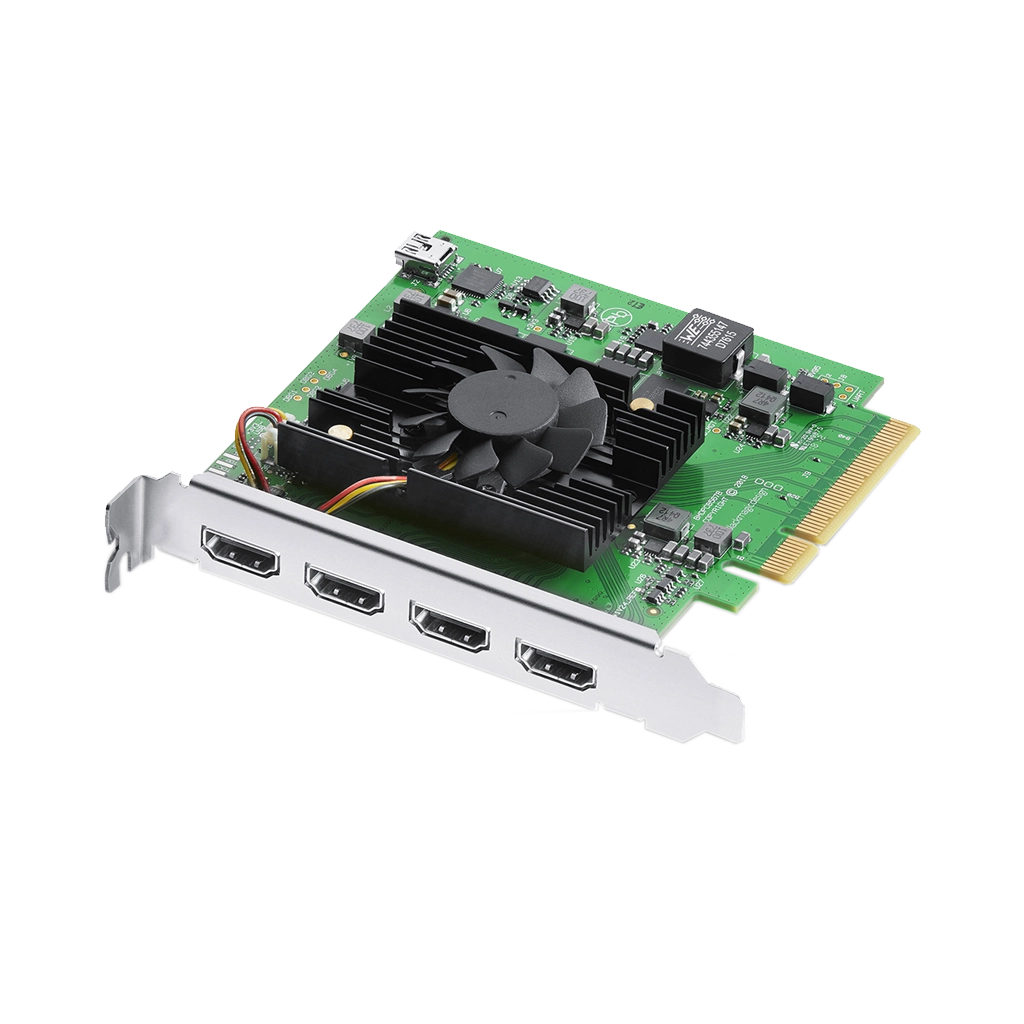

Blackmagic Design DeckLink Quad HDMI Recorder Capture Card

R 11,795.00
R 11,795.00 R 11,795.00
Tax included. Shipping calculated at checkout.

BLA-BDLKDVQDHDMI4K

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • Record up to DCI 4K60 HDMI Video
  • 4 x HDMI 2.0b Inputs
  • PCIe Interface Card
  • Up to 4K30 12-Bit 4:2:2 in All Modes

    The advanced Blackmagic Design DeckLink Quad HDMI Recorder Capture Card is well designed for software live switching, real time computer game capture, streaming and more. The advanced PCIe card allows you to capture from 4 different HDMI sources in any combination of SD, HD, Ultra HD, 4K and even computer formats, all in one go.

    Supported Codecs

    AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10bit 4:2:2.

    • Blackmagic Design DeckLink Quad HDMI Recorder Capture Card
    • SD Card with Drivers and Utilities

    Supported Operating Systems macOS 10.13, 10.14 or Later
    Windows 7, 8.1, 10 (All 64-Bit)
    Linux
    Inputs/Outputs 4 x HDMI 2.0b
    Computer Interface PCI Express 8 Lane Generation 3 (Compatible with 8 and 16 Lane PCI Express Slots)
    Audio Channels 8 x Embedded (HD and SD)
    Video Support DCI 4K:
    4K: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

    UHD 4K:
    2160p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

    HD:
    1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    1080PsF: 23.98, 24, 25, 29.97, 30
    1080i: 50, 59.94, 60
    720p: 50, 59.94, 60

    DVI:
    2560 x 1600p: 50, 60
    2560 x 1440p: 50, 60
    1920 x 1440p: 50, 60
    1920 x 1200p: 50, 60
    1600 x 1200p: 50, 60
    1440 x 1080p: 50 60
    1440 x 900p: 50, 60
    800 x 600p: 50, 60
    640 x 480p: 60

    SD:
    525i: 59.94 NTSC
    625i: 50 PAL
    Audio Sample Rate 24-Bit, 48 kHz
    Supported Codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-Bit 4:2:2, Uncompressed 10-Bit 4:2:2
    Color Space Rec. 601, Rec. 709, Rec. 2020
    Deep Color and HDR Supported
    HDMI Video Sampling 8-, 10-, and 12-Bit RGB 4:4:4 (In All Modes up to 4K30)
    8- and 10-Bit YUV 4:2:2 and 4:2:0 (In All Modes)
    8-Bit RGB 4:4:4 (Supported in All DVI Modes)
    HDMI Copy Protection Compliant
    Power Consumption 23 W
    Certifications FCC, CE, RCM, and KC
    Operating Temperature 5 to 40°C
    Storage Temperature  -20 to 45°C
    Relative Humidity (non-condensing) 0 to 90%
    Length 10.9 cm
    Weight 128 g
