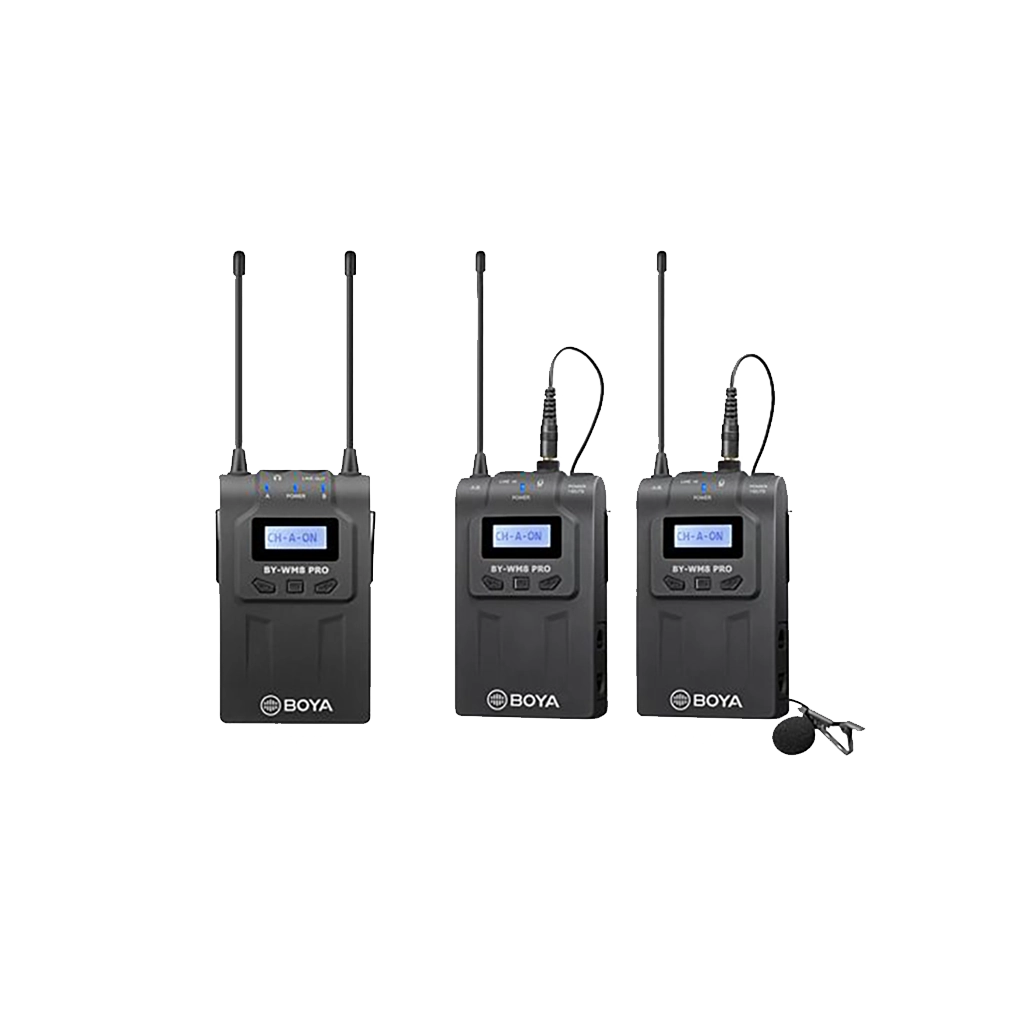

The BOYA BY-WM8 Pro-K2 Dual-Channel Wireless Lavalier System consists of two wireless bodypack transmitters along with two omnidirectional lavalier microphones and one receiver to capture high quality sound; making it ideal for broadcast and film, ENG, talk shows, conferences between two people; having both transmitters sound fed through to the receiver.
The camera-mountable receiver features a wide-switching RF bandwidth, an easy-to-read and convenient LCD display, a 3.5mm headphone jack that enables real-time monitoring. The transmitter that feeds the sound through is equipped with a crystal-controlled PLL synthesizer, a 1/8 mic input, a 1/8 line-in jack, and a muting function. Between the two devices it allows a 100m working range.
Included with this powerful microphone system is a shoe-mount adapter, a single 1/8 to XLR output cable, a single 1/8 to 1/8 output cable, and a carrying case.
- Digital companding circuitry
- User-friendly menu operation with more control options
- Auto-lock function avoids accidental changing of settings
- One mic input and one line input for transmitter
- Monitoring of receiver via headphones directly
- Wide range of accessories adapts the system to most of requirements
- Dual-Channel Wireless Receiver
- 2 x Wireless Bodypack Transmitters
- 2 x Omnidirectional Lavalier Microphone
- 2x Foam Windscreens
- 2x Microphone Clips
- Shoe-Mount
- 3.5mm to XLR Output Cable
- 3.5mm to 3.5mm Output Cable
- Carrying Case
| Oscillator type: | PLL Synthesized Control Oscillator |
| Carrier Frequency Range: | 576.4 MHz-599.9 MHz (Transmitter: A ) 568.6 MHz-592.1 MHz (Transmitter: B ) |
| Channels: | 48 |
| Frequency response: | 40 Hz to 18 kHz (+/-3dB) |
| Operation range: | 100m (300')(without obstacle) |
| Operating temperature: | 14° F to 122° F (-10℃ to +50℃) |
| Storage temperature: | 14° F to 131° F (-10℃ to +55℃) |
| RF output power: | ≤10 mW |
| Antenna: | 1/4λ wire antenna |
| Spurious emission: | 250 nW or less |
| Audio input connector: | 3.5mm mini jack |
| Reference audio input level: | –60 dBV (MIC input, 0 dB attenuation) |
| Reference deviation: | ±5 kHz (–60 dBV, 1 kHz input) |
| Input frequency range: | 20 Hz-20 KHz |
| Distortion: | 0.5% or less |
| Power supply: | Two AA size batteries |
| Operation time: | About 6 hours |
| Dimensions: | 208(H) × 67(W) × 29(L)mm |
| Weight: | 80g without batteries |
| Antenna: | 1/4λ wire antenna |
| Audio input connector: | 3.5mm mini jack |
| Signal-to-noise ratio: | 70 dB or more |
| Distortion: | 0.5% or less |
| Headphone output level: | 30mW (16 Ω) |
| Audio output level: | –60 dBV |
| Power supply: | Two AA size batteries |
| Operation time: | About 4 hours |
| Dimensions: | 208(H) × 67(W) × 29(L)mm |
| Weight: | 90g without batteries |
| Transducer: | Back electret Condenser |
| Polar pattern: | Omni-directional |
| Frequency Range: | 35Hz ~ 18 KHz |
| Signal / Noise: | 74dB SPL |
| Sensitivity: | -30dB +/-3dB / 0dB=1V/Pa, 1 kHz |
| Connector: | 3.5mm locking mini plug |
| Length: | 1.2m (4’) |
