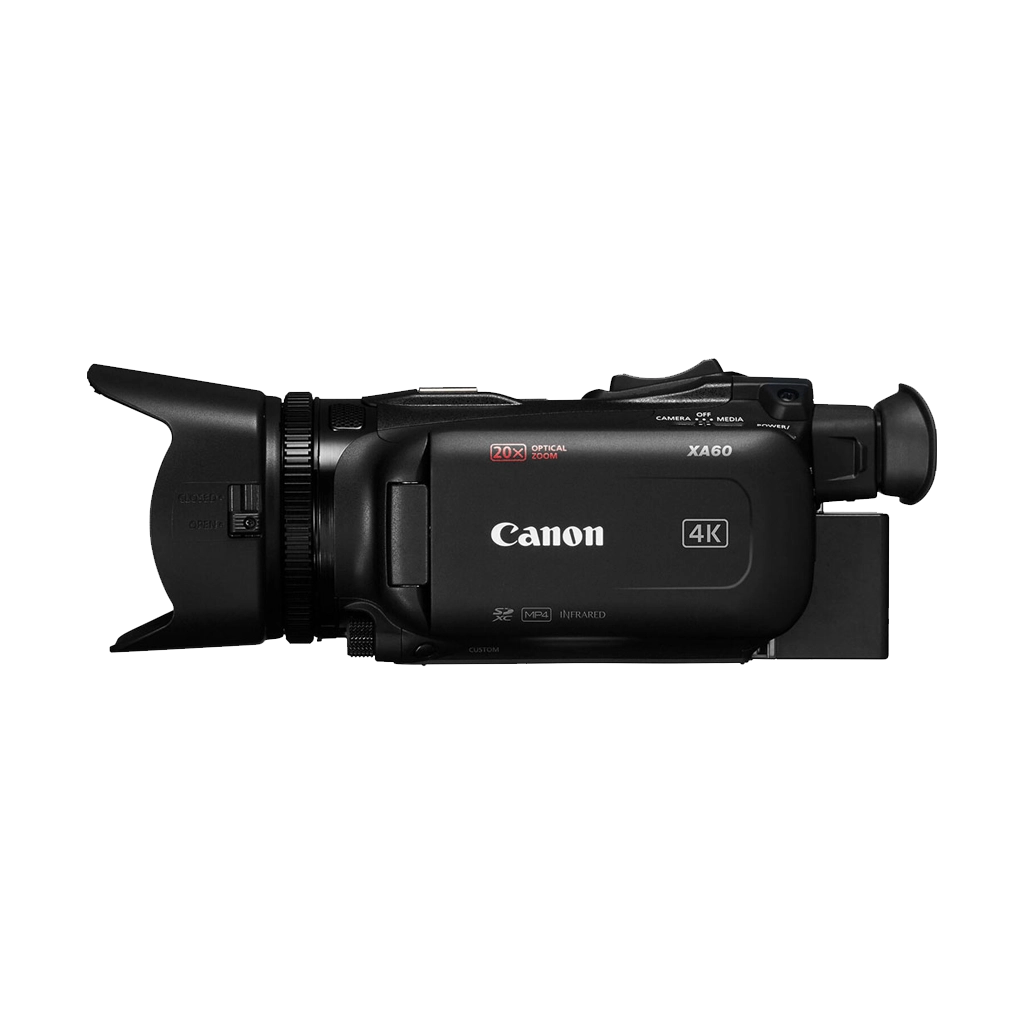

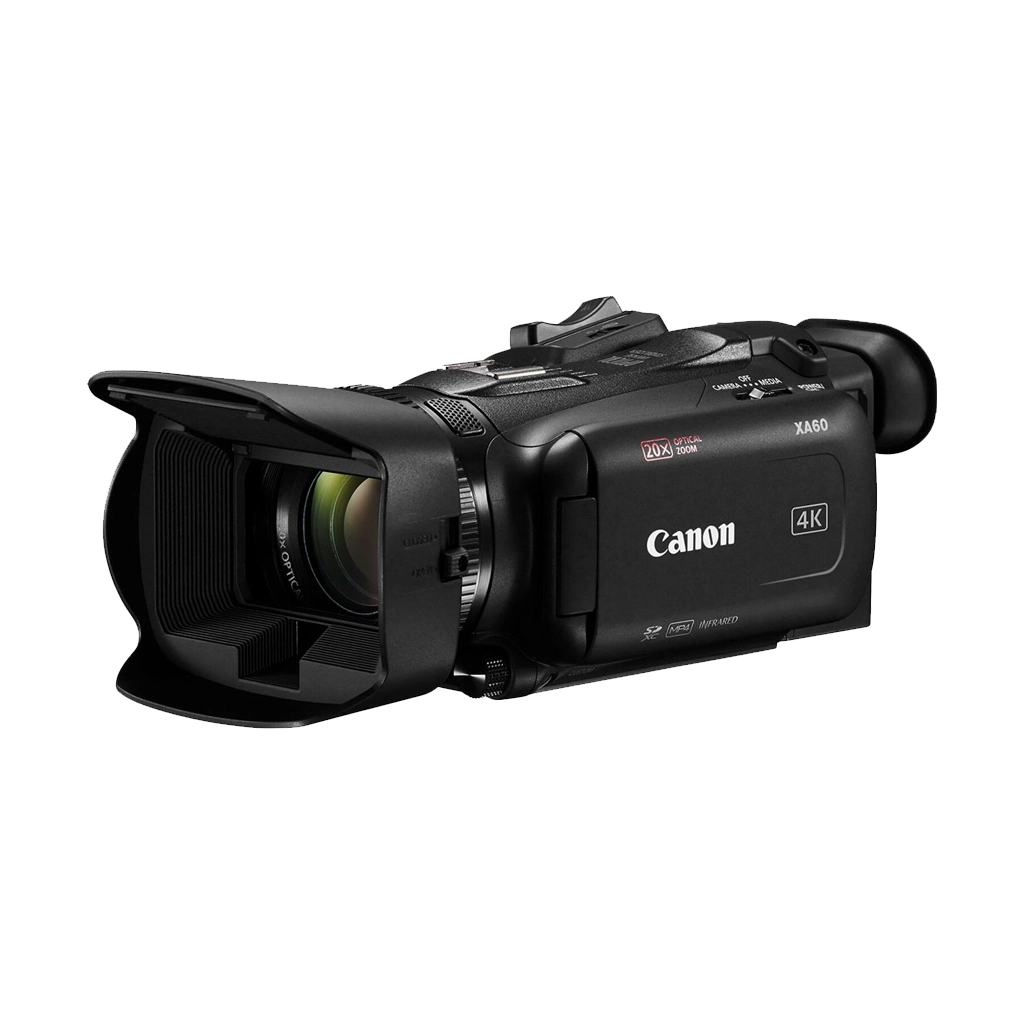

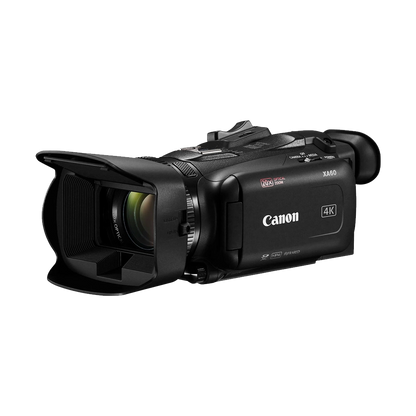

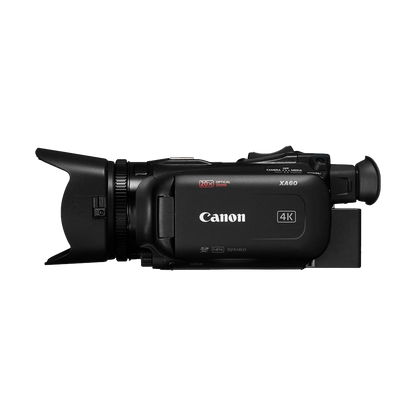

The Canon XA60B Professional UHD 4K Camcorder allows you to take record phenomenal 4K UHD video quality with it's powerful 1/2.3" CMOS Sensor and DIGIC DV6 Image Processor. The XA60B Camcorder from Canon sports an advanced autofocus system, a 20x optical zoom, 5-axis stabilisation to ensure that your video quality is constantly smooth, HDMI out and UVC Streaming.
You can record your video footage in either XF-AVC or MP4 format. Record XF-AVC 4K UHD 160 Mb/s at 25P and Full HD 45 Mb/s at 50P/50i/25P. For smaller files, you can record MP4 in 4K 150 Mb/s at 25P and Full HD 35 Mb/s or 17 Mb/s at 50P/25P. Other features include output options such as simultaneous backup and relay recording via a dual SD card and infrared mode, colour matching with other Canon cameras via the custom picture menu, livestream HD footage via UVC over a computer or add a date and time stamp with OSD recording.
- Canon XA60B Professional UHD 4K Camcorder
- Canon PD-E1 USB Power Adapter
- Canon BP-820 Battery Pack
- Lens Hood with Lens Barrier
Image Sensor
| Sensor | 1/2.3-type CMOS |
| Filter | RGB Primary Colour Filter |
| Total Pixels | Approx. 21.14MP |
| Effective Pixels per Sensor | Approx. 8.29 MP (3840 x 2160) |
| Subject Illumination Range | Approx. 0.3 lx to 100,000 lx |
| Minimum Illumination (PAL) | P (Program AE) Mode: Approx. 4.2 lx (shutter speed 1/25 sec with auto slow shutter On) Low Light Mode: Approx. 0.3 lx (shutter speed 1/2 sec.) |
Image Processor
| Type | DIGIC DV 6 |
| Colour Sampling | YCC 4:2:0 8bit |
Lens
| Zoom Ratio |
20x Optical
|
| Minimum Focus Distance | Approx. 29.3 - 601mm Standard IS/IS Off |
| Minimum Focus Distance | 1 cm at wide end, 60 cm across entire zooming range |
| Max. Aperture | f/1.8 - 2.8 (AV Priority and Manual Modes) |
| Aperture Blades | 8 blades |
| Filter Diameter |
58mm
|
| Image Stabilization System | Optical system (lens shift) + electronic stabilization Dynamic, Standard, Powered IS, Off |
| ND Filter |
Built-in gradation filter (Auto or Off)
|
| Zoom Control | Zoom rockers on body and handle; Selectable manual zoom/focus ring on lens; Selectable High Speed and Soft Zoom modes available. |
| Zoom Speed | Variable (body rocker only) or Constant speed (body and handle rocker; Fast/Normal/Slow, 16 speed level settings in each) |
| Focus Control | MANUAL: Lens ring and touchscreen point selection (Magnify and Peaking assist functions), Focus Preset. AUTOFOCUS: Touchscreen AF point selection, Face Detection and Tracking, Touch and Track, Face Only AF. (Instant AF, Medium AF, Normal AF) |
| Focus System | Hybrid AF (High Speed/Medium speed). Uses combination of TTL-video signal detection system and external phase difference metering system. Normal AF. TTL, Contrast based AF |
| Iris Control | Touchscreen, Auto |
| Digital Zoom/Teleconverter |
20x digital zoom (400x with optical zoom) and 40x digital zoom (800x with optical zoom) are available. Digital zoom not available in AUTO mode. 2x Digital Teleconverter
|
Recording
| Video Storage Media | SD/SDHC/SDXC card (2 card slots) |
| Recording Time | 150Mbps: 55 mins / 35Mbps: 240 mins / 17Mbps: 495 mins |
| Recording File System |
FAT32/exFAT
|
| Internal Recording Format (PAL) | XF-AVC: 3840 x 2160 / 25.00P (160 Mbps) 1920 x 1080 / 50.00P, 50.00i, 25.00P (45 Mbps) MP4: 3840 x 2160 / 25.00P(150 Mbps) 1920 x 1080 / 50.00P, 25.00P (35, 17 Mbps) |
| External Recording Output | HDMI output (When Shooting): UHD recording mode: 1920 x 1080 / 25.00P, 50.00P (for Slow&Fast), 50.00i (PsF mode); 1280 x 720 / 50.00P YCC 4:2:2 8-bit Full HD recording mode: 1920 x 1080 50.00P/25.00P/50i ; 1280 x720 50.00P YCC4:2:2 10-bit |
| Slow/Fast Motion (PAL) | 3840 x 2160 / 25.00P: x2, x4, x10, x20, x60, x120, x600, x1200 1920 x 1080 / 50.00P: x2, x4, x10, x20, x60, x120, x600, x1200 1920 x 1080 / 25.00P: x0.5 |
| Pre-Record Function | Yes. 3 seconds |
| Still Photos | JPEG up to 3840x2160 (Still image resolution is dependent on the video resolution) |
| Photo Storage Media | SD Card |
System
| Display Size | Capacitive LCD touch panel |
| Size | 3.5-inch (8.8 cm) on the diagonal, Approx. 2,760,000 dots (1280 x RGB x 720) |
| Wave Form Monitor | No |
| Focus Assist | Peaking / Magnify |
| Peaking | Selectable Peaking Colour: Red / Blue / Yellow |
| Zebra | 70% or 100% reference level |
| Markers | Grid (white/grey), Level (white/grey), 4:3 (white/grey) |
EVF
| Size | 0.36-inch (0.92 cm on the diagonal), Approx. 1,770,000 dots (1024 x RGB x 576) |
| Correction Lens | +2.0 to -5.5 dioptre |
Inputs/Outputs
| Audio Input | 3.5mm microphone input jack (Supply Voltage 2.4V DC) Built-in Mic XLR 3-Pin jack x2 with: With HDU-4 Handle Unit (HDU-4 Handle unit sold separately) |
| Headphone Output | 3.5mm stereo mini jack |
| HDMI Output | HDMITM mini connector |
| USB |
Type-C
Hi-Speed USB (USB 2.0) equivalent. Point-to-point class and UVC supported. |
| SDI Output | No |
| Time Code | Rec Run / Free Run |
| Genlock | No |
| LAN | No |
| AV Terminal | No |
| DC Input | USB_C |
| Remote Control Terminal | 2.5mm mini jack |
Miscellaneous
| Tally Lamp | Yes, in detachable Handle Unit |
| Colour Bars (PAL) | Yes. SMPTE, ARIB or EBU, with 1KHz Tone |
| Accessory Shoe | Yes (cold shoe) |
| Assignable Buttons |
5 assignable Buttons
|
| Custom Dial |
Iris/Shutter/Gain, AGC Limit, Exposure Compensation, Off
|
Exposure
| Exposure Metering | Centre-weighted average metering AUTO, P, Av, Tv, Portrait, Sports, Low Light and IR modes Segment evaluative metering Night Scene, Snow, Beach, Sunset, Spotlight modes No metering in Fireworks mode: Exposure constant |
| Exposure Compensation |
Highlight AE, Normal, Exposure lock, Auto backlight compensation.
|
| Exposure Lock | Yes |
| Auto ISO / Auto Gain Control Setting | Auto - Manual |
| Auto Gain Control Limit |
0 - 23dB (1dB increments)
|
Streaming, Wi-Fi and GPS Specifications
| Wi-Fi | No |
| GPS Information (Optional Accessory) | Location (Latitude/Longitude/Altitude), Coordinated Universal Time (UTC), Satellite reception. (requires the optional GPS Receiver GP-E2) |
Shooting Modes
| Program AE | AUTO mode M (Manual) mode P (program AE), Tv (shutter-priority AE), Av (aperture-priority AE), M (manual exposure), SCN (Portrait, Sports, Night Scene, Snow, Beach, Sunset, Low Light, Spotlight, Fireworks) IR mod |
| Custom Picture Menu |
C1: Normal (BT.709 Normal / BT.709)
C2 to C6: USER02 to USER06 |
| Look Settings | Standard (Adjustment: Sharpness, Contrast, Colour Depth) |
| Colour Matrix Settings |
Neutral: accurate colour reproduction
Video: Higher contrast colour reproduction |
| Infrared Shooting Mode | Yes (green or white) |
| Built-in IR Lamp | Optional accessory HDU-4 Handle Unit required |
Audio
| Recording Format | MPEG-2 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch) |
| Audio Control |
Manual/Auto
Independent level control per channel (-∞ to +18 dB); Independent audio limiters (2 ch); Input mic trimming |
| Reference Tone |
1KHz, -12dB / -18dB / -20dB / Off
|
| Microphone Attenuation |
On/Off (20dB)
|
| Microphone Level Meter | Yes |
Physical Specifications
| Dimensions | 109 x 84 x 182 mm |
| Weight (Body Only) | 740 g |
| Operating Temperature |
0ºC to +40ºC, 85% relative humidity
|
