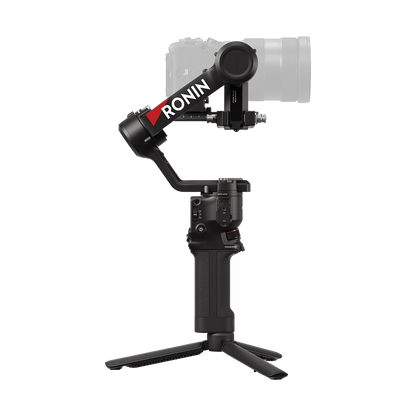

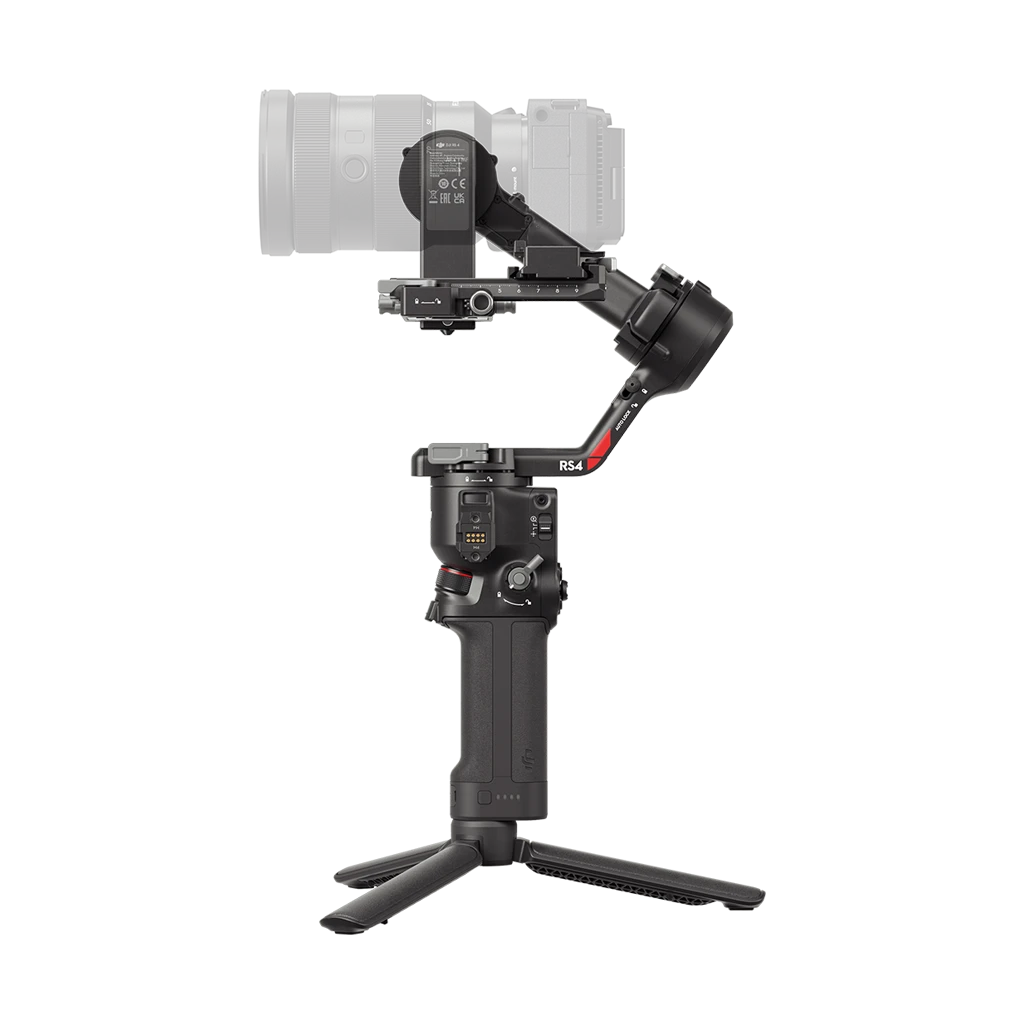

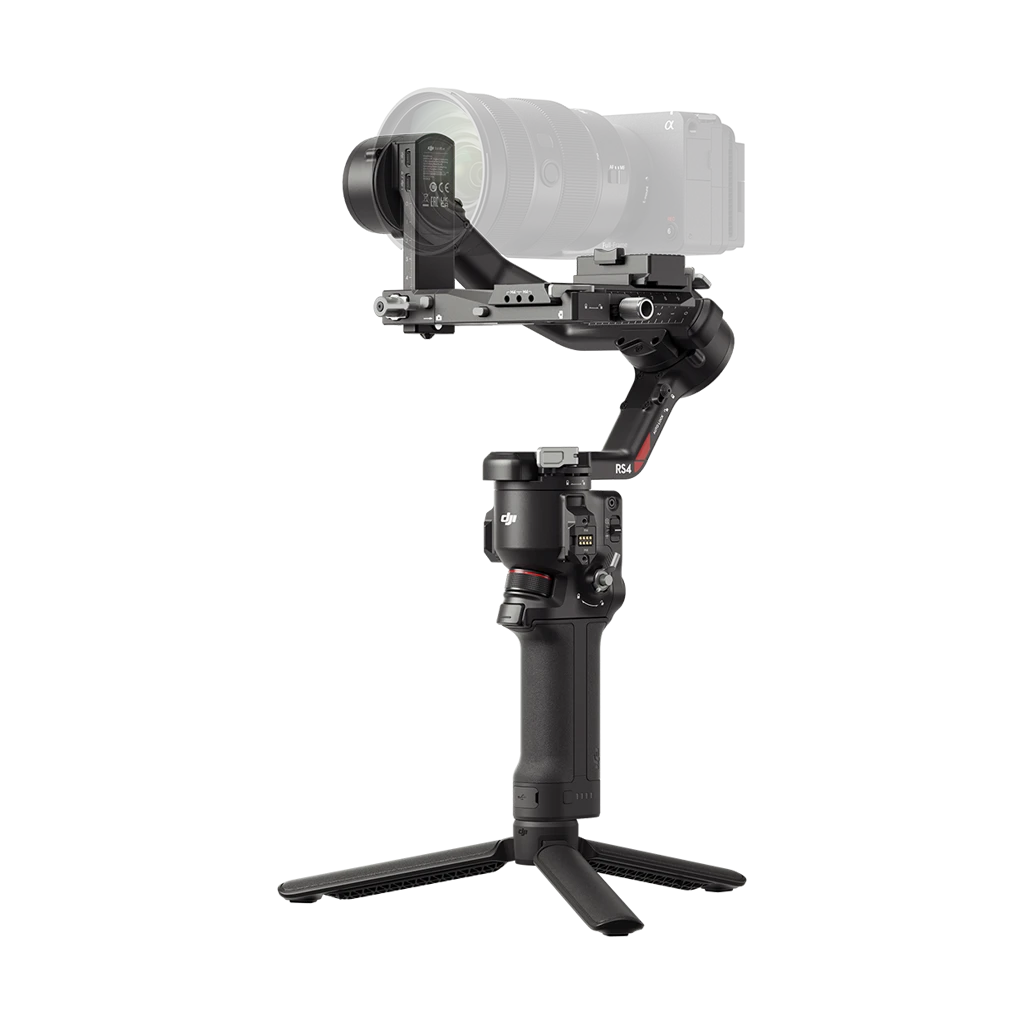

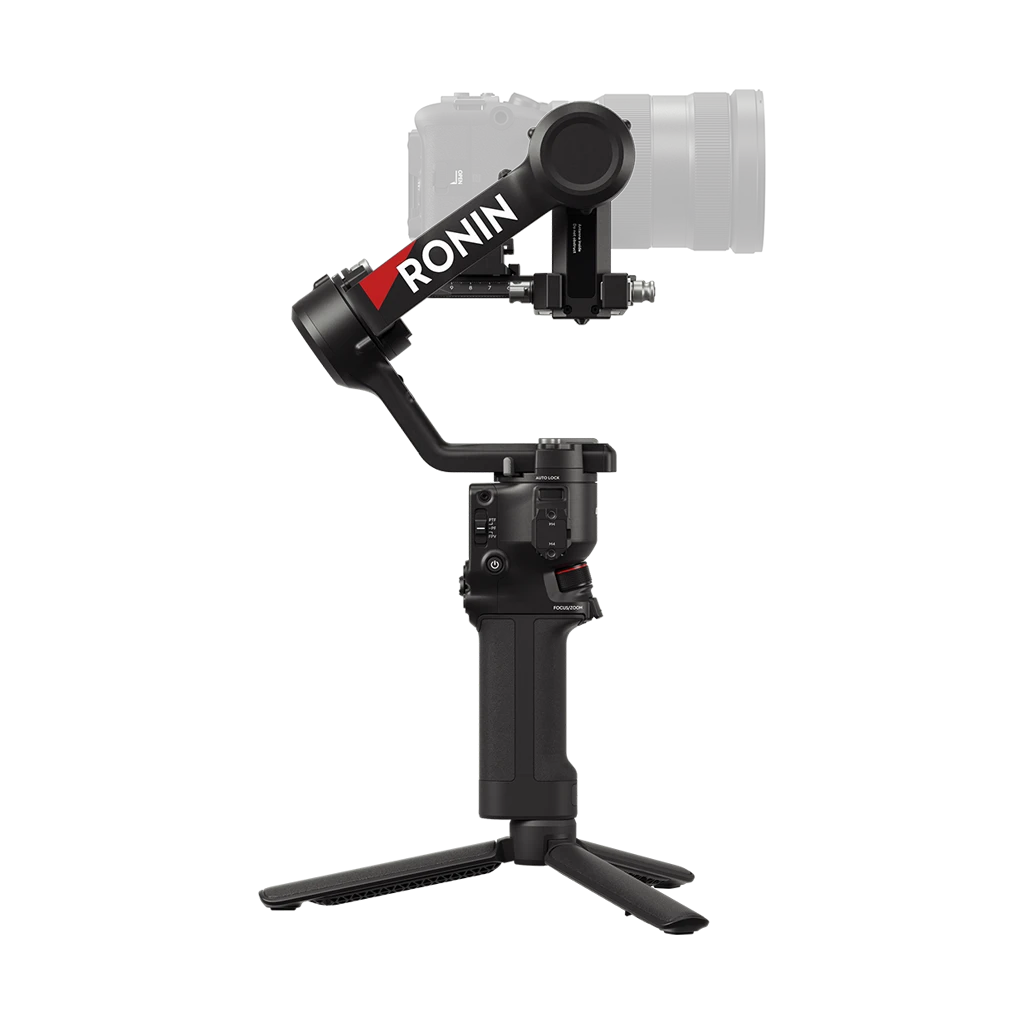

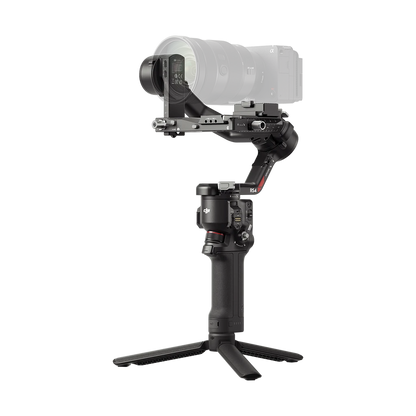

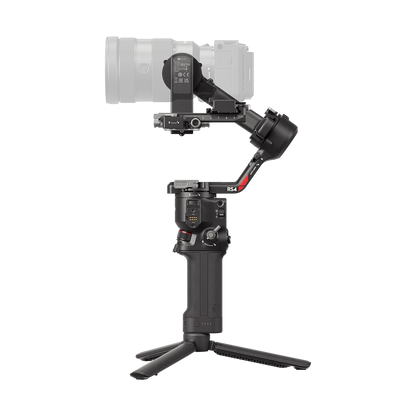

The DJI RS 4 Gimbal Stabilizer allows videographers to film smooth video footage, and it also supports next-generation native vertical shooting, along with enhanced operation efficiency, to ensure improved stabilization performance.
The lightweight commercial DJI RS 4 Gimbal Stabilizer encourages solo cinematographers with a more professional and efficient creative experience, with powerful key features to this powerful gimbal that includes an excellent payload capacity of 3kg, ensuring that it's capable of holding mainstream mirrorless cameras and lens combinations, and at the same time enabling comfortable holding with robust power.
Please note: In the event that a refund is requested on any DJI product for reasons not based on the rules set out in the Consumer Protection Act, and that product has been registered and/or activated, a 20% handling fee will be applicable.
2nd-Gen Native Vertical Shooting
With 2nd-Gen Native Vertical Shooting on the DJI RS 4 Gimbal, it enables a faster and simpler operation for users. Without the need for additional accessories, you can simply release the horizontal plate and secure it into the vertical position for a simpler switch o vertical shooting, paving the way for efficient vertical video creation.
2nd-Gen Automated Axis Locks
The automated axis locks allow the DJI RS 4 Gimbal to quickly start working or enter sleep mode, ensuring that you achieve enhanced shooting, transition, and storage efficiency. Additionally, the axis locks have smaller gaps when it's locked, further reducing gimbal shake.
Telfon Coating
All three axes of the gimbal features a Telfon coating, resulting in reduced friction and smoother balancing.
Automatic Screen Lock
Built-in to the gimbal is an OLED touchscreen with a new auto-lock feature. Once it's locked, the screen will display the current gimbal and joystick modes at a low brightness. This is ideal as it helps to conserve battery power and to prevent accidental touches.
Excellent Payload Capacity (3kg)
The lightweight RS 4 Gimbal from DJI boasts a 3kg payload capacity, making it possible to carry mainstream mirrorless cameras and lens combinations, ensuring comfortable holding with robust power.
Compared to it's predecessor, the DJI RS 4 Gimbals tilt axis has been extended by 8.5mm, offering expanded balancing space. This allows you to mount mainstream mirrorless camera and lens combinations along with additional accessories like ND filters, broadening the scope for creative potential.
4th-Gen RS Stabilization Algorithm
The improved stabilization algorithm strikes a superior balance between stabilization strength and the tactile feel of camera movement, delivering both excellent stabilization performance and an enhanced user experience. Additionally, it offers significantly enhanced stability when shooting vertically, making it ideal for steadying dynamic shots like running or low-angle perspectives.
Bluetooth Wireless Control
With the DJI RS 4 Gimbal, it can remotely control camera shutter and lens zoom with Dual-Mode Bluetooth technology. In zoom control mode, you can use the joystick to control the Power Zoom for PZ lenses and Clear Image Zoom, obtaining a native zoom experience. No need for reconnecting all the time, as it just needs to be paired once, after which it can reconnect seamlessly and automatically.
Support for DJI Focus Pro Motor
When comparing your gimbal with the optional DJI Focus Pro Motor, the DJI RS 4 Gimbal will enable you to control the lens focus via dial or adjust the lens zoom via the joystick. This enables a really smooth operation for an efficient lens control.
Trigger Function Customization
You can customize the trigger function to FPV mode, where pressing and holding the trigger makes the gimbal's three axes follow the direction of the grip's movement, making it suitable for shooting rotational footage or simulating POV.
Gimbal Mode Switch
Easily toggle between gimbal modes on the RS 4 Stabilizer. You can simply switch between PF, PTF, and FPV modes. You can set FPV mode to 3D Roll 360 mode or Custom mode according to the shooting requirements. Intelligent features include Motionlapse, Track, and Panaroma.
- DJI RS 4 Gimbal Stabilizer
- BG21 Battery Grip
- Quick-Release Plate (Arca-Swiss)
- Extended Grip/Tripod (Plastic)
- Lens-Fastening Support
- Multi-Camera Control Cable (USB-C, 30 cm)
- USB-C Charging Cable (40 cm)
- DJI Logo Sticker
- Screw Kit
| Accessory Port | Ronin Series Accessories (RSA)/NATO Ports 1/4"-20 Mounting Hole Cold Shoe Video Transmission Port (USB-C) RSS Camera Control Port (USB-C) Focus Motor Port (USB-C) |
| Battery |
Model: BHX711-3000-7.2V
|
| Connections | Bluetooth 5.1 Charging Port (USB-C) |
| Ronin App Requirements | iOS 11.0 or above Android 8.0 or above |
| Languages Supported by the Touchscreen | English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai |
| Tested Payload | 3 kg |
| Maximum Controlled Rotation Speed | Pan: 360°/s Tilt: 360°/s Roll: 360°/s |
| Mechanical Range | Pan Axis: 360° continuous rotation Roll Axis: -95° to +240° Tilt Axis: -112° to +214° |
| Operating Frequency | 2.400-2.4835 GHz |
| Bluetooth Transmitter Power | < 8 dBm |
| Operating Temperature | -20° to 45° C (-4° to 113° F) |
| Weight | Gimbal: Approx. 1066 g (2.35 lbs) Grip: Approx. 203 g (0.45 lbs) Extended Grip/Tripod (Plastic): Approx. 183 g (0.4 lbs) Upper and Lower Quick-Release Plates: Approx. 98 g (0.22 lbs) |
| Dimensions | Folded: 245×255×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod) Unfolded: 370×191×189 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod) |
| Connections | Power/Communication Port (USB-C) HDMI Port (Mini HDMI) RSS Camera Control Port (USB-C) |
| Expansion Port | Cold Shoe |
| Operating Frequency | 2.400-2.4835 GHz 5.725-5.850 GHz |
| Weight | 126 g (0.27 lbs) |
| Dimensions | 82×63×24 mm (L×W×H) |
| Transmitter Power (EIRP) | 2.400-2.4835 GHz:<br> < 25 dBm (FCC)<br> < 20 dBm (CE/SRRC/MIC) 5.725-5.850 GHz: < 25 dBm (FCC/SRRC) < 14 dBm (CE) |
| Battery | Capacity: 2970 mAh Compatible Charger: 5 V/2 A Charging Time: Approx. 2.5 hours Operating Time: Approx. 3.5 hours |
| Transmission Range | 200 m (SRRC/FCC) 100 m (CE) <sup>Measured in an unobstructed environment free of interference.</sup> |
| Latency | 60 ms |
| Operating Current/Voltage | 900 mA/3.7 V |
| Operating Temperature | 0° to 45° C (32° to 113° F) |
