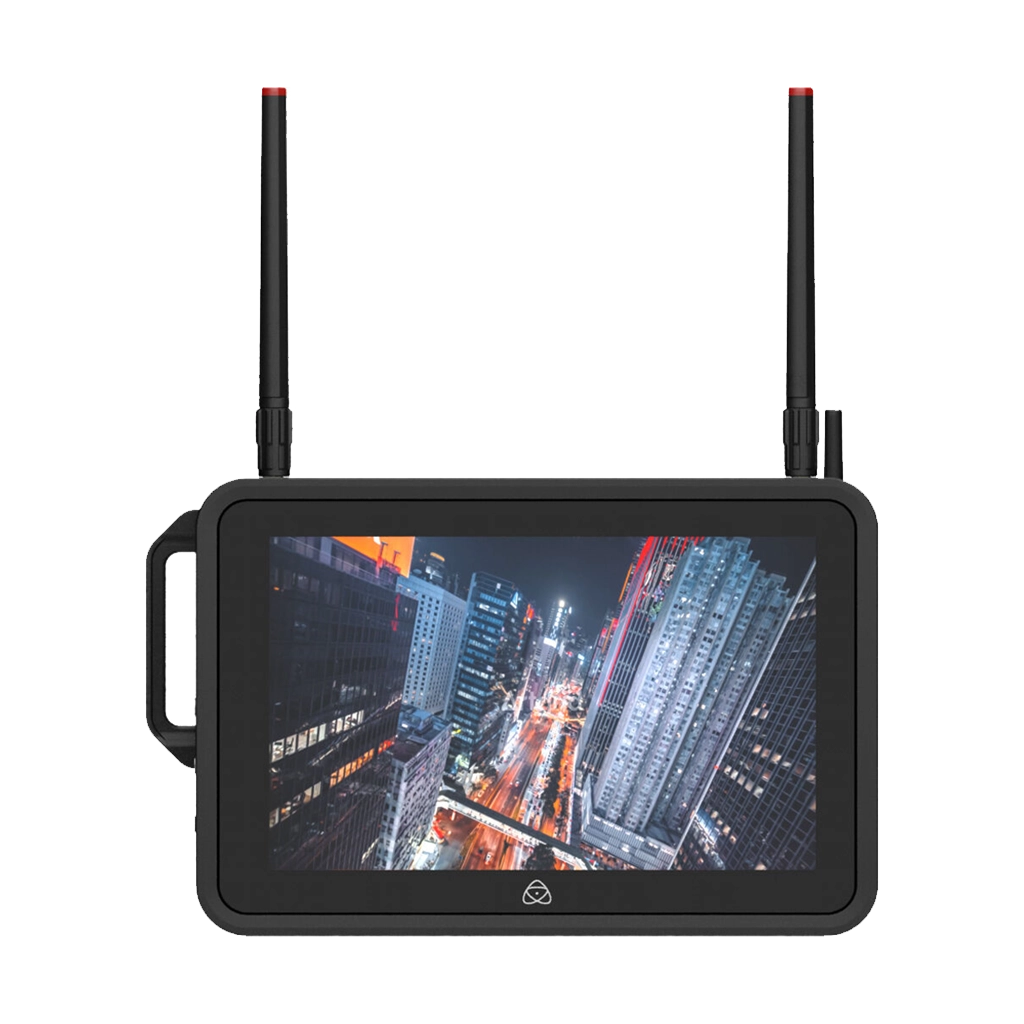

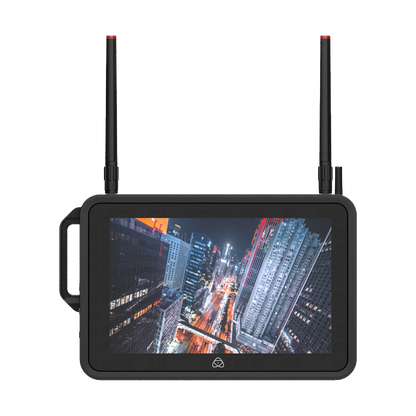

Atomos SHOGUN CONNECT 7" Network-Connected HDR Video Monitor & Recorder 8Kp30/4Kp120

R 25,995.00
R 25,995.00 R 25,995.00
Tax included. Shipping calculated at checkout.

ATOMSHGC01

Low stock

Choose PayGate at checkout for MobiCred Payments.

SHORT DESCRIPTION

  • 7" 1920 x 1200 Touchscreen Display
  • 2000 cd/m² Brightness
  • 2 x 12G-SDI, 2 x HDMI, 1 x USB Type-C
  • Records up to 4K Video
  • Adobe Frame.io Camera to Cloud Support
  • Wi-Fi 6, Bluetooth LE, Gigabit Ethernet
  • Dual Recording Capabilities, Streaming
  • Power via DC Input or L-Series Battery
    Atomos SHOGUN CONNECT 7" Network-Connected HDR Video Monitor & Recorder 8Kp30/4Kp120

    R 25,995.00

    The Atomos SHOGUN CONNECT 7" Network-Connected HDR Video Monitor & Recorder 8Kp30/4Kp120 offers cloud connectivity over multiple wireless interfaces, this expands the capabilities of the Shogun.
    With a brightness of 2000cd/m‚² the Shogun Connect 7" features a 1920 x 1200 touchscreen. A loop-through 12G-SDI in and output interface supports SDI RAW recording. Recording, monitoring, and transmission of 4K video is possible through both the HDMI and 12G-SDI connections.

    The Atomos SHOGUN CONNECT 7" features Adbobe Frame.io support making the device a camera to cloud device. This allows footage straight from your camera to be transferred over a long range to other devices, The Wi-Fi6, Bluetooth LE, Gigabit Ethernet, and USB Type-C connections ensure flexible and all-round connectivity.

    CONNECT Upgrades

    The Atomos SHOGUN CONNECT 7" Network-Connected HDR Video Monitor & Recorder 8Kp30/4Kp120 features a brightness of 2000cd/m² this device features a 1920 x 1200 touchscreen.
    A loop-through 12G-SDI in and output interface supports SDI RAW recording. Recording, monitoring, and transmission of 4K video is possible through both the HDMI and 12G-SDI connections.
    ATOMOS AirGlu technology enables direct, long-range communication between devices up to 32 meters and wireless timecode lock.

    Streaming Capabilities

    The Atomos SHOGUN CONNECT 7" also supports live streaming to Facebook Live, Twitch as well as YouTube.
    This device is capable to join cellular hotspots, W-Fi 6, Gigabit Ethernet or Bluetooth LE.

    Camera to Cloud Device

    This is a device that fully integrates Frame.io camera to cloud devise. You are also able to record, monitor, and share content right from one device.

    Dual Recording

    The Atomos SHOGUN CONNECT 7" simultaneously creates matching "hero" Apple ProRes, ProRes RAW, or Avid DHxHR/HD files to a "proxy" HEVC (H.265).
    Proxy files can be uploaded during capture using ATOMOS transfer technology for immediate availability in the cloud post-recording.

    Shogun Control

    The Atomos SHOGUN CONNECT 7" offers auto HDMI trigger supports for Canon, Sony, and Atomos Open Standard. With camera selectable SDI trigger, serial 2.5mm jack for LANC control and calibration with separately available USB to serial cable.
    Bluetooth LE Control via AtomControl App for monitor assist functions, wireless FR AitGlu remote start/stop trigger.

    Monitor Assist Functions

    • 3D LUT
    • Anamorphic De-Squeeze
    • Cine Frame Guides
    • Display Flip
    • False Colour
    • Focus Peaking
    • Frame Grab
    • Grid Markers
    • Isolate Colour Channel
    • Onion Skin Overlay
    • RGB Parade
    • Safe Areas
    • Social Frame Guides
    • Vectorscope
    • Waveform
    • Zebra
    • Zoom

  • Atomos SHOGUN CONNECT 7" Network-Connected HDR Video Monitor & Recorder 8Kp30/4Kp120
  • AtomX SSD Mini Handle
  • MasterCaddy III with Screws
  • Wi-Fi Antenna
  • RF Antenna
  • Antenna Storage Pouch
  • Antenna Colored Caps
  • Antenna Mount Covers
  • 3.5mm Audio Cable
  • Power Supply
  • Screen Cloth
  • Protective Pouch (7")

    • Display

    Panel Type IPS-Type LCD
    Display Size 17.8 cm
    Resolution 1920 x 1200
    Aspect Ratio 16:9
    Touchscreen Yes
    Image Controls Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra

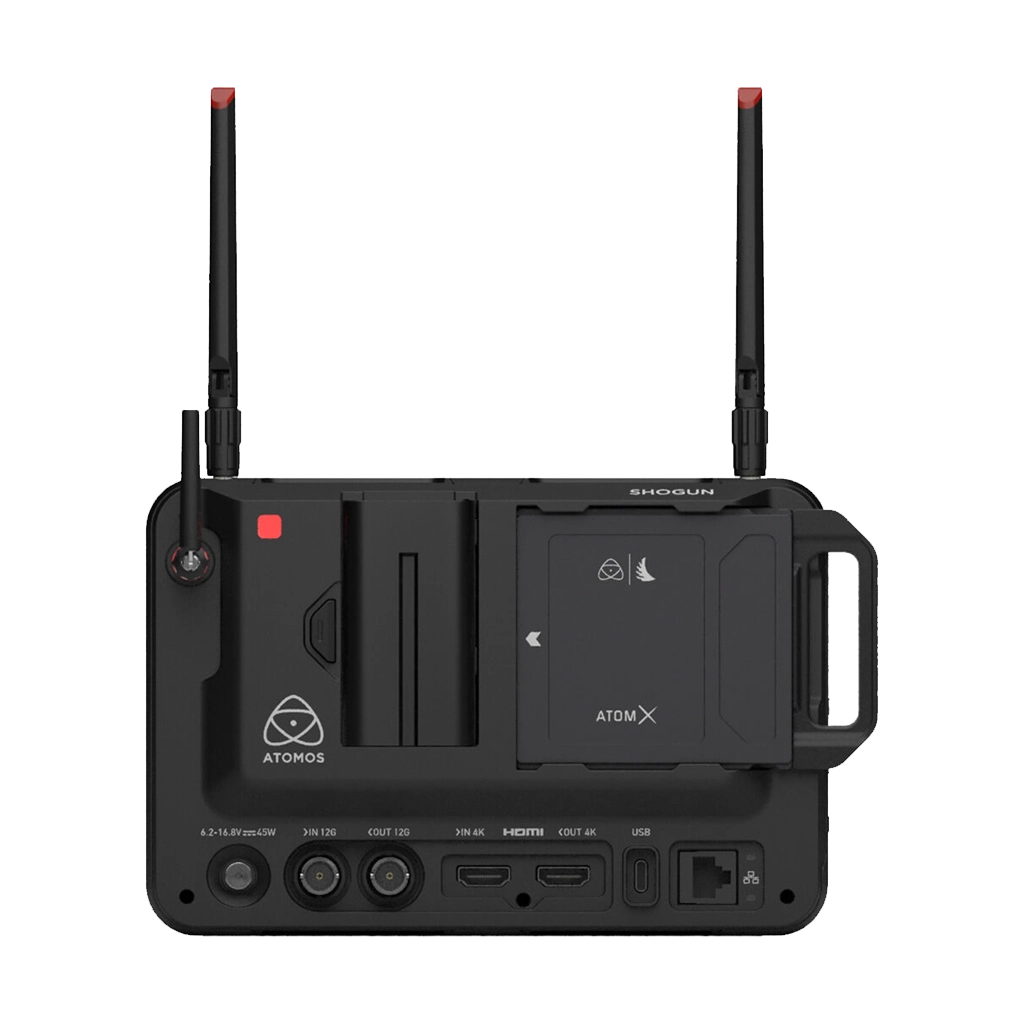

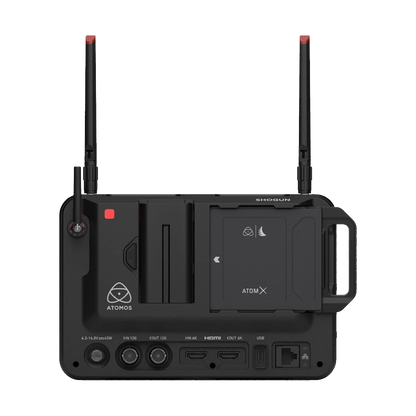

    I/O

    Antenna Ports 2 x F-Type
    Video 1 x HDMI Type A (HDMI 2.0) Input
    1 x BNC (12G-SDI) Input
    1 x HDMI Type A (HDMI 2.0) Output
    1 x BNC (12G-SDI) Loop Output
    1 x BNC (12G-SDI) Monitor Output
    Embedded Audio HDMI: 8-Channel
    SDI: 12-Channel
    Audio 1 x 3.5 mm Headphone Output
    1 x 3.5 mm Input
    1 x 3.5 mm Output
    Power I/O 1 x Barrel Input
    Other I/O 1 x LANC (2.5 mm) Input
    1 x Serial (USB Type-C) Input
    1 x Gigabit Ethernet (RJ45) Input
    Media/Memory Card Slot None
    SIM Card Slots None
    File System Support exFAT
    Encryption None

    Wireless

    Wireless Range 300 m
    15 m (Line-of-Sight)
    # of Channels 12
    Latency None
    Wi-Fi Wi-Fi 6 (802.11ax)

    Format Support

    Video Format HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)
    DCI 4K: 60
    UHD 4K: 60
    DCI 2K: 60
    1080p: 120
    1080i: 60/50
    720p: 60
    Audio Format 24-Bit 48 kHz PCM Audio
    Timecode Support Yes

    Power

    DC Input Power 6.2 to 16.8 VDC
    Built-In Battery None
    Battery Type 1 x L-Series

    Mounting

    Mounting 3 x 1/4"-20 Female
    3 x 3/8"-16 Female

    Environmental

    IP Rating None
    Operating Temperature 40°C

    General

    Material of Construction Aluminium, Polycarbonate
    Dimensions 198 x 133 x 40 mm
    Weight 730 g
