Blackmagic Design

Blackmagic Design DeckLink 8K Pro G2 Capture Card

R 16,195.00
R 16,195.00 R 16,195.00
Tax included. Shipping calculated at checkout.

BLA-BDLKHCPRO8K12GG2

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • 8K PCIe Capture and Playback Card
  • Supports SD, HD, UHD, 4K and 8K Formats
  • 4 x Bidirectional 12G-SDI Ports
  • HDMI 2.1 Input and Output
  • 4:2:2/4:4:4. 2D/3D Switchable
  • RS-422 Deck Control
  • HD and 4K at up to 120 fps
  • 64 Channels Embedded in 4K/8K via SDI
  • Compatible with macOS, Windows and Linux

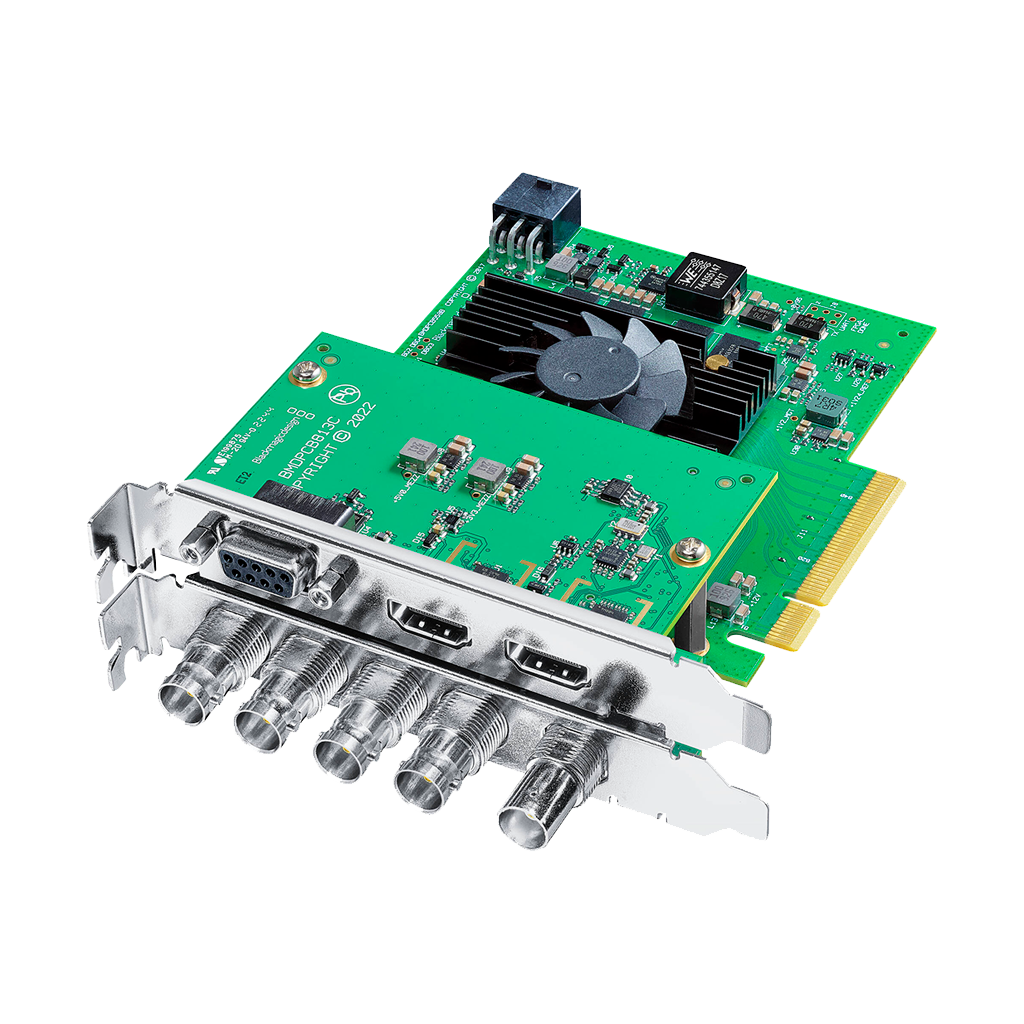

    The Blackmagic Design DeckLink 8K Pro G2 Capture Card is an 8K-capable PCIe capture and playback card with four bidirectional 12G-SDI, one HDMI 2.1 input, and one HDMI 2.1 output. The Blackmagic Design DeckLink 8K Pro G2 Capture Card supports all SD, HD, UHD, 4K, and 8K standards making it ideal for feature film productions. You are now able to configure up to four video streams in any direction, format, or frame rate, up to DCI 4K60.

    The Blackmagic Design DeckLink 8K Pro G2 Capture Card supports 8- and 10-bit YUV 4:2:2 as well as 10- and 12-bit RGB 4:4:4 with full Rec. 2020 color. You are able to work at up to 120 fps in HD and 4K, and up to 60 fps in 8K. The four 12G-SDI connections also support up to 64 channels of embedded audio.

    Compatible with Various Software Applications

    Including: DaVinci Resolve, Fusion, Final Cut Pro, Adobe Premiere Pro, Avid Media Composer, Adobe After Effects, Avid Pro Tools, Steinberg Cubase, Autodesk Flame, Adobe Photoshop, Steinberg Nuendo, Open Broadcaster Software Studio, vMix, The Foundry Nuke, Grass Valley Edius X, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Resolume Arena, Vegas Creative Software Vegas Pro & Vegas Edit, Corel VideoStudio Pro, CyberLink PowerDirector, VidblasterX Studio & Broadcast, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Nautilus Studio NEMO3D, Derivative TouchDesigner, Assimilate Scratch & Live Assist, Burst Video WebClip2Go & [REC]Marker, NewBlue Title Live & Titler Pro, SGO Mistika, and Zoom.

    Please Note: These are third-party applications and support may vary. Check with your software vendor to verify compatibility.

    • Blackmagic Design DeckLink 8K Pro G2 Capture Card
    • HDMI 2.1 Mezzanine Card
    • Power Cable
    • Set of Spacers and Screws
    • Welcome Wallet with QR Code for Software Download

    Video I/O
    Input/Output
    4x BNC (12G-SDI) Female
    Input
    1x HDMI 2.1 Female
    Output
    1x HDMI 2.1 Female
    Other I/O
    Input
    1x BNC (Blackburst)
    Input
    1x DE-9/DB-9 (RS-422)
    Format Support
    Video Resolution
    BNC Input/Output (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV)
    8192 x 4320 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
    7680 x 4320 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
    4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps
    3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/96/100/119.88/120 fps
    2048 x 1080PsF at 50/59.94/60 fps
    2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/96/100/119.88/120 fps
    1920 x 1080PsF at 50/59.94/60 fps
    1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/96/100/119.88/120 fps
    1920 x 1080i at 50/59.94/60 fps
    1280 x 720 at 50/59.94/60 fps
    720 x 480i at 59.94 fps
    720 x 576i at 50 fps
    HDMI Input/Output (8/10/12-Bit 4:4:4/4:2:2/4:2:0)
    8192 x 4320 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
    7680 x 4320 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
    4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/95/96/100/119/120 fps
    3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/95/96/100/119/120 fps
    1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/95/96/100/119/120 fps
    1920 x 1080i at 50/59.94/60 fps
    1280 x 720 at 50/59.94/60 fps
    720 x 480i at 59.94 fps
    720 x 576i at 50 fps
    Audio Format
    Unspecified Digital Signal Input/Output: 48 kHz / 24-Bit
    Embedded Audio
    SDI Input: 64-Channel
    SDI Output: 64-Channel
    HDMI Input: 32-Channel
    HDMI Output: 32-Channel
    Standards
    Video Standard Compliance
    SMPTE: 259M/274M/292M/296M/372M/424M/425M/425M-A/425M-B/2048-1/ST 2081-10/ST 2082-11/ST 2082-12
    HDR Support
    Yes, Hybrid Log Gamma
    Broadcast System Compatibility
    NTSC, PAL
    OS Compatibility
    macOS 13.0 or Later
    Windows 10 or Later (64-Bit Only)
    Linux
    Power
    Power Consumption
    30 W
    General
    Operating Conditions
    5 to 50°C up to 90% Humidity
    Storage Conditions
    -20 to 60°C up to 90% Humidity
    Dimensions
    16.28 cm
    Weight
    295 g
