Blackmagic Design

Blackmagic Design DeckLink 8K Pro Mini Capture Card

R 14,995.00
R 14,995.00 R 14,995.00
Tax included. Shipping calculated at checkout.

BLA-BDLKHCPRO8K12GMINI

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • Low-Profile Capture/Playback Card
  • 8-Lane PCIe Gen3 I/O Card
  • 4 x Multi-Rate Bidirectional 12G-SDI
  • Supports 8K and DCI 8K up to 60 fps
  • Single/Dual/Quad Link 4:4:4/4:2:2 Signal
  • Compatible with Mac, Windows, and Linux
  • Supports Most Major NLE/FX/Imaging Apps

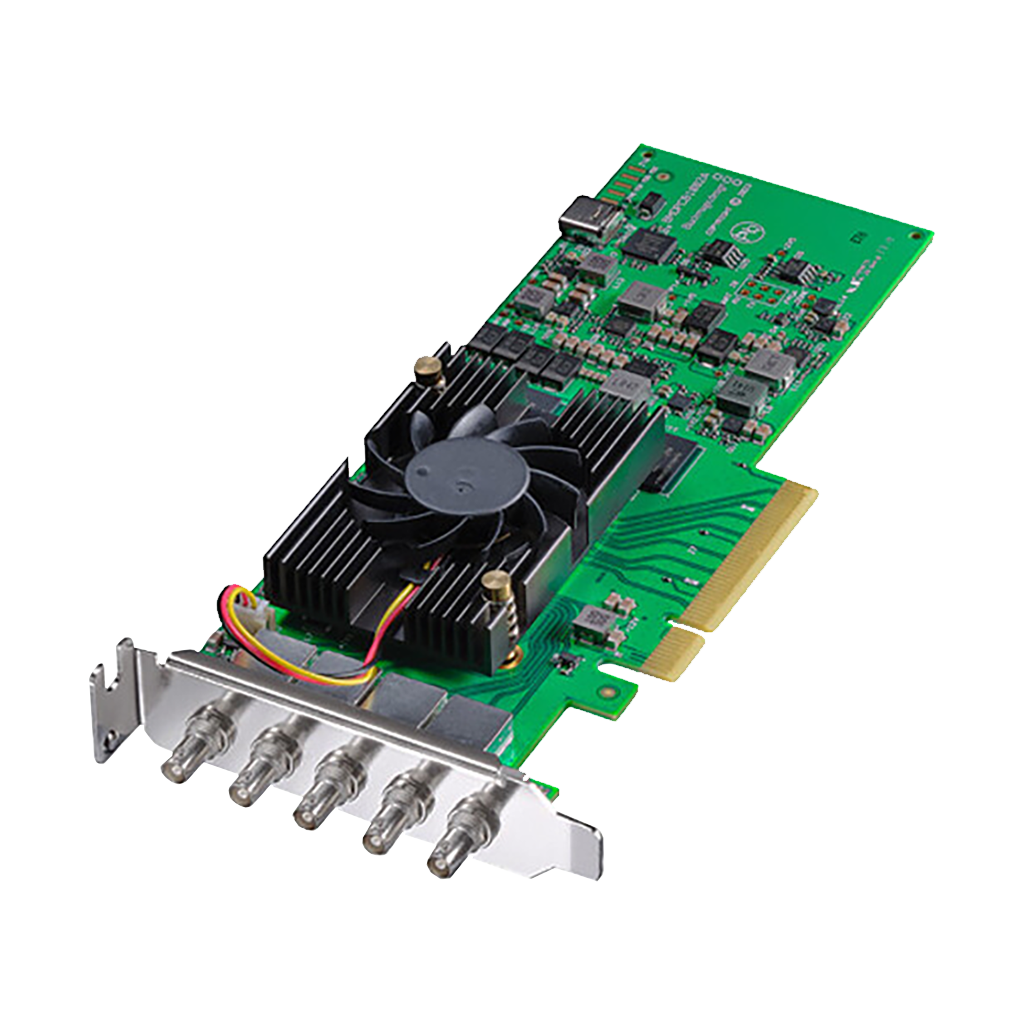

    The Blackmagic Design DeckLink 8K Pro Mini Capture Card features a low-profile design with an 8-lane PCIe Gen 2 interface. This cinema capture and payback card offers you four bidirectional 12G-SDI micro-BNC connectors that accept resolutions from SD, DCI 4K (4096 x 2160), and DCI 8K at up to 60 fps. You also have 8- and 10-bit YUV and 8-, 10-, and 12-bit RGB colour.

    Each of the four 12G-SDI connections on the Blackmagic Design DeckLink 8K Pro Mini Capture Card supports 16 channels of embedded audio, this gives you a total of 64 channels. The 8K Pro DeckLink is perfect for the next-generation high-resolution, high frame rate and high dynamic range workflow.

    Bidirectional Connections

    The bidirectional 12G-SDI connections can be used for quad link 8K, single or dual link 4K, UHD 4K, HD, and even SD. You can even capture and playback simultaneously.

    Great for Post Production

    Work with any video format and resolution that you need. DeckLink cards let you capture from cameras, decks, and live feeds directly into editing, effects, and design software applications such as DaVinci Resolve.

    Superior Video Quality

    With the Deck Link 8K Pro Mini you are able to work with compressed video formats such as the ProRes and DNxHD along with 10-bit uncompressed YUV and 12-bit RGB video.
    You now have the confidence that you are working at the absolute highest quality possible. Get sharper keying with green screens, cleaner compositions, superior colour correction, and more.

    Advanced Technology

    The Blackmagic Design DeckLink 8K Pro Mini Capture Card offers you the latest 12G-SDI technology enabling you to capture and playback in full-resolution UHD 4K, 4K, 8K. This all while still fully compatible with all SD and HD-SDI equipment.

    Supported Operating Systems

    • Mac 12.0 Monterey
    • Mac 13.0 Ventura or later
    • Windows 10, 64-bit
    • Windows 11
    • Linux

    Supported Software Applications

    • DaVinci Resolve
    • Fusion
    • Final Cut Pro
    • Adobe Premiere Pro
    • Avid Media Composer
    • Adobe After Effects
    • Avid Pro Tools
    • Steinberg Cubase
    • Autodesk Flame
    • Adobe Photoshop

    Other Third-Party Apps Supported

    Steinberg Nuendo, Open Broadcaster Software Studio, vMix, The Foundry Nuke, Grass Valley Edius X, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Resolume Arena, Vegas Creative Software Vegas Pro & Vegas Edit, Corel VideoStudio Pro, CyberLink PowerDirector, VidblasterX Studio & Broadcast, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Nautilus Studio NEMO3D, Derivative TouchDesigner, Assimilate Scratch & Live Assist, Burst Video WebClip2Go & [REC]Marker, NewBlue Title Live & Titler Pro, SGO Mistika, Zoom, and more.

    Blackmagic Design DeckLink 8K Pro Mini Capture Card

    Inputs / Outputs
    System Connection
    PCIe 3.0 x8
    Inputs/Outputs
    4x Micro-BNC (12G-SDI) Female (Switchable)
    Audio Inputs
    No
    Other I/O
    1x BNC Reference Input
    Simultaneous Multi-Input Support
    Yes
    Format Support
    Input Video Format
    BNC (8/10/12-Bit 4:4:4/4:2:2 RGB)
    DCI 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
    8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
    DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
    UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps
    DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps
    DCI 2KPsF at 23.98/24/25/29.97/30 fps
    1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps
    1080PsF at 23.98/24/25/29.97/30 fps
    720p at 50/59.94/60 fps
    576i / 625 lines at 50 fps
    480i / 525 lines at 59.94 fps
    Input Audio Format
    LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
    Output Video Format
    SDI (8/10/12-Bit 4:4:4/4:2:2 RGB)
    DCI 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
    8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
    DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps
    UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps
    DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps
    DCI 2KPsF at 23.98/24/25/29.97/30 fps
    1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps
    1080PsF at 23.98/24/25/29.97/30 fps
    720p at 50/59.94/60 fps
    576i / 625 lines at 50 fps
    480i / 525 lines at 59.94 fps
    Output Audio Format
    LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
    Embedded Audio
    SDI Input: 64-Channel
    SDI Output: 64-Channel
    Standards
    Video Standard Compliance
    SMPTE 259M/274M/292M/296M/372M/424M/ST-2036-1/ST-2048/ST-2081-10/ST-2081-11/ST-2082-1/ST-2082-10/ST-2108-1
    HDR Support
    ,
    Hardware
    OS Compatibility
    macOS 12 or Later
    macOS 13
    Windows 11 or Later (64-Bit Only)
    Windows 10 or Later (64-Bit Only)
    Linux
    Power Consumption
    Device: 18 W
    Environmental
    Operating Temperature
    5 to 50°C
    Storage Temperature
    -20 to 60°C
    Operating Humidity
    0 to 90% ()
    Storage Humidity
    0 to 90% (Non-Condensing)
    General
    Dimensions
    180.3 mm
    Weight
    120 g
