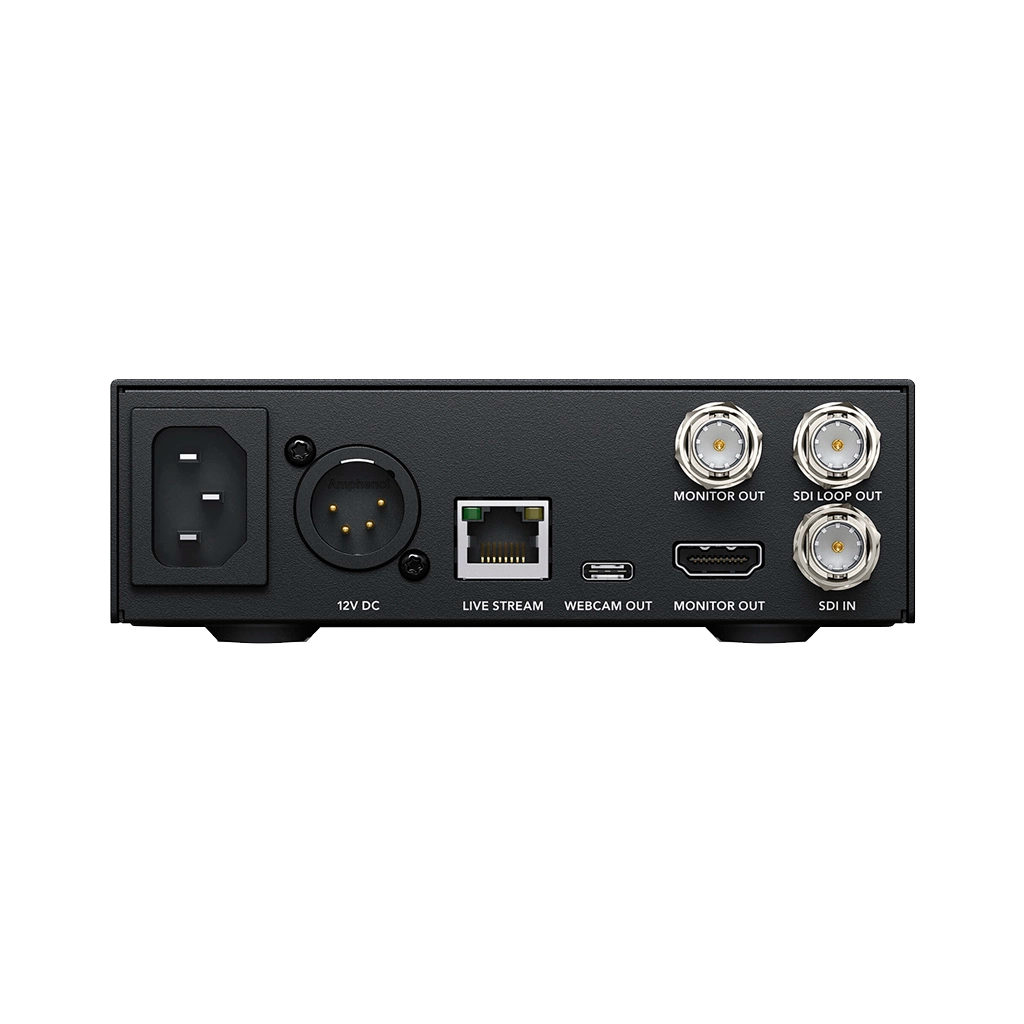

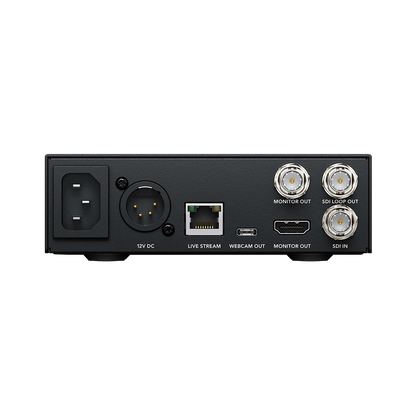

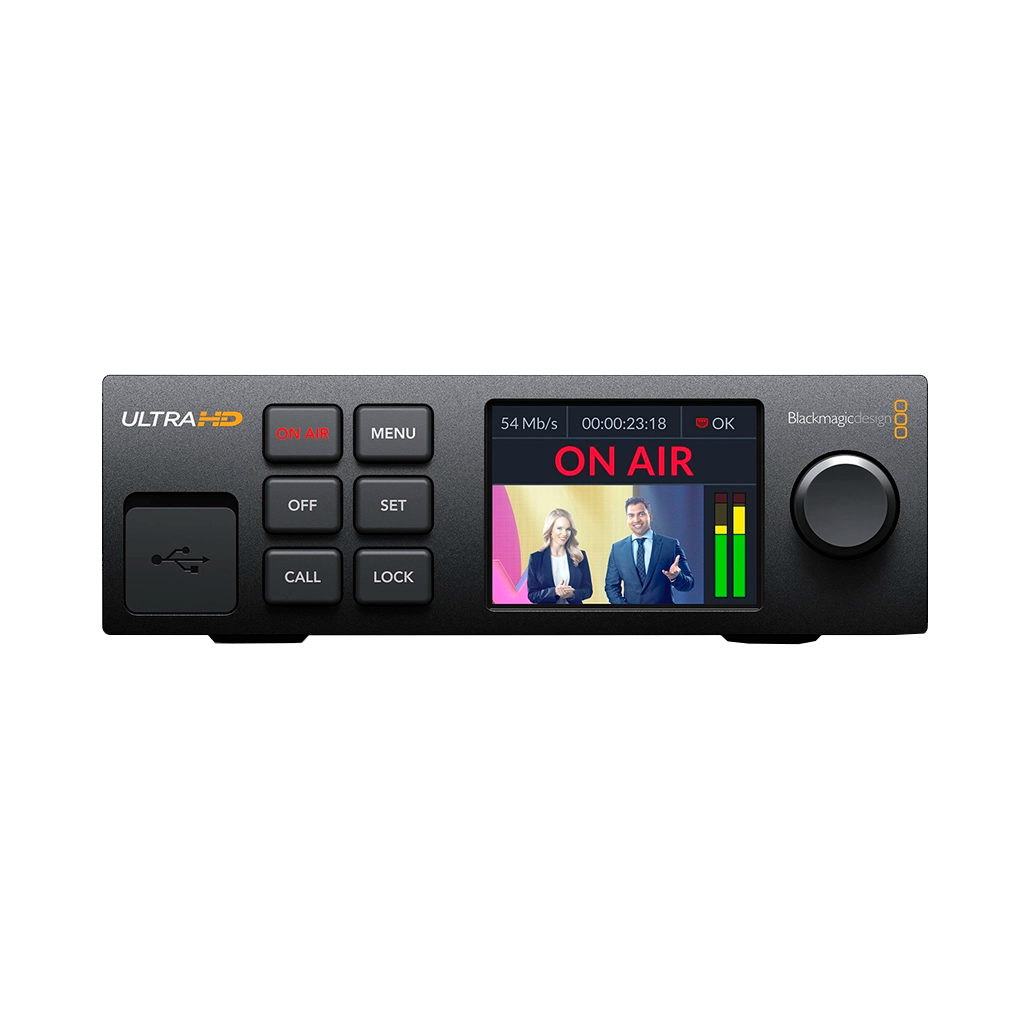

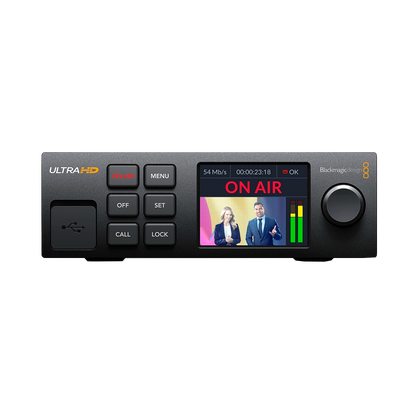

BlackMagic Design Web Presenter 4K

R 14,995.00
R 14,995.00 R 14,995.00
Tax included. Shipping calculated at checkout.

BLA-BDLKWEBPTR4K

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • Live Stream 4K Video to Internet
  • Input 12G/6G/3G-SDI Video up to UHD 4K
  • SDI/HDMI Monitor Output up to 1080p60
  • Supports H.264/RTMP Streaming Protocol
  • Use USB Type-C as Webcam or 5G/4G Tether
  • SDI Loop Output, 10/100/1000 Ethernet
  • Redundant AC and DC Power Inputs
  • Mac, Win, Linux & Chromebook Compatible
  • Works with ATEM Streaming Bridge Option
  • Includes Power Cord

    The BlackMagic Design Web Presenter 4K gives you the ability to upload live streams straight to the internet. This device allows yo to connect ant SDI video input and stream it live to the internet, using Ethernet or tethering via USB to your smartphone using a 5G or 4G connection.
    The SDI and HDMI monitor outputs allows you to see a wide range of live status information along with live broadcasting. Using the USB-C port to connect any video USB source to be able to stream live 4K video and audio to Skype, YouTube Live, Facebook Live, and much more.

    The BlackMagic Design Web Presenter 4K can be used with the BlackMagic ATEM Streaming Bridge to decode streams back to HDMI or SDI signals for more touring options. This unit also includes a power cable.

    Input any SDI Signal

    The BlackMagic Design Web Presenter 4K allowing the user to input any 12G/6G/3G/HD-SDI video source up to UHD 4K.

    4K Output

    The USB-C outputs supports UHD 4K video and down-convert 4K video in the case you are streaming in HD and vice versa.

    Monitor options

    The built in SDI and HDMI monitor outputs allow the user to see the input as well as accurate audio levels, on air status as well as data rate and cache levels.

    • Blackmagic Design Web Presenter 4K
    • Power Cable

    IP Encoding/Decoding

    IP Video 3840 x 2160 to 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding
    1280 x 720 at 50p, 59.94p, 60p Encoding
    Simultaneous Streams 1 Streams
    Compatible Services Facebook Live, Skype, Twitch, YouTube Live

    Interfaces

    Video Connectors 1 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input
    1 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Loop Output
    1 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Monitor Output
    1 x HDMI Monitor Output
    1 x USB Type-C (USB Video) Output
    Other I/O 1 x RJ45 10/100/1000 Ethernet Input/Output
    Embedded Audio SDI/USB Type-C

    Power

    Power Connector 1 x 4-Pin XLR (12 VDC) Input
    1 x NEMA 5-15R Input
      Includes Power Cable
    Power Consumption Device: 100 to 240 VAC (25 W)
    Device: 12 VDC (25 W)

    Environmental

    Operating Temperature 0 to 40°C
    Operating Humidity 0 to 90%
    Storage Temperature -20 to 45°C

    General

    Display LCD
    Rackmount Size 1 RU (1/3-Rack)
    Dimensions 17.5 x 14 x 4.45 cm
    Weight 750 g
