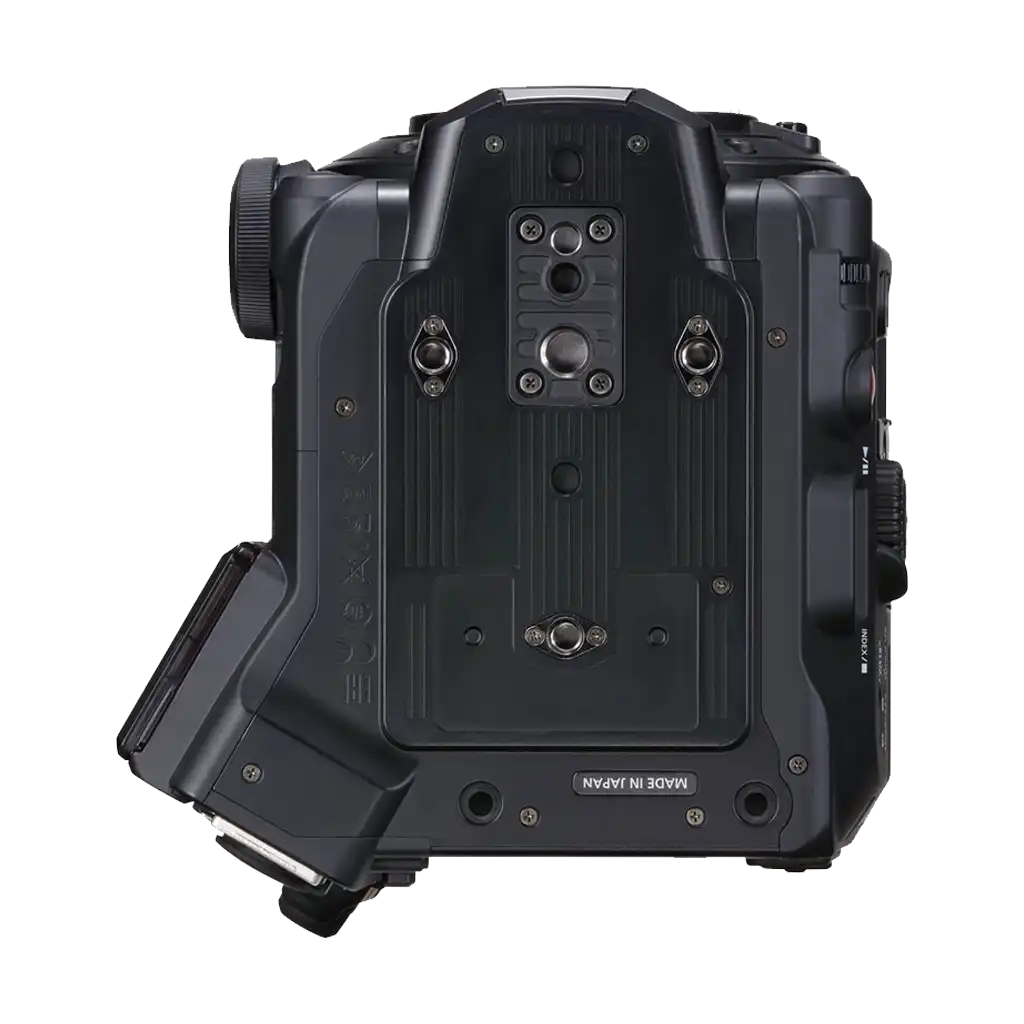

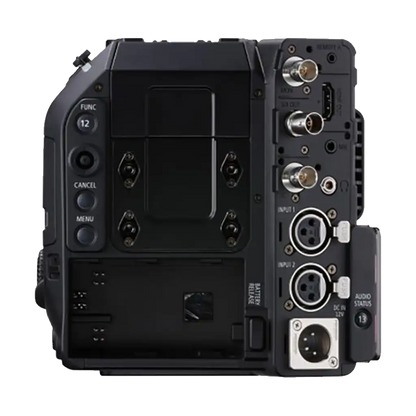

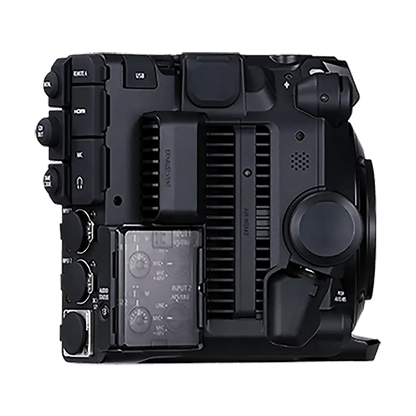

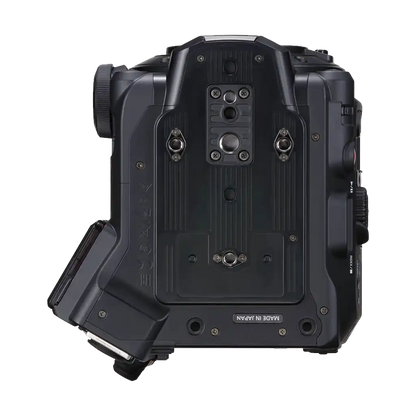

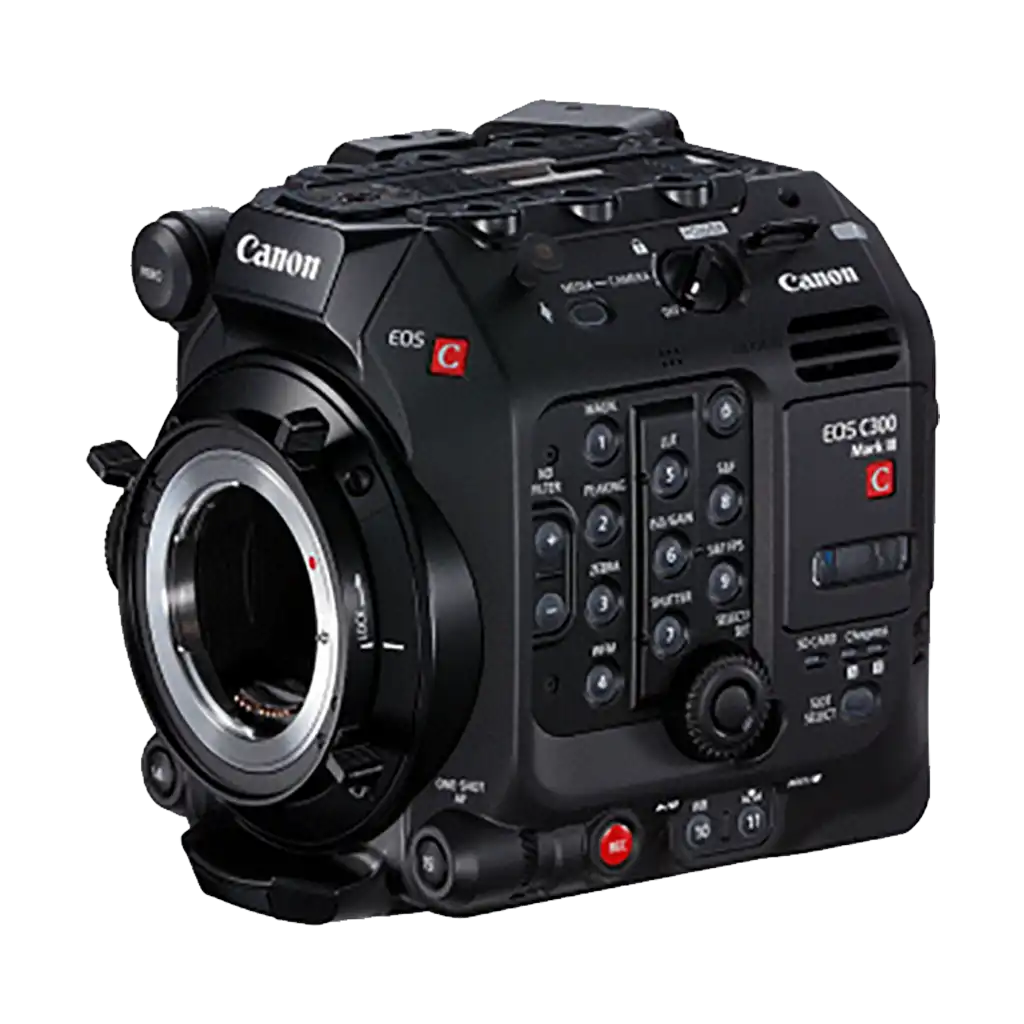

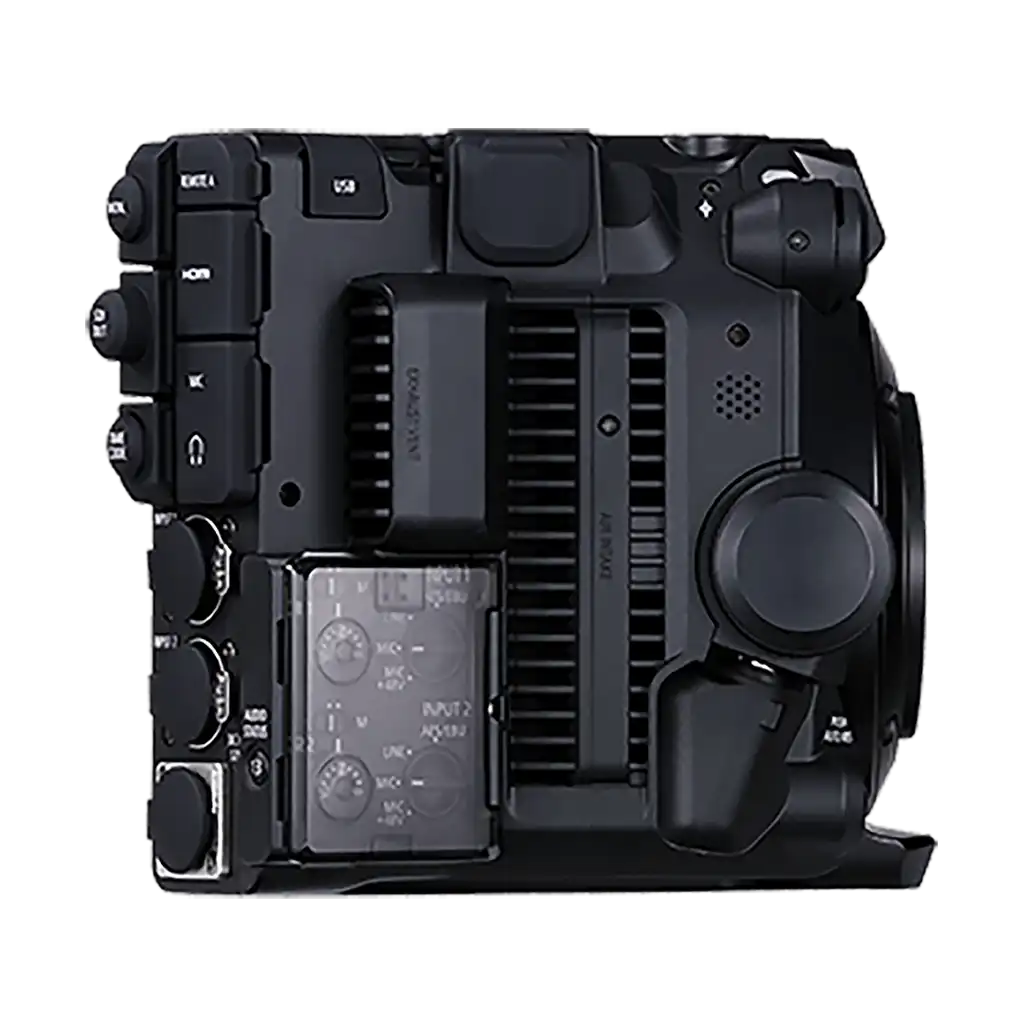

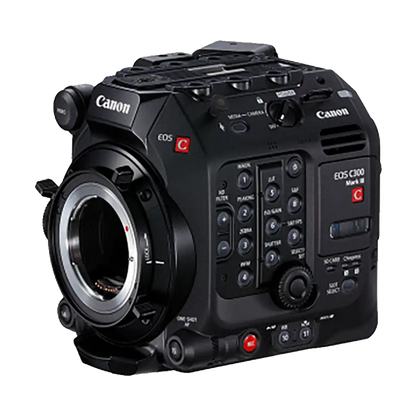

Canon EOS C300 Mark III Digital Cinema Camera Body (EF Lens Mount)
3795C003AA
Couldn't load pickup availability
Sorry, it's out of stock.
But we can let you know when it's back in.
SHORT DESCRIPTION
SHORT DESCRIPTION
The Canon EOS C300 Mark III Cinema Camera is a complete game changer, and professional 4K cinema video camera that features a durable, powerful and easy-to-use design. The durable C300 Mark III sports the next generation Super 35mm Dual Gain Output (DGO) Sensor along with its powerful DIGIC DV7 image processor specifically designed for high bit rate 4K video capture; however, it also delivers stunning image quality with high sensitivity, low noise and astonishing detail.
Key features to this powerhouse, is that it captures remarkable 4K/Full HD video offering rates up to 120 fps in 4K video recording, while 2K CROP mode provides even greater flexibility with speeds of up to 180 fps, and it delivers incredible 16 stops of Dynamic Range, which is also compatible with Canons exclusive Dual Pixel CMOS Autofocus technology. The power image sensor utilises its technology by combining images via pixels shot with a saturation-prioritising amplifier for bright areas and a lower-noise noise-prioritising amplifier for the darker areas. The advanced DIGIC DV7 image processor is also the main engine behind its powerful features such as high frame recording, its Dual Gain Output (DGO), Cinema Raw Light Recording, Electronic Image Stabilisation, Dual Pixel Autofocus, and proxy recording. In addition to the standard Intra-based XF-AVC codecs, Canon has also added a 4:2:2 10-bit Long GOP-based codec with consideration for a balance of quality and data rates.
Other features include both Canon Log 2 and Canon Log 3 Gamma which is great for post-production as it provides the most post-production flexibility and full dynamic range of the sensor when utilising Canon Log 2. However, Canon Log 3 provides an alternative with only a slightly reduced dynamic range of 14 stops; 5-Axis Electronic Image Stabilisation; Dual Pixel CMOS AF technology for both Touch AF and Face Detection; a large LM-V2 4.3 LCD Screen with approx. 2.76m-dots; 4-Channel Audio Recording allowing input from the cameras internal microphone, mini mic port, and XLR ports; and the option of uploading and applying custom LUTs to the Canon EOS C300.
Enhanced Canon Super 35mm Dual Gain Output (DGO) Sensor
The latest Canon EOS C300 Camera is equipped with an advanced sensor, Canons next generation Super 35mm Dual Gain Output (DGO) Sensor. The enhanced sensor is carefully designed for high dynamic ranges in excess of 16 stops and is also compatible with Canons exclusive Dual Pixel CMOS Autofocus technology. It generates high dynamic range and also ensures really low noise levels by reading out each pixel with different grains.
Powerful DIGIC DV7 Image Processor
Powered into this powerhouse is Canons cutting-edge DIGIC DV7 image processor that contributes to many of its advance functions such as high frame recording, its Dual Gain Output (DGO), Cinema Raw Light Recording, Electronic Image Stabilisation, Dual Pixel Autofocus, and proxy recording. The powerful DIGIC DV7 Image Processor also takes the extensive RAW information thats being captured from the imaging sensor and then processes it for output.
Remarkable 4K Video Capture with High Frame Rates
The Canon EOS C300 Mark III Cinema Camera is specifically designed to capture only but the best of video, allowing you to capture ultra-high frame rates with its new chip design and DIGIC DV7 image processor. The C300 enables videographers to capture 4K video with frame rates of up to 120 fps, while 2K CROP mode will provide you with even greater flexibility with impressive speeds of up to 180 fps.
Canon Log 2 and 3 Modes
Incorporated into the professional Canon C300 Mark III are both Canon Log 2 and Canon Log 3 Gamma modes, which is great for taking into post-production letting you have full control over editing your video footage such as colour grading and more. The Canon Log workflows provide you with greater dynamic range, and more highlights and shadow retention. Canon Log 2 will provide you with the largest dynamic range and image detail of the sensor; while Canon Log 3 will provide an alternative with only a slightly reduced dynamic range of up to 14 stops.
Large LM-V2 4.3 LCD Touch Screen
For improved viewing and operation, the C300 Mark III Cinema Camera from Canon is equipped with a Large LM-V2 4.3 LCD Touch Screen with approx. 2.76m-dots. The screen will ensure enhanced viewing when wanting to change camera settings or for playback purposes. Additionally, The LCD monitor is capable of adjusting to different viewing positions.
4-Channel Audio Recording
Built-in to the cinema camera are 4 audio inputs, meaning 4-channel audio recording. The C300 Mark III Camera allows audio input from the cameras internal microphone, the mini mic port, and XLR ports which will enable a variety of audio devices to be connected and mixed directly on the camera.
Support for Custom User LUTs
Add your own LUTs and applying them by easily uploading them to the Canon EOS C300 Mark III camera. These LUTs can then be assigned to specific output terminals, the LCD and the viewfinder. While viewing one LUT, production works from another, giving different production roles the ability to easily then customise the look of the image according to their needs.
Canon Cinema RAW Light and XF-AVC Recording
Advanced functions just keep coming in on the C300 Mark III camera, the camera can record Cinema RAW Light directly to onboard CFexpress cards all thanks to its powerful DIGIC DV7 Image Processor. This offers plenty of freedom for grading with a dynamic range that can exceed 16 stops with Dual Gain Output technology. The Cinema RAW Light from Canon also offers users with an extremely great combination of codec efficiency and the best of quality. Something new thats been added to the Canon C300 Mark III is the new 4:2:2 10-bit Long GOP-based codec with consideration for a balance of quality and data rates, which is ideals and easier for users to reduce media cost and to work with cloud-based infrastructures.
Dual Pixel CMOS Autofocus with support for Touch AF and Face Detection
Canon has packed a powerful Dual Pixel CMOS Autofocus feature in the Canon EOS C300 Mark III, which is sensor based, phase detection autofocus technology leading to smooth, high-performance focus tracking and achieving rapid autofocus that can be achieved with the support for Touch AF and Face Detection. With the unique Canon-developed technology that utilises two photo diodes per pixel for autofocus and then combines them for recording high-quality video. Additionally, this also enables precise focus to be maintained, even when shooting moving subjects, which is vital for 4K UHD capture.
Other Features:
- Anamorphic Lens Support
- Proxy Recording - Higher resolution, greater bit depths, and faster frame rates.
- 5-Axis Electronic Image Stabilisation
- 12G-SDI Support
- RC-V100 Support and LANC Compatible
- Canon LA-V2 LCD Attachment Unit
- Canon Single Battery Charger for EOS C300 Mark II, C200, and C200B Batteries
- Canon BP-A60 Battery Pack For EOS C300 Mark II, C200, and C200B
- Canon UN-5 Unit Cable for Canon EOS C200, C300 Mark II, C700, and XC15 (20"')
- Handle Unit
- Extension Unit Attachment Bracket
- SS-1200 Shoulder Strap
- Compact Power Adapter CA-CP200 B
- AC Power Cable
- Power Cord US
- Thumb Rest
- Microphone Holder Unit
- M4 Screw for Microphone Holder
- 1/4" Wrench
- M3 Wre
Image Sensor
Sensor
Super 35mm CMOS sensor
System
RGB primary colour filter (Bayer array)
Sensor Modes
Super 35 mm / Super 16 mm (Crop)
Total Pixels
Approx. 9.6 megapixels (4206 x 2280)
Effective Pixels
Approx. 8.85 megapixels (4096 x 2160): When 4096 x 2160 or 2048 x 1080 is selected as the resolution
Approx. 8.29 megapixels (3840 x 2160): When 3840 x 2160 or 1920 x 1080 is selected as the resolution
Effective Sensor Screen Size
Super 35 mm;
26.2 x 13.8 mm (29.6 mm on the diagonal): When 4096 x 2160 or 2048 x 1080 is selected as the resolution
24.6 x 13.8 mm (28.2 mm on the diagonal): When 3840 x 2160 or 1920 x 1080 is selected as the resolution
Dynamic Range
Canon Log 2: 1600% / 16+ stops**
Canon Log 3: 1600% / 14 stops**
Wide DR: 800% (at ISO 400)
**At ISO800/Dual Gain Output: On
Image Processor
Type
DIGIC DV7
Lens
Lens Mount
Canon EF Mount. User changeable to EF Mount with Cinema Lock or PL Mount
B4 mount lens via adapter accessory (EF or PL)
Lens Magnification factor (for EF Mount lenses, including Cinema Primes)
Super 35 mm;
4096 x 2160 (RAW), 4096 x 2160, or 2048 x 1080
resolution: Actual focal length x approx. 1.460
3840 x 2160 or 1920 x 1080
resolution: Actual focal length x approx. 1.534
Super 16 mm (Cropped);
2048 x 1080 resolution: Actual focal length x approx. 2.920
1920 x 1080 resolution: Actual focal length x approx. 3.069
Changeable Lens Mount
Yes, User changeable to EF with Cinema Lock or PL Mount
Peripheral illumination correction
YES (dependent on lens used)
ND filter
Up to 10 stops via built in ND filter system (in extended mode)
Focus control
EF Mount: Via lens, wireless control or wired remote (dependent on lens used)
PL Mount: Only Cine Servo lenses
Iris control (EF mount lenses)
Via body, grip, wireless control or wired remote.
1/2-stop, 1/3-stop or FINE control.
Possible to maintain constant F-number during zoom.
Cooke/I Technology Support
Yes (PL Mount only after mount change)
Anamorphic Lens Support
Yes, x2.0/x1.3
Image stabilization system
Optical depending on lens used, Digital 5-Axis IS for non IS lenses. Combination of Optical IS and Digital IS to give combined 5-Axis IS
Recording
Internal Recording
CFexpress card x2 for Cinema RAW Light or XF-AVC/MXF, SD card for XF-AVC Proxy recording
SD card also used for Photo Storage (Up to 4096 x 2160), CP setting transfer and firmware update,
Recording time (Cfexpress card, 512GB) Approx.
Cinema RAW Light: 4096 X 2160: 1 Gbps: 64 Mins
2048 X 1080: 250 Mbps 256 Mins
XF-AVC/MXF: 4096 X 2160: 810 Mbps 79 Mins/410 Mbps 156 Mins
2048 X 2160: 310 Mbps 207 Mins/160 Mbps 401 Mins
Recording Formats
Cinema RAW Light (CRM), XF-AVC (MXF) ALL-I or Long GOP
System Frequency/ Frame Rates
59.94Hz mode (59.94P / 59.94i / 29.97P / 23.98P)
50.00Hz mode (50.00P / 50.00i / 25.00P)
24.00 Hz mode (24.00P)
Cinema RAW Light Bit Rate/Bit Depth (PAL)
4096 X 2160: 50.00P, 1 Gbps 10-bit/25.00P, 1Gbps 12-bit
2048 X 1080: 50.00P, 250Mbps 10-bit/25.00P 250 Mbps 12-bit
XF-AVC Recording Bit Rate/ Sampling (PAL)
4096 X 2160/3840 X 2160: 50.00P YCC 4:2:2 10-BIT 810 Mbps/25.00P YCC 4:2:2 10-bit 410 Mbps
2048 X 1080/1920 X 1080: 50.00P YCC 4:2:2 10-BIT 310 Mbps/25.00P YCC 4:2:2 10-bit 160 Mbps
XF-AVC Proxy Recording Bit Rate/ Sampling (PAL) To SD Card
2048 X 1080: 50.00P, YCC 4:2:0 8-bit 35 Mbps/25.00P, YCC 4:2:0 8-bit 24 Mbps Long GOP
Slow/Fast motion
Yes,
Cinema RAW Light 4096 x 2160: 12 - 120 FPS/2048 x1080/ 12 -120 FPS
XF-AVC: 4096 x 2160: 12 - 120 FPS/2048 x1080/ 1920 x 10890(2K/ Super 16mm) 12 -180 FPS
Proxy files recorded at same frame rate
Interval Record
No
Frame Record
No
Pre Record (cache record)
Yes, 3 seconds
Relay Recording
Yes
Double Slot (simultaneous) Recording
Yes
Scan Reverse
Yes
HD->SD conversion
No
Photo storage media
SD/SDHC memory card
Photo Recording Size
4096x2160/3840x2160/2048x1080/1920x1080
System
Wave Form Monitor
Yes. Via MON.1/2, VIDEO or HDMI Terminals (Not available from SDI Out 1 -4)
Line Display/Line and Spot/Line Select/Field Display/RGB Display/YPrPb. HDR PQ output supported.
False Colour Display (Exposure Indication)
Yes. Via MON.1/2, VIDEO or HDMI Terminals
Colour Bars
SMPTE, EBU and ARIB colour bars available. See the menu.
Peaking
Peaking 1, Peaking 2 (Colour, Gain, Frequency customisable)
Zebra
Markers
On/Off selectable: center, horizontal, grid, aspect, safety zone, and rectangular marker. Colour selectable, yellow, blue, green, red, black, gray or white.
EVF
Built- In EVF
No
Optional EVF Accessory
Yes. OLED Electronic Viewfinder, EVF-V50 or EVF-V70
Inputs/Outputs
Audio in
XLR 3-pin connector x2, 3.5 mm stereo mini jack (input only)
Input 1 and 2 on camera body. Additional 2x 3-Pin XLR on optional Expansion Unit EU-V2 (Input 3 and 4)
Headphone output
3.5 mm stereo mini jack (output only, Camera Body).
Video monitor output
MON.: BNC jack, (output only, Camera Body).
HDMI
HDMI connector (type A) (output only, Camera Body).
USB
Yes, Input only, Camera Body. (GP-E2 connection)
SDI output
BNC jack 1 x 12G-SDI Out (output only, Camera Body).
Time code
BNC jack (input/output, Camera Body).
Genlock
Yes with optinal Expansion Unit EU-V1 and EU-V2. BNC jack (input only/also serves as SYNC OUT connector)
Sync
BNC jack (output only/also serves as GENLOCK connector)
Component out
No
AV terminal
No
DC Output
Yes, with optional EU-V2. DC 24V 2A jack Fischer 3-pin jack (output only),
D-Tap connection, 50W maximum
DC input
XLR 4-pin jack
Remote Control Terminal
REMOTE A connector 2.5 mm stereo mini jack (input only)
REMOTE B connector Round 8-pin jack (for RS-422) with optional EU-V1 or EU-V2
Wireless Control Terminal
Yes
Lens terminal
Yes, with optional EU-V2. 12-pin jack
Ethernet terminal
Yes, with optional EU-V1 and EU-V2. Ethernet connector (RJ45) (supports 1000 BASE-T)
IP Streaming
Yes. Via Ethernet or WiFi connection (TBC) 9 Mbps/4 Mbps:1920 X 1080 (59.94p/59.94i/ 50.00p/50.00i) optional EU-V1 or EU-V2 or WFT-E9 required
User Viewing LUT input
YES
Video connector
Canon’s proprietary specification (special 13-pin jack) for LM-V2 Monitor or optional EVF-V70 viewfinder or LM-V1 monitoror
Misc.
Tally lamp
Yes
Custom Dial
Yes
Exposure
Exposure metering
Manual exposure determined by shutter setting, iris setting, ISO/gain setting and ND filter setting, Push Auto Iris, Auto Iris
Exposure Compensation
Yes
Auto Exposure mode
Auto Iris with compatible lenses
Push Auto Iris
Yes EF model all compatible lenses, PL Version compatible Canon Cine Servo lenses only with 12-pin connection on optional EU-V2
Exposure Lock
No
Auto Gain Control setting
Yes
ISO Sensitivity
1-Stop Display: [100], 160(*), 200, 400, 800, 1600, 3200, 6400, 12800, 25600, [51200,102400]
[---] Displayed when ISO speed expansion is ON. (*) Displayed when ISO speed expansion is OFF
1/3 Stop Display: [100,125], 160, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500,
3200, 4000, 5000, 6400, 8000, 10000, 12800, 16000, 20000, 25600,
[32000,40000,51200,64000, 80000,102400]
[---] When ISO speed expansion is ON.
Auto Focus System (EF Mount)
Dual Pixel CMOS AF, Contrast AF
AF Frame Sizes (EF Mount)
Large; size equivalent to approx. 20% (vertical) x 25% (horizontal) of the image display range
Small; size equivalent to approx. 20% (vertical) x 8% (horizontal) of the image display range
Selectable AF point over 80% horizontal/80% vertical (approx.) of sensor
Auto Focus Modes (EF Mount)
One-Shot AF, Continuous AF and AF-Boosted MF. All modes take effect when the AF/MF switch of the EF lens is at the AF setting.
One-Shot AF, Continuous AF, AF-Boosted MF
Face Detection AF (EF Version Only)
Face Priority or Face Only.
Focus Guide
EF version: All compatible Canon EF lenses, Canon Cine Servo Lenses
Gain setting
[-6dB,-3dB], -2dB(*), 0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, 27dB,
30dB, 33dB, 36dB, 39dB, 42dB, [45dB,48dB,51dB,54dB]
[---] Displayed when ISO speed expansion is ON. (*) Displayed when ISO speed expansion is OFF.
When ISO speed expansion is ON: between -2 dB and 54 dB
When ISO speed expansion is OFF: Any value from -2 dB to 42 dB in 0.5 dB increments can be set.
Shutter
Control Modes
Off; Speed; Angle; Clear Scan (CS); Slow Shutter (SLS)
Shutter speed
1 sec to 1/2000 depending on frame rate and Shutter Control Mode, 39 setting options
Shutter Angle
11.25º to 360º depending on frame rate
Slow Shutter (SLS)
1/3, 1/4, 1/6, 1/8, 1/12, 1/15, 1/25, 1/30 depending on frame rate
Clear Scan
24.00 Hz* to 250.40 Hz
(*) The frequency will differ depending on the frame rate setting.
Custom Picture
Stored Configurations
C1: BT.709 (Wide DR / BT.709 Gamut)
C2: LOG2 (Canon Log 2 / Cinema Gamut)
C3: LOG3 (Canon Log3/Cinema Gamut
C4: PQ (PQ / BT.2020 Gamut)
C5: HLG (HLG/ BT.2020 Gamut)
USER5 to USER20 (Wide DR / BT.709 Gamut)
Colour matrix
Neutral: Accurate colour reproduction
Production Camera: Colour reproduction for use in movie production
Video: Color reproduction equivalent to C300/500 CP-OFF (for commercial cameras)
Master Pedestal
-50 to +50
Master Black
Adjustable for each channel RGB -50 to +50 plus Master Black -50 to +50
Black Gamma
Adjustable Level -50 to +50, Range -20 to +50 and Point -20 to +50
Low Key Saturation
Adjustable: -50 to +50
Knee
Point -50 to +109, Slope -35 to +50, Saturation -10 to +10
Sharpness
Adjustment for Level, H Detail Freq., Coring, HV Detail Balance, Limit, Select, Knee Aperture and Level dependent sharpness
Noise reduction
Off, On (1 to 12)
Skin detail
Off, Low, Middle, High / Hue, Chroma, Area, Luminance. 32 steps
Selective Noise Reduction
Off, Low, Middle, High / Hue, Chroma, Area, Luminance.
Colour matrix
Phase, Gain and RGB adjustment, in tandem with Gamma selection
White balance
AWB, USER setting (setting range: 2000K to 15000K/ -20CC to
+20CC), daylight, tungsten, settings (A/B)
Colour correction
Area selection / area revision of two areas
Setup level
-50 to +50 On/Off
Wi-Fi & GPS Specifications
Wi-Fi (Optional Accessory)
(1) WPS [Wi-Fi Protected Setup] (push-button system, PIN code system)
(2) Manual setup
(3) Search for access points
Open system, WPA-PSK, WPA2-PSK, WEP-64, WEP-128, TKIP, AES, Auto /manual
GPS Information (Optional Accessory)
Latitude/Longitude/Elevation, Coordinated Universal Time (UTC)
White Balance
Auto
YES
Preset
Daylight (5400K), Tungsten (3200K), Kelvin (2000K-15000K, 100K intervals), Set A, Set B
White Balance Matching
Yes, for previous models
White Balance Shift
YES. -9 to +9 (Daylight and Tungsten only)
Black balance
Black balance adjustment
YES
Time code
Count up system
Regen, RecRun, Free Run, External, Hold (Drop frame available for some frame rates)
Start value setting
“00:00:00:00”, Set/Reset selectable
Audio
Recording
Linear PCM (24-bit / 48kHz), 4 channels
Accessories
Supplied
Camera Grip GR-V1, Thumb rest, Mic holder unit [w/ M4 screw], LCD Monitor LM-V2,
LCD Attachment Unit LA-V2, Handle unit, Shoulder strap SS-1200, Battery Charger CG-A20,
Compact power adapter CA-CP200B, AC cable, Battery pack (BP-A60),
Extension System Attachment Bracket, Unit Cable UN-5,
Other: Stopper, Hex Wrenches (M4 and M3), Hex Socket Head Bolt (1/4 in.),
Hex Socket Head Bolt (M3)
Optionals
Canon Battery Pack BP-A30/BP-A60 (provided with camera)
Canon Battery Charger CG-A10/CG-A20 (provided with camera)
Canon Remote Controller RC-V100
Canon Compact Power Adapter CA-CP200B (provided with camera)
Canon Shoulder Strap SS-1200 (provided with camera)
Canon Tripod base TB-1
Canon Wireless Transmitter WFT- E9*
Canon GPS Receiver GP-E2
Canon Unit Cable UN-5 (provided)/UN-10 (purchased separately)
Canon OLED Electronic View Finder EVF-V50/EVF-V70 Canon Extension unit 1: EU-V1
Canon Extension unit 2: EU-V2
Canon EF Cinema Lock Mount Kit CM-V1
Canon PL Mount Kit PM-V1
Canon B4 Mount Adapter MO-4E/MO-4P
Canon LCD Monitor LM-V2 (included)/LM-V1
Canon LCD Attachment Unit LA-V2 (included)/LA-V1
Canon Camera Grip GR-V1 (included)
Canon Shoulder Support Unit SU-15
Canon Shoulder Style Grip Unit SG-1
Canon Clamp Base CL-V2
Canon Rod Clamp RD-1
Canon Handle Unit HDU-2
Canon 8-pin Remote Cable RR-10/RR-100
Canon EF/EF cinema lens group, Canon PL cinema lens group, and accessories
designed for these lenses
(*) New products
Third Party Accessories
V-Lock battery
Miscellaneous
Dimensions (Main Body Only)
153x148x168mm (WxHxD)
Weight (body only)
Approx. 1,750g
Weight (Accessories)
Extension unit 1: EU-V1: Approx.114 g Extension unit 2: EU-V2: Approx. 652 g
OLED Electronic View Finder: EVF-V50: Approx.170 g
EF Cinema Lock Mount Kit CM-V1:Approx. 170 g *Not including cap
PL Mount Kit PM-V1: Approx. 345 g *Not including cap
MO-4E: Approx. 230 g MO-4P: Approx. 248 g
CFexpress card: Approx. 8 g (0.28 oz.) Clamp Base: CL-V2:Approx. 120 g (4.2 oz.)
Operating Temperature range
Approx. 0 to 40°C, (85% relative humidity)
Approx. -5 to 45°C, (60% relative humidity)
Power Supply
BP-A60 (Supplied), BP-A30 (Optional) V-Lock with EU-V2, 11V - 20V, Mains 4-pin XLR
Power Consumption
RAW: Super 35mm 1Gbps 4096x2160, 31.0W/Super16mm 250Mbps, 28.7W
XF-AVC: Super 35mm 810Mbps 4096x2160, 31.0W/Super16mm 310Mbps, 28.7W
Max. power consumption 63 W
Recording time
BP-A60 (supplied) RAW/XF-AVC Super 35mm:130 minutes/Super 16mm 140 minutes
* All specifications are subject to change without notice
Canon is an authorized licensee of the CFexpress Ver.2.0™ trademark owned by CompactFlash Association, which may be registered in various jurisdictions.
