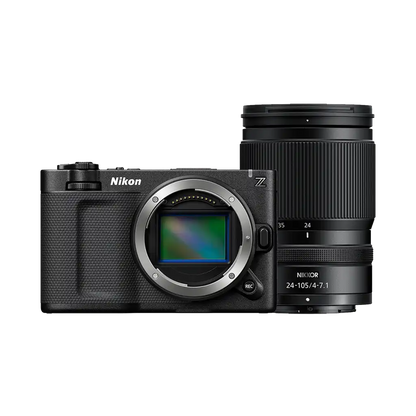

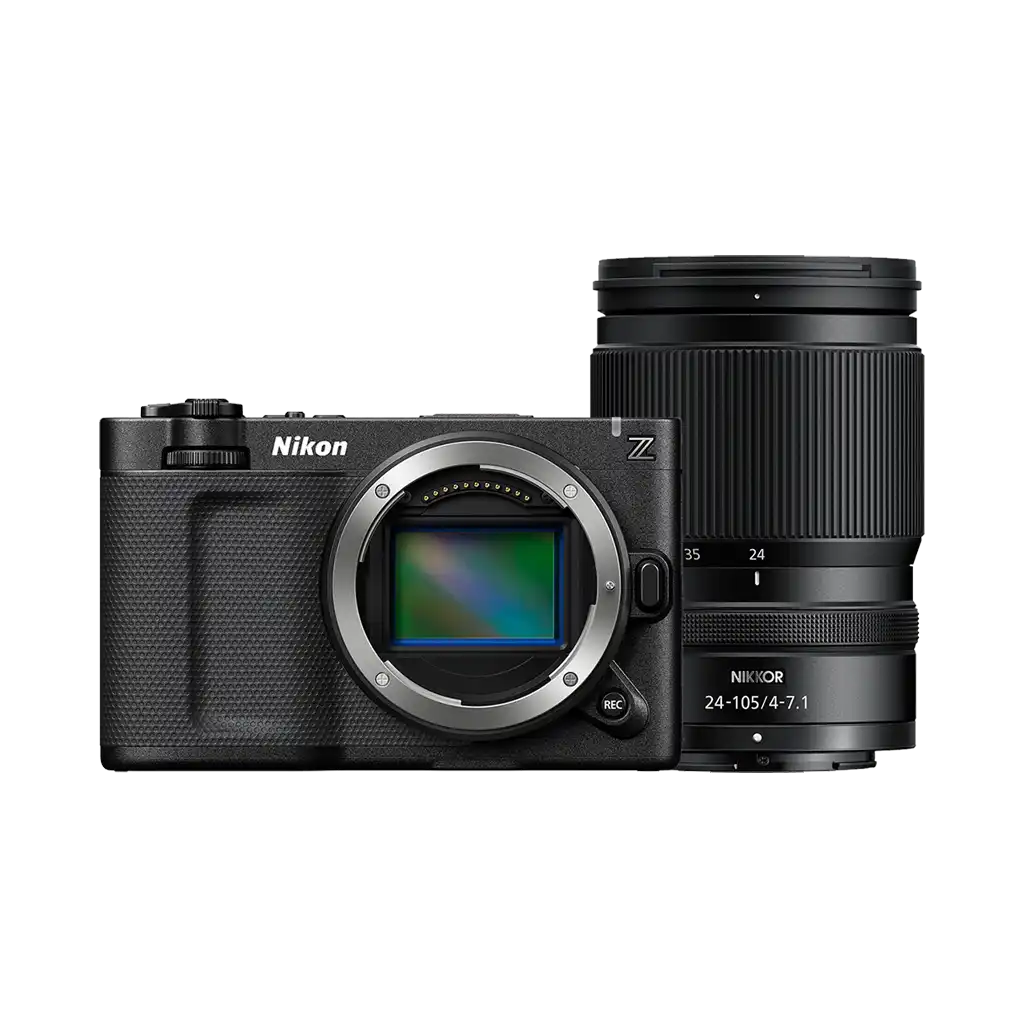

The Nikon Z R 6K Cinema Camera with 24-105mm f/4-7.1 Lens is a tiny Z-mount cinema camera that combines RED colour science with Nikon engineering to create this first-of-its-kind powerhouse that produces stunning cinematic images in one compact body.
With Nikon's Z lens mount, you can use a wide variety of lenses, with integrated image stabilisation of up to 7.5 stops, providing a smooth and steady image with up to 15+ stops of dynamic range.
In partnership with RED, Nikon provides a range of compatibility with production workflows, including REDCODE, Z-RAW, and ProRes RAW, with resolutions up to 6K60. The Nikon Z R 6K Cinema Camera uses dynamic 32-bit float and 24-bit recording.
The Nikon ZR 6K Cinema Camera employs advanced autofocus features powered by deep learning that provide up to 9-subject detection autofocus, with automatic tracking of people, animals and vehicles.
The Nikon Z R Camera records to a CFexpress Type B card, while a microSD card slot is available for proxy recording. A built-in 4" vari-angle touchscreen features DCI-P3 colour gamut, 1000 cd/m² brightness, and a 3.07 million dot resolution for easy and bright viewing. A single EN-EL15c battery powers the Nikon ZR, or power can be supplied via USB-C with an external power source.
The Nikon Z 24-105mm f/4-7.1 Lens is a zoom lens designed for mirrorless cameras with full-frame or DX format Z lens mounts. The Z 24-105mm features all-in-one functionality packed into a portable form factor with a wide-to-telephoto focal length range that is ideal for everything from landscapes to portraits to macro still-life shots.
The Nikon Z 24-105mm f/4-7.1 Lens features an integrated STM stepping motor for fast, quiet and precise autofocus performance that is well suited for both still and video applications.
The optical design comprises of 12 elements in 10 groups, which ensures clarity and sharpness across the entire focal range. With one extra-low dispersion and two aspherical elements. Measuring just 10.7cm and weighing 350g, the Nikon Z 24-105mm f/4-7.1 Lens is the ideal companion for everyday photography.
Nikon Z R 6K Cinema Camera with 24-105mm f/4-7.1 Lens
Nikon ZR 6K Cinema Camera
Nikon + RED Colour Science
In partnership with RED, Nikon provides a range of compatibility with production workflows in the Nikon ZR 6K Cinema Camera. These include REDCODE RAW R3D recording format along with Nikon's N-RAW, ProRes RAW HQ/422 HQ, and the high-quality compressed H.264 and H.265 codecs. REDCODE RAW (R3D NE) unlocks the same colour space (REDWideGamutRGB) and Log curve (Log3G10) as RED cameras.
The Nikon Z R 6 K is capable of capturing resolution up to 6K60, 4K120, and even 1080p240 for high frame rate, slow-motion recording.
Audio Capture
The Nikon ZR Camera uses dynamic 32-bit float and 24-bit recording, and standard 48 kHz linear PCM for full video compatibility is supported.

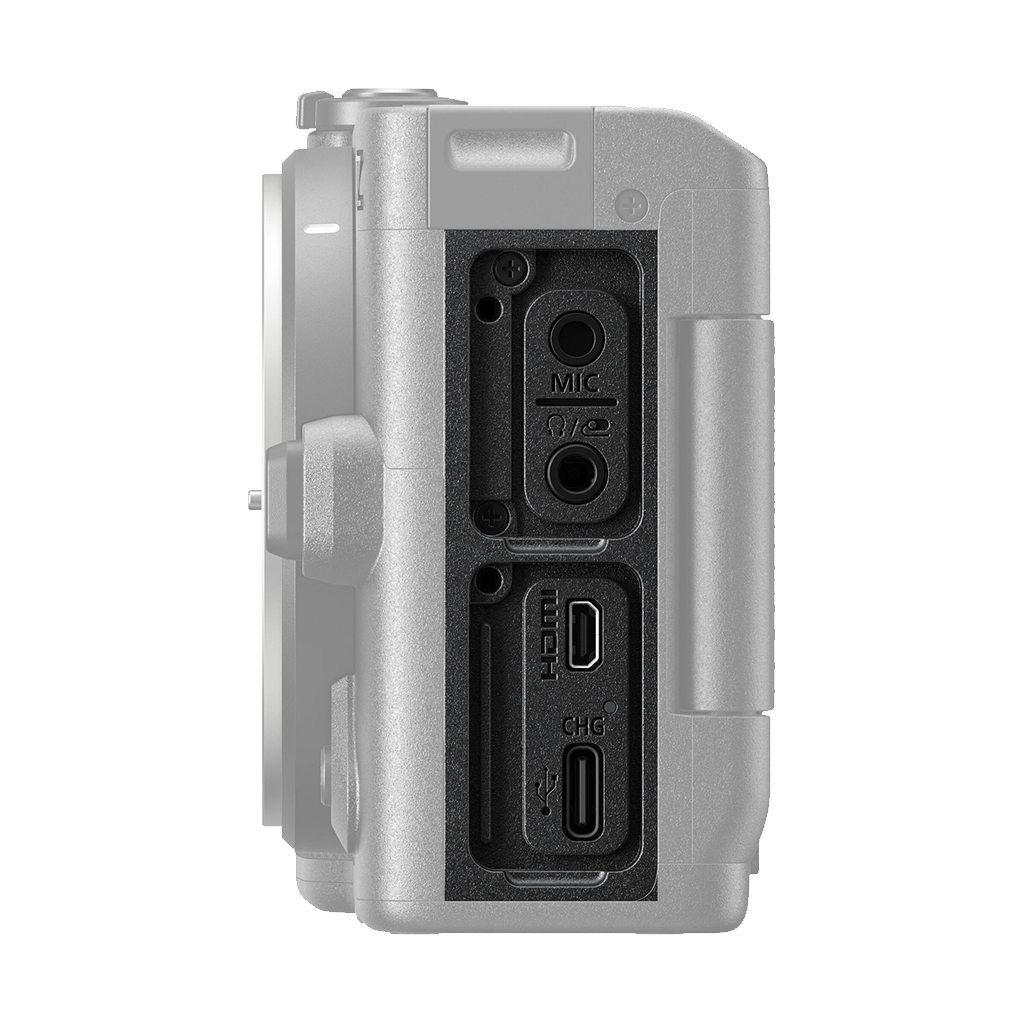

On the body itself, you will find built-in configurable microphones and a line input that provides the ability to record with an external microphone. Additionally, a headphone jack allows for monitoring audio.
Recording and Output
The Nikon Z R Camera records to a single CFexpress Type B card found in the battery door to keep the body as compact as possible, while a microSD card slot is available for proxy recording.
You will also find a micro-HDMI output allowing for output to a display or recording device.
Advanced Autofocus
The Nikon ZR 6K Cinema Camera employs advanced autofocus features powered by deep learning that provide up to 9-subject detection autofocus, with automatic tracking of people, animals and vehicles.
Large, Bright Display
A built-in 4" vari-angle touchscreen features DCI-P3 colour gamut, 1000 cd/m² brightness, and a 3.07 million dot resolution for easy and bright viewing.
When flipping the ZR from a horizontal to a vertical orientation, the screen can automatically make changes for ease of use.
Custom LUTs
The camera provides the ability for the operator to load up to 10 LUTs into the camera for real-time preview on its display.
Lenses and Image Stabilisation
With Nikon's Z lens mount, you can use a wide variety of lenses, with integrated image stabilisation of up to 7.5 stops, providing a smooth and steady image.
Dual-Base ISO
The Nikon ZR provides extended ISO sensitivity to the base ISO with its dual-base ISO, providing 800/6400 for both Log3G10 and N-Log profiles.
Frame.io Integration
The companion app to the phone allows for streamlining of your workflow by connecting your phone to the camera and utilising the optional Frame.io cloud service that makes asset control, post production, and live streaming easy.
Power Options
A single EN-EL15c battery powers the Nikon ZR, or power can be supplied via USB-C with an external power source.
Ultracompact Design
The Nikon ZR 6K Cinema Camera is the size of a small mirrorless camera but is packed with cinema camera technologies.
Due to the compact form factor, it can be mounted to a vehicle, stabilised on a gimbal, or perform steadycam, drone, or POV shots.

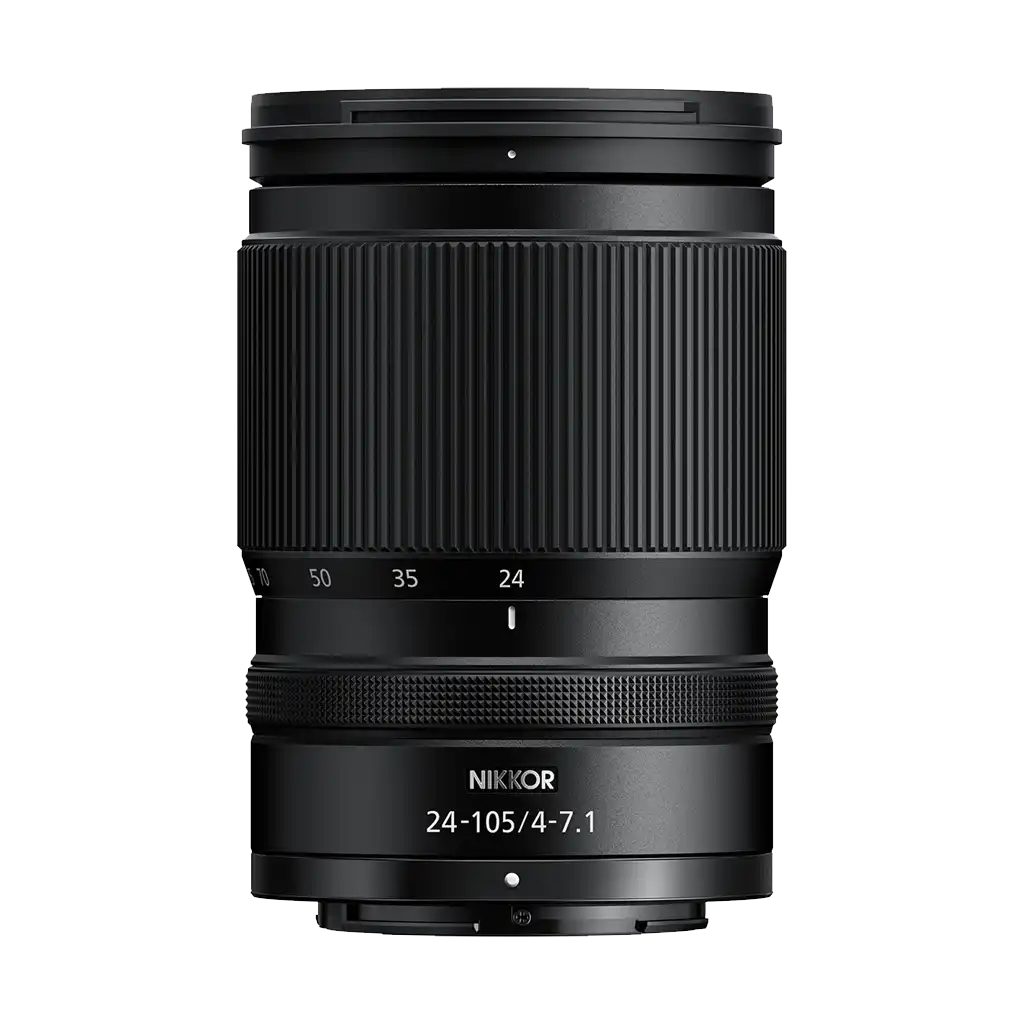

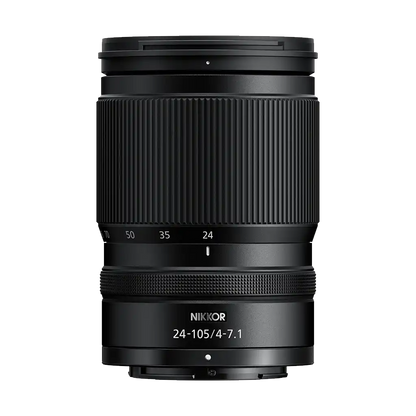

Nikon Z 24-105mm f/4-7.1 Lens
Optical Performance
The Nikon Z 24-105mm f/4-7.1 Lens offers a wide focal length range from 24-105mm, making it ideal for a wide range of applications from landscapes to portraiture to macro still-life use.
At 24mm it features an aperture range of f/4 to f/11, and at 105mm it provides a f/7.1 to f/40 aperture range. Its 20.1cm to 27.9cm minimum focus distance pairs with its 0.5x magnification at 70 to 105mm to allow close proximity to subjects for dynamic images.
The optical design comprises of 12 elements in 10 groups, which ensures clarity and sharpness across the entire focal range. With one extra-low dispersion and two aspherical elements.
Versatile Functionality
The Nikon Z 24-105mm f/4-7.1 Lens features an integrated STM stepping motor for fast, quiet and precise autofocus performance that is well suited for both still and video applications.
The integrated control ring supports customisable functions such as aperture, ISO, exposure compensation, and manual focus. Measuring just 10.7cm and weighing 350g, the Nikon Z 24-105mm f/4-7.1 Lens is the ideal companion for everyday photography.
This zoom lens is designed for mirrorless cameras with full-frame or DX format Z lens mounts.
Nikon Z R 6K Cinema Camera with 24-105mm f/4-7.1 Lens
Nikon ZR 6K Cinema Camera
- Nikon EN-EL15c Lithium-Ion Battery (2280mAh)
- Nikon UC-E25 USB Cable
- Nikon BS-D1 Digital Accessory Shoe Cover
- Nikon BF-N1 Body Cap
- Nikon AN-DC26 Camera Strap
Nikon Z 24-105mm f/4-7.1 Lens
- Nikon LC-67B 67mm Snap-On Front Lens Cap
- Nikon LF-N1 Rear Lens Cap
Nikon Z R 6K Cinema Camera with 24-105mm f/4-7.1 Lens
Nikon ZR 6K Cinema Camera
| Lens Mount | |
| Lens Communication | |
| Image Sensor | |
| Sensor Resolution | |
| Image Stabilization | |
| Built-In ND Filter | |
| Built-In CC Filter | |
| Internal Filter Holder | |
| Capture Type |
| Shutter Type | |
| Shutter Speed | |
| Shutter Angle | |
| ISO/Gain Sensitivity | |
| Advertised Dynamic Range |
| Focus Modes |
| Internal Recording | |
| Video Output | |
| Fast-/Slow-Motion Support | |
| Gamma Curve | |
| Built-In Microphone |
| Media/Memory Card Slot | |
| Internal Storage | |
| Video I/O | |
| Audio I/O | |
| Power I/O | |
| Other I/O | |
| Wireless | |
| Mobile App Compatible | |
| Global Positioning (GPS, GLONASS, etc.) |
| Display Type |
| Battery Type |
| Shoe Mount | |
| Tripod Mount | |
| Accessory Mounting Thread | |
| Dimensions (W x H x D) | |
| Weight |
Nikon Z 24-105mm f/4-7.1 Lens
| Focal Length | |
| Aperture | |
| Lens Mount | |
| Lens Format Coverage | |
| Angle of View | |
| Minimum Focus Distance | |
| Magnification | |
| Optical Design | |
| Aperture/Iris Blades | |
| Focus Type | |
| Image Stabilization | |
| Filter Size | |
| Dimensions | |
| Weight |
