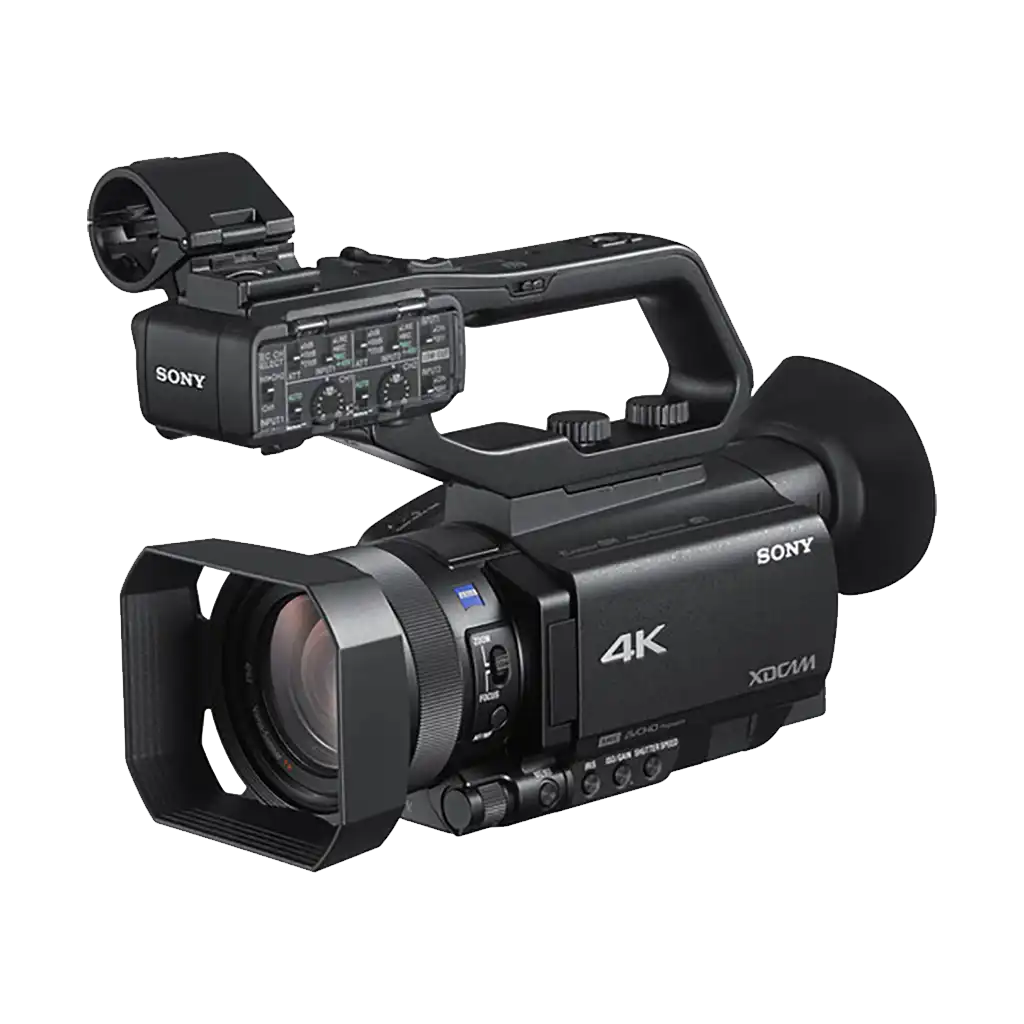

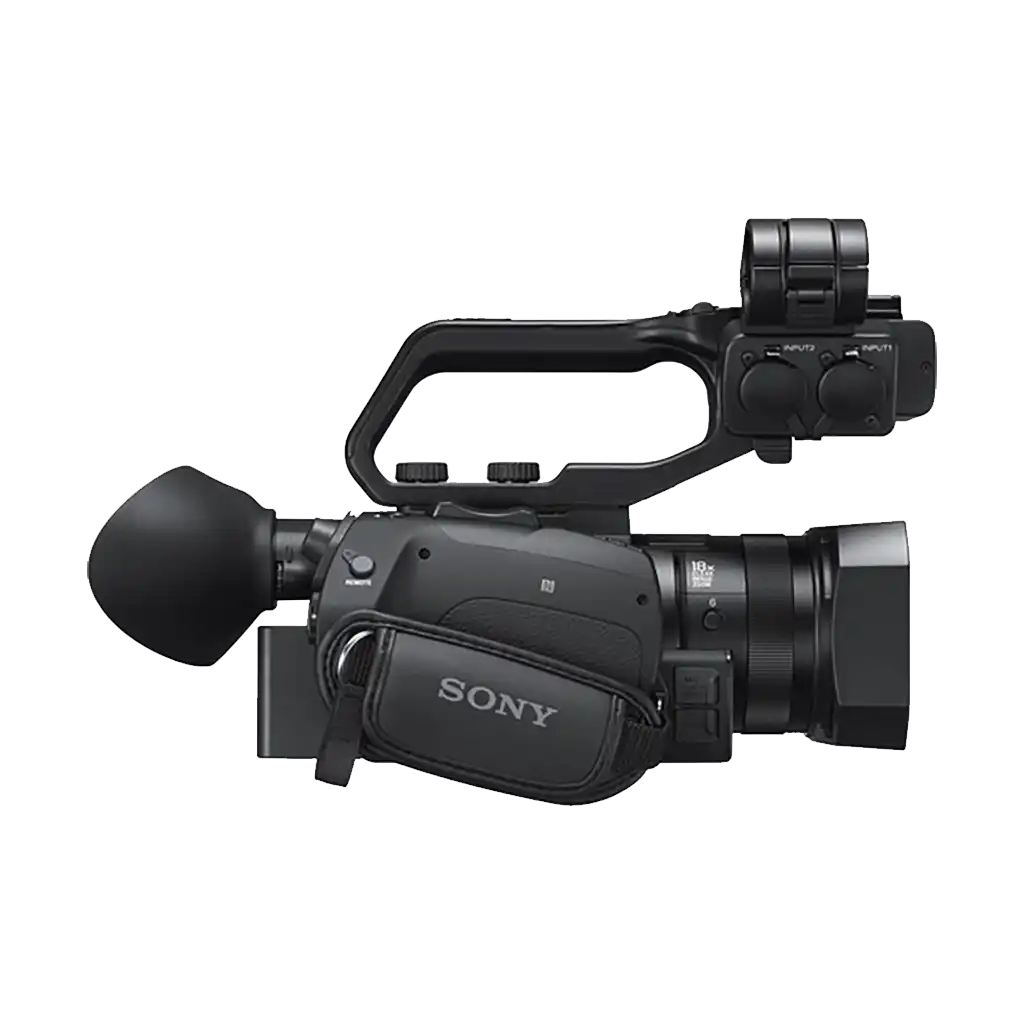

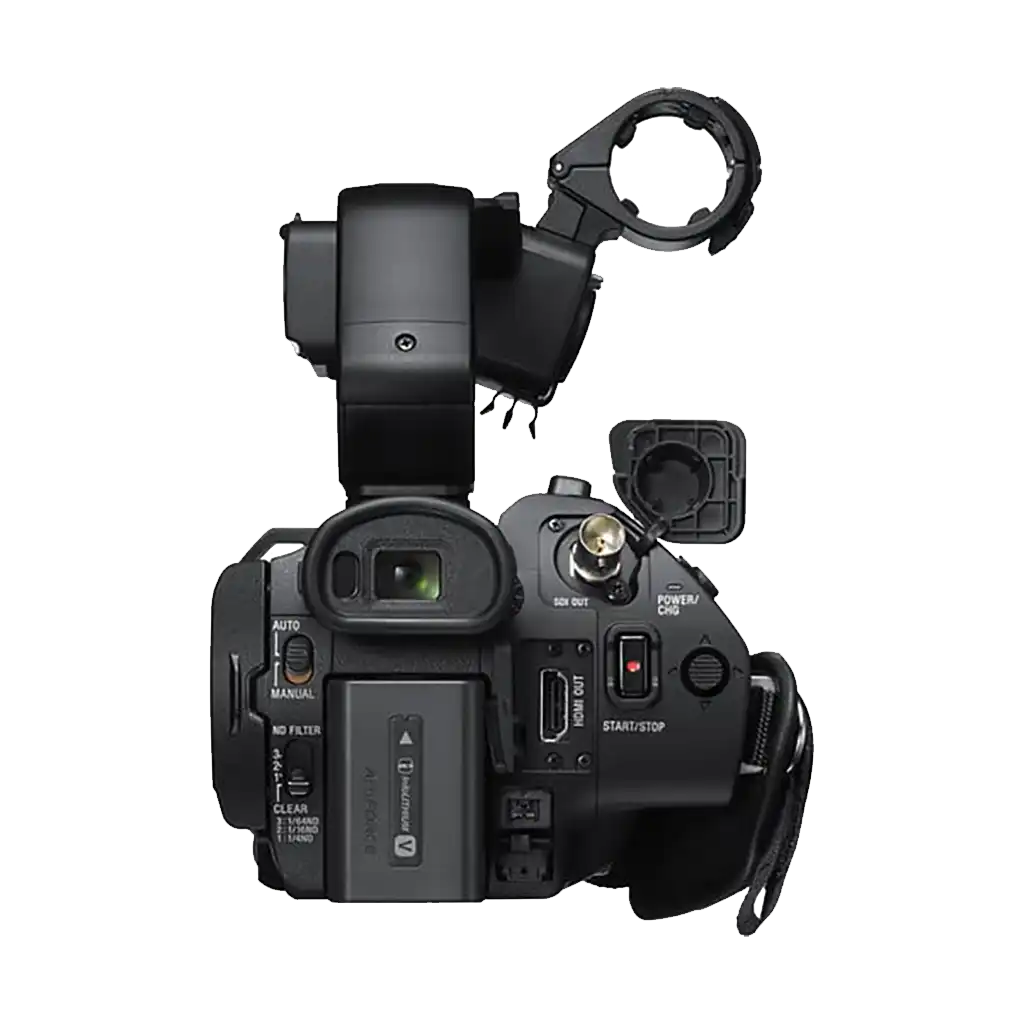

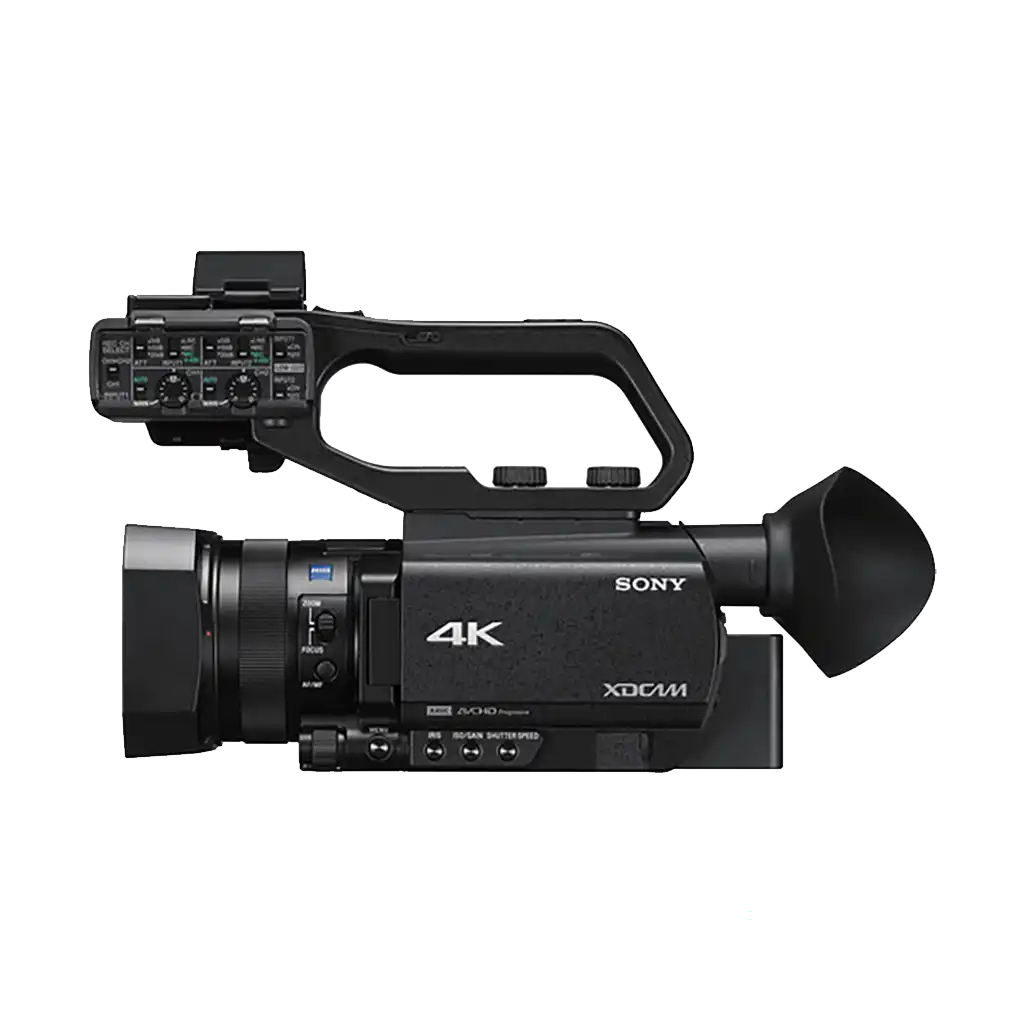

Sony PXW-Z90 4K HDR XDCAM Compact Camcorder (PAL) (Special Order. Price on Request)
The Sony PXW-Z90 offers broadcast quality 4K with advanced features such as high-speed auto focus, Instant HDR workflow, up to 960fps super-slow motion and streaming at 2.4GHz or 5GHz with QoS.
- Single 1" Exmor RS CMOS Sensor
- UHD 4K (3840 x 2160) up to 30p
- Phase-Detection Autofocus (AF)
- 4K HDR with Hybrid Log-Gamma (HLG)
- Zeiss 12x Optical / 18x Clear Image Zoom
- Full HD to 120 fps/Super Slow to 960 fps
- XAVC HD / QFHD & MPEG2 HD Recording
- S-Log3/S-Gamut3 Imaging Options
- 3G-SDI Output, 2.4 / 5 GHz Streaming
- 2 x SD Card Slots, Relay & Simul Modes
1 Other customers have inquired about this product
Versatile connections for broadcast workflows
The camcorder features a broadcast standard 3G-SDI output (supporting 1080 60p/50p), a Multi-Interface (MI) Shoe, HDMI and remote interface to connect with and control remotely a wide variety of compatible Sony accessories, including creating a simple live solution when connected to the optional MCX-500 multi camera live producer and RM-30BP Remote Commander.
Revolutionary imaging performance with Exmor RS
To deliver imaging performance previously impossible for a compact camcorder, a large 14.2-megapixel (effective) 1.0-type stacked CMOS image sensor delivers beautiful background bokeh defocus effects and superior sensitivity for capturing high-quality images with less noise, even under dark or bright conditions. This sensor integrates up to 273 phase-detection AF points that densely cover approx. 84% of the image area, for precise tracking of subjects throughout the shooting frame.
The sensor gives you low noise and less blur because more light reaches the sensor, offering clear and steady pictures even in a dark scene with minimum illumination 1.7 lux
Enhanced Fast Hybrid auto focus captures action
Enhanced Fast Hybrid auto focus (AF) is comprised of a number of features: Phase-detection AF with up to 273 reference points covering approximately 84% of the image area, face detection and lock-on auto focus technology to estimate subject movement. They all work together seamlessly to capture fast-moving subjects with amazing sharpness.
Stunning slow motion in Full HD
High Frame Rate shots can turn everyday actions into slow motion ballet and the PXW-Z90 delivers up to 120 frames* per second (fps) in Full HD, giving you a maximum of five-times slow motion expression. There’s no sacrifice in bit depth and no windowing of the sensor. So there’s no crop factor, no loss in angle of view. Higher frame rates of 240, 480 and 960 fps are also possible at specific resolutions
Networked for high mobility
The PXW-Z90 comes with 5GHz* and 2.4GHz Wi-Fi as standard – simply turn on and log onto your preferred network to enable a host of advanced wireless production features:
Ustream® Direct Streaming allows you to share scenes as they happen with high quality picture and sound without a switcher
QoS Streaming to XDCAM air allows images to be streamed live from the camcorder for viewing at a remote location
FTP Transfer allows content files recorded with MPEG HD 422/420 proxy feature (CBKZ-SLMP required) and other content files shot in XAVC (QFHD/FHD) and AVCHD formats to be sent over the internet for remote storage on an FTP server
XDCAM air can upload proxy footage to the cloud from multiple camera operators in the field, so editing can start immediately. Uploaded content can be accessed securely from any location. News teams can even start logging clips while shooting’s still going on, saving even more valuable time when a story’s breaking
Wi-Fi/NFC (Near Field Communication) with Content Browser Mobile™ allows the PXW-Z90 to be remotely controlled from a smartphone or tablet computer (iOS 9.0 – 10.3 or Android 4.4 through 7.1) via a Wi-Fi connection. One-touch authentication is also possible with smartphones that offer NFC connectivity
Wired LAN connection allows the PXW-Z90 to be connected to the internet over a wired connection via the separately available VMC-UAM2 USB adapter cable and network adaptor kit (CBK-NA1), allowing files to be streamed or transferred by FTP
Wide-angle zoom lens with great control
The PXW-Z90 is supplied with a fixed 29mm wide-angle ZEISS Vario-Sonnar T lens, ideal for capturing panoramic landscapes. The 12x optical zoom can be increased to 18x with Clear Image Zoom, maintaining QFHD resolution using Super Resolution Technology or 24x in HD. In addition, the digital extender can double this range again, up to 48x zoom.
The camcorder’s lens ring enables smooth, natural adjustment of focusing or zooming, depending on which mode is selected, while the manual dial and buttons on the side of the body allow swift and easy adjustment of IRIS (aperture), ISO/GAIN and shutter speed.
Superb quality monitoring with enhanced OLED viewfinder
You have superb monitoring options with the Z90, an enhanced 0.39-type 2359K dot OLED viewfinder and 3.5-type 1550K dot LCD. The super high resolution OLED viewfinder offers excellent quality brightness, contrast and response, giving you better precision of manual focus operations and eliminating any colour-breaking phenomenon. The LCD gives you further flexible composition options.
Dual XLR inputs
The Z90 has two XLR connecters – so even if you remove the handle with its standard, easy-access XLR connector then a second on the body is still available, making it ideal for applications such as shooting in a confined space, such as a car interior, or when mounting on a gimbal.
The PXW-Z90 has a featured remote interface (2.5 mm stereo mini-mini jack) wired interface. Using a wired remote controller such as the RM-1BP or RM-30BP the focus, zoom, rec start/stop and rec review can be controlled remotely. The camcorder can connect to the optional RM-30BP and MCX-500 Multi Camera Live Producer to form a simple live solution.
Dual media slots
To extend recording time and workflow flexibility, the PXW-Z90 is equipped with two memory card slots and is compatible with SDXC and SDHC cards as well as Memory Stick PRO Duo (Mark 2) / PRO-HG Duo.
Relay mode automatically switches recording from the first to the second memory card when the first is full; Simul mode allows simultaneous recording to two memory cards (for example to create an immediate back-up version). The PXW-Z90’s two start/stop buttons on the handle grip and camcorder body can independently start and stop recording on different memory cards while recording in Simul mode.
Multi-Interface (MI) Shoe
The PXW-Z90 takes advantage of Sony’s flexible Multi-Interface (MI) Shoe, which provides power, signal connections and coordinated on/off switching to compatible Sony accessories. For example, you can connect and control Sony UWP-D wireless microphone systems (sold separately).
Wide choice of connections
The PXW-Z90 offers numerous connections to suit the broadcast workflow, including 3G HD-SDI, HDMI®, Multi/Micro USB jack and composite output. The Rec Trigger signal can be sent through SDI and HDMI to link an external recording device. HDMI/SDI/composite output is possible during QFHD recording
Simple live solution
The PXW-Z90 is designed to work seamlessly with Sony’s MCX-500 Multi Camera Live Producer, a robust and cost-effective switcher that makes it easy for one person to run a multi-camera live event shoot. When used with the MCX-500 and Remote Commander RM-30BP, a Tally indicator will automatically appear on each PXW-Z90’s LCD panel and viewfinder – a red icon indicates when the shot is live (PGM) while green indicates preview mode (PVW). The MCX-500 supports up to nine video inputs, five channel stereo inputs including XLR with both internal recording and live streaming via Ustream™, Facebook Live, and Youtube Live
Easily synchronise multiple camcorders
When shooting with multiple camcorders, you can synchronise the timecode of each camcorder using Content Browser Mobile™ (CBM) smartphone application* with optional CBKZ-WTCL upgrade. With this feature, all camcorders can synchronise to the primary camcorder you select or to a manually set time – whichever you prefer.
- Sony PXW-Z90V 4K HDR XDCAM (Pal)
- XLR Handle
- Lens Hood
- Lens Cap
- Large Eyecup
- Accessory Shoe Kit
- USB Cable
- NP-FV70A V-Series Battery Pack for Handycam Camcorders (1900mAh)
- AC-L200 AC Adapter
- Power Cord
- RMT-845 Wireless Remote
- CR2025 Lithium Battery (for Remote)
|Zoom Ratio||Optical: 12x
Clear Image Zoom: 18x (4K) / 24x (HD)
Digital Extender: 48x (HD)
|Lens Wide Angle||29mm (35mm equivalent)|
|Frequency Bands||2.4, 5 GHz|
|Media Type||1 x SD/SDHC/SDXC & Memory Stick PRO Duo
1 x SD/SDHC/SDXC
|LCD Monitor||3.5" (8.9 cm), 1.56 M dots|
|Viewfinder||0.39" (1 cm), 2.36 M dots, OLED|
