Atomos

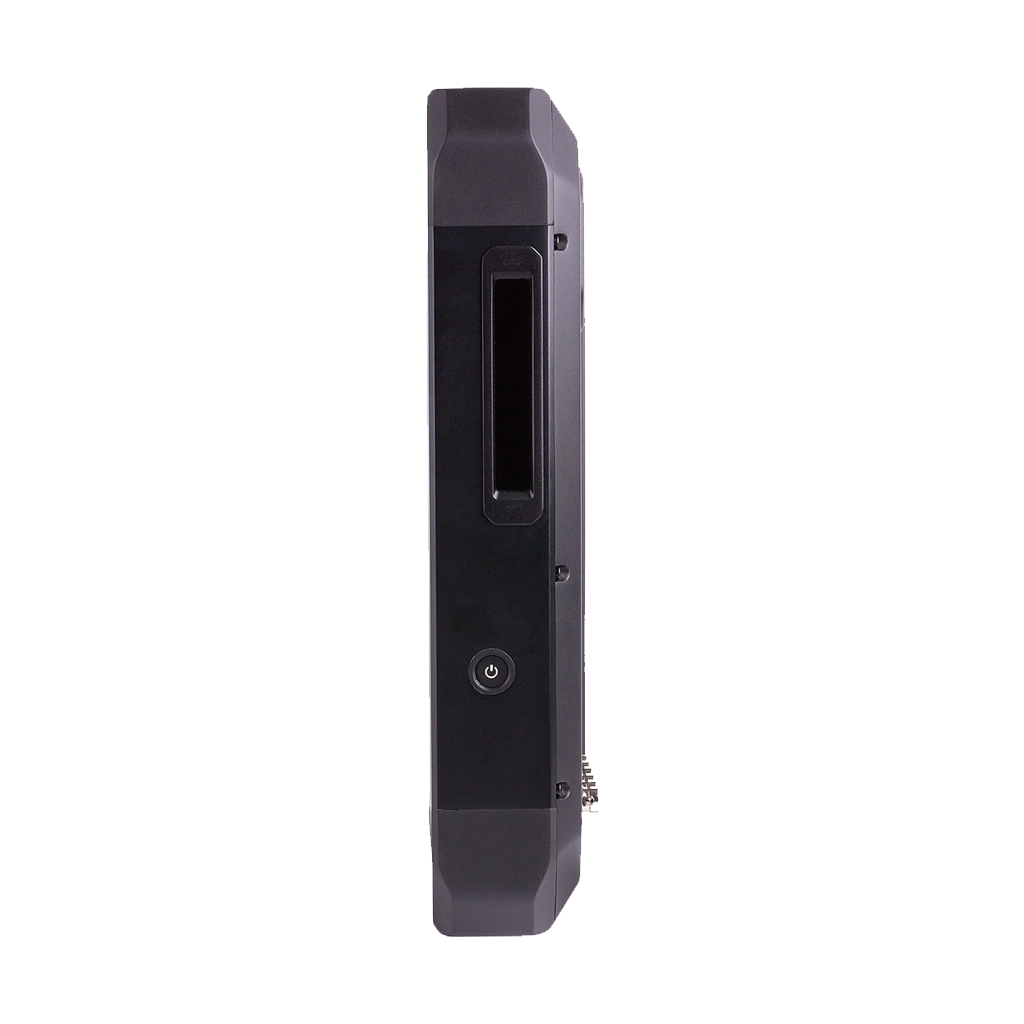

Atomos Sumo 19" SE HDR Monitor, Recorder, and Switcher

R 69,995.00
R 69,995.00 R 69,995.00
Tax included. Shipping calculated at checkout.

ATOMSUMSE1

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • 1920 x 1080 QLED Touchscreen Display
  • HDMI 2.0 & 12G-SDI Inputs/Outputs
  • Quad-HD Live Switching & 5-Ch Recording
  • 1200 cd/m² Brightness
  • ProRes RAW Support
  • 10-Bit 422 ProRes/DNxHR Encoding
  • HDR Mode with 10-Stop Dynamic Range
  • Two XLR Inputs with +48V

    The Atomos Sumo 19" SE HDR Monitor, Recorder, and Switcher maintains the same recording, monitoring and switching capabilities as its predecessor with a brighter 1200 cd/m‚² display brightness. As well as an upgraded 19" 1920 x 1920 QLED display.

    Featuring 4 x 12G-SDI inputs and one HDMI 2.0 input that can receive video signals of up to 4K60 supporting live-quad channel switching.
    Five-channel recording captures the input feeds and the live switching to create one output video for efficient viewing. Genlock and LTC timecode is also supported by the HDMI 2.0 and quad-SDI connections.

    The Atomos Sumo 19" SE HDR Monitor, Recorder, and Switcher can record in ProRes RAW and 10-bit 422 ProRes/DNxHR encoding formats. RAW, Log, PQ, and HLG outputs from various sources are able to be processed by the device and mapped to display 10+ stops of dynamic range in real-time. The above makes the Sumo 19" SE perfect for monitoring in real-time.

    SE Upgrades and Features

    The Atomos Sumo 19" SE HDR features an upgraded 19" Quantum Dot OLED display with 1200 cd/m² brightness.
    Live, Quad-channel HD switching and recording is possible. With the Atomos Sumo 19" SE HDR offers support in recording in ProRes RAW and 10-bit 422 ProRes/DNxHR.
    Featuring support for HDMI 2.0 and quad-DSI support genlock and LTC timecode.

    Live Quad-Channel HD Switching and Recording

    Switching in real-time is possible by recording four streams simultaneously as separate ISO'swhile cueing. Switching is asynchronous and can be output with Atomos Connect 4K

    HDR Capabilities

    Featuring 10-bit processing taking RAW/Log/PQ/HLG output from compatible devices. The Atomos Sumo 19" SE HDR maps display 10+ stops of dynamic range.

    Two XLR Inputs with Phantom Power

    Featuring full-sized XLR connections with +48 phantom power. You are able to connect two external microphones for balanced analog audio recording and monitoring.
    The Atomos Sumo 19" SE HDR features a dedicated meter, gain controls, and adjustments for frame delay on each channel.

    Powering the SE

    The Atomos Sumo 19" SE HDR offers dual 4-pin XLR inputs making it possible to power the unit continuously using battery power, an BattWing mounting bracket can be found for integration of a V-mount or Gold mount battery 95Wh or larger.
    AC power supply is included with a 12-16.8V DC input.

    • Atomos Sumo 19" SE HDR Monitor, Recorder, and Switcher
    • Master Caddy II
    • BattWing Mounting Bracket
    • 4 x Screw
    • 2 x Desktop Foot
    • 4 x 1/4"-20 Mounting Screw
    • AC Power Supply

    Display

    Panel Type Quantum Dot OLED
    Display Size 48.3 cm
    Resolution 1920 x 1080
    Aspect Ratio 16:9
    Touchscreen Yes
    Maximum Brightness 1200 cd/m2
    Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
    HDR Compatibility Hybrid Log Gamma
    Pixels Per Inch (ppi) 120 ppi
    Real-Time LUT Monitoring SDR, HDR
    Image Controls Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra

    I/O

    Video 1 x HDMI Type A (HDMI 2.0) Input
    1 x HDMI Type A (HDMI 2.0) Output
    4 x BNC (12G-SDI) Input
    1 x BNC (12G-SDI) Output
    Embedded Audio HDMI: 8-Channel
    SDI: 12-Channel
    Audio 2 x XLR Input
    2 x XLR Output
    1 x 3.5 mm Headphone Output
    Built-In Speaker 2 x 5 W
    Power I/O 2 x XLR 4-Pin (14.4 VDC) Input
    1 x XLR 4-Pin (16.8 VDC) Input
    Other I/O 1 x Genlock (BNC) Input
    1 x LANC (2.5 mm) Input
    Media/Memory Card Slot None
    File System Support exFAT

    Format Support

    Video Format HDMI/SDI (10-Bit 4:2:2)
    UHD 4K: 60
    DCI 4K: 60
    Gamma Curve DCI-P3, DCI-P3+, Panasonic V-Gamut, Rec709
    Video Signal Conversion HDMI to SDI

    SDI to HDMI
    Timecode Support Yes

    Recording

    Pulldown Conversion 2:2, 3:2
    Camera Trigger SDI, HDMI
    Pre-Roll Record Full HD: 8 Seconds
    4K: 2 Seconds
    Encoding Formats x
    ProRes Raw
    ProRes 422 HQ 10-Bit
    DNxHR 422 HQ 10-Bit
    Closed Caption Support None
    Reference Input None
    Phantom Power +48 V

    Power

    DC Input Power 12 to 16.8 VDC
    Built-In Battery None
    Battery Type 2 x V-Mount, Gold Mount
    Power Consumption 75 W

    Mounting

    Mounting-Hole Pattern 100 x 100 mm
    Mounting 10 x 1/4"-20 Female
    5 x 3/8"-16 Female

    Environmental

    Operating Temperature 40°C

    General

    Material of Construction Aluminum, Polycarbonate
    Dimensions 504 x 330 x 180 mm, Including Feet
    504 x 310 x 63 mm, Excluding Feet
    Weight 5.45 kg
