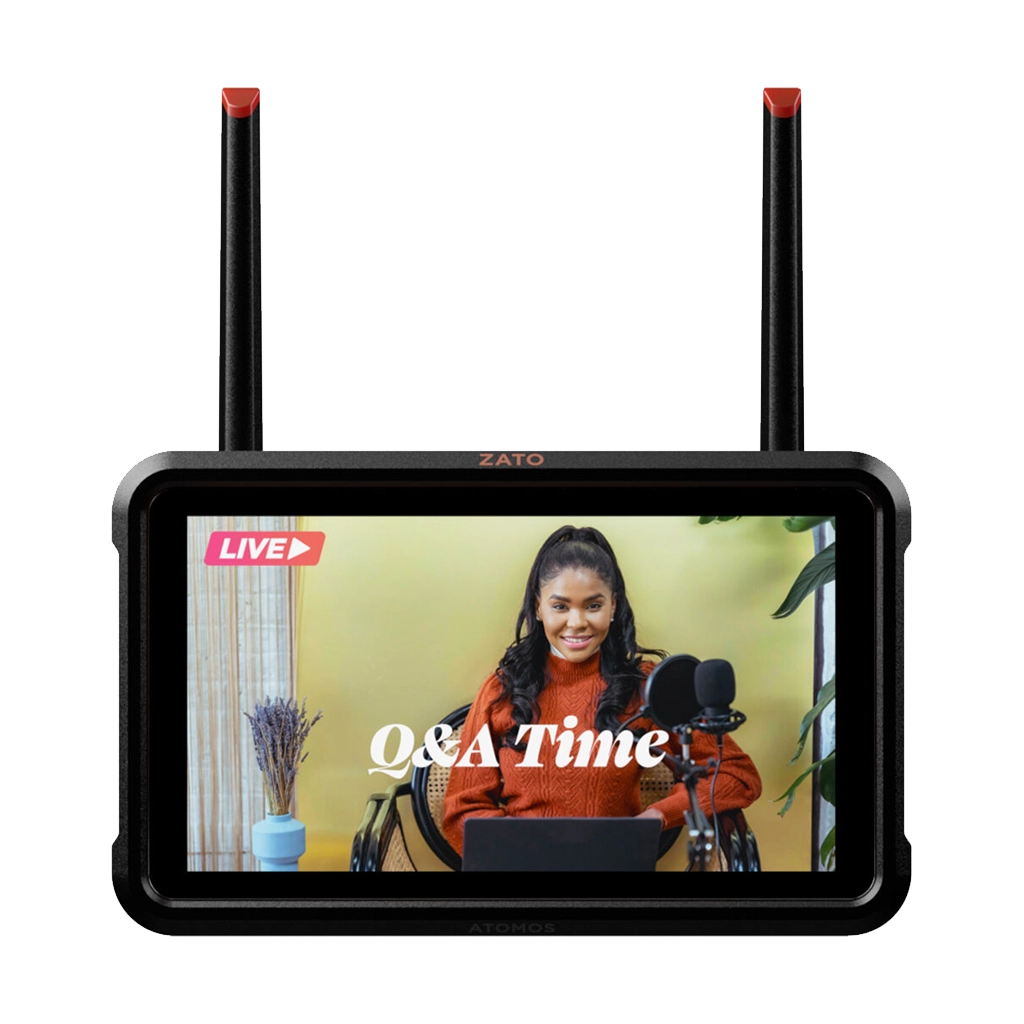

Atomos ZATO CONNECT 5.2" Network-Connected Video Monitor & Recorder 1080p60

R8,995.00

The Atomos ZATO CONNECT 5.2" Network-Connected Video Monitor & Recorder 1080p60 enables you to simultaneously stream and record HDMI and USB video.
Working as a gateway to the ATOMOS Cloud Studio software due to the Wi-Fi 5, Gigabit Ethernet, as well as cellular hot spot connectivity.
With the Atomos ZATO CONNECT 5.2" Network-Connected Video Monitor & Recorder you are able to fully customize your live streaming workflow, whereby you can seamlessly switch between video sources and mixing audio sources. All the above is possible with one small device that is small enough to mount on a DSLR rig.

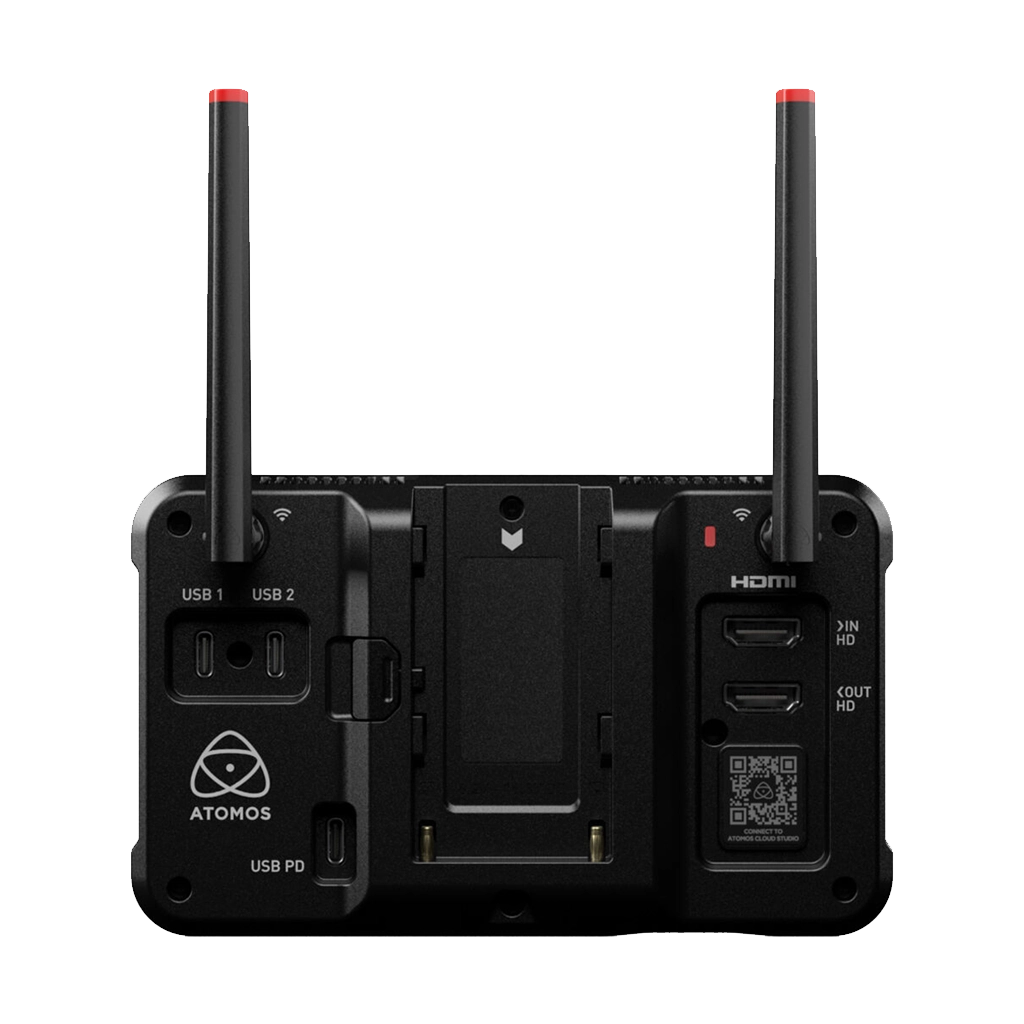

The Atomos ZATO CONNECT 5.2" Network-Connected Video Monitor & Recorder 1080p60 features one HDMI input, one HDMI output, and two corresponding USB Type-C ports. This allows for the transformation of various video equipment into live streaming or webcam sources.
Recording is possible up to 1080p60 HDMI and up to 1080p30 USB video.

  • 5.2" 1920 x 1080 Touchscreen Display
  • 1000 cd/m² Brightness
  • 2 x HDMI, 2 x USB Type-C
  • Records up to 1080p Video
  • Wi-Fi 5, Gigabit Ethernet
  • Simultaneous Record and Stream Video
  • Audio Mixing Capabilities
  • ATOMOS Cloud Studio, AtomOS Lite
  • Power via L-Series Battery or USB Input
- +

Pre Order: ETA TBA
SKU ATOMZATC01
Brand Atomos
Features

Stream from Anywhere

  • Support for HDMI and USB UVC cameras and video sources
  • Equipped with Wi-Fi 5 and Gigabit Ethernet via USB Type-C
  • Ability to join cellular hotspots
  • Stream to Facebook Live, Twitch, and YouTube with ATOMOS Cloud Studio
  • Create high-quality video for Microsoft Teams, Slack, and Zoom
  • Each live stream is recorded as local H.264 backup to an SD card up to 128GB
  • Combine recorded sources with live content

Comprehensive I/O

  • Input and output ports for both HDMI and USB to transform a wide variety of video equipment into a live stream or webcam source
  • 3.5mm audio jack can add microphone or line sources and mix them with embedded audio from HDMI and USB
  • Each channel can be adjusted independently and mixed down to a single stereo track for live stream, recording, or video presentation

AtomOS Lite Software

  • Configure streams, switch between sources, record and playback video, mix audio, and add effects
  • Key tools like overlay effects, image zoom, and frame guides
  • Add graphic overlays to streams or watermark recorded content

Display

  • 5.2" SuperAtom IPS LCD panel with capacitive touch
  • 1920 x 1080 resolution
  • 178° horizontal and vertical viewing angle
  • 427 PPI, 1000 cd/m² brightness
  • Rec709 colour gamut

Monitor Assist Functions

  • Display flip (vertical and horizontal)
  • Frame guides (1:1, 4:3, 4:5, 9:26, 16:9, 1.91)
  • Grid markers (9 grid)
  • Zoom (tap to zoom)

Power Options

  • L-series battery compatibility up to 7.6V
  • USB Type-C PD input connector from 6.2 to 16.8V
  • DC input connector via locking DC jack on separately available battery eliminator
  • D-Tap via separately available D-Tap to DC cable
In the box
  • Atomos ZATO CONNECT 5.2" Network-Connected Video Monitor & Recorder 1080p60
  • 2 x Wi-Fi Antenna
  • White Antenna Cap
  • Red Antenna Cap
  • Yellow Antenna Cap
  • Black Antenna Cap
  • Green Antenna Cap
  • 2 x Antenna Top Cap
  • 2 x Antenna Mount Cover
  • USB Type-C to USB Type-C Cable
  • Antenna Storage Pouch
  • Screen Cloth
Specifications

Physical

Dimensions (W x H x D mm) 151mmx 91,5mm x 29,5mm
Weight 245g

Environmental

Ambient operating temperature Up to 40 Degrees Celsius

Construction Control

Body Polycarbonate ABS Plastic
Cooling Passive
Multi-function button Power/lock Screen
Network Config Settings Auto-Join WiFi, DHCP, Manual Network Configuration

Power

Input voltage 6.2V to 16.8V
Operating power 10W
Compatible batteries 1 x NP-F / L-Series
Battery voltage 7.2V
DC in connector via locking DC Jack on optional Battery Eliminator (5.5mm OD & 2.1mm ID)
Dtap Via optional D-Tap to DC cable
USB USB-C PD

Display

Touchscreen SuperAtom IPS panel (capacitive touch)
Size 5.2"
Resolution 1920 X 1080
Viewing angle 178 + H & V
PPI 427
Bit depth 10-Bit (8+2 FRC)
Backlight Type Edge
Brightness (cdm2 / nits) 1000
Colour Gamut Rec709
Calibration support TBC

Video Input

HDMI 1 x HDMI 1.4
USB Webcam up to 1080p30
Bit Depth 8-Bit
Video Chroma Subsampling YCbCr 420

File Naming

Standard Unit Name + Date + Time

Video Output

HDMI 1 x HDMI 1.4

Network

Ethernet via included USB-C Dongle
Wi-fi WiFi 5
USB Host USB Webcam
Atomos Cloud Connect to Atomos Cloud Studio services
Cellular Connect to Hot Spot via Wi-Fi

Web Streaming

USB UVC Yes, up to 1080p30
RTMP / S Yes, authenticate via Atomos Cloud Studio

Audio In/out

Audio Quality 16-Bit / 48kHz
Audio Codec PCM (In & Out) & AAC (Streaming & Recording)
HDMI 2ch, input dependent
Analogue Audio in 3.5mm Jack - 5v power
Analogue Audio Out 3.5mm Jack
Headphone out 3.5mm Jack

Resolution and Frame Rates

FHD 1920 x 1080 Progressive up to 1080p60
1280 x 720p up to 720p60

Recording CODEC

H.264 up to 1080p60

Playback

Loop Yes
H.264 up to 1080p60
UVC Out Yes up to 1080p30

Monitoring

SDR Rec.709

Switching

Graphic overlays Upload custom PNG graphics

Supported Media

SD SD UHS-1 (up to 128GB size)
File System exFAT

On Screen Tools

2 x Zoom Tap to zoom
Social Frame guides 16:9, 1.91, 4:3, 1:1, 4:5, 9:16
Grid markers 9 Grid
Display Flip Vertical and Horizontal (Selfie mode)

Supported Applications

Video Codecs All Applications with support for H.264 in .MP4 wrapper
