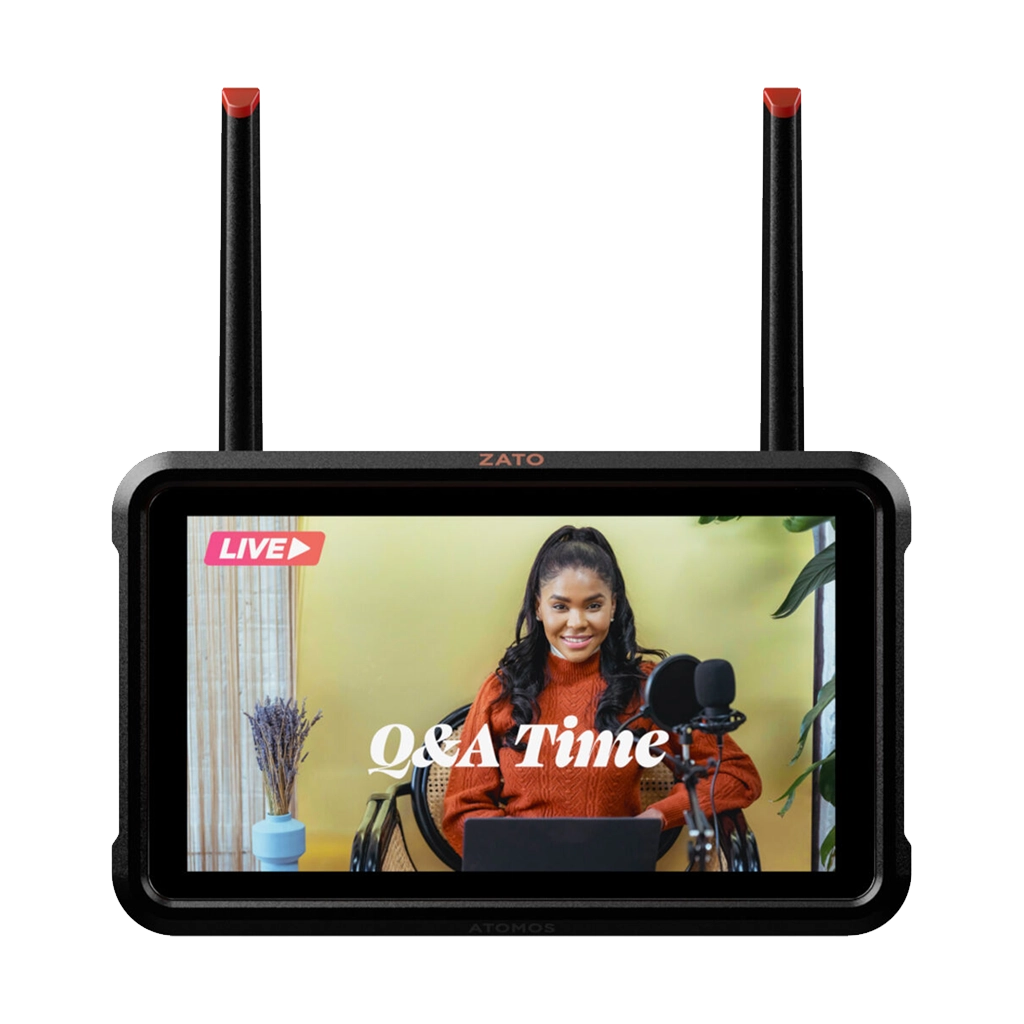

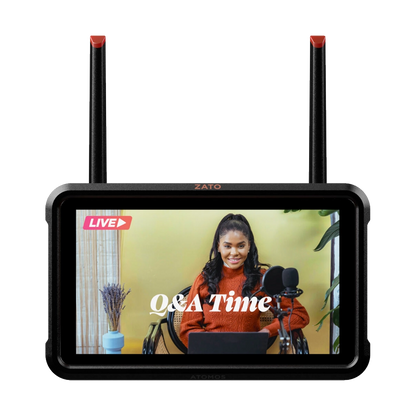

Atomos ZATO CONNECT 5.2" Network-Connected Video Monitor & Recorder 1080p60
Choose PayGate at checkout for MobiCred Payments.
- 5.2" 1920 x 1080 Touchscreen Display
- 1000 cd/m² Brightness
- 2 x HDMI, 2 x USB Type-C
- Records up to 1080p Video
- Wi-Fi 5, Gigabit Ethernet
- Simultaneous Record and Stream Video
- Audio Mixing Capabilities
- ATOMOS Cloud Studio, AtomOS Lite
- Power via L-Series Battery or USB Input
Orms Bellville
Orms Cape Town
Atomos ZATO CONNECT 5.2" Network-Connected Video Monitor & Recorder 1080p60
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 5.2" 1920 x 1080 Touchscreen Display
- 1000 cd/m² Brightness
- 2 x HDMI, 2 x USB Type-C
- Records up to 1080p Video
- Wi-Fi 5, Gigabit Ethernet
- Simultaneous Record and Stream Video
- Audio Mixing Capabilities
- ATOMOS Cloud Studio, AtomOS Lite
- Power via L-Series Battery or USB Input
Choose PayGate at checkout for MobiCred Payments.
- 5.2" 1920 x 1080 Touchscreen Display
- 1000 cd/m² Brightness
- 2 x HDMI, 2 x USB Type-C
- Records up to 1080p Video
- Wi-Fi 5, Gigabit Ethernet
- Simultaneous Record and Stream Video
- Audio Mixing Capabilities
- ATOMOS Cloud Studio, AtomOS Lite
- Power via L-Series Battery or USB Input
The Atomos ZATO CONNECT 5.2" Network-Connected Video Monitor & Recorder 1080p60 enables you to simultaneously stream and record HDMI and USB video.
Working as a gateway to the ATOMOS Cloud Studio software due to the Wi-Fi 5, Gigabit Ethernet, as well as cellular hot spot connectivity.
With the Atomos ZATO CONNECT 5.2" Network-Connected Video Monitor & Recorder you are able to fully customize your live streaming workflow, whereby you can seamlessly switch between video sources and mixing audio sources. All the above is possible with one small device that is small enough to mount on a DSLR rig.

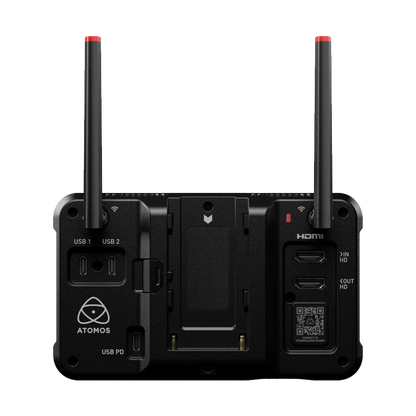

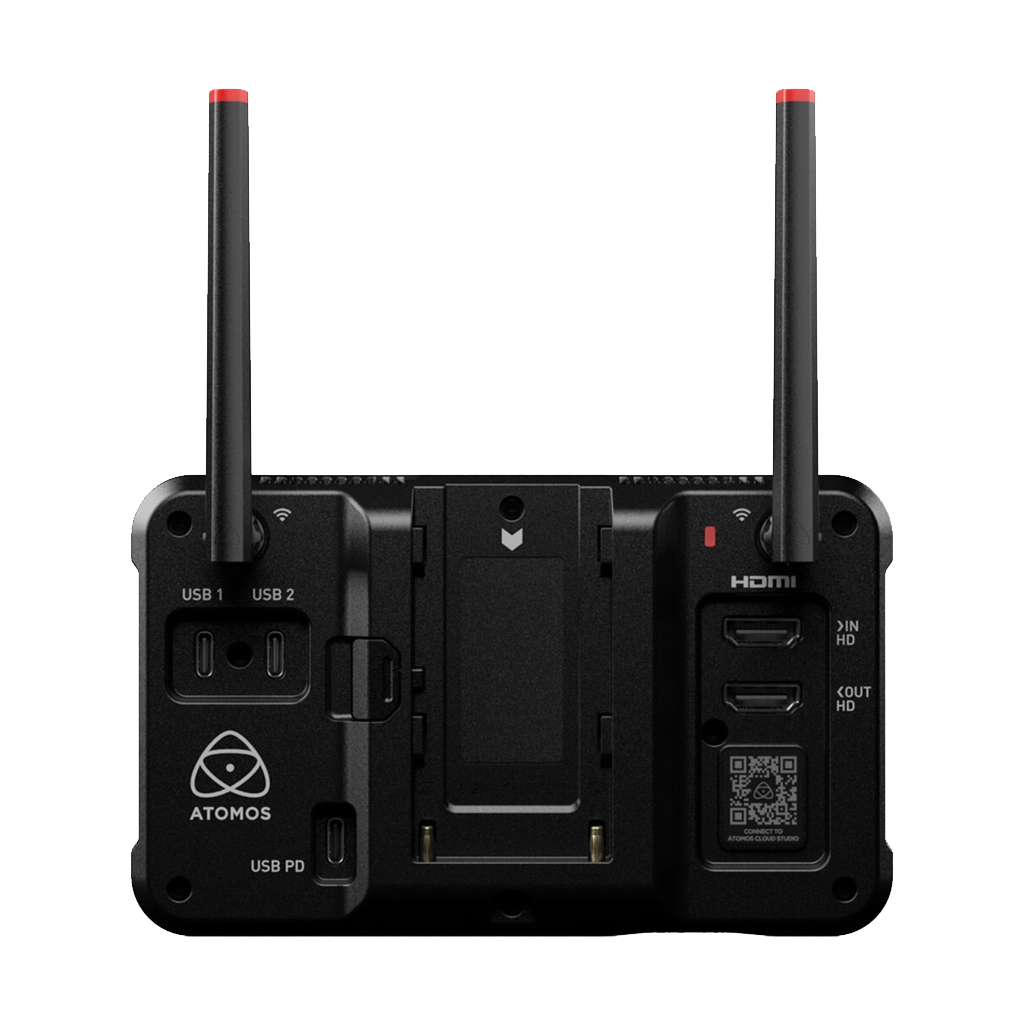

The Atomos ZATO CONNECT 5.2" Network-Connected Video Monitor & Recorder 1080p60 features one HDMI input, one HDMI output, and two corresponding USB Type-C ports. This allows for the transformation of various video equipment into live streaming or webcam sources.
Recording is possible up to 1080p60 HDMI and up to 1080p30 USB video.
Stream from Anywhere
- Support for HDMI and USB UVC cameras and video sources
- Equipped with Wi-Fi 5 and Gigabit Ethernet via USB Type-C
- Ability to join cellular hotspots
- Stream to Facebook Live, Twitch, and YouTube with ATOMOS Cloud Studio
- Create high-quality video for Microsoft Teams, Slack, and Zoom
- Each live stream is recorded as local H.264 backup to an SD card up to 128GB
- Combine recorded sources with live content
Comprehensive I/O
- Input and output ports for both HDMI and USB to transform a wide variety of video equipment into a live stream or webcam source
- 3.5mm audio jack can add microphone or line sources and mix them with embedded audio from HDMI and USB
- Each channel can be adjusted independently and mixed down to a single stereo track for live stream, recording, or video presentation
AtomOS Lite Software
- Configure streams, switch between sources, record and playback video, mix audio, and add effects
- Key tools like overlay effects, image zoom, and frame guides
- Add graphic overlays to streams or watermark recorded content
Display
- 5.2" SuperAtom IPS LCD panel with capacitive touch
- 1920 x 1080 resolution
- 178° horizontal and vertical viewing angle
- 427 PPI, 1000 cd/m² brightness
- Rec709 colour gamut
Monitor Assist Functions
- Display flip (vertical and horizontal)
- Frame guides (1:1, 4:3, 4:5, 9:26, 16:9, 1.91)
- Grid markers (9 grid)
- Zoom (tap to zoom)
Power Options
- L-series battery compatibility up to 7.6V
- USB Type-C PD input connector from 6.2 to 16.8V
- DC input connector via locking DC jack on separately available battery eliminator
- D-Tap via separately available D-Tap to DC cable
- Atomos ZATO CONNECT 5.2" Network-Connected Video Monitor & Recorder 1080p60
- 2 x Wi-Fi Antenna
- White Antenna Cap
- Red Antenna Cap
- Yellow Antenna Cap
- Black Antenna Cap
- Green Antenna Cap
- 2 x Antenna Top Cap
- 2 x Antenna Mount Cover
- USB Type-C to USB Type-C Cable
- Antenna Storage Pouch
- Screen Cloth
Physical
Dimensions (W x H x D mm) | 151mmx 91,5mm x 29,5mm |
Weight | 245g |
Environmental
Ambient operating temperature | Up to 40 Degrees Celsius |
Construction Control
Body | Polycarbonate ABS Plastic |
Cooling | Passive |
Multi-function button | Power/lock Screen |
Network Config Settings | Auto-Join WiFi, DHCP, Manual Network Configuration |
Power
Input voltage | 6.2V to 16.8V |
Operating power | 10W |
Compatible batteries | 1 x NP-F / L-Series |
Battery voltage | 7.2V |
DC in connector | via locking DC Jack on optional Battery Eliminator (5.5mm OD & 2.1mm ID) |
Dtap | Via optional D-Tap to DC cable |
USB | USB-C PD |
Display
Touchscreen | SuperAtom IPS panel (capacitive touch) |
Size | 5.2" |
Resolution | 1920 X 1080 |
Viewing angle | 178 + H & V |
PPI | 427 |
Bit depth | 10-Bit (8+2 FRC) |
Backlight Type | Edge |
Brightness (cdm2 / nits) | 1000 |
Colour Gamut | Rec709 |
Calibration support | TBC |
Video Input
HDMI | 1 x HDMI 1.4 |
USB | Webcam up to 1080p30 |
Bit Depth | 8-Bit |
Video Chroma Subsampling | YCbCr 420 |
File Naming
Standard | Unit Name + Date + Time |
Video Output
HDMI | 1 x HDMI 1.4 |
Network
Ethernet | via included USB-C Dongle |
Wi-fi | WiFi 5 |
USB Host | USB Webcam |
Atomos Cloud | Connect to Atomos Cloud Studio services |
Cellular | Connect to Hot Spot via Wi-Fi |
Web Streaming
USB UVC | Yes, up to 1080p30 |
RTMP / S | Yes, authenticate via Atomos Cloud Studio |
Audio In/out
Audio Quality | 16-Bit / 48kHz |
Audio Codec | PCM (In & Out) & AAC (Streaming & Recording) |
HDMI | 2ch, input dependent |
Analogue Audio in | 3.5mm Jack - 5v power |
Analogue Audio Out | 3.5mm Jack |
Headphone out | 3.5mm Jack |
Resolution and Frame Rates
FHD 1920 x 1080 Progressive | up to 1080p60 |
1280 x 720p | up to 720p60 |
Recording CODEC
H.264 | up to 1080p60 |
Playback
Loop | Yes |
H.264 | up to 1080p60 |
UVC Out | Yes up to 1080p30 |
Monitoring
SDR | Rec.709 |
Switching
Graphic overlays | Upload custom PNG graphics |
Supported Media
SD | SD UHS-1 (up to 128GB size) |
File System | exFAT |
On Screen Tools
2 x Zoom | Tap to zoom |
Social Frame guides | 16:9, 1.91, 4:3, 1:1, 4:5, 9:16 |
Grid markers | 9 Grid |
Display Flip | Vertical and Horizontal (Selfie mode) |
Supported Applications
Video Codecs | All Applications with support for H.264 in .MP4 wrapper |
