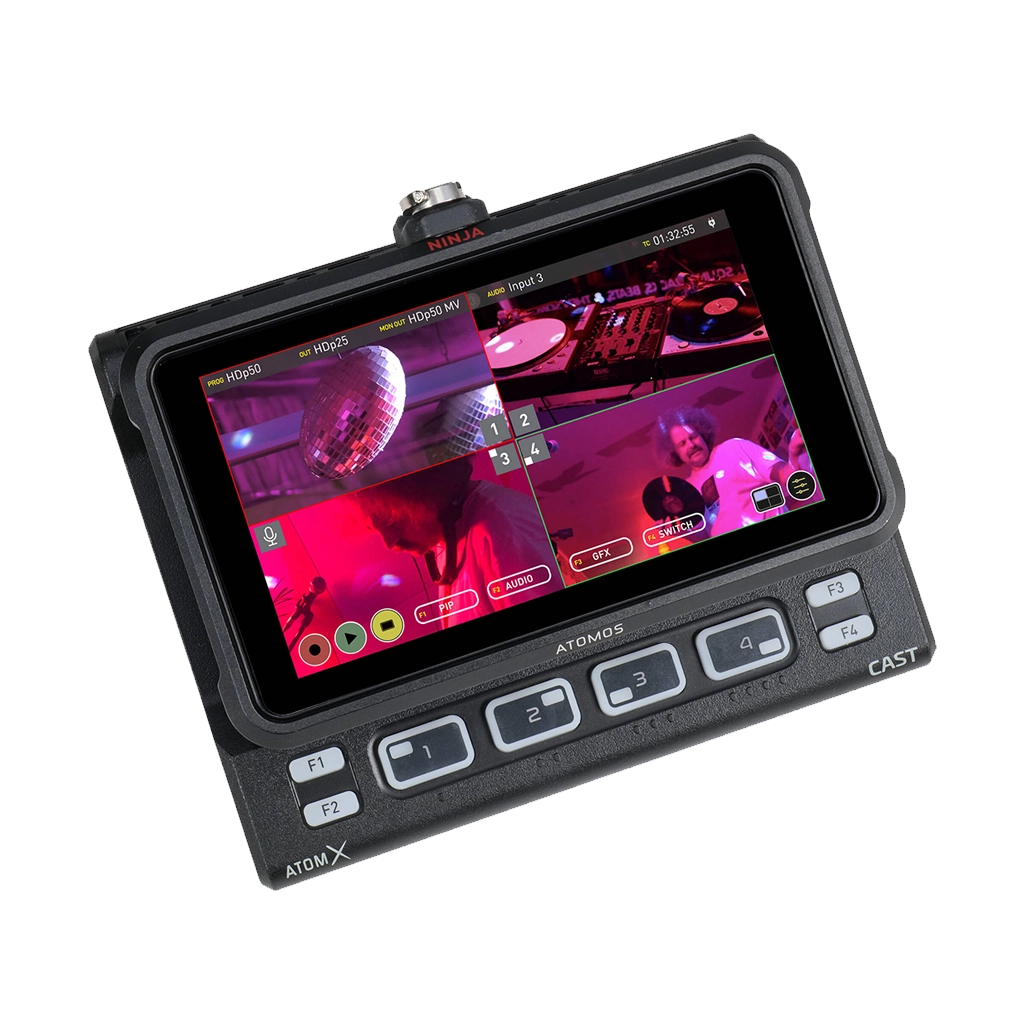

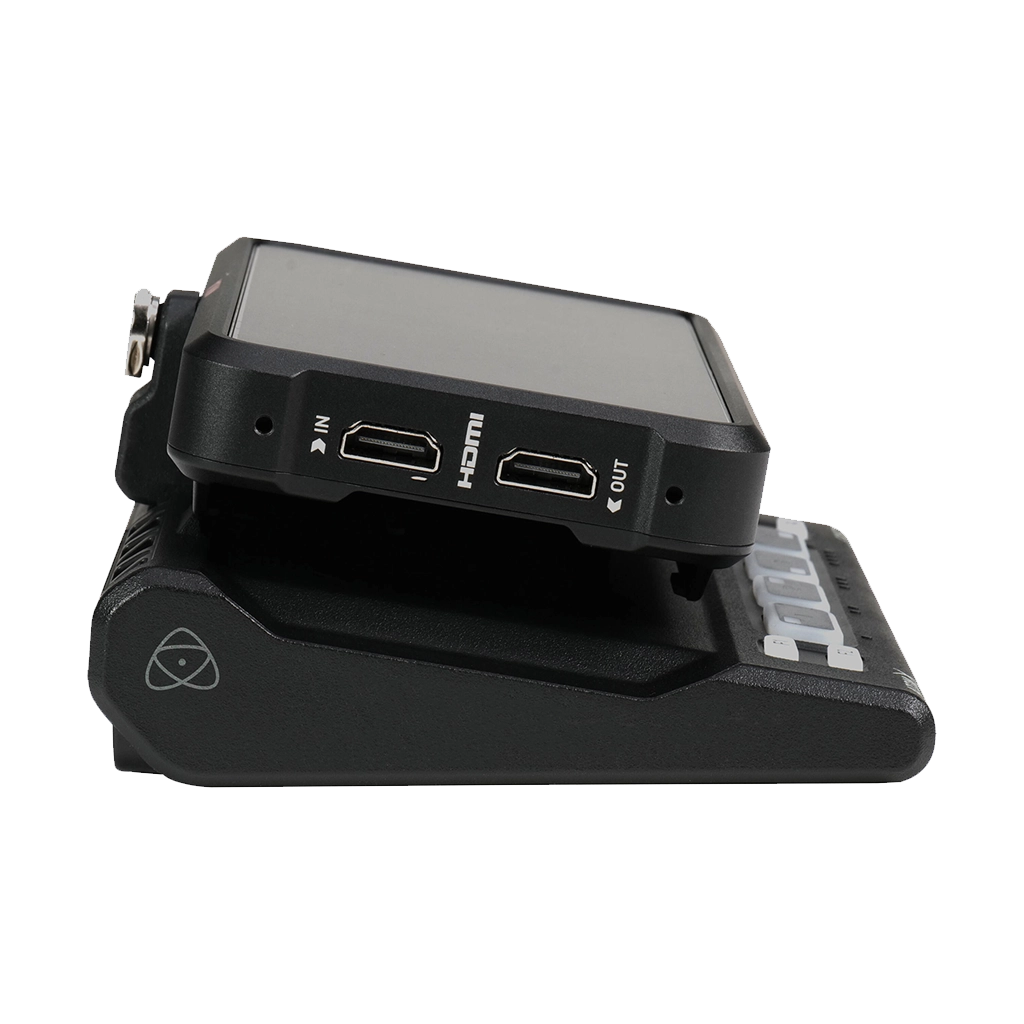

Atomos Ninja V 5" HDMI Recording Monitor with AtomX CAST Switcher Bundle
Choose PayGate at checkout for MobiCred Payments.
- AtomX CAST Compact HDMI Docking Station
- Ninja V 5" 4K HDMI Recording Monitor
- 4 x HDMI Inputs, Source-Select Buttons
- 1920 x 1080 Touchscreen Display
- Graphic Overlays, PiP, Streaming Output
- Mixed Resolution Output up to 1080p60
- Mirror, Program, Preview, 4-Up Display
- UVC/Live Streaming with AtomX Connect
- Can Also Select with Monitor Touchscreen
- Output to SSD/Recording Device
Orms Bellville
Orms Cape Town
Orms Somerset West
Atomos Ninja V 5" HDMI Recording Monitor with AtomX CAST Switcher Bundle
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Orms Somerset West
Shop 25, Waterstone Village Shopping Centre
Somerset West
Cape Town
Western Cape
7130
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- AtomX CAST Compact HDMI Docking Station
- Ninja V 5" 4K HDMI Recording Monitor
- 4 x HDMI Inputs, Source-Select Buttons
- 1920 x 1080 Touchscreen Display
- Graphic Overlays, PiP, Streaming Output
- Mixed Resolution Output up to 1080p60
- Mirror, Program, Preview, 4-Up Display
- UVC/Live Streaming with AtomX Connect
- Can Also Select with Monitor Touchscreen
- Output to SSD/Recording Device
Choose PayGate at checkout for MobiCred Payments.
- AtomX CAST Compact HDMI Docking Station
- Ninja V 5" 4K HDMI Recording Monitor
- 4 x HDMI Inputs, Source-Select Buttons
- 1920 x 1080 Touchscreen Display
- Graphic Overlays, PiP, Streaming Output
- Mixed Resolution Output up to 1080p60
- Mirror, Program, Preview, 4-Up Display
- UVC/Live Streaming with AtomX Connect
- Can Also Select with Monitor Touchscreen
- Output to SSD/Recording Device
The Atomos Ninja V 5" 4K HDMI Recording Monitor is a 5" camera monitor that allows you to record and playback DCI 4K, UHD 4K and HD video footage from this amazing monitor with a brightness of 1000nit, allowing you to mount it on mirrorless, DSLR cameras and for gaming.
Some amazing features include - monitoring your Log gamma footage without having to view flat, Supports popular log formats from Canon, Sony, ARRI, Red, Panasonic and JVC cameras, Focus assist tools, Supports Anamorphic de-squeeze; allowing you to comfortably view anamorphic footage, Speed of 12Gb/s over HDMI 2.0 connection, Monitor displays an impressive 10+ stops of dynamic range in real-time from Log/PQ/HLG signals.
Ideal for Broadcast, producing ultimate Pro-Video footage, also allowing you to edit directly from the SSD in Final Cut PRO X, Adobe Premiere or Avid Media Composer.
The Atomos AtomX CAST for Ninja V & Ninja V+ is used to convert your Ninja V or V+ to a multi-camera studio. Allowing you to switch up to four HDMI video sources and output to a variety of destinations such as an external monitor, recorder, separate switcher, or live streaming computer. The Atomos AtomX CAST for Ninja V & Ninja V+ is well suited for a variety of applications including corporate, events, family occasions, house of worship or studio applications.
The unit mounts to the back of the Atomos Ninja V or V+ and supports a variety of resolutions up to 1080p60 through four HDMI inputs. The monitor can view a single image, Picture-in-Picture, or 4-Up modes, and you can also add logos and graphic overlays. It can send Program, Preview, Picture-in-Picture, and 4-Up displays to the HDMI output.
The Atomos Ninja V 5" HDMI Recording Monitor with AtomX CAST Switcher Bundle allows you to preview your broadcast while simultaniously outputting to a recorder, monitor, projector, or live streaming to a computer using the optional AtomX Connector.
The Atomos Cast uses the adapter included with the Atomos Ninja V or V+ to be powered. And it passes the power on to the monitor through the battery mount.
- Atomos Ninja V 5" 4K HDMI Recording Monitor
- Master Caddy II
- 12V, 3A AC Power Supply
- Battery Eliminator
- Limited 1-Year Warranty
- Atomos AtomX CAST for Ninja V & Ninja V+
- USB Type-C Cable
- AtomX SSD Mini Handle
- Hard-Shell Carry Case
- Neoprene Sleeve
Atomos Ninja V 5" 4K HDMI Recording Monitor
Display
| Panel Type | IPS-Type LCD |
| Display Size | 12.7 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 1000 cd/m2 |
| Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) |
| Pixels Per Inch (ppi) | 423 ppi |
| Color Gamut | 100% Rec. 709 |
| Real-Time LUT Monitoring | SDR |
| Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra |
I/O
| Video | 1 x HDMI Type A (HDMI 2.0) Input 1 x HDMI Type A (HDMI 2.0) Output |
| Embedded Audio | HDMI: 2-Channel HDMI: 8-Channel |
| Audio | 1 x 3.5 mm Mic/Line Input 1 x 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power | 1 x D-Tap Input |
| Other I/O | 1 x LANC (2.5 mm) |
| Wi-Fi | None |
Format Support
| Video Format | HDMI (8/10-Bit 4:2:2) DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 120/60/50/30/25/24 1080i: 60/50 720p: 60/50 |
| Gamma Curve | Rec709 |
| Video Signal Conversion | HDMI to SDI DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 120/100/60/50/30/25/24 1080i: 60/50 720p: 60/50 |
Recording
| Pulldown Conversion | 2:2, 3:2 |
| Camera Trigger | HDMI |
| Pre-Roll Record | 4K: 2 Seconds Full HD: 8 Seconds |
| Encoding Formats | Up to 4097 x 2160 ProRes 422, HQ, LT, Raw, Raw HQ 8/10-Bit DNxHR HQ, HQX, LB, SQ 8/10-Bit |
| Maximum Audio Tracks | 12 |
| Metadata Tagging | 10 |
Power
| DC Input Power | 6.2 to 16.8 VDC |
| Battery Type | 1 x L-Series |
| Power Consumption | 10 W (Typical) 22 W (Maximum) |
Mounting
| Mounting | 2 x 3/8"-16 Female |
Environmental
| Operating Temperature | 40°C |
General
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | 151 x 91.5 x 31.5 mm |
| Weight | 360 g |
Atomos AtomX CAST for Ninja V & Ninja V+
| Video Inputs | 4 x HDMI |
| Video Outputs | 1 x HDMI Program/Preview 1 x USB Type-C |
| Control | 4 x Source Select Buttons 4 x Programmable Function Buttons Ninja V or V+ Monitor Touchscreen |
| Video Resolution Supported | 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 1080i: 60, 59.94, 50 |
| Picture in Picture (PIP) | Yes, 4 x Positions |
| Mounting | Battery Mount of Ninja V or V+ Monitor |
| Power Input | 6.2 to 16.8 VDC |
| Power Connector | 1 x Locking Coax |
| Tally Light | Yes |
| Buttons | 4 x Source Select 4 x Function |
| Timecode | Yes, Embedded |
| Cooling | Passive |
| Material of Construction | ABS Plastic |
| Mounting | 1/4"-20 and 3/8"-16 Threads on Base |
| Dimensions | 160 x 129 x 49 mm |
| Weight | 485 g |
