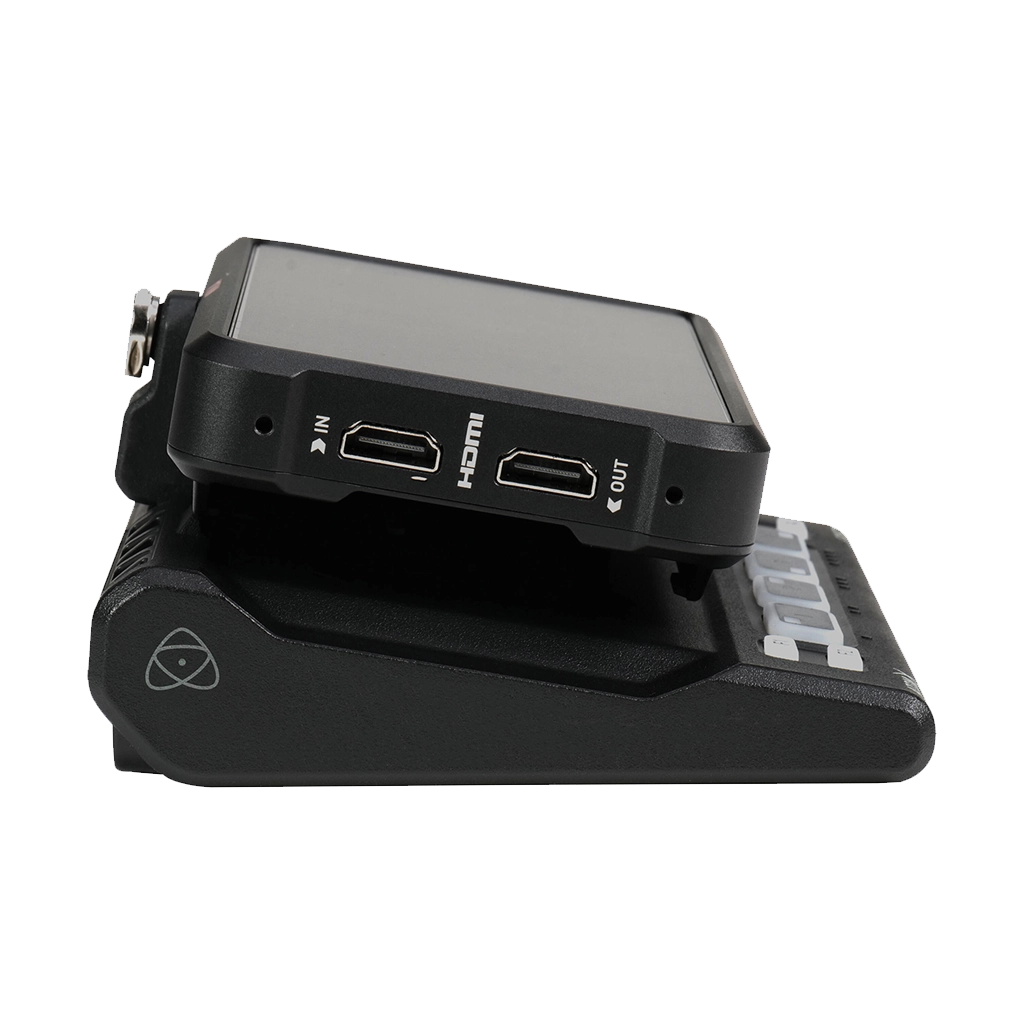

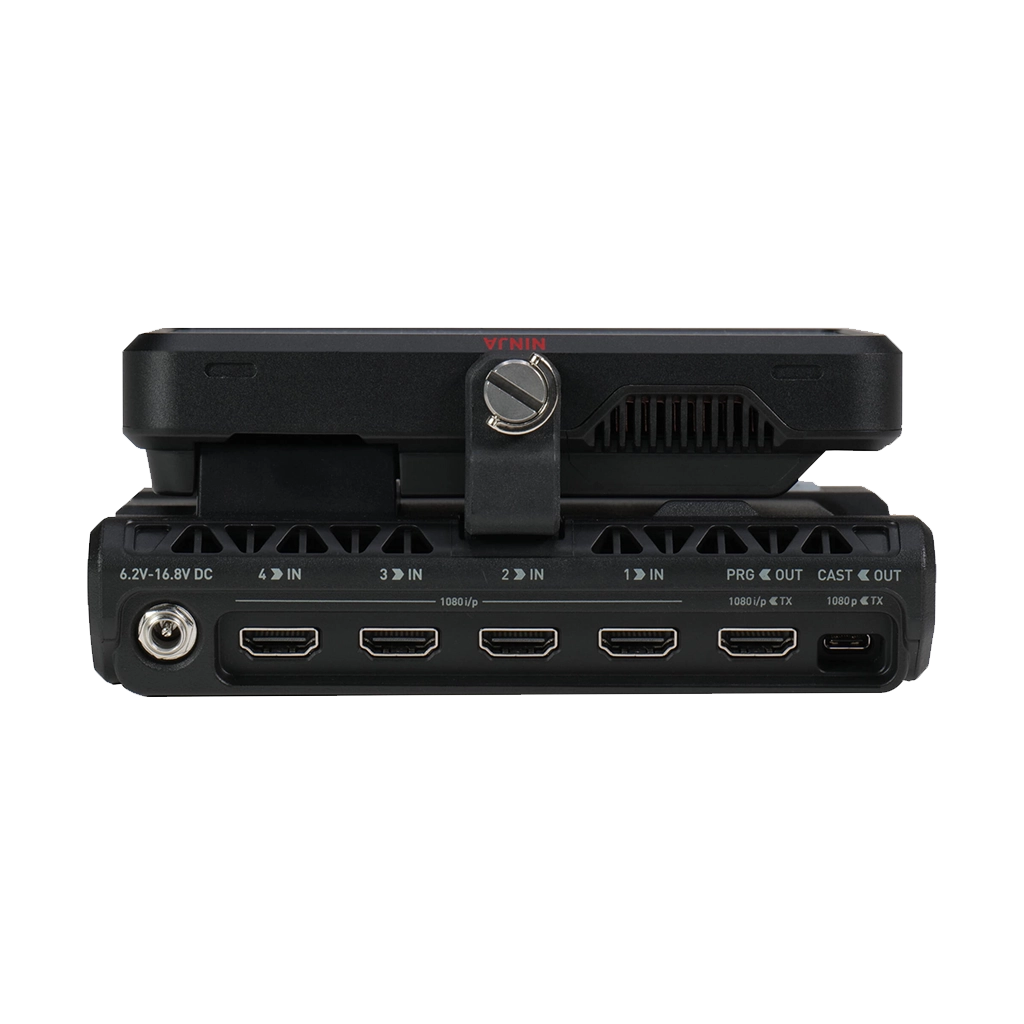

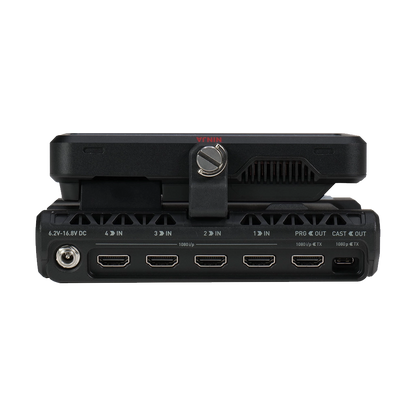

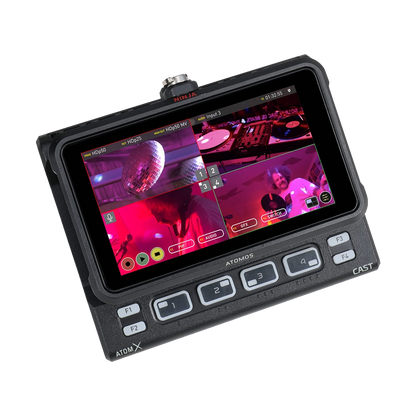

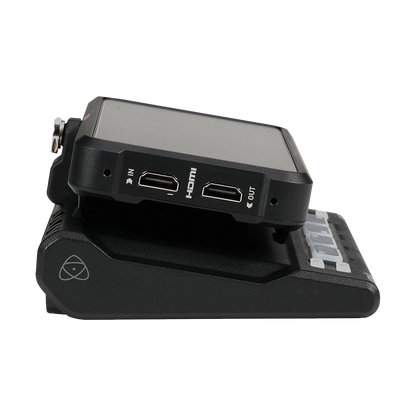

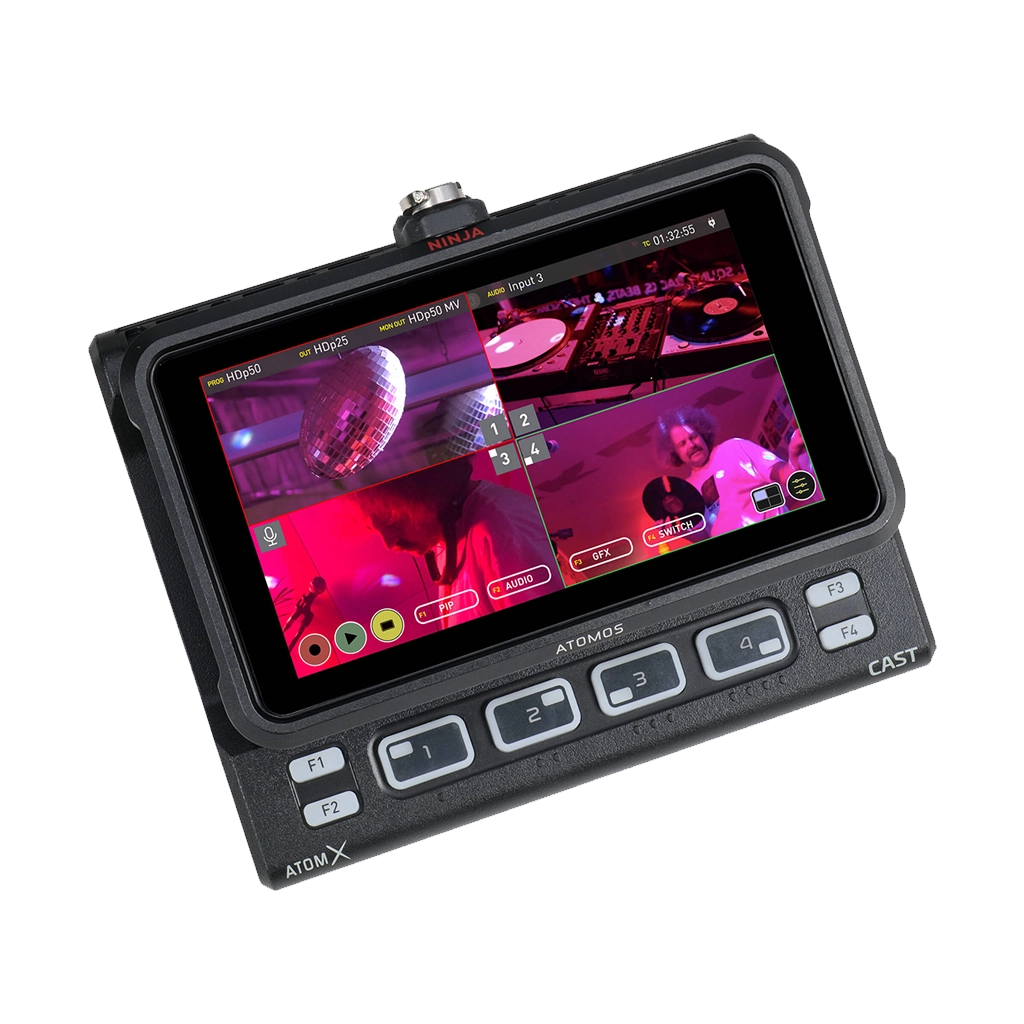

Atomos Ninja V 5" HDMI Recording Monitor with AtomX CAST Switcher Bundle

R 13,995.00
R 13,995.00 R 13,995.00
Tax included. Shipping calculated at checkout.

ATOMNJACS1

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • AtomX CAST Compact HDMI Docking Station
  • Ninja V 5" 4K HDMI Recording Monitor
  • 4 x HDMI Inputs, Source-Select Buttons
  • 1920 x 1080 Touchscreen Display
  • Graphic Overlays, PiP, Streaming Output
  • Mixed Resolution Output up to 1080p60
  • Mirror, Program, Preview, 4-Up Display
  • UVC/Live Streaming with AtomX Connect
  • Can Also Select with Monitor Touchscreen
  • Output to SSD/Recording Device

    The Atomos Ninja V 5" 4K HDMI Recording Monitor is a 5" camera monitor that allows you to record and playback DCI 4K, UHD 4K and HD video footage from this amazing monitor with a brightness of 1000nit, allowing you to mount it on mirrorless, DSLR cameras and for gaming.

    Some amazing features include - monitoring your Log gamma footage without having to view flat, Supports popular log formats from Canon, Sony, ARRI, Red, Panasonic and JVC cameras, Focus assist tools, Supports Anamorphic de-squeeze; allowing you to comfortably view anamorphic footage, Speed of 12Gb/s over HDMI 2.0 connection, Monitor displays an impressive 10+ stops of dynamic range in real-time from Log/PQ/HLG signals.

    Ideal for Broadcast, producing ultimate Pro-Video footage, also allowing you to edit directly from the SSD in Final Cut PRO X, Adobe Premiere or Avid Media Composer.

    The Atomos AtomX CAST for Ninja V & Ninja V+ is used to convert your Ninja V or V+ to a multi-camera studio. Allowing you to switch up to four HDMI video sources and output to a variety of destinations such as an external monitor, recorder, separate switcher, or live streaming computer. The Atomos AtomX CAST for Ninja V & Ninja V+ is well suited for a variety of applications including corporate, events, family occasions, house of worship or studio applications.

    The unit mounts to the back of the Atomos Ninja V or V+ and supports a variety of resolutions up to 1080p60 through four HDMI inputs. The monitor can view a single image, Picture-in-Picture, or 4-Up modes, and you can also add logos and graphic overlays. It can send Program, Preview, Picture-in-Picture, and 4-Up displays to the HDMI output.

    The Atomos Ninja V 5" HDMI Recording Monitor with AtomX CAST Switcher Bundle allows you to preview your broadcast while simultaniously outputting to a recorder, monitor, projector, or live streaming to a computer using the optional AtomX Connector.

    The Atomos Cast uses the adapter included with the Atomos Ninja V or V+ to be powered. And it passes the power on to the monitor through the battery mount.

    • Atomos Ninja V 5" 4K HDMI Recording Monitor
    • Master Caddy II
    • 12V, 3A AC Power Supply
    • Battery Eliminator
    • Limited 1-Year Warranty
    • Atomos AtomX CAST for Ninja V & Ninja V+
    • USB Type-C Cable
    • AtomX SSD Mini Handle
    • Hard-Shell Carry Case
    • Neoprene Sleeve

    Atomos Ninja V 5" 4K HDMI Recording Monitor

    Display

    Panel Type IPS-Type LCD
    Display Size 12.7 cm
    Resolution 1920 x 1080
    Aspect Ratio 16:9
    Touchscreen Yes
    Maximum Brightness 1000 cd/m2
    Bit Depth / Color Support 8-Bit+FRC (1.07 Billion Colors)
    Pixels Per Inch (ppi) 423 ppi
    Color Gamut 100% Rec. 709
    Real-Time LUT Monitoring SDR
    Image Controls Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra

    I/O

    Video 1 x HDMI Type A (HDMI 2.0) Input
    1 x HDMI Type A (HDMI 2.0) Output
    Embedded Audio HDMI: 2-Channel
    HDMI: 8-Channel
    Audio 1 x 3.5 mm Mic/Line Input
    1 x 3.5 mm Headphone Output
    Built-In Speaker None
    Power 1 x D-Tap Input
    Other I/O 1 x LANC (2.5 mm)
    Wi-Fi None

    Format Support

    Video Format HDMI (8/10-Bit 4:2:2)
    DCI 4K: 60/50/30/25/24
    UHD 4K: 60/50/30/25/24
    1080p: 120/60/50/30/25/24
    1080i: 60/50
    720p: 60/50
    Gamma Curve Rec709
    Video Signal Conversion HDMI to SDI
    DCI 4K: 60/50/30/25/24
    UHD 4K: 60/50/30/25/24
    1080p: 120/100/60/50/30/25/24
    1080i: 60/50
    720p: 60/50

    Recording

    Pulldown Conversion 2:2, 3:2
    Camera Trigger HDMI
    Pre-Roll Record 4K: 2 Seconds
    Full HD: 8 Seconds
    Encoding Formats Up to 4097 x 2160
    ProRes 422, HQ, LT, Raw, Raw HQ 8/10-Bit
    DNxHR HQ, HQX, LB, SQ 8/10-Bit
    Maximum Audio Tracks 12
    Metadata Tagging 10

    Power

    DC Input Power 6.2 to 16.8 VDC
    Battery Type 1 x L-Series
    Power Consumption 10 W (Typical)
    22 W (Maximum)

    Mounting

    Mounting 2 x 3/8"-16 Female

    Environmental

    Operating Temperature 40°C

    General

    Material of Construction Aluminum, Polycarbonate
    Dimensions 151 x 91.5 x 31.5 mm
    Weight 360 g

    Atomos AtomX CAST for Ninja V & Ninja V+

    Video Inputs 4 x HDMI
    Video Outputs 1 x HDMI Program/Preview
    1 x USB Type-C
    Control 4 x Source Select Buttons
    4 x Programmable Function Buttons
    Ninja V or V+ Monitor Touchscreen
    Video Resolution Supported 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
    1080i: 60, 59.94, 50
    Picture in Picture (PIP) Yes, 4 x Positions
    Mounting Battery Mount of Ninja V or V+ Monitor
    Power Input 6.2 to 16.8 VDC
    Power Connector 1 x Locking Coax
    Tally Light Yes
    Buttons 4 x Source Select
    4 x Function
    Timecode Yes, Embedded
    Cooling Passive
    Material of Construction ABS Plastic
    Mounting 1/4"-20 and 3/8"-16 Threads on Base
    Dimensions 160 x 129 x 49 mm
    Weight 485 g
