Camera Control

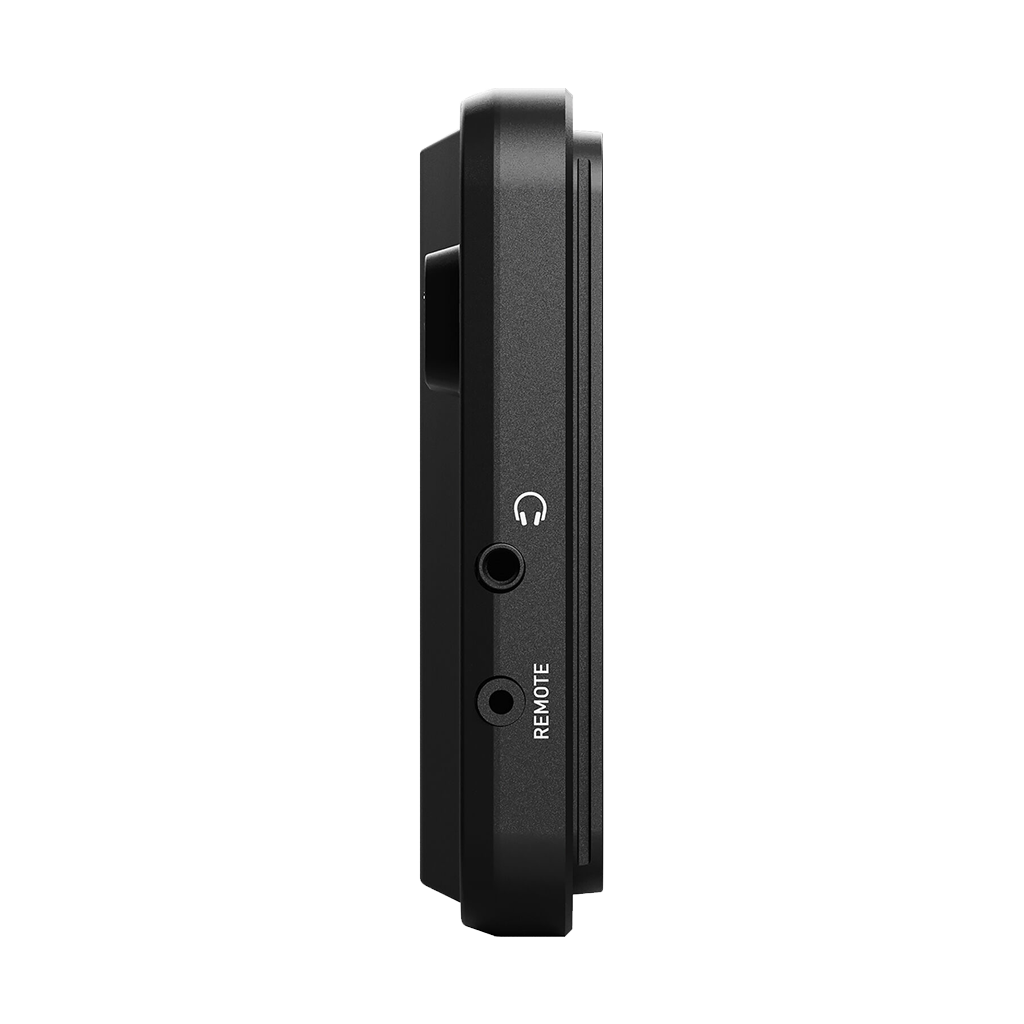

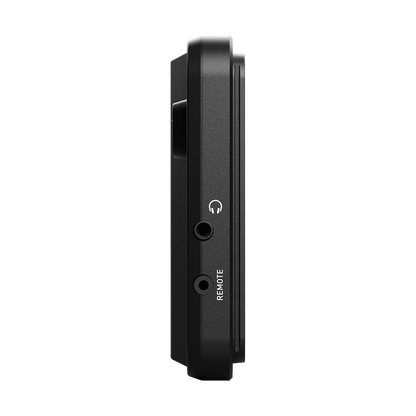

On the Atomos Shinobi II 5.2" HDMI HDR Monitor, you can make use of the USB-C port to provide control to the latest mirrorless or DSLR cameras from Canon, Panasonic, Sony, and Z CAM E2 Line. Expanding the control compatibility, you will also find a 2.5mm LANC port on the side.
Note: This will expand with future support for cameras from FUJIFILM, Nikon, OM System, and Sigma with firmware updates.

Camera Status

Using the Camera Status Indicator, you can easily view your camera settings such as battery status and remaining recording times.
A red barrier can be seen around the edge of the monitor when recording internally, whether it is triggered on the camera itself or on the Shinobi II.

AtomOS 11 and Advanced Image Tools

Use the Shinobi II Monitor interface to adjust your camera lenses' aperture, shutter speed/angle, and ISO with its built-in exposure tools, such as false colour, waveforms, zebras, or histogram, and achieve perfect exposure on every shot.

Brighter Display

With 1500 cd/m² peak brightness, the screen on this Shinobi is easily readable whether indoors, or in bright sunlight. The screen is approximately 50% brighter than the predecessor.

Input Signals

The Atomos Shinobi II 5.2" HDMI HDR Monitor features an HDMI 1.4 input making it possible for you to monitor signals in various resolutions and frame rates up to DCI/UHD and up to 1080p60.

HDR and LUT Support

HDR HLG and HDR PQ modes allow you to preview what the camera LOG might look like in HDR. Up to eight custom LUTs can be uploaded to the internal memory to preview.

Frame Guides

A variety of built-in cinema-style and social media-focused frame guides help compose your shots, including presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9, 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2.

Lightweight Design

You will find a slimmer design monitor only weighing in at 210g along with added locating holes alongside the 1/4"-20 threads, these allow for an anti-twist mounting design. The single L-Series battery plate is placed in the centre of the monitor increasing ease of manoeuvrability and improving balance.
You will also be able to make use of Atomos' new line of locking cables which includes an HDMI/USB-C locking adapter.

Power Options

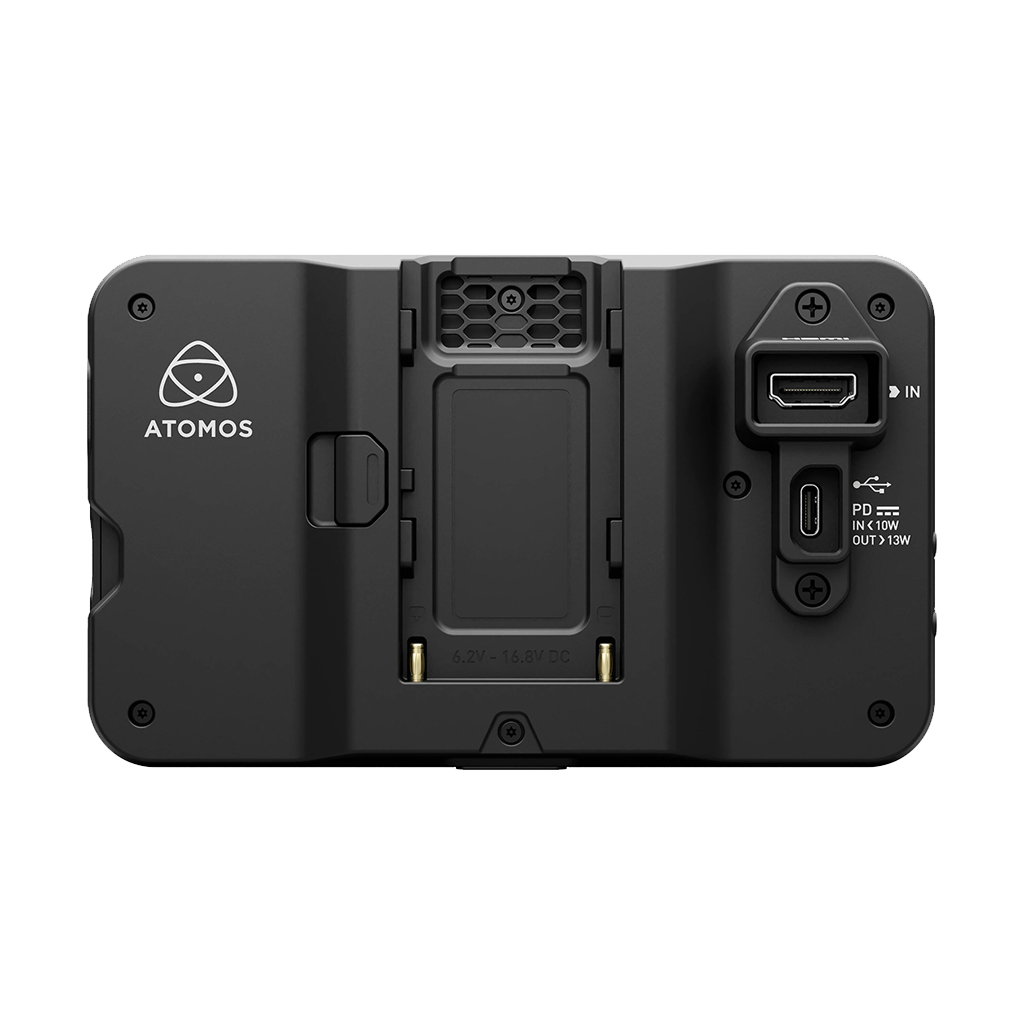

The Atomos Shinobi II 5.2" HDMI HDR Monitor can be powered in multiple ways, these include an L-series / NP-F style battery. Or an optional battery eliminator (dummy battery) in combination with a DC barrel to D-Tap cable, or via a USB-C PD charger with 10W input. Furthermore, you are able to charge/power your camera via USB-C PD 13W output while using the Shinobi camera control features.

• Atomos Shinobi II 5.2" HDMI HDR Monitor
• USB-C 2.0 Cable
• HDMI/USB-C Locking Cable Adapter
