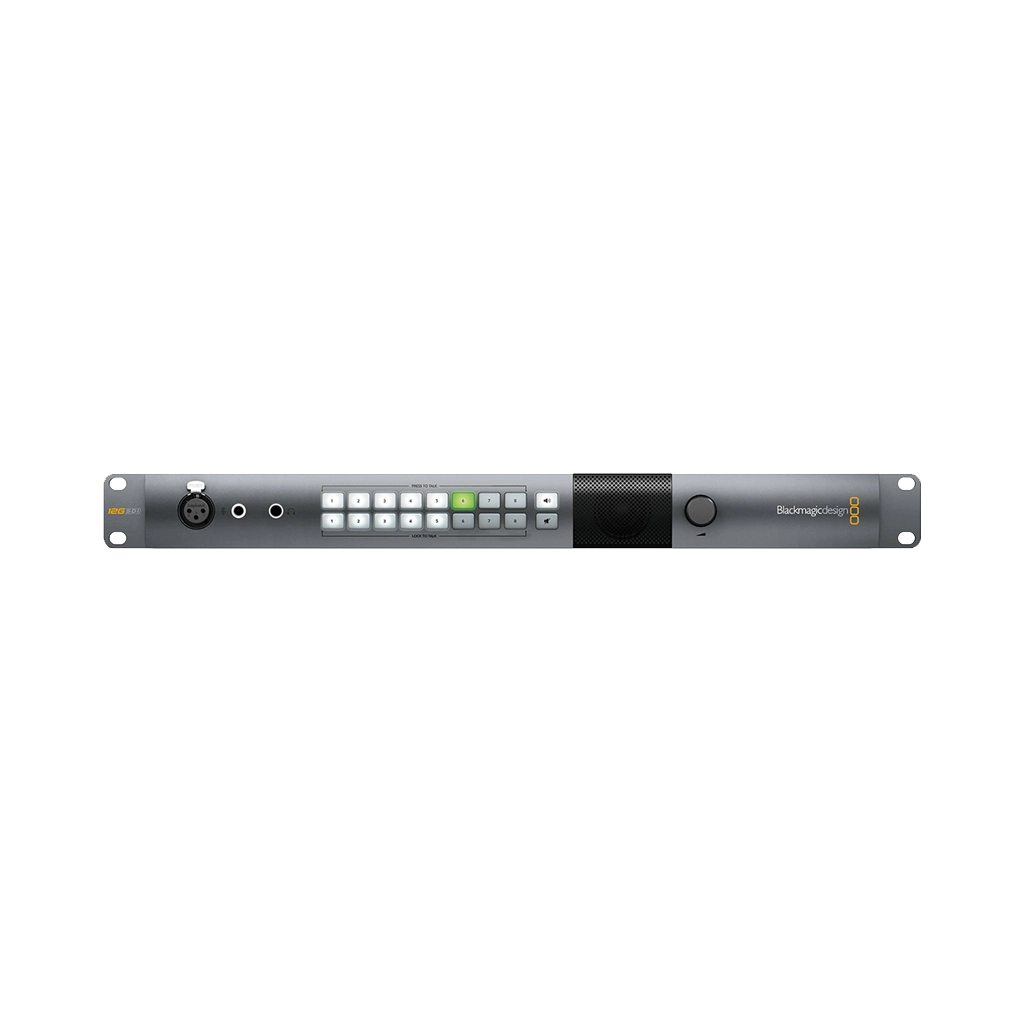

Blackmagic ATEM Talkback Converter 4K
Choose PayGate at checkout for MobiCred Payments.
- Handles up to 8 cameras for SDI talkback using embedded audio channels
- Supports 12G-SDI for all SD, HD and Ultra HD formats up to 2160p60
- Provides BNC connections to each camera, and an optical fiber socket for adding an optical fiber SFP module for extending camera distances when required
- Includes push to talk buttons
- Support for tough and common aviation headsets
- Built in speaker
- Front panel mic input
Orms Bellville
Orms Cape Town
Blackmagic ATEM Talkback Converter 4K
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Handles up to 8 cameras for SDI talkback using embedded audio channels
- Supports 12G-SDI for all SD, HD and Ultra HD formats up to 2160p60
- Provides BNC connections to each camera, and an optical fiber socket for adding an optical fiber SFP module for extending camera distances when required
- Includes push to talk buttons
- Support for tough and common aviation headsets
- Built in speaker
- Front panel mic input
Choose PayGate at checkout for MobiCred Payments.
- Handles up to 8 cameras for SDI talkback using embedded audio channels
- Supports 12G-SDI for all SD, HD and Ultra HD formats up to 2160p60
- Provides BNC connections to each camera, and an optical fiber socket for adding an optical fiber SFP module for extending camera distances when required
- Includes push to talk buttons
- Support for tough and common aviation headsets
- Built in speaker
- Front panel mic input
The Blackmagic ATEM Talkback Converter 4K handles up to 8 cameras for SDI talkback using embedded audio channels 15 and 16 as used on the Blackmagic Studio Cameras and ATEM Camera Converter. Supports 12G-SDI for all SD, HD and Ultra HD formats up to 2160p60 and provides BNC connections to each camera, and an optical fiber socket for adding an optical fiber SFP module for extending camera distances when required. Includes push to talk buttons, support for tough and common aviation headsets, loop through for more than 8 camera support, built in speaker, front panel mic input and much more.
Features
- Handles up to 8 cameras for SDI talkback using embedded audio channels
- Supports 12G-SDI for all SD, HD and Ultra HD formats up to 2160p60
- Provides BNC connections to each camera, and an optical fiber socket for adding an optical fiber SFP module for extending camera distances when required
- Includes push to talk buttons
- Support for tough and common aviation headsets
- Built in speaker
- Front panel mic input
Blackmagic ATEM Talkback Converter 4K

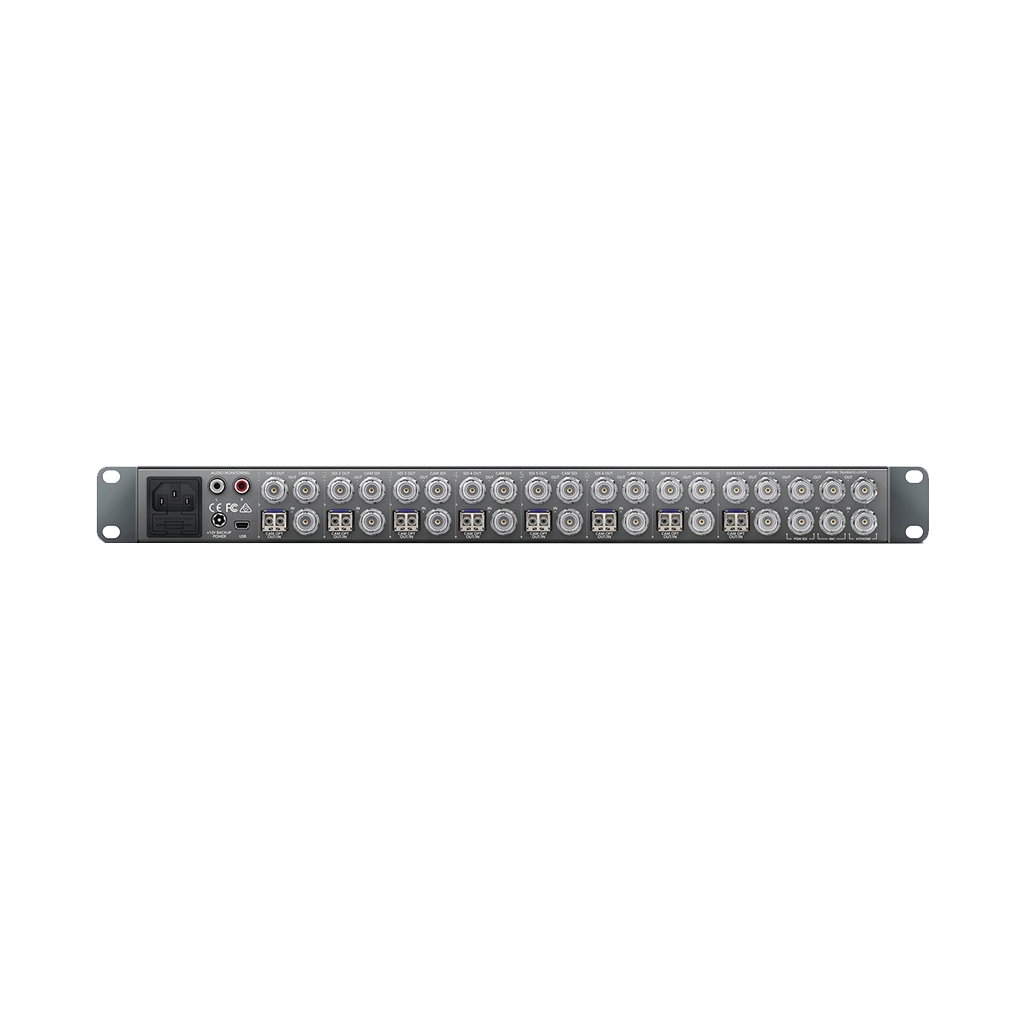

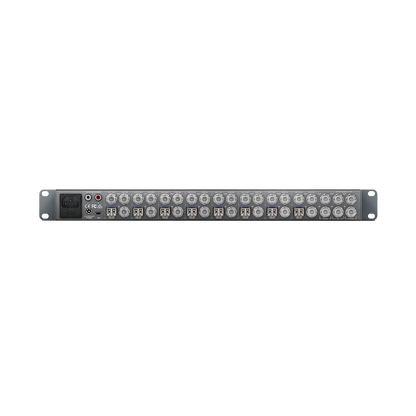

Connections
SDI Program Input
1 x 10-bit SD/HD/Ultra HD 4K auto switching program input from switcher, including tally information with 16 channel embedded audio.
SDI Program Output
1 x 10-bit SD/HD/Ultra HD 4K auto switching program loop thru output connects to another ATEM Talkback Converter 4K.
Talkback Audio
Aviation Headsets with 0.25" TRS headset connector and 0.206" TRS microphone connector. Front mounted balanced XLR microphone connector.
Analog Audio
1 x stereo RCA monitoring output.
SDI Camera Input
8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio.
SDI Camera Output
8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio.
SDI Output
8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio.
Optical Fiber Video Input (Optional)
8 x single mode SD/HD/Ultra HD 4K auto switching camera inputs with LC connector.
Optical Fiber Video Output (Optional)
8 x single mode SD/HD/Ultra HD 4K auto switching camera outputs with LC connector.
Optical Fiber Audio Input
8 x single mode camera audio inputs with LC connector. Channels 1 and 2 are camera audio. Channels 15 and 16 are intercom audio.
Optical Fiber Audio Output
8 x single mode camera audio outputs with LC connector. Channels 1 and 2 are camera audio. Channels 15 and 16 are intercom audio.
Computer Interface
1 x mini-B type USB connector for firmware updates.
Standards
SD Format Support
525/29.97 NTSC, 625/25 PAL
HD Format Support
1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080PsF25, 1920 x 1080PsF29.97, 1920 x 1080PsF30, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
2K Format Support
2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25.
4K Format Support
3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p60.
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B, SMPTE 425M.
Audio Sampling
Television standard sample rate of 48Khz, 24-bit A/D conversion.
Video Sampling
4:2:2, 4:4:4
Color Precision
10-bit
Color Space
REC 601, REC 709.
Multiple Rate Support
SDI switches between SD, HD and Ultra HD 4K.
Software
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac OS X 10.9 Mavericks,
Mac OS X 10.10 Yosemite or later.
Windows 7 or Windows 8.
Power Requirements
Power Usage
60 Watts
Power Supply
110 - 240V AC input with redundant 12-31V DC input.
