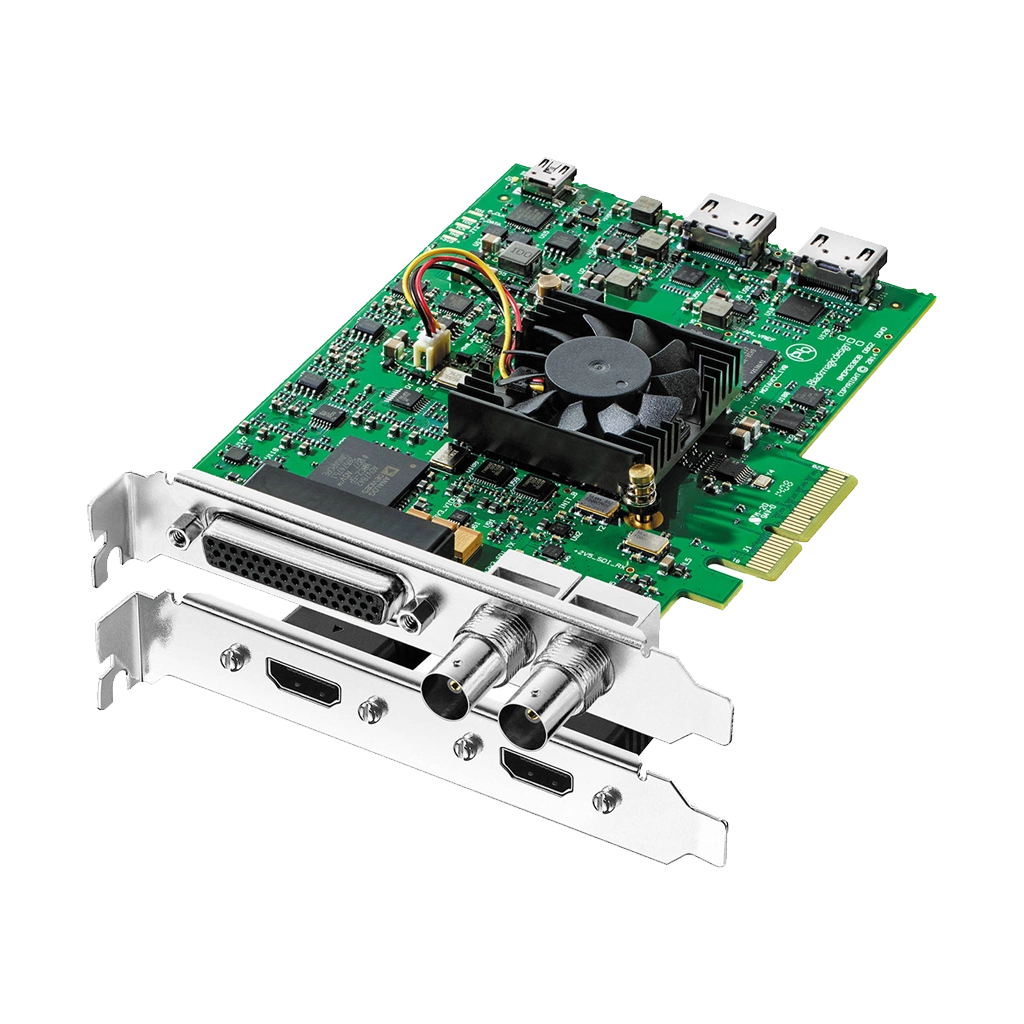

Blackmagic DeckLink Studio 4K
Choose PayGate at checkout for MobiCred Payments.
- 6G-SDI Input/Output
- 4K HDMI Input/Output
- PCIe Interface
- Supports SD, HD, 2K, and 4K Formats
- UHD / DCI 4K 4:2:2 via 6G-SDI or HDMI
- 1080p 4:4:4 by Single-Link 3G-SDI
- Analog I/O via Breakout Cable
- Genlock, RS-422, SD/HD Keyer
Orms Bellville
Orms Cape Town
Blackmagic DeckLink Studio 4K
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 6G-SDI Input/Output
- 4K HDMI Input/Output
- PCIe Interface
- Supports SD, HD, 2K, and 4K Formats
- UHD / DCI 4K 4:2:2 via 6G-SDI or HDMI
- 1080p 4:4:4 by Single-Link 3G-SDI
- Analog I/O via Breakout Cable
- Genlock, RS-422, SD/HD Keyer
Choose PayGate at checkout for MobiCred Payments.
- 6G-SDI Input/Output
- 4K HDMI Input/Output
- PCIe Interface
- Supports SD, HD, 2K, and 4K Formats
- UHD / DCI 4K 4:2:2 via 6G-SDI or HDMI
- 1080p 4:4:4 by Single-Link 3G-SDI
- Analog I/O via Breakout Cable
- Genlock, RS-422, SD/HD Keyer
The Blackmagic DeckLink Studio 4K to move seamlessly between SD, HD, 2K and Ultra HD. The DeckLink Studio 4K includes a massive number of analog and digital video connections including SD/HD/Ultra HD 6G-SDI, HDMI 1.4b, SD/HD component, composite, S-video, 4 ch balanced analog audio, 2 ch AES/EBU switchable to 6 ch out, black burst and tri-sync reference input, RS-422 deck control connections, keying in SD and a hardware down converter. Perform editing, paint and broadcast design and more with the ultimate future proof design.
Features:
- 6G-SDI Input/Output
- 4K HDMI Input/Output
- PCIe Interface
- Supports SD, HD, 2K, and 4K Formats
- UHD / DCI 4K 4:2:2 via 6G-SDI or HDMI
- 1080p 4:4:4 by Single-Link 3G-SDI
- Analog I/O via Breakout Cable
- Genlock, RS-422, SD/HD Keyer
- Down/Up/Cross Conversions
- Mac OS X, Windows, and Linux Compatbile
Blackmagic DeckLink Studio 4K
Connections
SDI Video Input
1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4
SDI Video Output
1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4
Analog Video Input
1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video. Component supports HD and SD.
Analog Video Output
1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video, 1 x SD-SDI. Component supports HD and SD.
HDMI Video Input
1 x HDMI type A connector
HDMI Video Output
1 x HDMI type A connector
Analog Audio Input
4 Channels of professional balanced analog audio via 1/4" jack connectors.
Analog Audio Output
4 Channels of professional balanced analog audio via 1/4" jack connectors. Channels 3 & 4 can switch to AES/EBU outputs.
AES/EBU Audio Input
2 Channels unbalanced with sample rate converter.
AES/EBU Audio Output
2 Channels unbalanced. Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3 & 4 and 5 & 6 output. This provides a total of 6 AES/EBU output audio channels when using this feature.
SDI Audio Input
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
SDI Audio Output
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
HDMI Audio Input
8 Channels embedded in SD, HD, 4K.
HDMI Audio Output
8 Channels embedded in SD, HD, 4K
Sync Input
Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD, 2K or 4K format.
Device Control
Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.
Computer Interface
PCI Express 4 lane generation 1, compatible with 4,8 and 16 lane PCIe Slots.
Codecs
Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4.
Software
Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X. Media Express, Disk Speed Test, LiveKey, Blackmagic Control Panel and Blackmagic driver on Windows 7 and Windows 8. Media Express, Blackmagic Control Panel and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
PCI Express 4 lane generation 1, compatible with 4, 8, 16 lane PCI Express slots on Mac OS X, Windows and Linux. Please check the Support pages to see the full system requirements.
Software Applications
Video Standards
SD Format Support
625/25 PAL, 525/29.97 NTSC.
HD Format Support
720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080p50, 1080i59.94, 1080p59.94, 1080i60, and 1080p60.
2K Format Support
2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25.
4K Format Support
3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25.
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M ITU-R BT.656 and ITU-R BT.601.
SDI Metadata Support
VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioning.
Audio Sampling
Television standard sample rate of 48 kHz at 24 bit.
Video Sampling
4:2:2 and 4:4:4 (4K is 4:2:2)
Color Precision
10-bit
Color Space
REC 601, REC 709
HDMI Configuration
HDMI automatically configures to connected display.
HDMI Resolution
Pixel for pixel up to 4K resolutions.
HDMI Color Precision
10-bit RGB in HD
10-bit YUV in 4K
Multiple Rate support
HDMI and SDI video connections are switchable between SD/HD/2K and UHD. Component analog video connections are switchable between SD and HD.
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Processing
Colorspace Conversion
Hardware based real time.
HD Down Conversion
Built in, high quality hardware down converter outputs HD-SDI on SDI output, SD on SD-SDI, Composite and S-Video outputs when working in HD video formats on playback. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
HD Up Conversion
Software based up conversion from SD to 720HD or 1080HD on capture. Selectable between 4:3 pillarbox, 14:9 pillarbox and 16:9 zoom.
Cross Conversion
Software based cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback.
Real Time Effects
Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer™ internal effects. DaVinci Resolve.
Operating Systems
Mac OS X 10.9 Mavericks,
Mac OS X 10.10 Yosemite or later.
Windows 7 64-bit or Windows 8 64-bit.
Linux
EMC Certifications
FCC, CE and C-Tick
