Blackmagic Design 2110 IP Converter 3X3G

R 12,895.00
R 12,895.00 R 12,895.00
Tax included. Shipping calculated at checkout.

BLA-CONVNVIPA3/3G

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • Converts 3G-SDI to 2110 IP Video Systems
  • 3G-SDI Inputs, Outputs and Loop Outputs
  • Integrated 2.2" LCD Display
  • Resolutions up to 1080p60
  • PoE+ Support

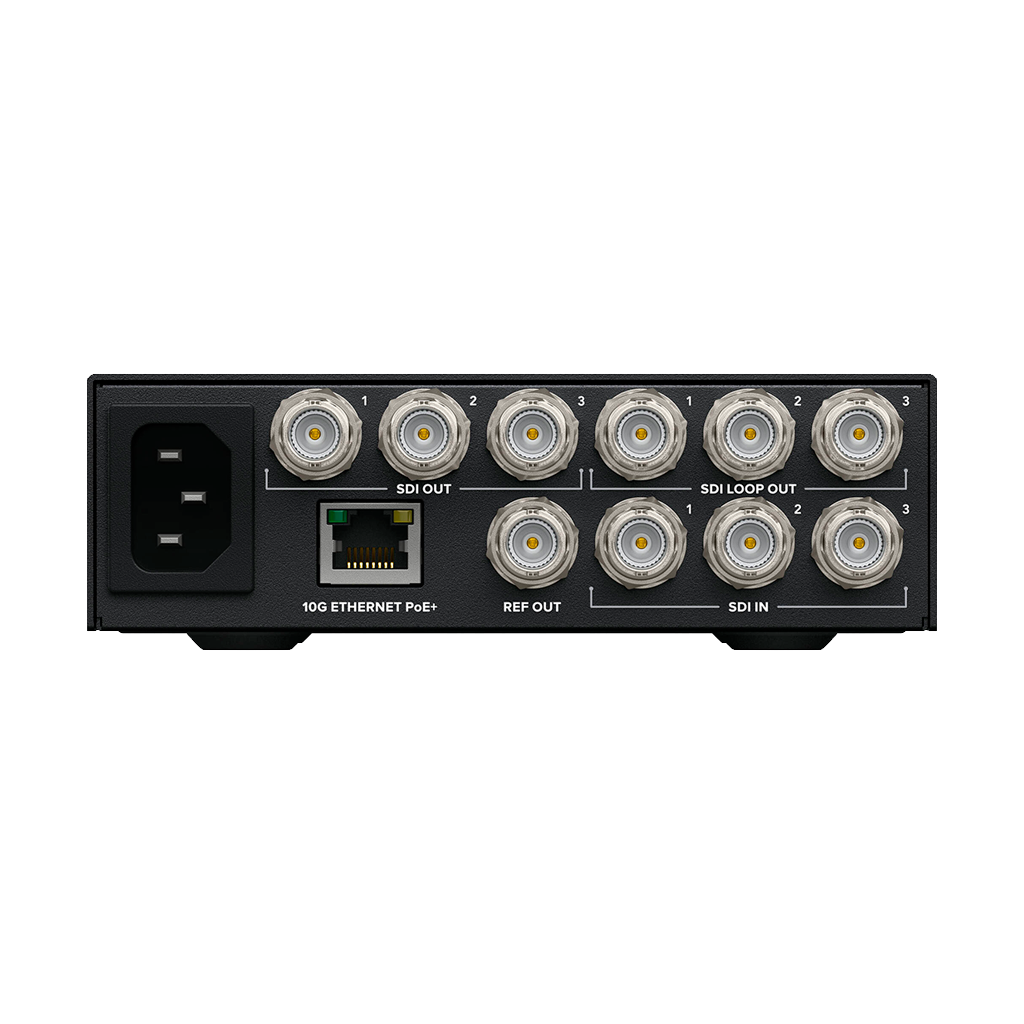

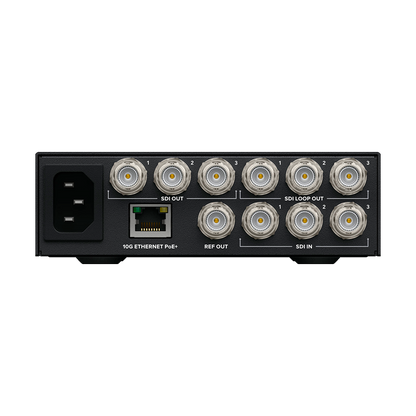

    The Blackmagic Design 2110 IP Converter 3X3G enables you to convert the signals from three separate 3G-SDI devices to 2110 IP video systems. The wide range of connectivity includes a 10G Ethernet port that is capable of handling up to three video channels simultaneously, three 3G-SD inputs and outputs, along with three loop outputs. It can also handle up to 16 channels of embedded audio with their respective video signals, and the RJ45 10G Ethernet port supports 10/100/1000/10G BASE-T and can also be used for PoE+ power connectivity.

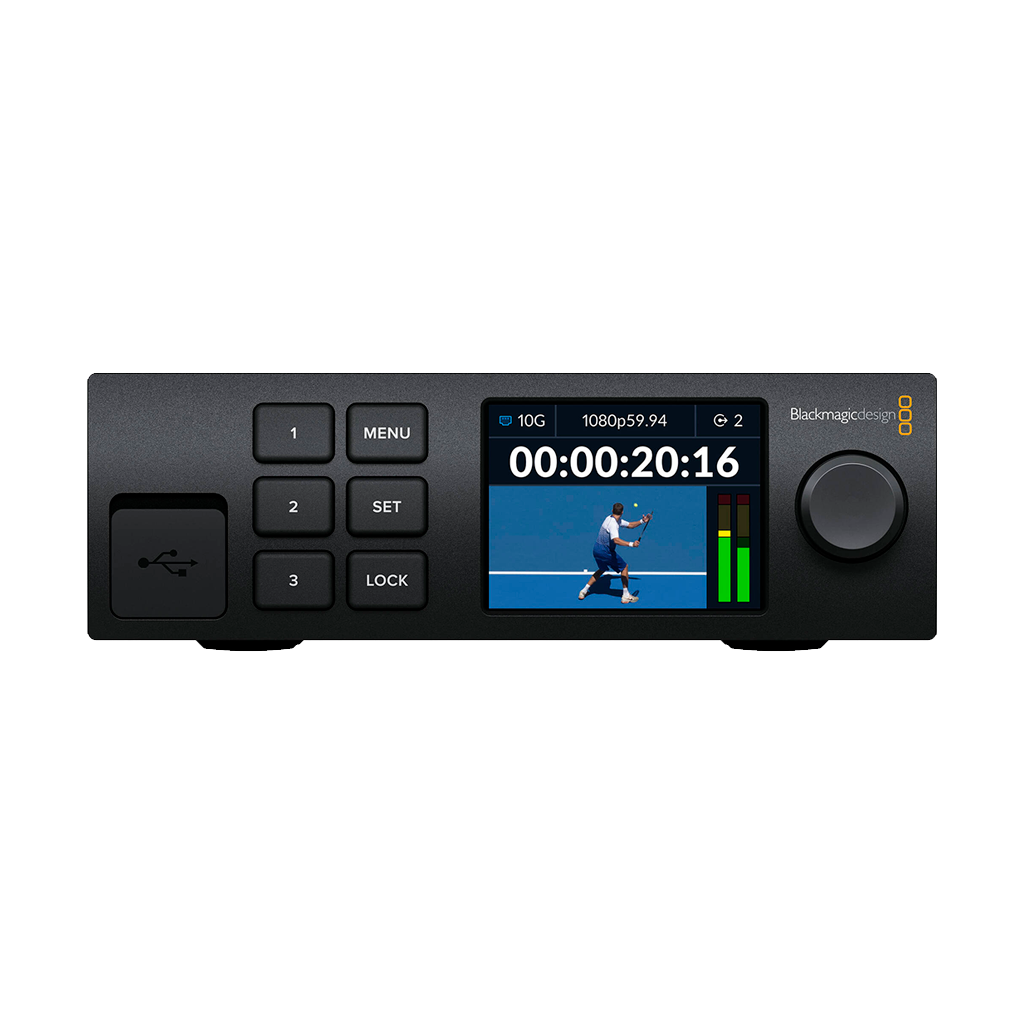

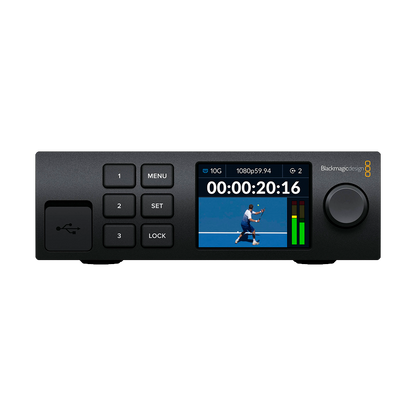

    The front panel of the Blackmagic Design 2110 IP Converter 3X3G features a 2.2" colour LCD display providing signal monitoring, menus, and diagnostic data. You are also able to route IP inputs from the panel. In addition to the PoE+ option, the unit also features a 100 to 240V AC power port.

    Multiple SMPTE 2110 IP Channels Supported

    The Blackmagic Design 2110 IP Converter 3X3G conforms to the SMPTE ST2110 standard for IP video. This specifies the transport, synchronisation, and description of cideo, audio, and ancillary data over managed IP networks for broadcast. It can also sync SDI inputs to a common PTP clock, or external gear can lock to the reference output that's also generated from the PTP clock. It supports SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio, and SMPTE-2110-40 for ancillary data.

    NMOS Protocol Support

    The Blackmagic Design 2110 IP Converter 3X3G supports all NMOS interface specifications, allowing all 2110 IP devices and operate together as a large virtual router. Videohub Smart Control routes sources to destinations on 2110 IP networks because it can act as an NMOS controller. The NMOS interface specification describes how SMPTE 2110 devices are discovered and controlled on IP networks. IS-04 is supported for the discovery and registration of IP video devices, and IS-05 for connection management between IP video devices. This means you can make connections between sources and destinations just like a traditional SDI router.

    Supports All SD and HD Formats up to 1080p60

    The Blackmagic Design 2110 IP Converter 3X3G features 3G-SDI connections on the rear that support both SD and HD video standards. With this converter, you are able to connect existing SDI broadcast equipment to the new IP-based infrastructure. In standard definition, both 525i59.94 and 625i50 standards are supported. In high definition, the unit supports all 720p video standards up to 720p60, all 1080 interlaced standards up to 1080i60, and all 1080p standards up to 1080p60, and you can run three different video standards at the same time.

    True 10-Bit Broadcast Video Quality

    Uncompressed 10-bit is mostly used for the television standard, which allows colours to be represented with four times the precision of 8-bit video. Working with 10-bit colour, you are always working with the highest quality possible.

    Blackmagic Design 2110 IP Converter 3X3G

    Inputs/Outputs
    Inputs/Outputs
    1x RJ45
    Video Inputs
    3x BNC (3G-SDI)
    Audio Inputs
    No
    Video Outputs
    3x BNC (3G-SDI)
    3x BNC (3G-SDI) (Loop Output)
    Audio Outputs
    No
    Other I/O
    1x BNC Reference Output
    1x USB-C Control, Firmware
    Expansion Slots
    No
    Format Support
    Input Video Format
    RJ45 / SDI (8/10-Bit 4:4:4 RGB)
    1080p at 23.98/24/25/29.97/30 fps
    1080i at 50/59.94/60 fps
    720p at 50/59.94/60 fps
    576i / 625 lines at 50 fps
    480i / 525 lines at 59.94 fps
    RJ45 / SDI (8/10-Bit 4:2:2 YUV)
    1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
    1080i at 50/59.94/60 fps
    720p at 50/59.94/60 fps
    576i / 625 lines at 50 fps
    480i / 525 lines at 59.94 fps
    Output Video Format
    RJ45 / SDI (8/10-Bit 4:4:4 RGB)
    1080p at 23.98/24/25/29.97/30 fps
    1080i at 50/59.94/60 fps
    720p at 50/59.94/60 fps
    576i / 625 lines 50 fps
    480i / 525 lines 59.94 fps
    RJ45 / SDI (8/10-Bit 4:2:2 YUV)
    1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
    1080i at 50/59.94/60 fps
    720p at 50/59.94/60 fps
    576i / 625 lines at 50 fps
    480i / 525 lines at 59.94 fps
    Embedded Audio
    LAN (RJ45)/SDI: 16-Channel
    Standards
    Video Standard Compliance
    SMPTE ST-2110
    HDR Support
    Not Specified by Manufacturer
    Hardware
    Display Size
    2.2"
    OS Compatibility
    macOS 12 to 13 or Later
    Windows 10 (64-Bit Only)
    Windows 11
    Power
    Power I/O
    1x IEC C14 Input
    PoE Support
    PoE+ 802.3at
    Environmental
    Operating Temperature
    0 to 40°C
    Storage Temperature
    -20 to 60°C
    Operating Humidity
    0 to 90%
