Blackmagic Design

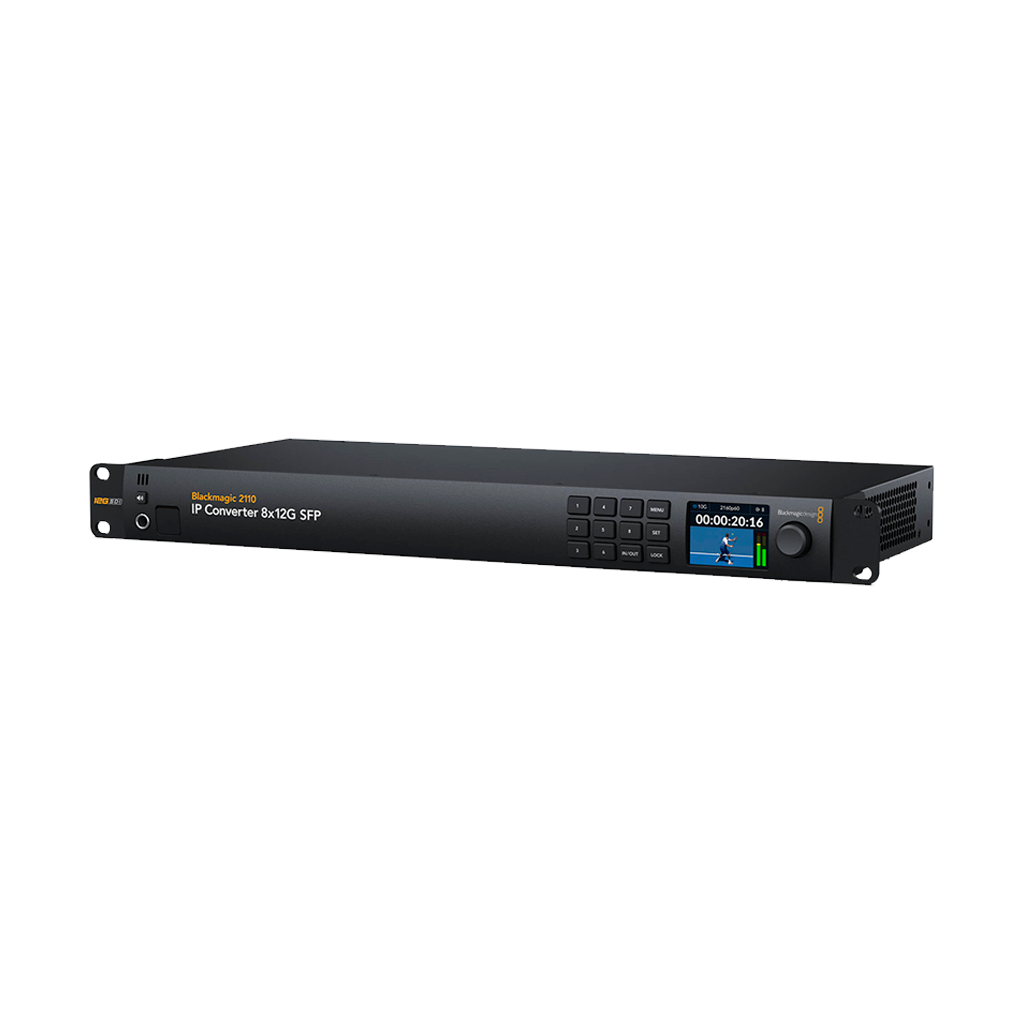

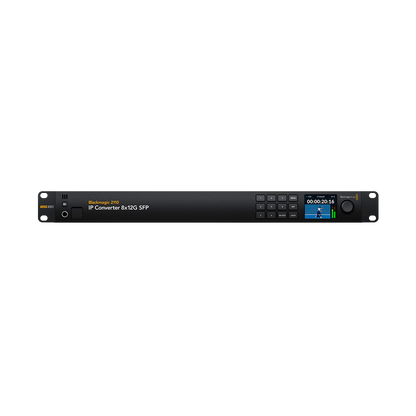

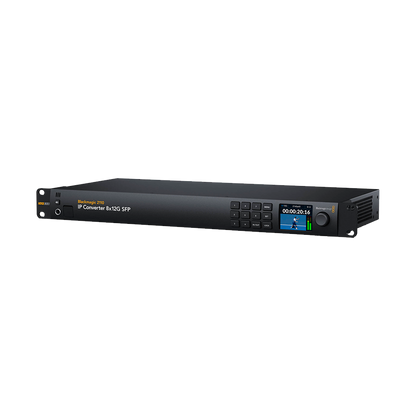

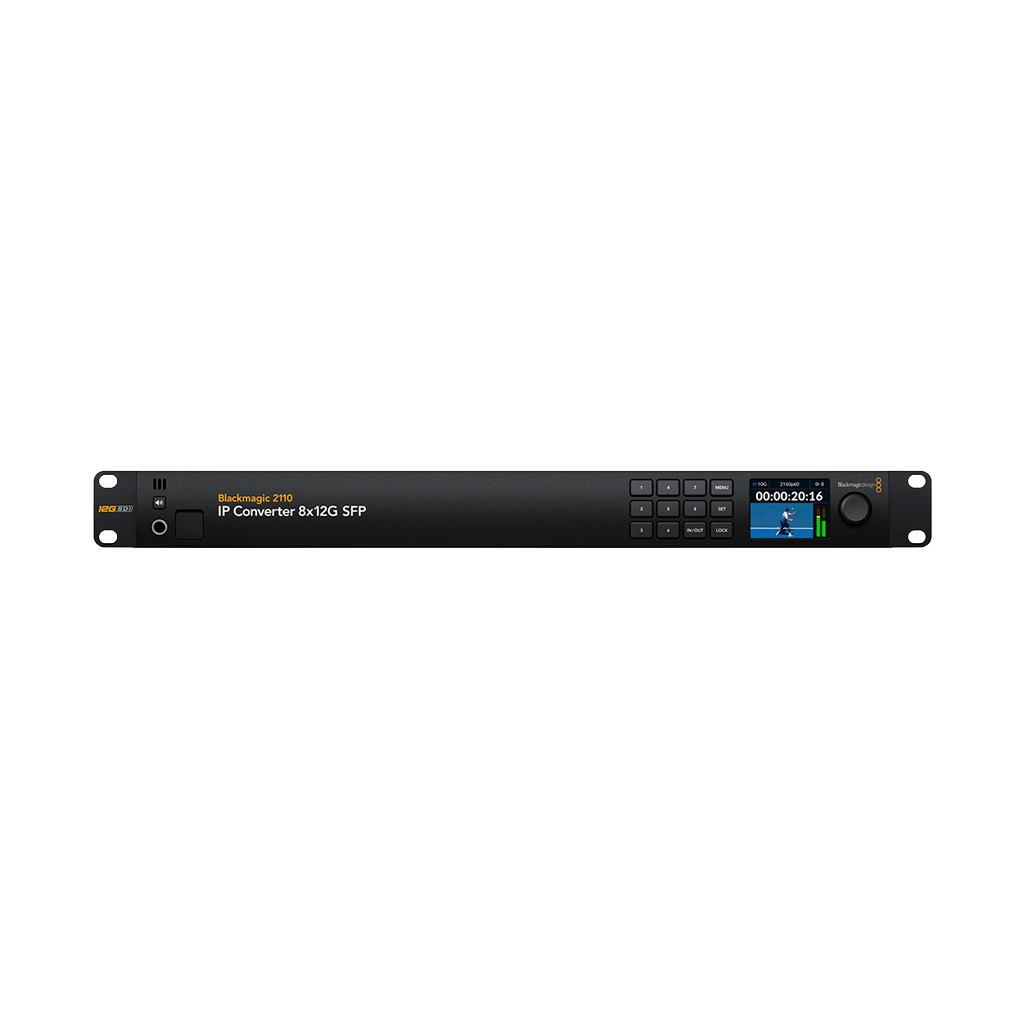

Blackmagic Design 2110 IP Converter 8x12G SFP

R 56,195.00
R 56,195.00 R 56,195.00
Tax included. Shipping calculated at checkout.

BLA-CONVNVIPC8/12GSFP

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • Convert 8 x 12G-SDI Devices to SFP Fibre
  • 8 x SMPTE-2110 IP SFP Fibre Ports
  • UHD 4K Resolution Support
  • Redundant Power
  • 1 RU Rackmount Design

    The Blackmagic Design 2110 IP Converter 8x12G SFP enables you to bring your 12G-SDI broadcast gear to SMPTE-2110 compliance. Providing eight bidirectional conversion connectors, along with eight SMPTE-2110 SFP IP fibre ports to extend connectivity over longer distances.

    The Blackmagic Design 2110 IP Converter 8x12G SFP features a 1 RU design that fits in a standard studio rack, as well as a 12G-SDI return input.

    Blackmagic Design 2110 IP Converter 8x12G SFP

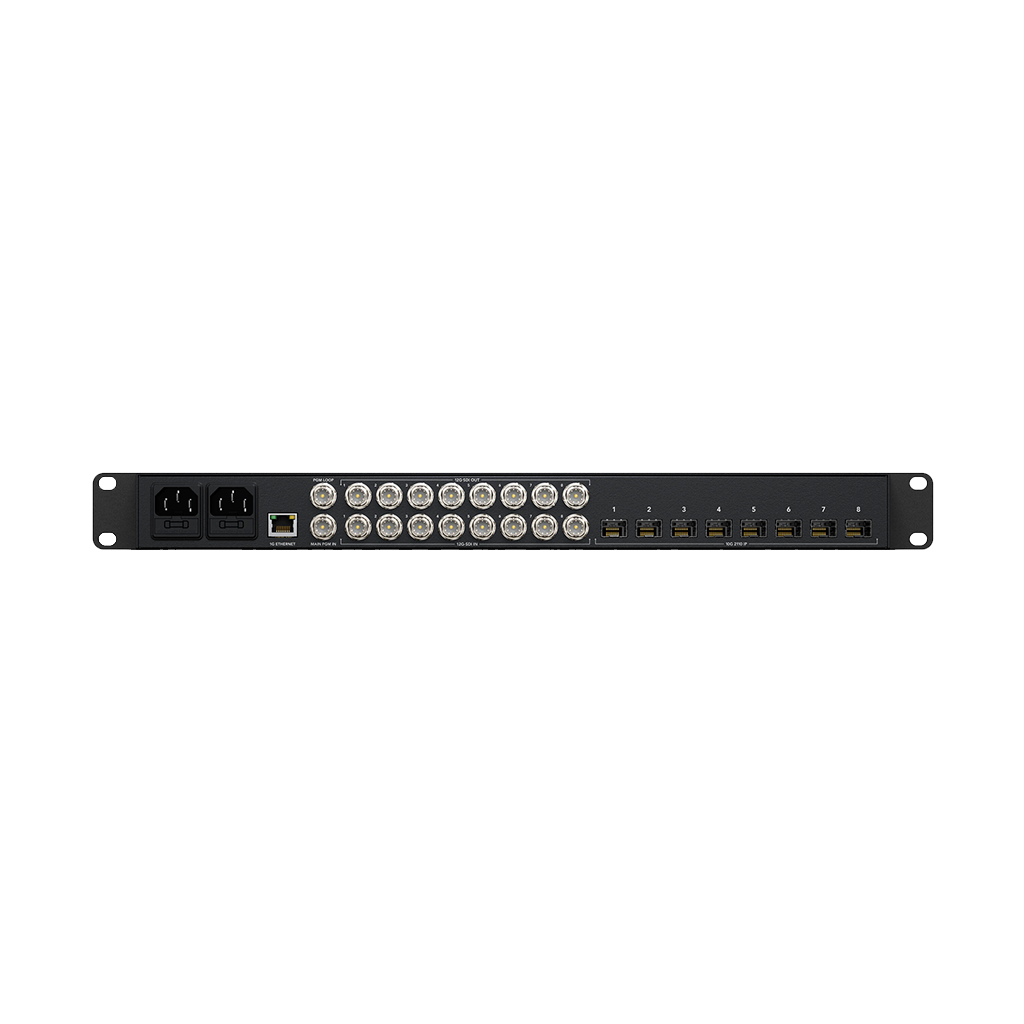

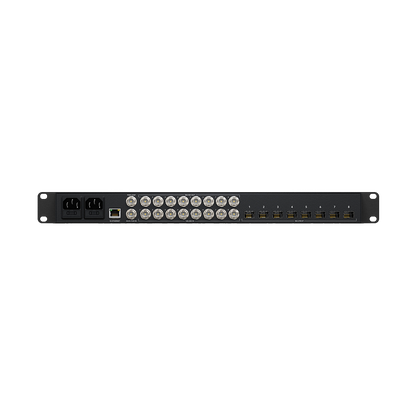

    Inputs/Outputs
    Video I/O
    Input
    8x BNC (12G-SDI) Female
    1x BNC (12G-SDI) Female (Program)
    Output
    8x BNC (12G-SDI) Female
    1x BNC (12G-SDI) Female (Loop Output)
    Audio I/O
    Output
    1x 1/4" TRS Stereo Analogue Female
    Other I/O
    Input
    1x USB-C 3.0 / 3.1/3.2 Gen 1
    Expansion Slots
    8x SFP Slot (Occupied by 10 Gb/s SMPTE 2110 IP SFP)
    Format Support
    Video Resolution
    BNC Input/Output (4:2:2 YUV)
    4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
    3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
    1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
    1920 x 1080PsF at 25/29.97/30 fps
    1920 x 1080i at 50/59.94/60 fps
    1280 x 720 at 50/59.94/60 fps
    Embedded Audio
    LAN (RJ45)/SDI
    Standards
    Video Standard Compliance
    SMPTE: ST-2110
    HDCP Support
    No
    HDR Support
    Yes
    Hardware
    Wireless
    No
    OS Compatibility
    macOS 13 or Later
    Windows 10 to 11
    Display
    Display
    2.2" LCD
    Power
    Power I/O
    2x IEC C14 (100 to 240 VAC ) Input
    General
    Operating Conditions
    5 to 40°C up to 90% Humidity
    Storage Conditions
    -20 to 45°C up to 90% Humidity
    Rack Form Factor
    1 U
    Dimensions
    48.3 x 23.42 x 4.42 cm
    Weight
    3.73 kg
