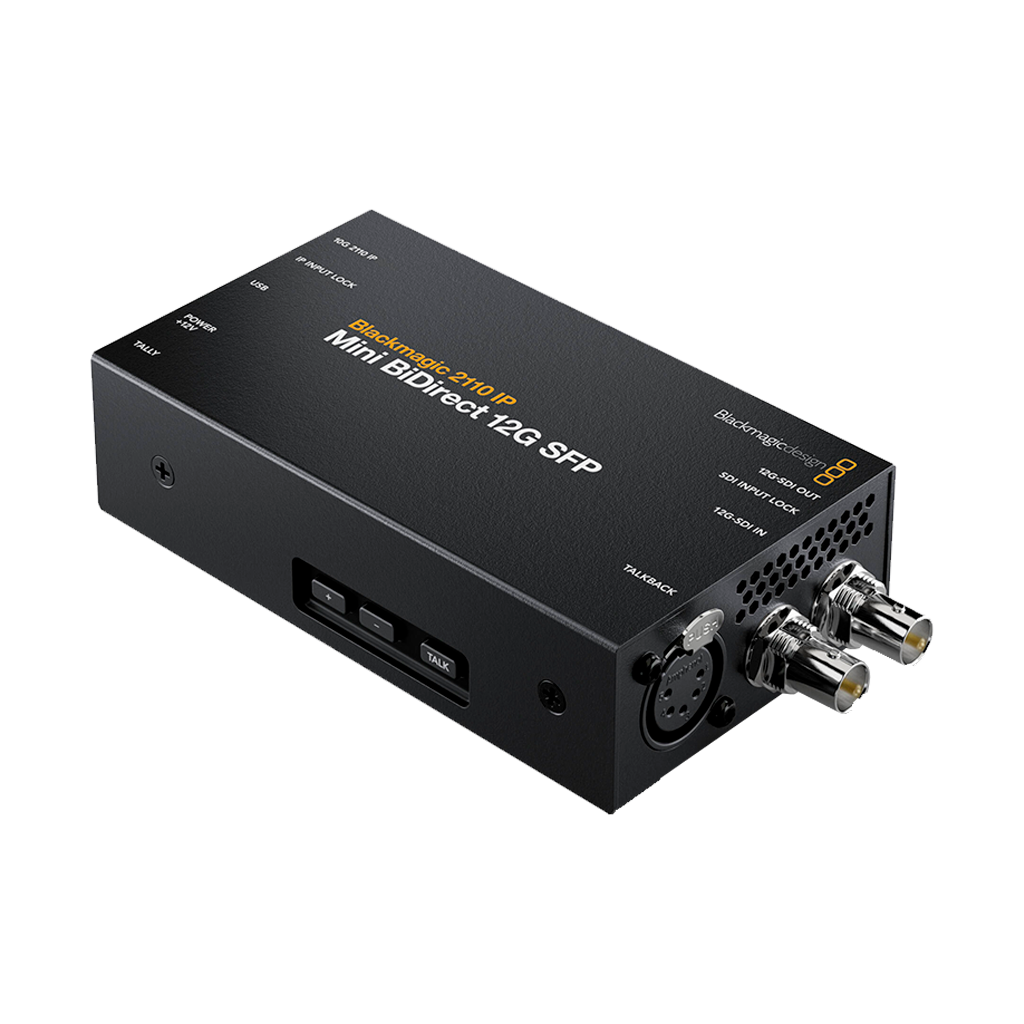

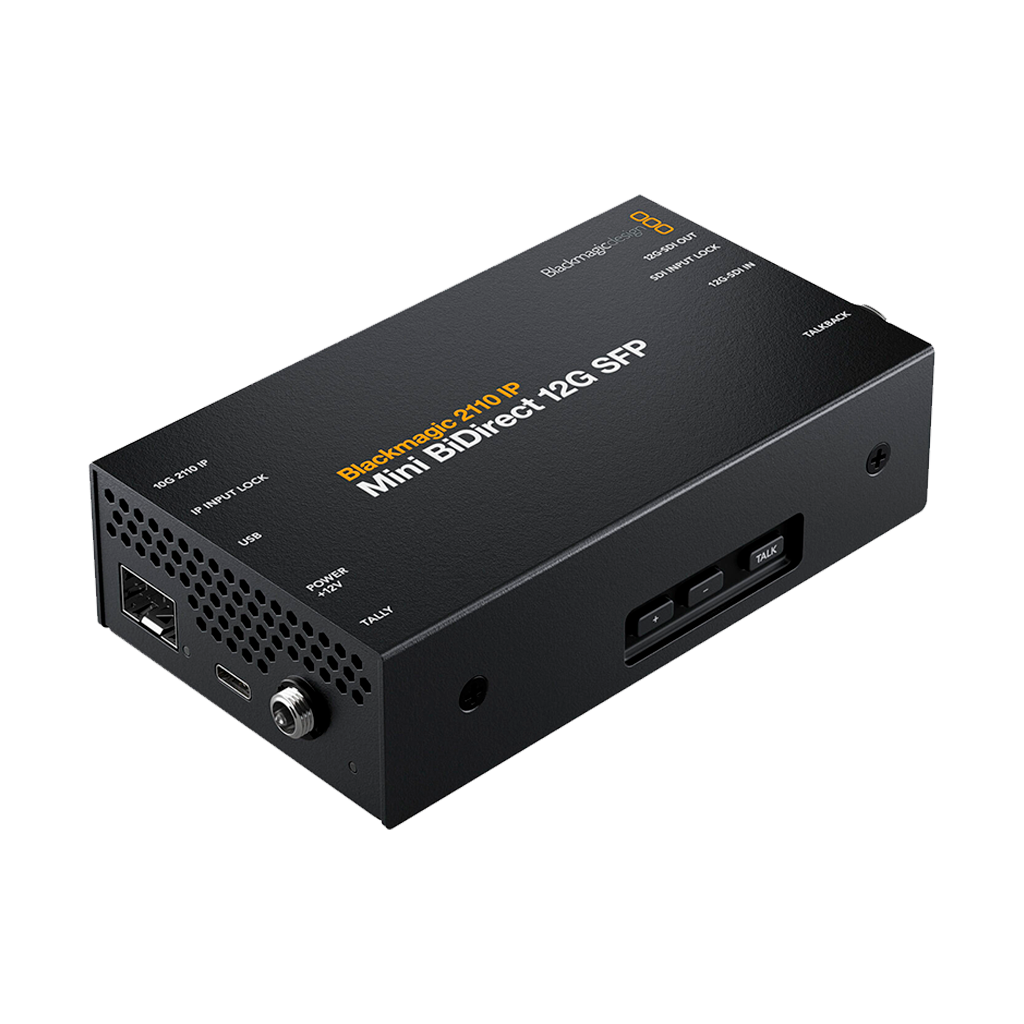

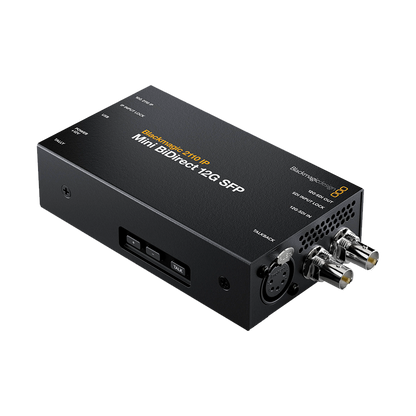

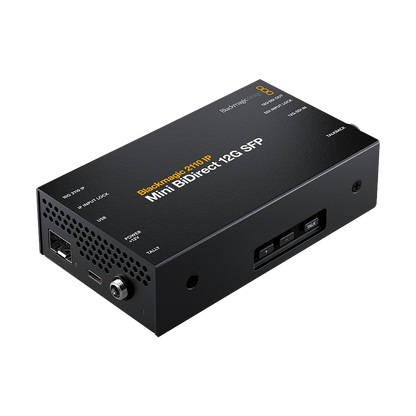

Blackmagic Design 2110 IP Mini BiDirect 12G SFP Converter

R 7,895.00
R 7,895.00 R 7,895.00
Tax included. Shipping calculated at checkout.

BLA-CONVNVIPF/IP/12GSFP

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • 12G-SDI to SFP Fiber Converter
  • Video Monitoring To/From Studio Camera
  • Supports UHD 4K Video via SFP Fiber
  • Talkback Control
  • Windows/macOS Software Utility
  • PoE and 10G Ethernet Power

    The Blackmagic Design 2110 IP Mini BiDirect 12G SFP Converter enables you to connect your 12G-SDI broadcast studio camera to SMPTE-2110 IP systems. You will be able to send up to UHD 4K 12G-SDI camera video and program return signal with the same converter. Due to the compact form factor, you can easily mount the converter to your camera rig.

    The Blackmagic Design 2110 IP Mini BiDirect 12G SFP Converter features an SFP connection for optical fibre to connect over longer distances. You will also find a 5-pin XLR talkback headset and a press-to-talk button which allows you to keep communication between camera operators and the broadcast booth.

    • This converter is bidirectional and allows 12G-SDI cameras to connect to SMPTE-2110 systems
    • Handles the SDI camera feed and SDI program return in the one converter
    • 5-pin XLR talkback headset connection with volume and press to talk buttons
    • Supports all SD, HD, and UHD standards up to 2160p60
    • Includes a 12 VDC power supply
    • The SFP slot will accept 10G Ethernet, 3G-SDI, 6G-SDI, or 12G-SDI optical modules

    • Blackmagic Design 2110 IP Mini BiDirect 12G SFP Converter
    • 12 VDC Power Supply

    Audio I/O
    Input
    1x XLR 5-Pin Analog Female
    Output
    1x XLR 5-Pin Analog Female
    Other I/O
    Input/Output
    1x RJ45 (10 GbE)
    Input
    1x USB-C (Firmware)
    Expansion Slots
    1x SFP Slot
    Video Resolution
    SDI Input/Output (4:2:2 YUV)
    4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
    3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
    2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
    1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/60 fps
    1920 x 1080PsF at 25/29.97/30 fps
    1920 x 1080i at 25/29.97/30 fps
    1280 x 720 at 50/59.94/60 fps
    720 x 480i at 59.94 fps
    720 x 576i at 50 fps
    Embedded Audio
    LAN (RJ45)/SDI
    Standards
    Video Standard Compliance
    SMPTE: ST-2110
    HDCP Support
    No
    HDR Support
    Yes
    Hardware
    Wireless
    No
    OS Compatibility
    macOS 13 or Later
    Windows 10 to 11
    Power
    Power I/O
    1x Barrel (12 to 16 VDC ) Input
    PoE Support
    PoE++ 802.3bt
    Power Consumption
    Device: 12 to 16 VDC (18 W)
    General
    Operating Conditions
    5 to 40°C up to 90% Humidity
    Storage Conditions
    -20 to 45°C up to 90% Humidity
    Dimensions
    14.61 x 7.39 x 3.4 cm
