Blackmagic Design

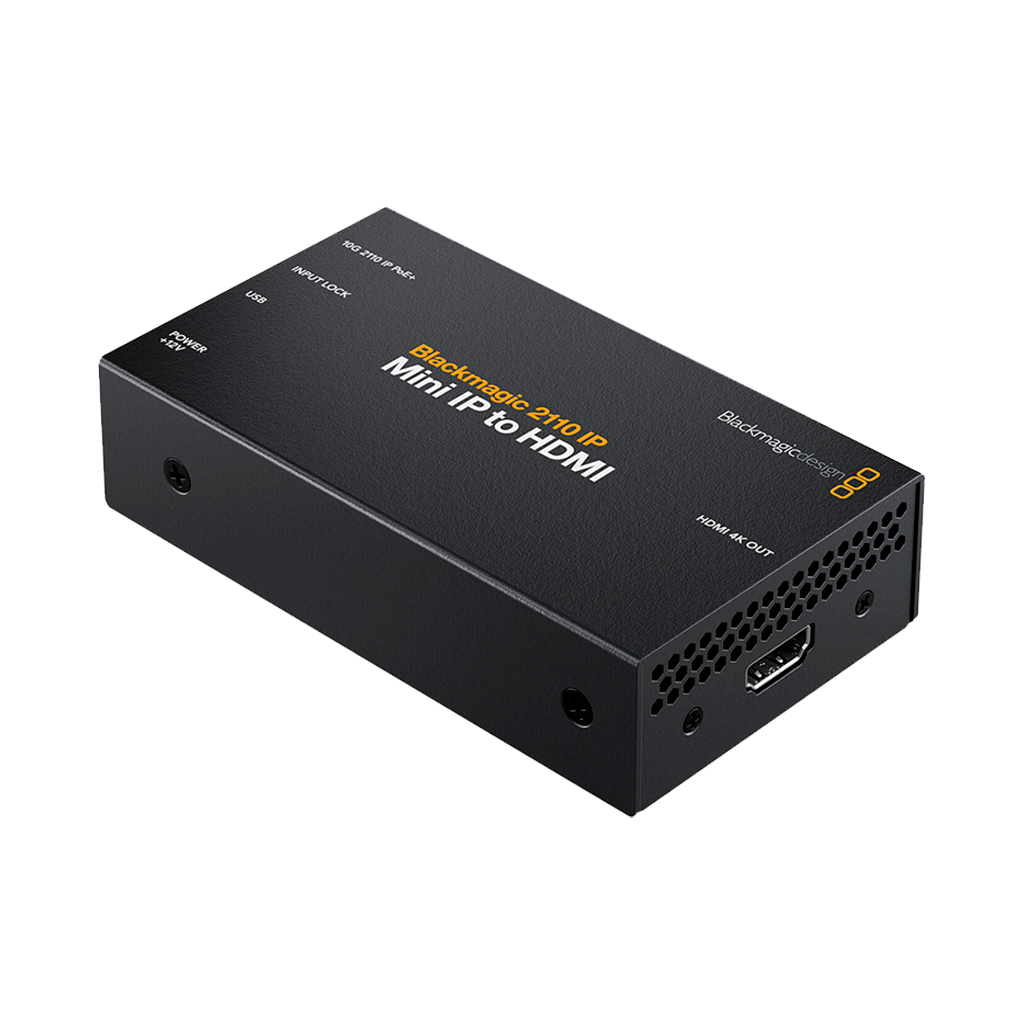

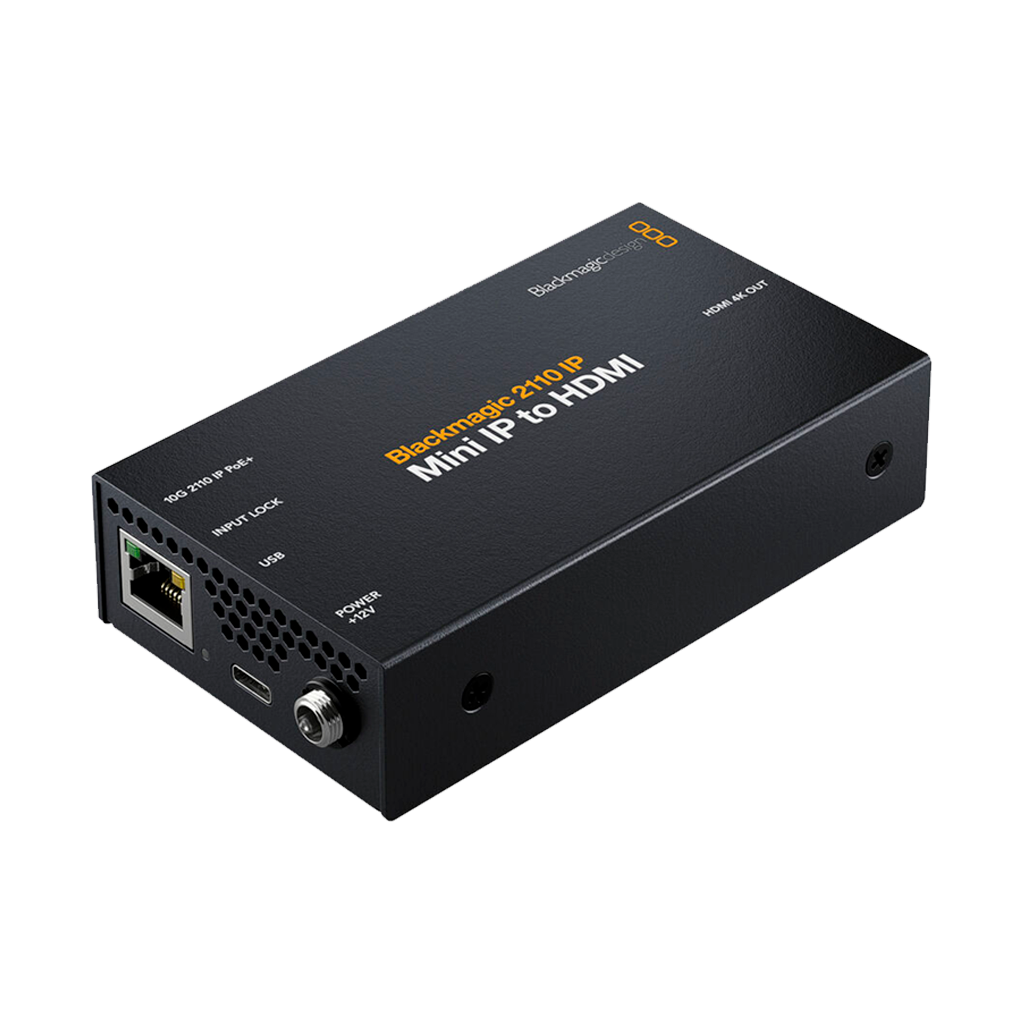

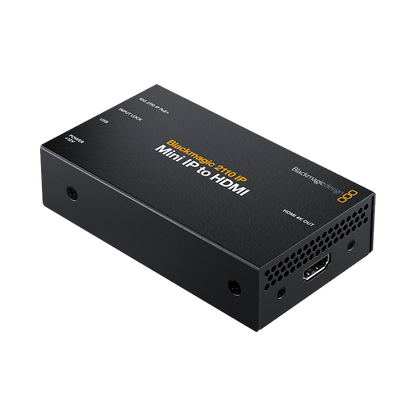

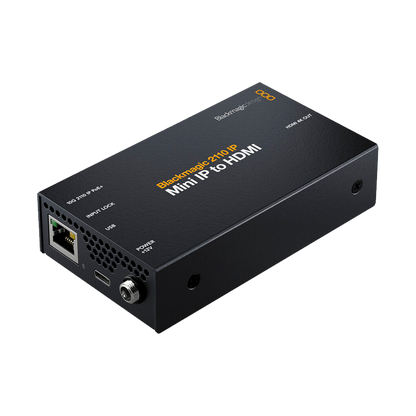

Blackmagic Design 2110 IP Mini IP to HDMI Converter

R 6,395.00
R 6,395.00 R 6,395.00
Tax included. Shipping calculated at checkout.

BLA-CONVNVIPE/IP/HDMI

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • 2110 IP to HDMI Converter
  • Video Monitoring To/From Studio Cameras
  • Supports UHD 4K Video via SMPTE 2110 IP
  • Windows/macOS Software Utility
  • PoE++ and 10G Ethernet Power

    The Blackmagic Design 2110 IP Mini IP to HDMI Converter enables you to view SMPTE 2110 IP broadcast signals to HDMI Displays. You are able to monitor SMPTE 2110 IP camera signals with up to UHD 4K resolution (with audio) on an HDMI display. On the Blackmagic Design 2110 IP Mini IP to HDMI Converter, you will find a 10G Ethernet port that inputs SMPTE 2110 IP video and also supports up to 16 channels of audio.

    The Blackmagic Design 2110 IP Mini IP to HDMI Converter features an ultra-compact design, it can easily be mounted straight onto your display or monitor cage and can be powered using the included power supply.

    • This model is designed for connecting a large-screen television or computer monitor to SMPTE-2110 IP systems
    • The ultra-compact design means you can mount it behind the display or on a monitor cage
    • The unit supports all SD, HD, and UHD 4K video standards up to 2160p60
    • It has a standard 10G RJ45 Ethernet connection, so you can use regular Cat-6 Ethernet cables The converter can be powered via Ethernet (PoE), so you don't even need to connect the power
    • A DC power supply is included

    • Blackmagic Design 2110 IP Mini IP to HDMI Converter
    • 12 VDC Power Supply

    Audio I/O
    No
    Other I/O
    Input
    1x USB-C (Firmware)
    Expansion Slots
    No
    Video Resolution
    RJ45 Input (4:2:2 YUV)
    4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
    3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
    2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
    1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/60 fps
    1920 x 1080PsF at 25/29.97/30 fps
    1920 x 1080i at 25/29.97/30 fps
    1280 x 720 at 50/59.94/60 fps
    720 x 480i at 59.94 fps
    720 x 576i at 50 fps
    Embedded Audio
    HDMI/LAN (RJ45)
    Standards
    Video Standard Compliance
    SMPTE: ST 2110-20/ST 2110-21
    HDCP Support
    No
    HDR Support
    Yes
    Wireless
    No
    OS Compatibility
    macOS 13 or Later
    Windows 10 to 11
    Power
    Power I/O
    1x Barrel (12 to 16 VDC ) Input
    PoE Support
    PoE++ 802.3bt
    Power Consumption
    Device: 12 to 16 VDC (18 W)
    General
    Operating Conditions
    5 to 40°C up to 90% Humidity
    Storage Conditions
    -20 to 45°C up to 90% Humidity
    Dimensions
    11.9 x 6.6 x 2.8 cm
    Weight
    205 g
