Blackmagic Design 2110 IP Presentation Converter
BLA-CONVNVIPH/PRESC
Couldn't load pickup availability
Sorry, it's out of stock.
But we can let you know when it's back in.
SHORT DESCRIPTION
SHORT DESCRIPTION

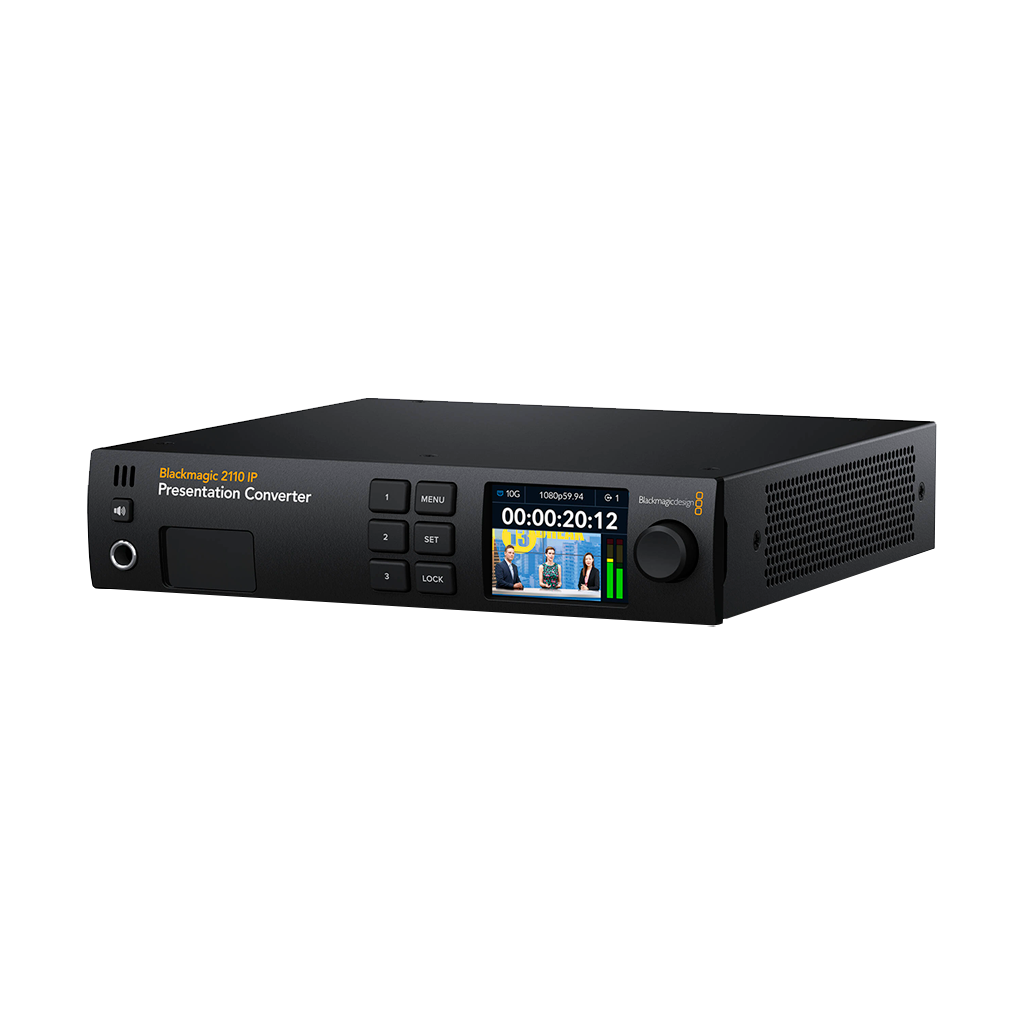

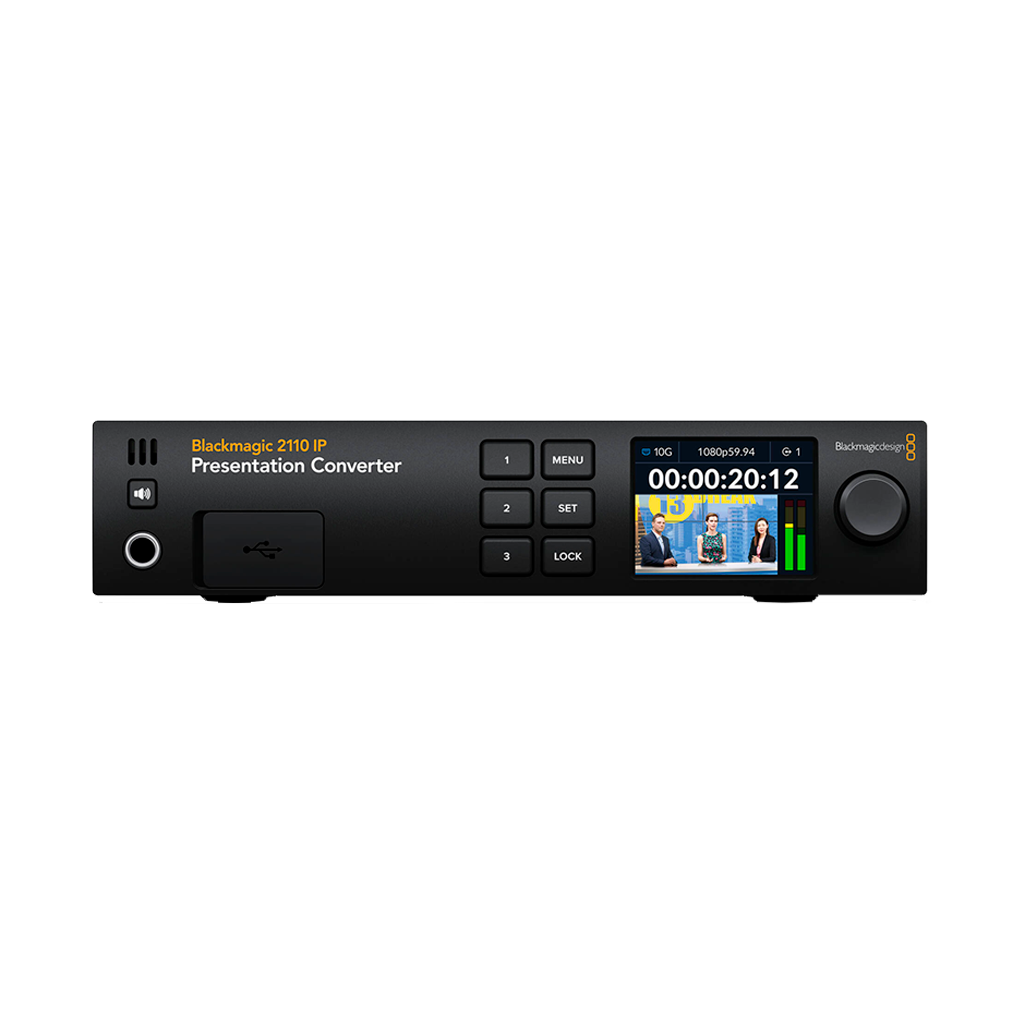

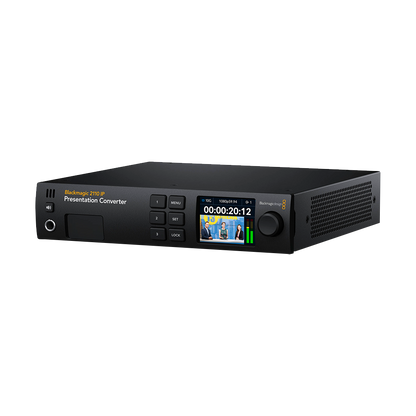

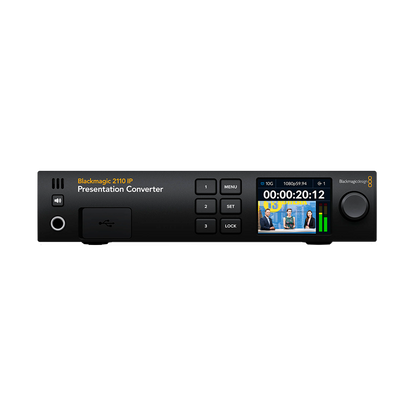

The Blackmagic Design 2110 IP Presentation Converter is designed to be used for speaker podiums. You connect microphones and output to speakers while utilising a computer or laptop via USB-C to send video to projectors. The fast 10G video output can be utilised to send video through Blackmagic's suite of 2110 IP products.

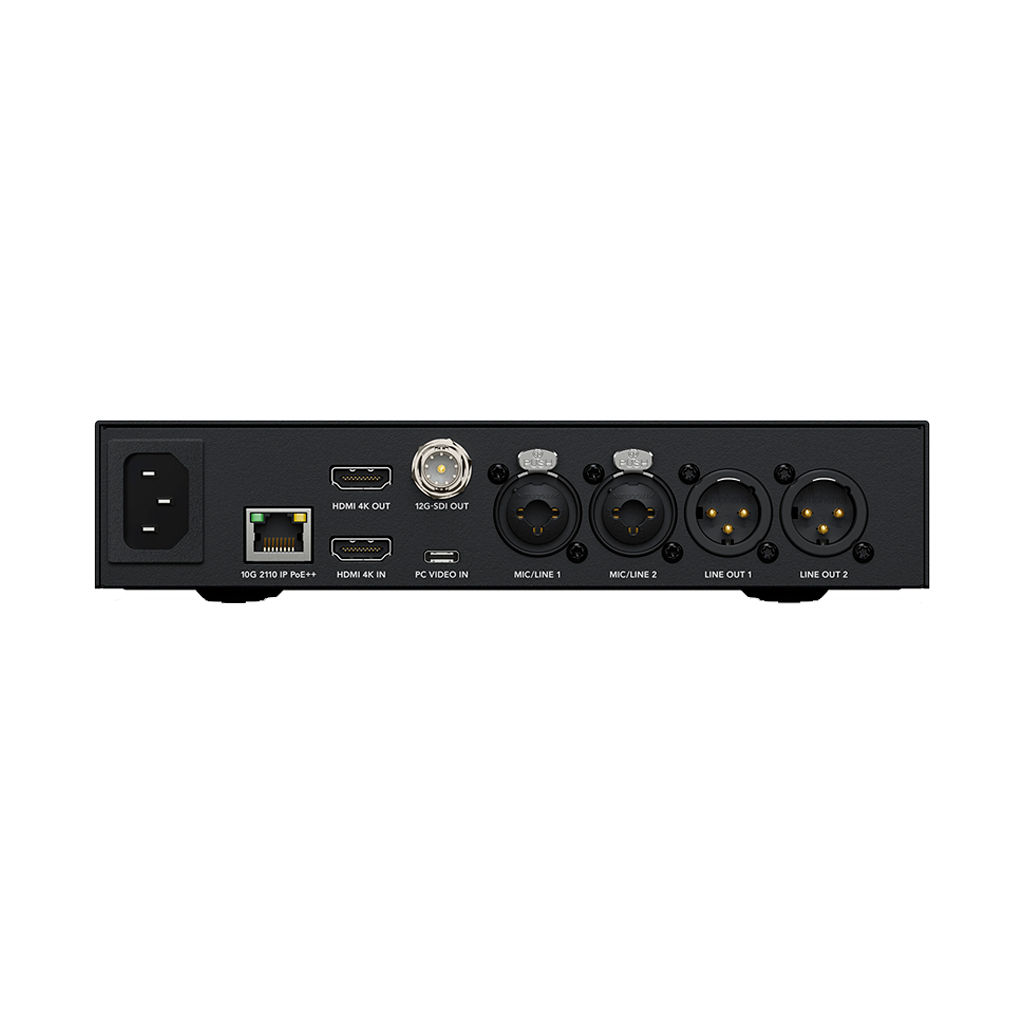

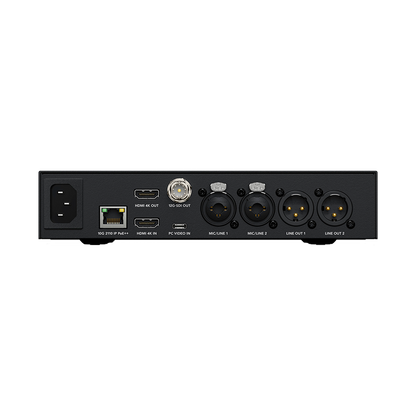

The Blackmagic Design 2110 IP Presentation Converter supports up to DCI 4K60 video and features 12G-SDI and HDMI input/output to projectors. Audio features include embedded audio over all the I/O, balanced 3-pin XLR mic/line inputs, balanced 3-pin XLR output for PA speakers, and a 1/4" headphone output for audio monitoring.
Main Features at a Glance
- For podiums where speakers do presentations
- Connects switchers to computers, projectors, microphones, and PA systems
- HDMI and USB-C inputs for video and the 45W USB-C will power a laptop
- An HDMI output for a projector can be switched to the video input or the 2110 IP return feed
- XLR mic inputs and XLR audio out for PA speakers
- RJ-45 10G Ethernet video connection can power the whole converter via PoE, even while charging a USB computer
SMPTE-2110 IP Video Standard
The Blackmagic Design 2110 IP Presentation Converter conforms to the SMPTE-2110 standard for IP video. This specifies the transport, synchronisation, and description of 10-bit video, audio, and ancillary data over managed IP networks for broadcast. It can also re-sync SDI inputs to a common PTP clock, or external gear can lock to the reference output generated from the PTP clock.
Blackmagic 2110 IP products support SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio, and SMPTE-2110-40 for ancillary data. Plus, Blackmagic 2110 IP products support multicast, an efficient way of distributing video, audio, and data from a single source to multiple destinations.
10G Ethernet
Models with RJ-45 connectors are available in Blackmagic 2110 IP Converters for simple Cat 6 copper cables or SFP sockets for optical fibre models and cables.
Building SMPTE-2110 systems can be built with Cat 6 copper cables at much lower cost, and 10G Ethernet switches are commonly found. Most modern building already has 10G Ethernet cables installed, and copper cables can be used to power devices such as converters and cameras.
There are also models for optical fibre Ethernet. Optical fibre at 10G speed is much lower-cost than 25G or 40G Ethernet. You can even use 3G-, 6G-, or 12G-SDI modules.
Easy to Install
One of the main problems with SMPTE-2110 is the need for an IT technician on standby to keep systems running smoothly. The Blackmagic Design 2110 IP Presentation Converter solves this problem as it connects point-to-point, so you do not need an Ethernet switch if you do not want to. That means with simple Ethernet cables, this system works like an SDI workflow.
