Blackmagic Design

Blackmagic Design 2110 IP SDI to HDMI 12G-10 Converter

R 21,595.00
R 21,595.00 R 21,595.00
Tax included. Shipping calculated at checkout.

BLA-CONVNVIPM/12G/HDMI10

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • Converts from 12G-SDI or 2110 IP to HDMI
  • Rackmount Design, Front Panel Controls
  • LCD for Audio/Video Monitoring and Menus
  • Supports 3D LUTs for Color Calibration
  • Ideal for Colour Grading and Edit Suites
  • 10 XLR Outputs
  • Redundant Power Supply

    The Blackmagic Design 2110 IP SDI to HDMI 12G-10 Converter enables you to convert signals from 12G-SDI or 2110 IP to HDMI to facilitate you to use the latest OLED displays for colour-accurate monitoring, colour grading, or editing.

    The Blackmagic Design 2110 IP SDI to HDMI 12G-10 Converter features 10 XLR analogue outputs providing ten channels of audio monitoring via optional external speakers. In applications where multiple users work next to each other, you will also find a headphone jack on the front panel to monitor audio in a more conservative manner.

    Variable gain and audio delay ensure a spot-on audio synchronisation that also supports 3D LUTs for an accurate monitor calibration. The Blackmagic Design 2110 IP SDI to HDMI 12G-10 Converter is designed to seamlessly integrate SDI gear with 2110 IP broadcast systems. For audio/video monitoring and menus, this converter features an easy-to-read to read LCD screen, along with front-panel controls.

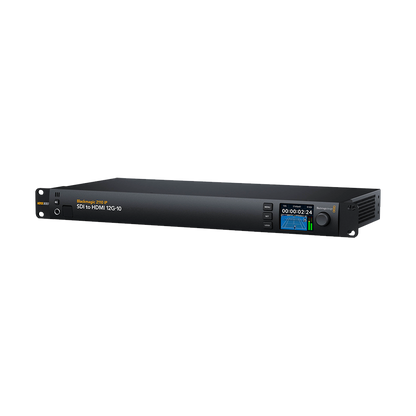

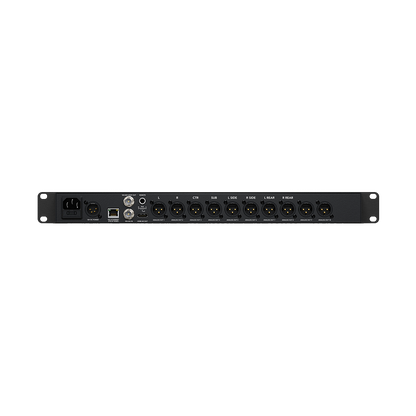

    Blackmagic Design 2110 IP SDI to HDMI 12G-10 Converter

    Inputs/Outputs
    Video I/O
    Input
    1x BNC (12G-SDI)
    Output
    1x BNC (12G-SDI) (Loop Output)
    Output
    1x HDMI (Unspecified Signal)
    Audio I/O
    Output
    10x XLR 3-Pin Analog Male
    1x 1/4" TRS Stereo Analog Female
    Other I/O
    Input/Output
    1x RJ45 (10 GbE)
    Input
    1x 1/4" TRS (Remote)
    Expansion Slots
    No
    Latency
    No
    Format Support
    Video Resolution
    SDI Input/Output
    3840 x 2160 up to 60 fps
    HDMI Input/Output
    3840 x 2160
    RJ45 Input/Output
    3840 x 2160 up to 60 fps
    Audio Format
    Analog Output
    Embedded Audio
    HDMI/LAN (RJ45)/SDI
    Standards
    Video Standard Compliance
    SMPTE: ST-2110
    Broadcast System Compatibility
    NTSC, PAL
    Hardware
    Wireless
    No
    Display
    Display
    LCD
    Power
    Power I/O
    1x IEC C13 Input
    1x Barrel (12 VDC ) Input
    General
    Rack Form Factor
    1 U
