Blackmagic Design

Blackmagic Design 2110 IP SDI to HDMI 12G Converter

R 11,195.00
R 11,195.00 R 11,195.00
Tax included. Shipping calculated at checkout.

BLA-CONVNVIPM/12G/HDMI02

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • Converts from 12G-SDI or 2110 IP to HDMI

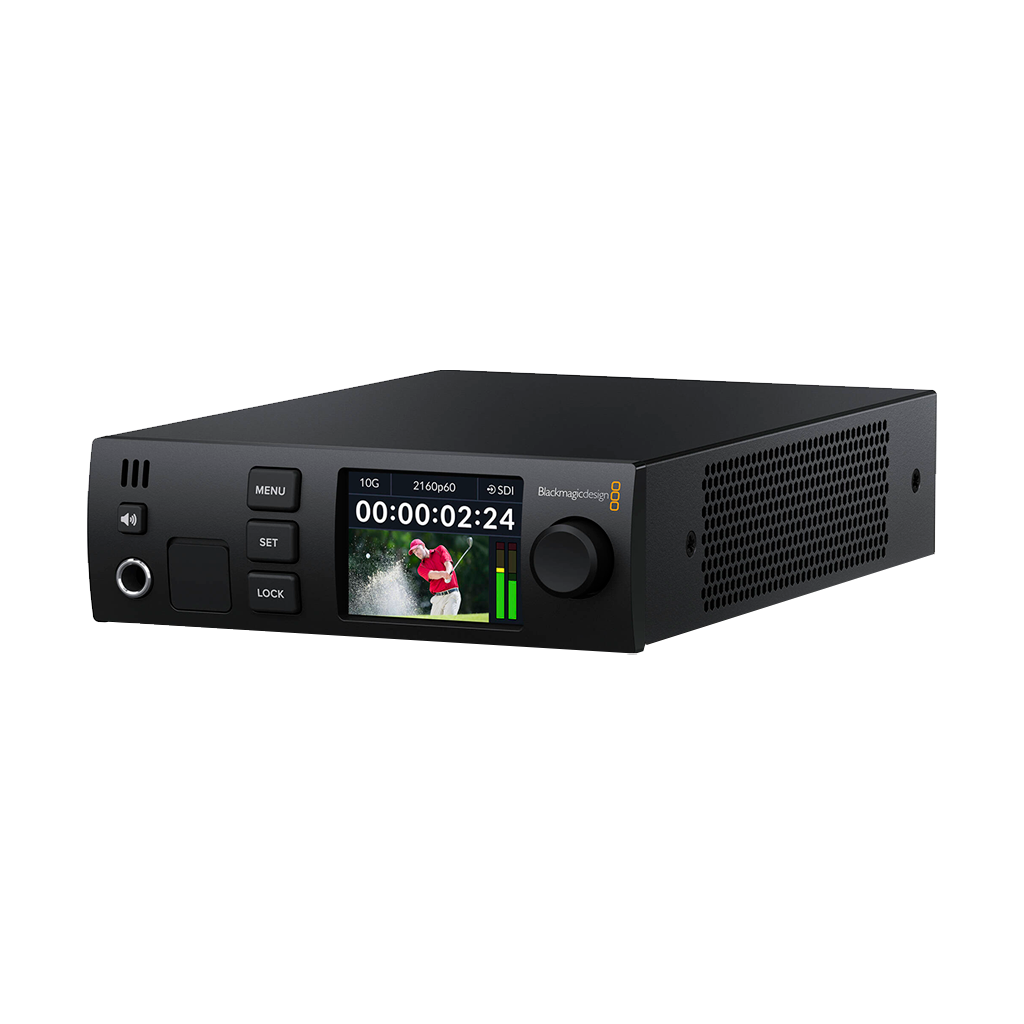

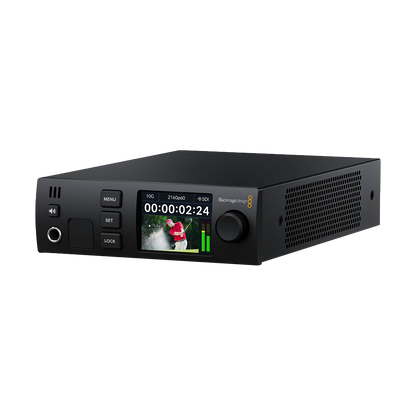

  • Rackmount Design, Front Panel Controls
  • LCD for Audio/Video Monitoring and Menus
  • Supports 3D LUTs for Color Calibration
  • Ideal for Colour Grading and Edit Suites
  • 2 XLR Outputs
  • Redundant Power Supply

    The Blackmagic Design 2110 IP SDI to HDMI 12G Converter enables you to convert signals from 12G-SDI or 2110 IP to HDMI to facilitate you to use the latest OLED displays for colour-accurate monitoring, colour grading, or editing.

    The Blackmagic Design 2110 IP SDI to HDMI 12G Converter features two XLR analogue outputs providing two channels of audio monitoring via optional external speakers. In applications where multiple users work next to each other, you will also find a headphone jack on the front panel to monitor audio in a more conservative manner.

    Variable gain and audio delay ensure a spot-on audio synchronisation that also supports 3D LUTs for an accurate monitor calibration. The Blackmagic Design 2110 IP SDI to HDMI 12G Converter is designed to seamlessly integrate SDI gear with 2110 IP broadcast systems. For audio/video monitoring and menus, this converter features an easy-to-read to read LCD screen, along with front-panel controls.

    Blackmagic Design 2110 IP SDI to HDMI 12G Converter

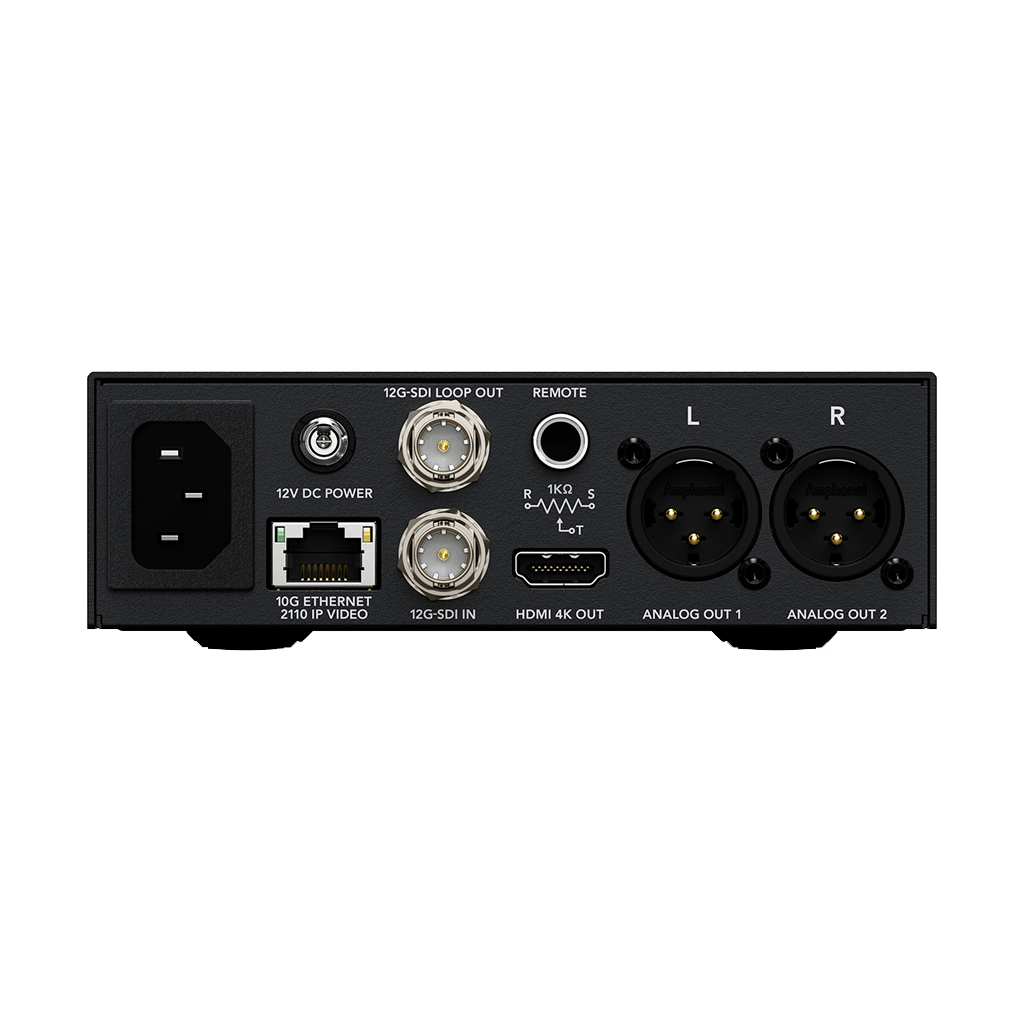

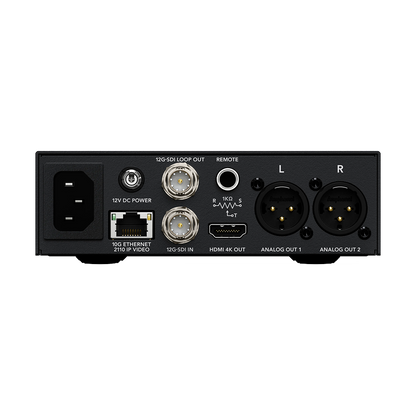

    Inputs/Outputs
    Video I/O
    Input
    1x BNC (12G-SDI)
    Output
    1x BNC (12G-SDI) (Loop Output)
    Output
    1x HDMI (Unspecified Signal)
    Audio I/O
    Output
    2x XLR 3-Pin Analog Male
    1x 1/4" TRS Stereo Analog Female
    Other I/O
    Input/Output
    1x RJ45 (10 GbE)
    Input
    1x 1/4" TRS (Remote)
    Expansion Slots
    No
    Latency
    No
    Format Support
    Video Resolution
    SDI Input/Output
    3840 x 2160 up to 60 fps
    HDMI Input/Output
    3840 x 2160
    RJ45 Input/Output
    3840 x 2160 up to 60 fps
    Audio Format
    Analog Output
    Embedded Audio
    HDMI/LAN (RJ45)/SDI
    Standards
    Video Standard Compliance
    SMPTE: ST-2110
    Broadcast System Compatibility
    NTSC, PAL
    Hardware
    Wireless
    No
    Display
    Display
    LCD
    Power
    Power I/O
    1x IEC C13 Input
    1x Barrel (12 VDC ) Input
    General
    Rack Form Factor
    1 U
