Blackmagic Design

Blackmagic Design 48TB Cloud Store Max

R 353,595.00
R 353,595.00 R 353,595.00
Tax included. Shipping calculated at checkout.

BLA-DWCLDF/CLDMAX48

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • 48TB NVMe M.2 Storage
  • Rackmount Design with Silent Cooling
  • 12 Internal Flash Memory Cards
  • 10GbE and 100GbE RJ45 Network Ports
  • HDMI and SDI Monitoring Output
  • USB-C-to-Ethernet Port
  • Sync to Blackmagic Cloud/Dropbox/Drive

    The Blackmagic Design 48TB Cloud Store Max is designed for film and television workflows where files need to be shared between multiple users, specifically for post-production applications. The Cloud Store Max is made up of NVMe M.2 SSD, which is preconfigured as 12 RAID 0 flash memory cards and able to handle 12K Blackmagic RAW digital cinema files.

    The Blackmagic Design 48TB Cloud Store Max features a single 100GbE Ethernet port and four 10GbE Ethernet ports, as well as a USB-C port featuring a built-in network adapter. Use the HDMI and SDI outputs to monitor the status of your Cloud Store Max in real time.

    Portable and Quiet Design

    The Blackmagic Design 48TB Cloud Store Max features a rackmount design to ensure it remains portable and quiet. The full rack width includes 12 flash memory cards with 100 as well as 10GbE Ethernet Connections.
    In case you need to access files quickly, you can use the USB-C port as an alternative connection via your personal computer.

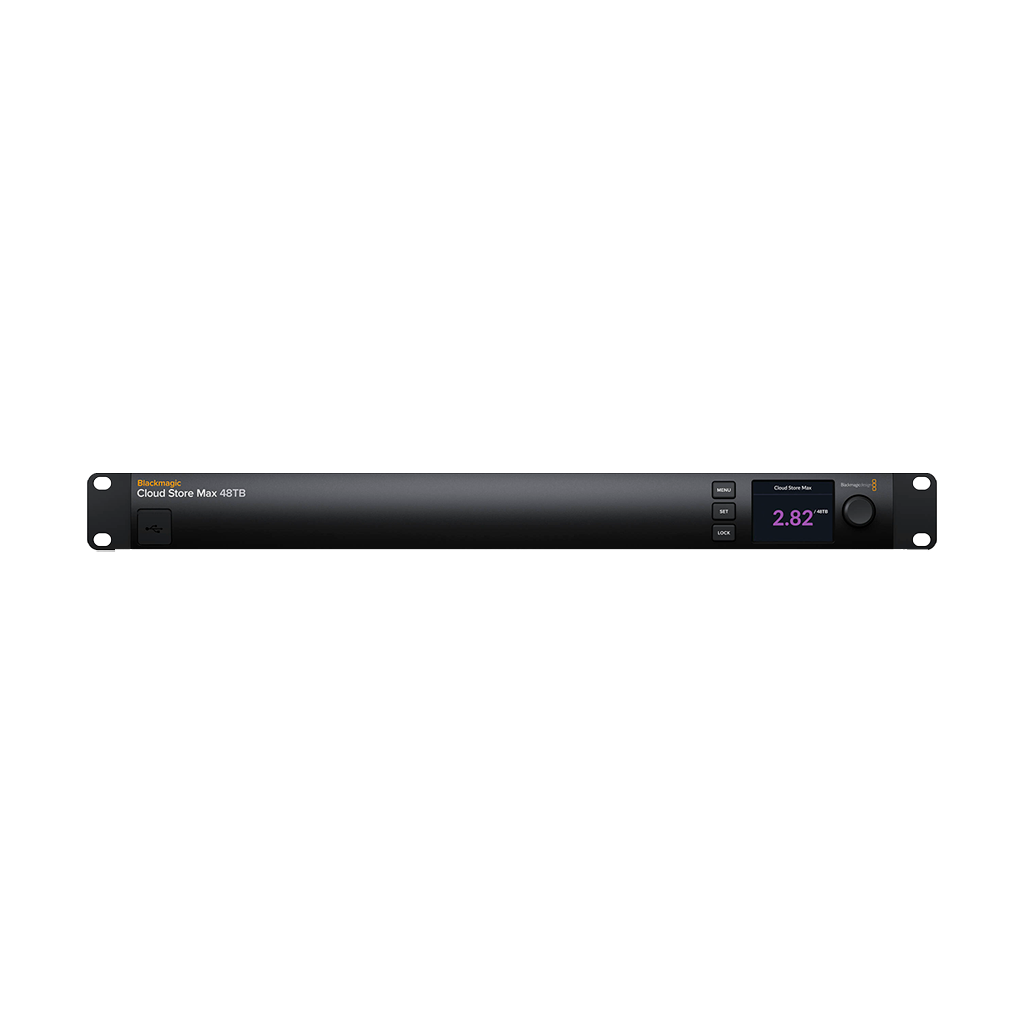

    For a live graphic view of the storage status, you can make use of the HDMI and SDI monitoring outputs.

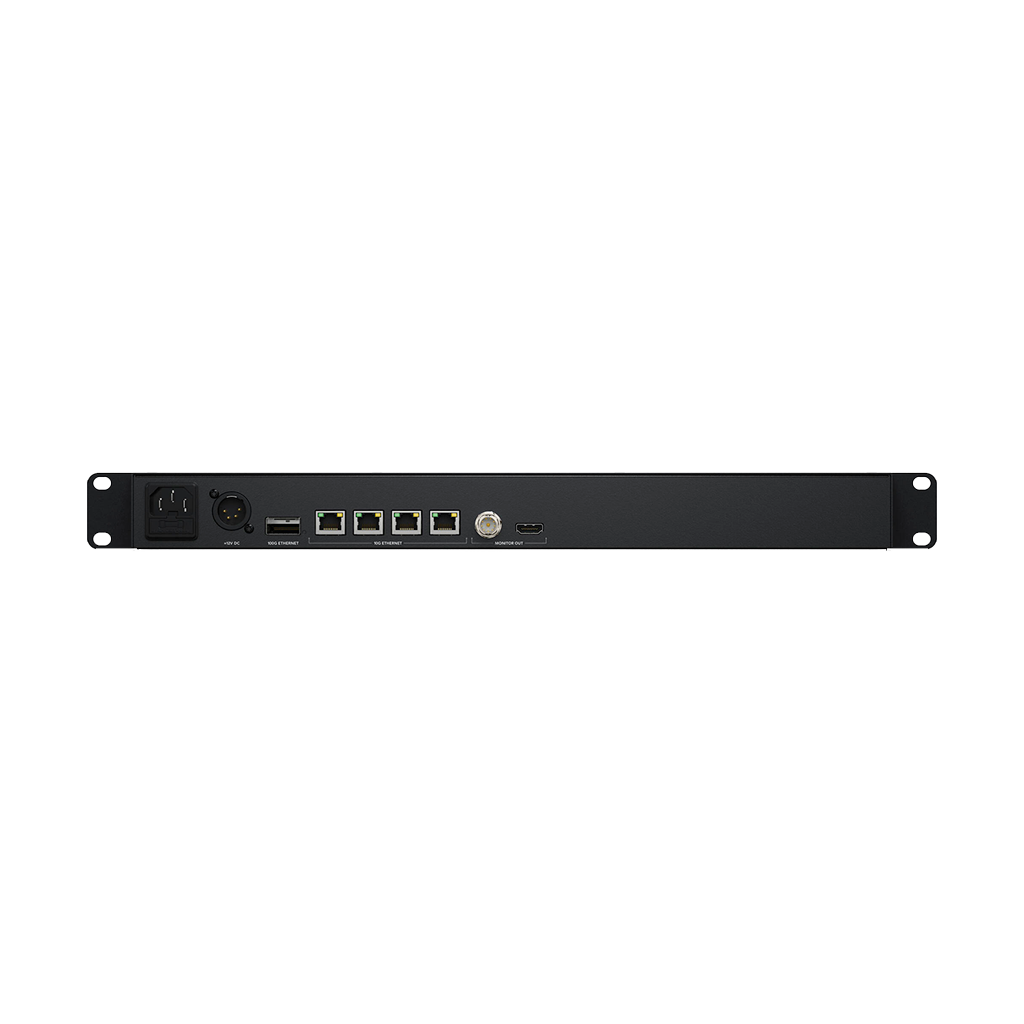

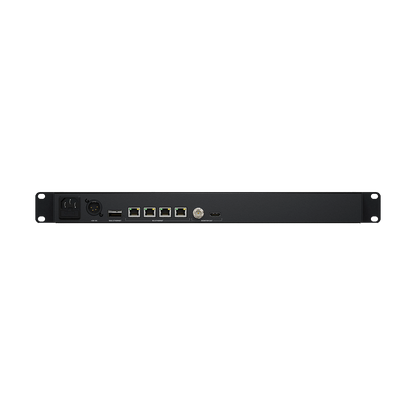

    Connectivity

    Included, you will find an IEC power socket for connecting AC power. An additional 4-pin XLR 12V DC power input is provided for redundancy.
    For quick access to files, you can use the USB-C port. The 100GbE Ethernet port connects the unit to high-speed Ethernet switches. Four 10GbE RJ45 Ethernet ports connect high-speed computers to the Max unit.

    Flash Memory for Multiple Users

    Featuring large parallel flash memory cores with lots of storage space that allows you to have multiple users working on one Cloud Store Max.
    Featuring 12 M.2 cards arranged in a RAID 0 group, ensuring high-capacity performance for dozens of users to have enough space simultaneously.

    Sync to Blackmagic Cloud

    The Blackmagic Design 48TB Cloud Store Max allows you to install a local cache of media to upload to the Blackmagic Cloud, Dropbox, or Google Drive, enabling you to distribute files globally.

    Blackmagic Design 48TB Cloud Store Max

    Drives
    Storage Capacity
    48 TB
    Included Drives
    2x 24 TB SSD
    General
    Number of Bays
    4x M.2 (Length Unspecified)
    Inputs/Outputs
    4x RJ45 10GbE
    1x QSFP
    1x USB-C 3.0 / 3.1/3.2 Gen 1
    1x BNC Output
    1x HDMI Output
    Media Card Slots
    No
    Software
    OS Compatibility
    macOS 14.3 or Later
    Windows 10 to 11
    Electrical
    Input Power
    100 to 240 VAC, 50 / 60 Hz
    Physical
    Operating Conditions
    0 to 40°C up to 90% Humidity
    Storage Conditions
    -20 to 60°C
    Certifications
    No
    Dimensions
    48.3 x 23.5 x 4.42 cm
    Weight
    2.9 kg
