Blackmagic Design 7" URSA Studio Viewfinder G2
Choose PayGate at checkout for MobiCred Payments.
- Designed for URSA G2/URSA Mini Cameras
- 7" 1920 x 1200 TFT LCD Screen
- 3G-SDI Connector to Camera
- 2000 cd/m² Brightness
- 4-Pin XLR Power, V-Lock Mount
- Rotary Dials, Customizable Buttons
- Detachable Sun Hood
Orms Bellville
Orms Cape Town
Blackmagic Design 7" URSA Studio Viewfinder G2
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Designed for URSA G2/URSA Mini Cameras
- 7" 1920 x 1200 TFT LCD Screen
- 3G-SDI Connector to Camera
- 2000 cd/m² Brightness
- 4-Pin XLR Power, V-Lock Mount
- Rotary Dials, Customizable Buttons
- Detachable Sun Hood
Choose PayGate at checkout for MobiCred Payments.
- Designed for URSA G2/URSA Mini Cameras
- 7" 1920 x 1200 TFT LCD Screen
- 3G-SDI Connector to Camera
- 2000 cd/m² Brightness
- 4-Pin XLR Power, V-Lock Mount
- Rotary Dials, Customizable Buttons
- Detachable Sun Hood

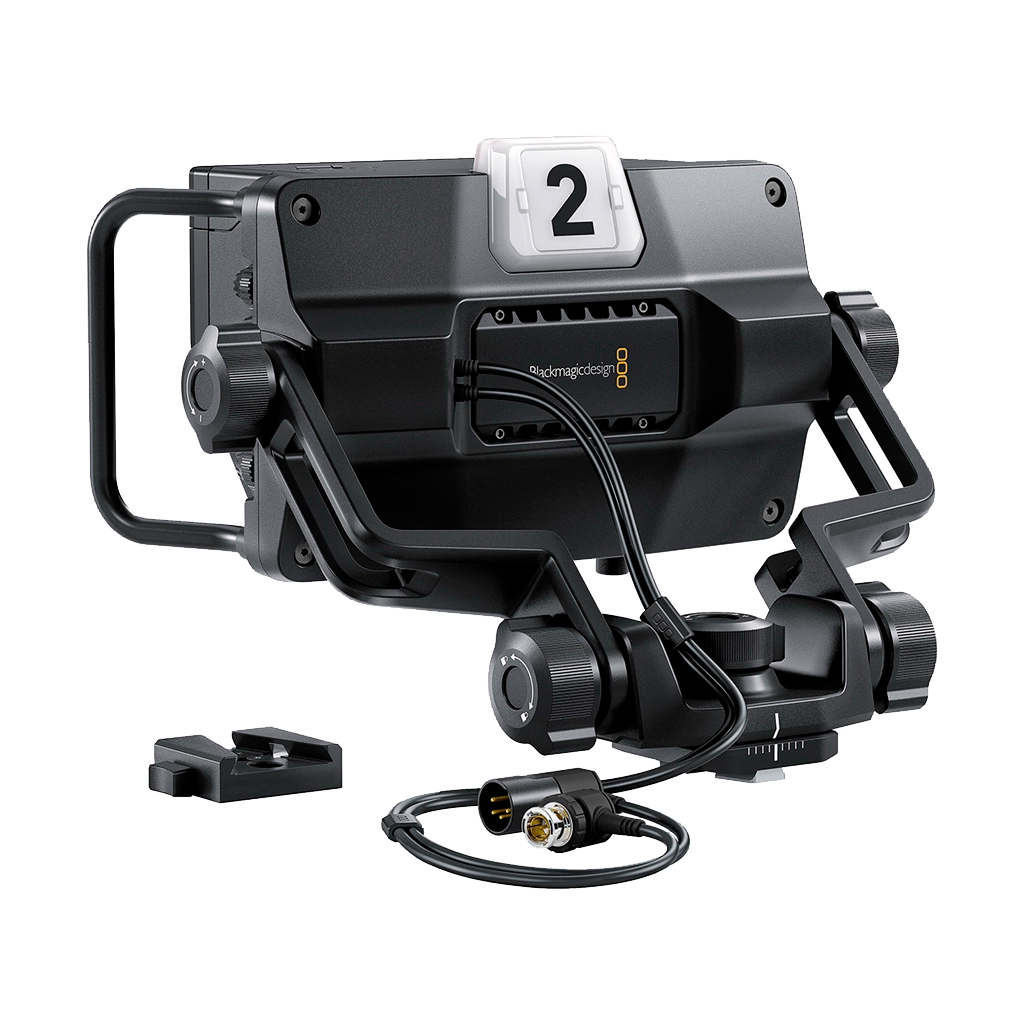

The Blackmagic Design 7" URSA Studio Viewfinder G2 is designed to be added to your Blackmagic Design URSA Broadcast G2 Camera or Blackmagic Design URSA Mini Pro 4.6K G2 Digital Cinema Camera.
This unit features a 7" display with a high-resolution 1920 x 1200 TFT LCD Screen and a detachable sun hood preventing glare when working in sunlight.
The Blackmagic Design 7" URSA Studio Viewfinder G2 is connectable to the camera with a 3G-SDI BNC input and features a 2000cd/m2 brightness display, making the Blackmagic Design 7" URSA Studio Viewfinder G2 ideal for indoor as well as outdoor use. Numerous controls allow for navigation and adjustment of settings. The LED light provides tally information and the status display provides metadata from the camera.
The Blackmagic Design 7" URSA Studio Viewfinder G2 can be powered right from your BlackMagic URSA camera using the 4-pin XLR power input.
Controls
Numerous controls allow for navigation and adjustment of settings including frame guides, status, and peaking, and it also shows the fps, battery level, shutter, gain, and more.
Position Adjustment Options
The Blackmagic Design 7" URSA Studio Viewfinder G2 features variable tension pivot points for articulated arm and grab handles with forward, backward, up, down, pan and tilt adjustments.
Tally
The large LED light provides tally information and the status display provides metadata from the camera.
Metadata Support
The Blackmagic Design 7" URSA Studio Viewfinder G2 status display provides metadata from the camera embedded in the SDI signal including status information, frame guides, focus peaking, tally, and many more.
- Blackmagic Design 7" URSA Studio Viewfinder G2
- Sun Hood
Display
Color/Monochrome | Colour |
Panel Type | TFT LCD |
Display Size | 17.8Â cm |
Screen Resolution | 1920 x 1200 |
Touchscreen | No |
Maximum Brightness | 2000 cd/m2 |
Image Controls | False Color, Focus Assist, Focus Peaking, Screen Markers |
I/O
Video | 1 x BNC (3G-SDI) Input |
Video Format | SDI (10-Bit 4:2:2 YUV) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
Power | 1 x 4-Pin XLR (12 VDC) Input |
Other I/O | 1 x USB 2.0 (USB Type-C) Input |
Power
DC Input Power | 12 VDC |
Environmental
Operating Humidity | 0 to 90% (Non-Condensing) |
Operating Temperature | 0 to 40°C |
Storage Temperature | -20 to 60°C |
General
Mounting | 1 x V-Lock |
Dimensions | 33.1 x 30.4 cm |
Weight | 2.69 kg |
