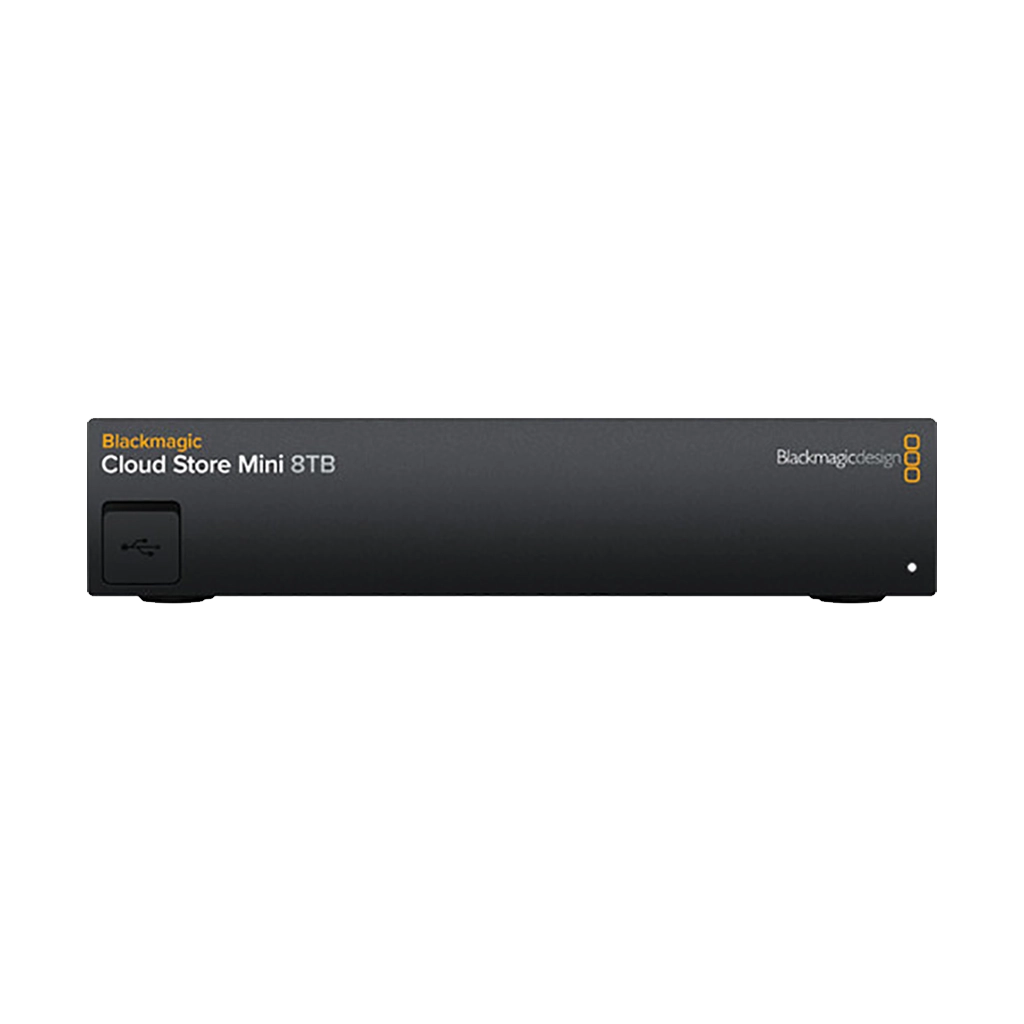

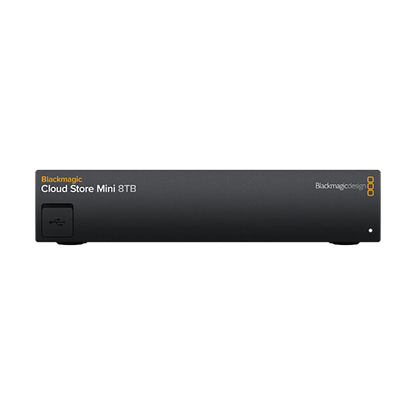

Blackmagic Design 8TB Cloud Store Mini (4 x 2TB)

R 68,995.00
R 68,995.00 R 68,995.00
Tax included. Shipping calculated at checkout.

BLA-DWCLDE/CLDMINI08

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • 8TB NVMe M.2 Flash Storage
  • Rackmount Design with Silent Cooling
  • Configured as RAID 0
  • 10Gb/s & 1Gb/s Ethernet Ports
  • HDMI Monitoring Output for Status
  • USB Type-C Port for Local Backup
  • USB Type-C-to-Ethernet Port
  • USB Connectivity for Settings
  • Dropbox Sync Support
  • Software Utility for Windows and Mac

    The Blackmagic Design 8TB Cloud Store Mini is designed for sharing large media files between multiple users on film and television productions. Perfect for editing, colour corrections, audio, post, and VFX work.

    The Blackmagic Design 8TB Cloud Store Mini features a capacity of 8TB made up of 4 x 2TB NVMe M.2 SSDs. The Cloud Store Mini is pre-set up as RAID 0 to handle 12K Blackmagic raw digital cinema files.

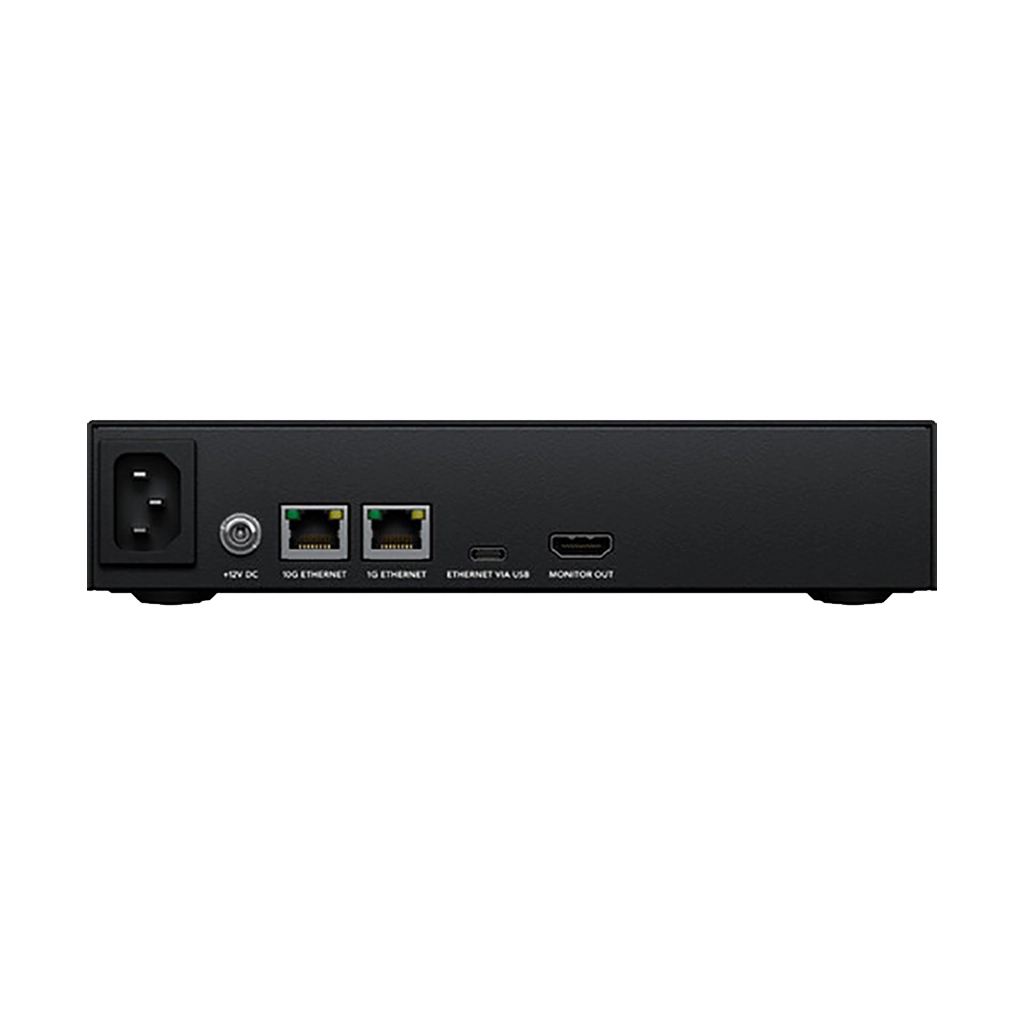

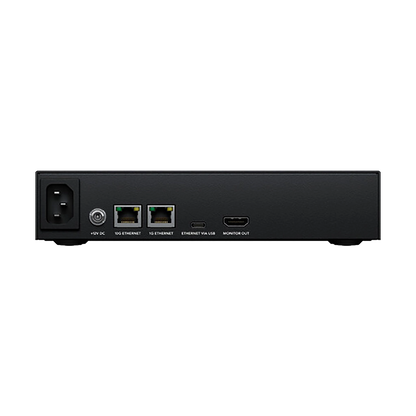

    For network access, the Blackmagic Design 8TB Cloud Store Mini is equipped with a 10GbE as well as one 1GbE port. Furthermore, a USB-C port can be found that additionally features a built-in network adapter for systems without an RJ45 port. There is also a 5 Gb/s USB Type-C port for standard data transfers, plus an HDMI output that lets you keep track of your Cloud Store Mini's status, including a storage map, speed graphics, sync, active users, and power status.

    Designed for Film and Television

    The Blackmagic Design 8TB Cloud Store Mini (4 x 2TB) is perfect for any use, but especially for film and television work where large files can be shared between multiple users for editing, colour correction, audio, post, and VFX work. The Cloud Store Mini is even capable of handling massive 12K Blackmagic raw digital cinema files. Being the perfect solutions for BlackMagic DaVinci Resolve, while DropBox sync allows for different disks to be synchronized on different locations globally.

    Flash Memory Allows for Multiple Simultaneous Users

    The a total storage space of 8TB of flash memory there is more than enough space for lots of large files. That makes it perfect television productions as the unit is small enough to be easily portable. Furthermore, the four M.2 cards are arranged in a parallel RAID 0 group, this enables them to operate much faster than with a single card.

    10G Speed - High Performance for Digital Film Files

    The Blackmagic Design 8TB Cloud Store Mini (4 x 2TB) is exceptionally fast with a separate 10G Ethernet connection. All files can be accessed with low latency, ensuring fast responsiveness. Even at maximum speed, the Blackmagic Cloud Store Mini is extremely quiet with very little noise from the cooling fan, even when editing large 12K digital raw files.

    Add Cloud Service

    Make sure your Blackmagic Cloud Store Mini is connected to the internet. Enter your Dropbox account details, so the Cloud Store Mini can gain access to allow sync.

    Set Sync Folders as well as Direction

    Next you need to set the sync folders. That tells the Blackmagic Cloud Store Mini where to sync its files to the remote Dropbox. You can have multiple sync folders for different jobs.
    Now set the sync direction. One direction is good when you have local files you want to share, but not enough room for everyone's files. Both directions mean everyone gets the same set of files.

    Perfect Multi-Camera Video Workflow

    The Blackmagic Design 8TB Cloud Store Mini (4 x 2TB) allows for broadcast quality video workflows with recording from a HyperDeck Studio directly into the Cloud Store Mini. Simply by connecting the HyperDeck Studio to the 1G Ethernet Port, while the 10G port can be connected to high-speed network so multiple workstations and edit media recorded by the HyperDeck using BlackMagic DaVinci Resolve.

    Blackmagic Design 8TB Cloud Store Mini

    Drives

    Storage Capacity 8 TB
    Included Drives 4 x 2 TB SSD
    Initial RAID Configuration RAID 0
    Interface NVMe

    General

    Number of Bays 4 x M.2 (Length Unspecified)
    I/O 1 x RJ45 (10GbE)
    1 x RJ45 (Gigabit Ethernet)
    1 x USB Type-C (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s))
    1 x USB Type-C (Ethernet)
    1 x HDMI Type-A Output
    Compatible Drive Interface NVMe
    Form Factor Rackmount
    RAID RAID 0

    Networking

    Supported Protocols SMB

    Software

    OS Compatibility Windows 11
    Windows 10
    macOS 12
    macOS 11.1
    *As of April, 2022: Check with manufacturer for the most up-to-date compatibility

    Electrical

    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    Power Consumption 35 W (Typical)

    Environmental

    Operating Temperature 0 to 40°C
    Operating Humidity 0 to 90% (Non-Condensing)
    Storage Temperature -20 to 60°C

    Physical

    Status Monitoring LED Indicator
    Audible Alarm No
    Dimensions 21.1 x 15.5 x 4.42 cm
    Weight 1.1 kg
