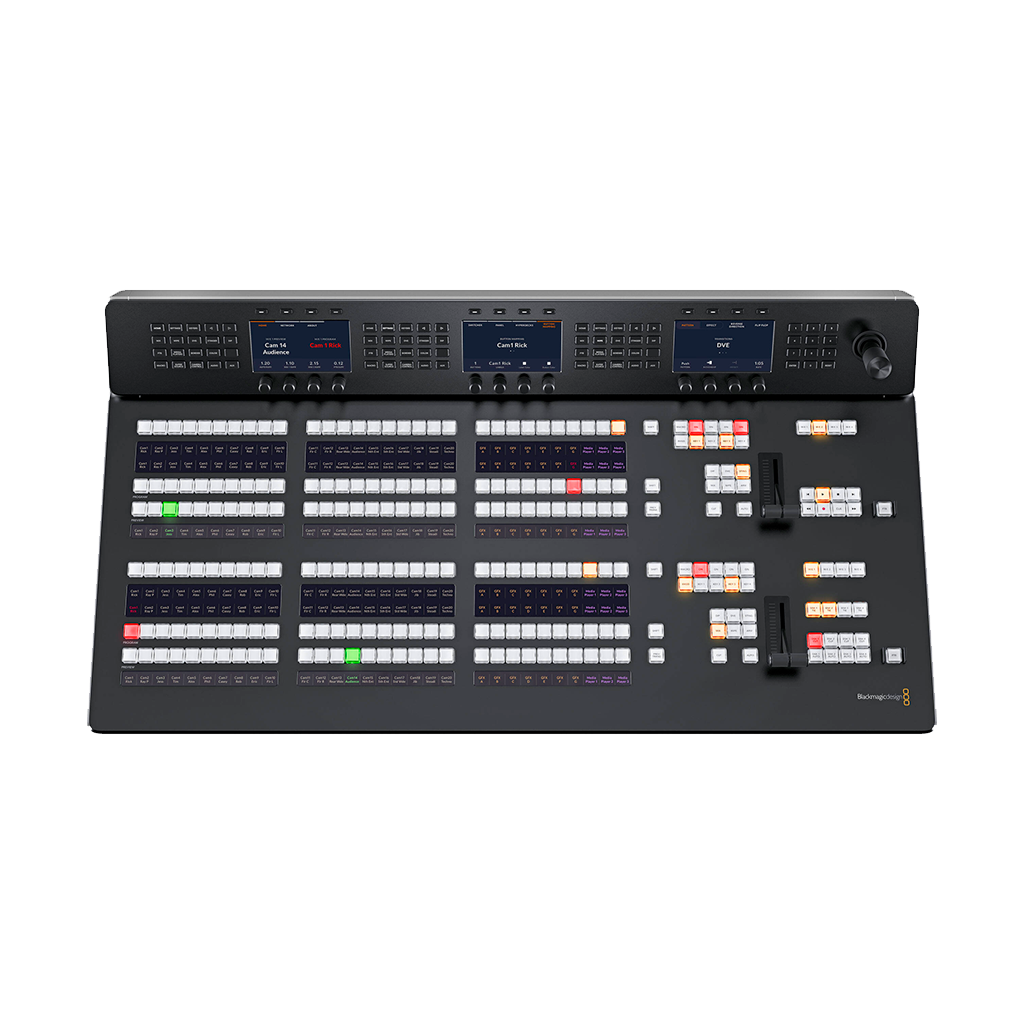

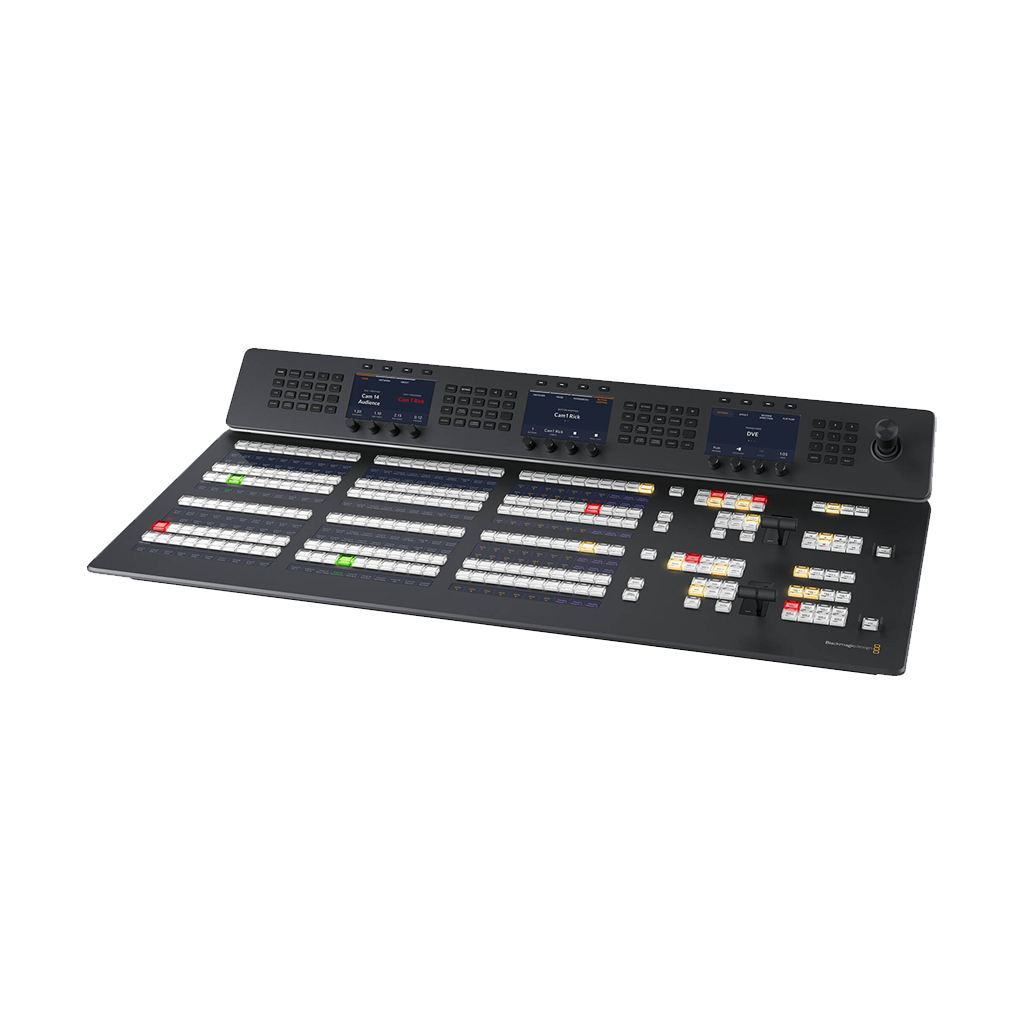

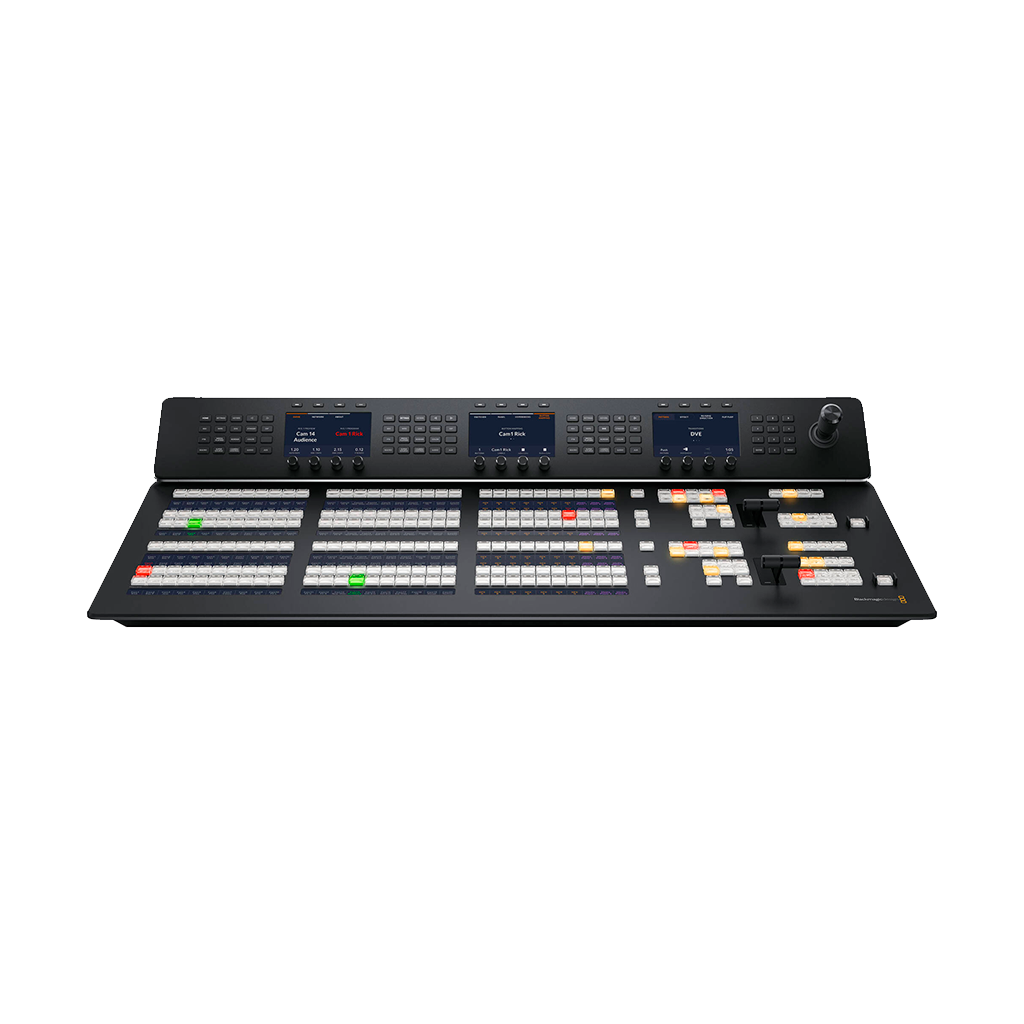

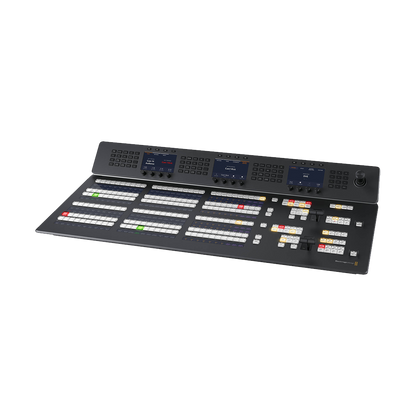

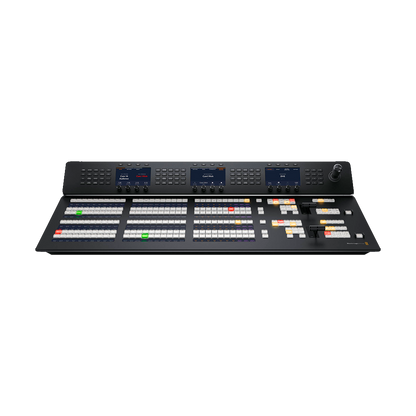

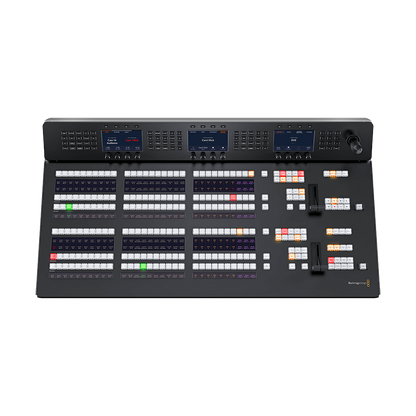

Blackmagic Design ATEM 2 M/E Advanced Panel 30
BLA-SWPANELADV2ME30
Couldn't load pickup availability
Sorry, it's out of stock.
But we can let you know when it's back in.
SHORT DESCRIPTION
SHORT DESCRIPTION
The Blackmagic Design ATEM 2 M/E Advanced Panel 30 is a control interface for the (NOT Included) Blackmagic ATEM Constellation Switcher. The wide variety of buttons, knobs, two fader bars, and 3-axis joystick can be used to customise your panel operation.
The Blackmagic Design ATEM 2 M/E Advanced Panel 30 is designed for complex live productions, enabling you to customise, monitor, and switch to customise your live broadcast events with advanced features such a camera switching, transitions, fades, DCE effects, and 12 on-air indicators. This panel connects to your switcher via 10/100/1000 BaseT Ethernet and incorporates four Ethernet loop outputs for connecting to another panel or to a media-management computer.
Compatibility
Provides pro switching controls for the Blackmagic ATEM Constellation HD line of switchers
Interface

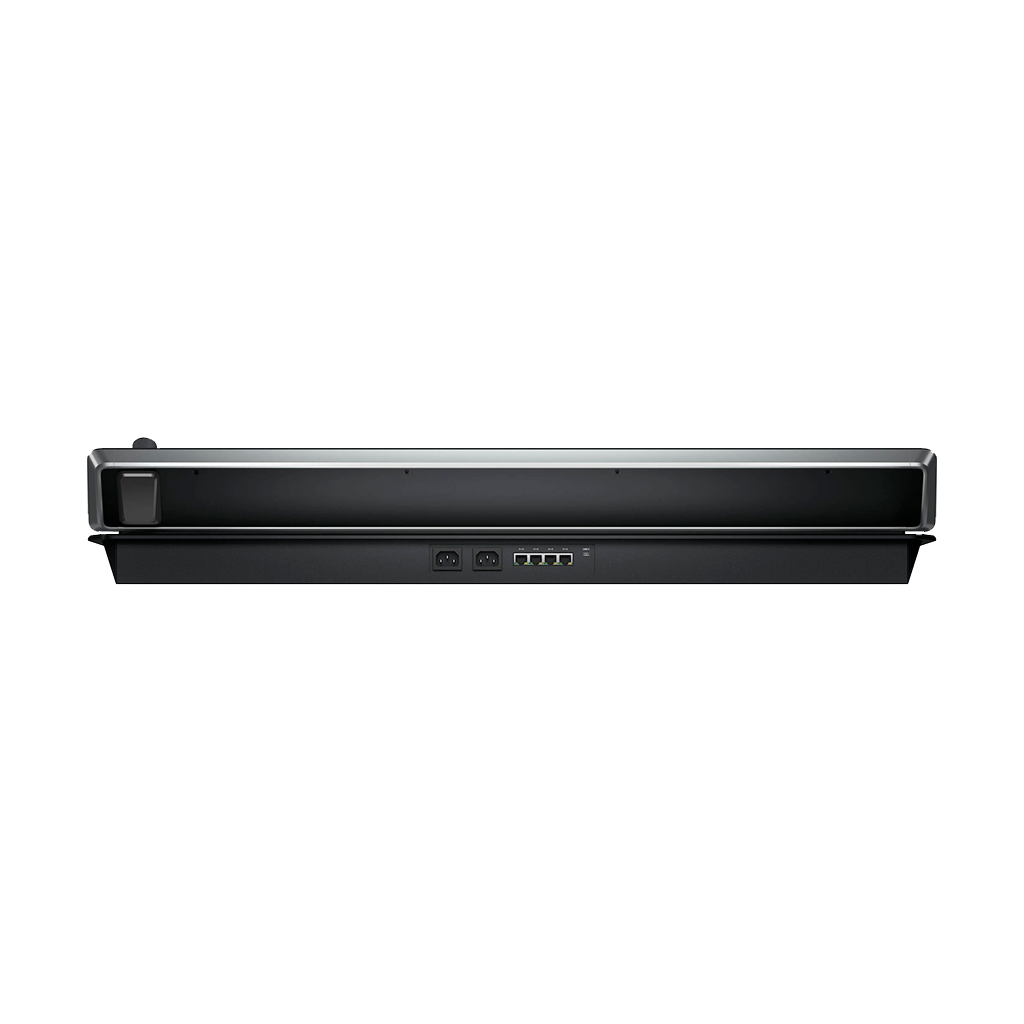

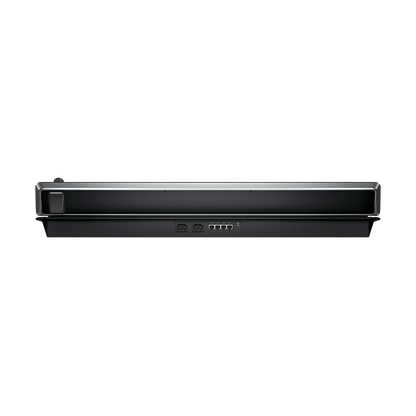

Four 10/100/1000 BASE-T Ethernet ports with loop output for linking to additional control panels or computers. USB Type-C for firmware updates
Cross-Points
Tri-color LED cross-point buttons; 30 direct cross-points, and 60 shifted cross-points
Mix Effect Rows
Two M/E rows, 30 input buttons per row
LCD Menu Displays
Three system control LCDs for each row with custom labelling for all rows and input buttons
Controls
One 3-axis joystick, one numeric keypad, and two fader bars
On-Air Indicators
12 indicators let you easily see which feeds are on air
DSK Selectors
Four transition previews with auto, cut, and tie/preview options
Blackmagic Design ATEM 2 M/E Advanced Panel 30
| Power Source | |
| Power Consumption |
