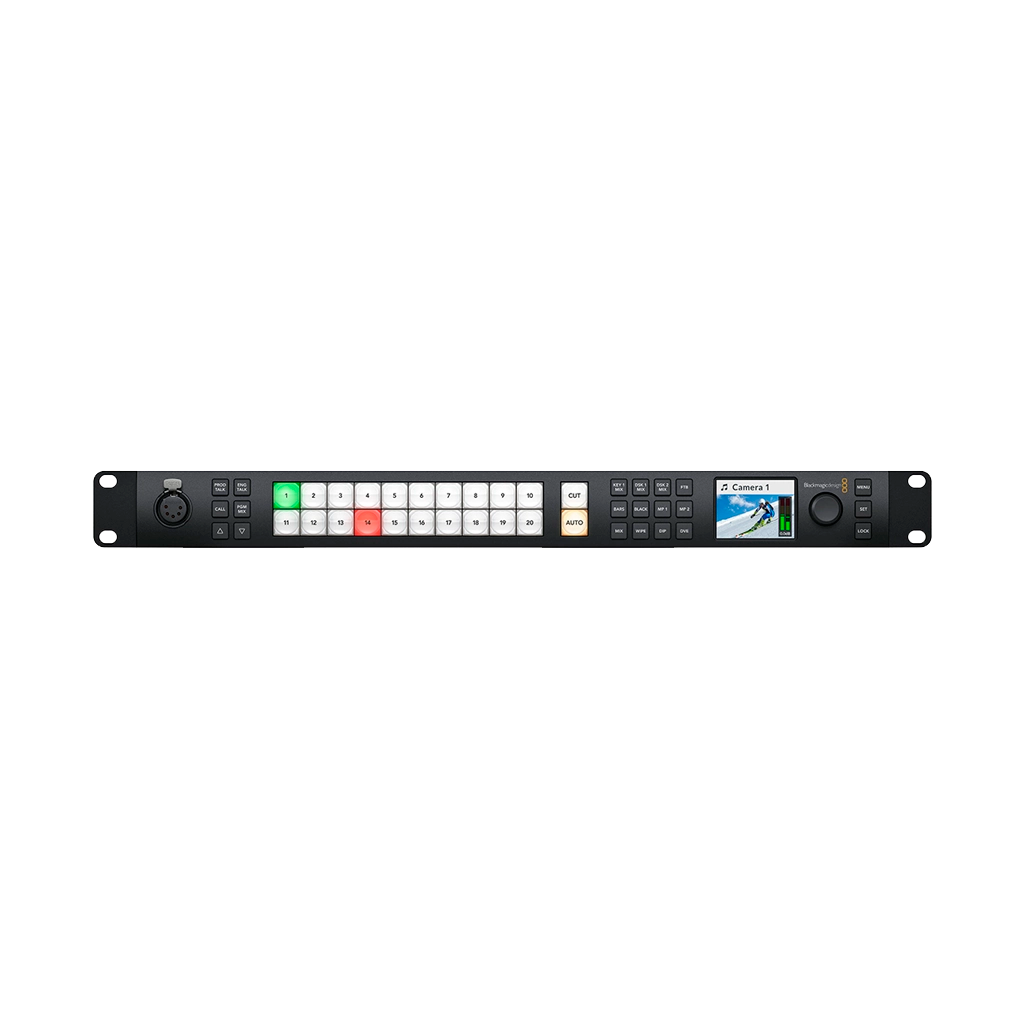

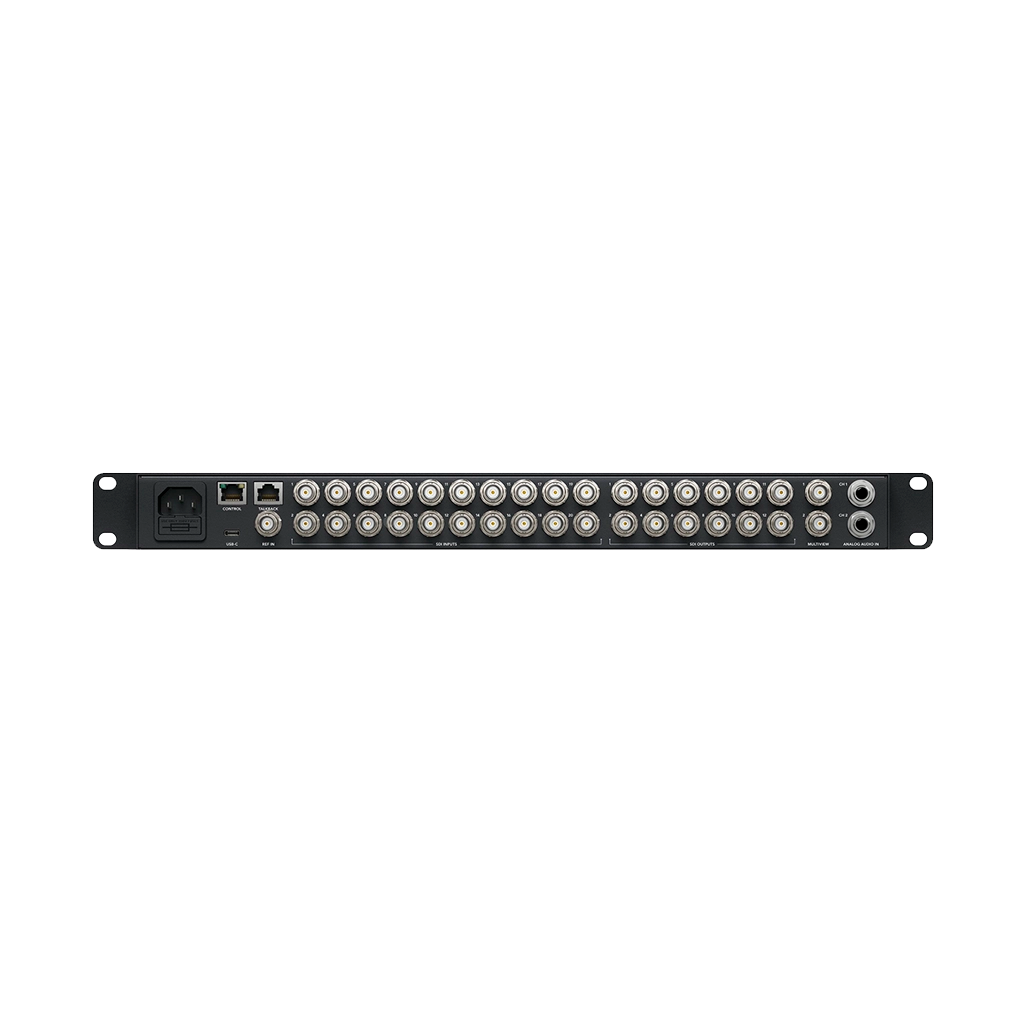

Blackmagic Design ATEM 2 M/E Constellation HD Live Production Switcher (1 RU)
Choose PayGate at checkout for MobiCred Payments.
- Supports 3G/HD-SDI at 10-Bit
- 20 x 3G-SDI Inputs, 12 x 3G-SDI Outputs
- Up to 16-Multiview Monitoring Windows
- Webcam Output via USB Type-C
- Frame Rate/Format Converter per Input
- 48-Channel Audio Mixer
- 8 x Upstream, 2 x Downstream Keyer
- Chroma/Luma Keyers
- Color/Pattern Generators
- Hardware or Software Mac/Windows Control
Orms Bellville
Orms Cape Town
Blackmagic Design ATEM 2 M/E Constellation HD Live Production Switcher (1 RU)
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Supports 3G/HD-SDI at 10-Bit
- 20 x 3G-SDI Inputs, 12 x 3G-SDI Outputs
- Up to 16-Multiview Monitoring Windows
- Webcam Output via USB Type-C
- Frame Rate/Format Converter per Input
- 48-Channel Audio Mixer
- 8 x Upstream, 2 x Downstream Keyer
- Chroma/Luma Keyers
- Color/Pattern Generators
- Hardware or Software Mac/Windows Control
Choose PayGate at checkout for MobiCred Payments.
- Supports 3G/HD-SDI at 10-Bit
- 20 x 3G-SDI Inputs, 12 x 3G-SDI Outputs
- Up to 16-Multiview Monitoring Windows
- Webcam Output via USB Type-C
- Frame Rate/Format Converter per Input
- 48-Channel Audio Mixer
- 8 x Upstream, 2 x Downstream Keyer
- Chroma/Luma Keyers
- Color/Pattern Generators
- Hardware or Software Mac/Windows Control
With the Blackmagic Design ATEM 2 M/E Constellation HD Live Production Switcher (1 RU) you have a powerful live event HD switching station, supporting up to 20 individual 3G/HD-SDI inputs, all in one 1 RU chassis.
This unit supports 3G-SDI as well as HD-SDI signals, with connectivity to a wide range of cameras and sources, delivering program output via 12 3G-SDI BNC output, alternatively a webcam using the USB Type-C.
The Blackmagic Design ATEM 2 M/E Constellation HD Live Production Switcher (1 RU) additionally features multiview output with up to 16 routable windows to display inputs, keyed video, graphics, and stills from the media pool, as well as the program output. Each input connects to a built-in Fairlight audio mixer supporting up to 48 channels of audio.
The Blackmagic Design ATEM 2 M/E Constellation HD Live Production Switcher (1 RU) features a reference video input, and each input features a frame synchronizer, frame rate converter, and format converter. This allows you to mix and match cameras, formats, cameras that do not feature genlock, and video input from computer sources. Upstream and downstream keyers and effects are supported. All this is done live and in real-time with no rendering required. You can control the switcher using the integrated front panel, optional Blackmagic ATEM panels, or via the downloadable control software.
Broadcast-Quality Transitions
On the Blackmagic Design ATEM 2 M/E Constellation HD Live Production Switcher you will find a wide range of native broadcast-quality transitions, like mix, dip, wipe, and many more. All transitions can be customized in the system control menus with adjustments for border colour, border width, position, direction, and a lot more. Also features a powerful digital video effects processor for DVE transitions.
This enables you to freeze a picture offscreen, and then reveal a new video under it.
Built-In DVE
The ATEM Constellation features two independent DVEs that let you reposition graphics and create picture-in-picture compositions. You get amazing quality, and the DVE supports the position, resize, and scale, all in real-time. The DVE lets you create professional picture-in-picture effects with customizable 3D borders, shadows, and lighting. DVRs can also be used to create amazing DVE transitions with squeeze and swoosh effects for adding excitement to your programming. You can even combine DVE transitions with custom graphics to create your own graphic wipe transitions. The 2 M/E model includes SuperSource processors for six DVEs.
SuperSource
The Blackmagic Design ATEM 2 M/E Constellation HD Live Production Switcher also features a powerful SuperSource multiplayer processor with four extra DVE layers plus a background layer. SuperSource is just like having an extra multi-layer VFX switcher built-in. SuperSource is perfect for doing picture-in-picture displays for interviews because you can set up the effect while keeping the main DVEs free for other tasks.
Multiview
Configurable to 16, 13, 10, 7, or 4 up view. It includes monitoring of program, preview, inputs, media players, DSK, and clean feed with optional labels and audio meters. The 2 M/E model features two multiview outputs.
Professional Broadcast Talkback
To keep crews working as a single creative team, ATEM Constellation features built-in talkback. Talkback supports a 5-pin XLR headset connector, plus a rear-mounted RJ12 connector for interfacing with industry-standard talkback systems such as ClearCom or RTS. You get full talkback control, including program and engineering loops, sidetone control for hearing the headset mic into the headphones, and program mix. ATEM Constellation HD also supports SDI talkback that uses SDI channels 15 and 16 for 2-way communication with Blackmagic Design cameras. You can even use channels 13 and 14 for engineering talkback. It's even possible to mix the talkback mic into the program audio for voiceovers.
Media Pool
With broadcast quality, RGBA graphics and animations stored in the built-in media pool can be played back instantly by the two or four media players. The Blackmagic Constellation 2 M/E model is capable of holding 40 still and 400 frame animations.
Chroma Keyers
The Blackmagic Design ATEM 2 M/E Constellation HD Live Production Switcher is perfect for news or virtual set work, ATEM Constellation HD is perfect as it features lots of ATEM advanced keyers for high-quality chroma or luminance keying. The chroma keyer is incredibly powerful and features a colour picker to sample background colours for automatic generation of the key parameters. You get precise controls for edge and flare, and there is even a foreground colour corrector so you can match the "look" of the foreground layer to the background layer making seamless compositions possible.
Upstream Chroma Keyers
Having four upstream chroma keyers per M/E row you have the perfect solution for building your virtual sets.
External image processors can be used for virtual sets, or you can even build a fixed camera virtual set by loading pre-rendered still image backgrounds from the media players and media pool.
Multi-Rate 3G-SDI Input
With the ability to use up to 20 multi-rate 3G-SDI input connections, the Blackmagic ATEM Constellation HD is compatible with all types of HD video sources. You can connect equipment in all HD television standards, including 720p, 1080i, and 1080p formats.
Embedded audio, as well as audio mixing, is possible with SDI inputs, as well as mixing audio from all video inputs. Plus, the program outputs include talkback, tally, and camera control information.
Audio
The Blackmagic Design ATEM 2 M/E Constellation HD Live Production Switcher (1 RU) is designed to fully embrace live professional audio production. All SDI inputs are connected to a built-in Fairlight audio mixer that features a 6-band parametric EQ, compressor, limiter, noise gate, and expander on each input.
ATEM Software Control Panel
The ATEM Software Control Panel gives you total control over your switcher and is included for free. The ATEM Software Control Panel features a beautifully designed interface with a visual switcher and parameter palettes for making quick adjustments. Multiple users can connect to the switcher via Ethernet, and all work on different parts of the event at the same time. The ATEM Software Control also lets you access camera control, audio mixing, media, macro programming, and even control of HyperDeck disk recorders. You can save the full state of the switcher as XML files, plus all media is backed up from the media pool. You can run the software on Mac or Windows.
Blackmagic Design ATEM 2 M/E Constellation HD Live Production Switcher (1 RU)
Blackmagic Design ATEM Constellation HD 2
Available M/E Layers | 2 M/E |
Effect Types | 8 x Chroma Key 11 x Luma Key 2 x Stinger 6 x DVE |
Downstream Keys | 2 x Chroma, Luma, DVE |
Generators | 2 x Color 11 x Pattern |
Audio Mixing | 48-Channel Mixing |
Processing
Switching Type | Pushbutton, Software |
Latency | 10 Lines |
Colour Processing | 10-Bit 4:2:2 |
Input
Number of Video Input Sources | 20 |
Video-Input Connectors | 20 x BNC (3G-SDI / HD-SDI) |
Input Video Format | SDI (10-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
Audio Input Connectors | 2 x 1/4" TRS Stereo Analog Female |
Input Audio Format | Analog |
Embedded Audio Input | SDI: 2-Channel (per Input) |
Output
Video Output Channels | 12 |
Video Output Connectors | 12 x BNC (3G-SDI / HD-SDI) 1 x USB Type-C (USB Video) (Program) |
Output Video Format | SDI (10-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
Embedded Audio Output | SDI USB Type-C |
Multiview Output | 16-Way Multiview viaSDI |
Connectivity
Other I/O | 1 x BNC Blackburst, Reference, Tri-Level Sync Input 1 x RJ45 Control 1 x RJ45 Talkback Input/Output 1 x XLR 5-Pin Talkback Input/Output |
Video Standard Compliance | SMPTE 292M/296M/424M/425M-A/425M-B |
HDCP Support | None |
IP Video | 1280 x 720 to 1920 x 1080 Encoding |
Display
Display Size | 2.2" |
Hardware
OS Compatibility | macOS 11.1 macOS 12.0 or Later Windows 10 Windows 11 |
Power Connector | 1 x IEC C14 Input |
Power Consumption | Device: 52 W |
Environmental
Operating Temperature | 0 to 40°C |
Storage Temperature | -20 to 60°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
General
Rack Form Factor | 1 RU |
Dimensions | 48.3 x 18.19 x 4.42 cm |
Weight | 2.98 kg |
