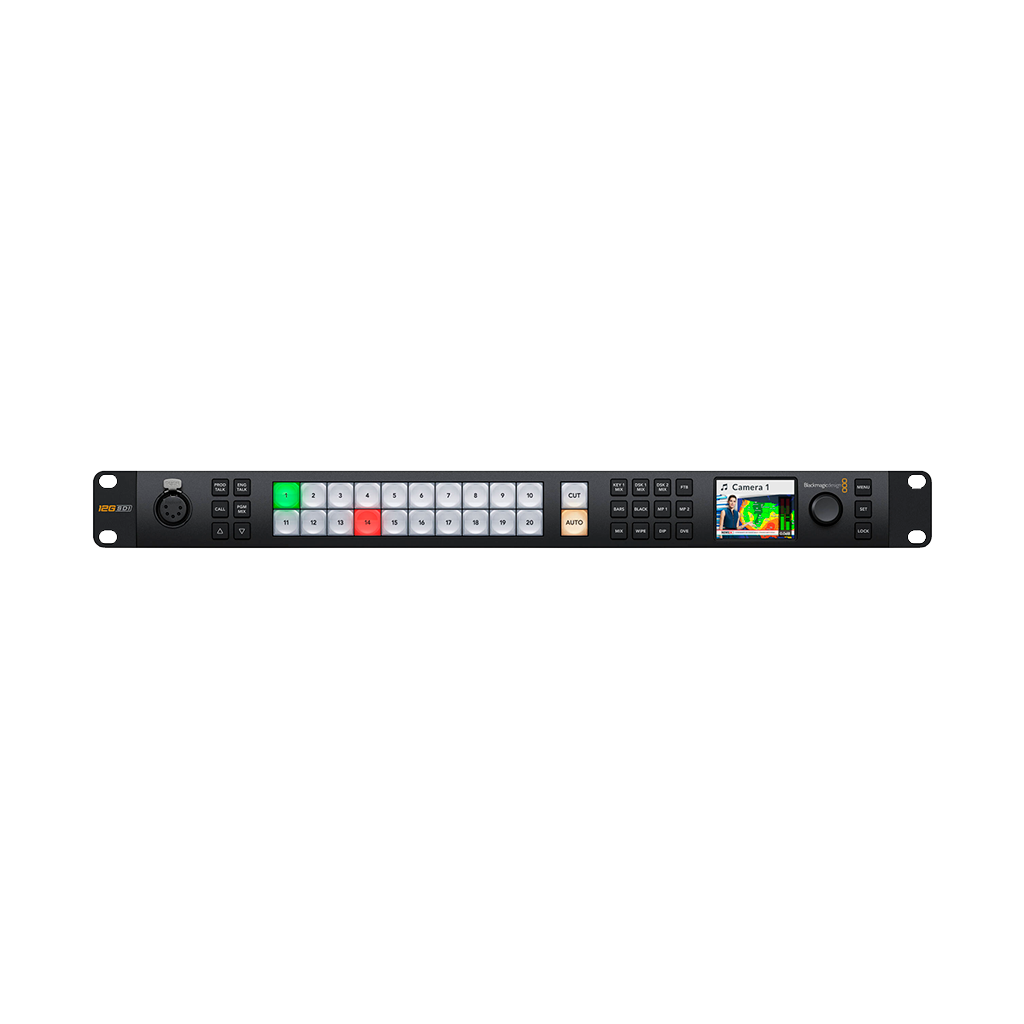

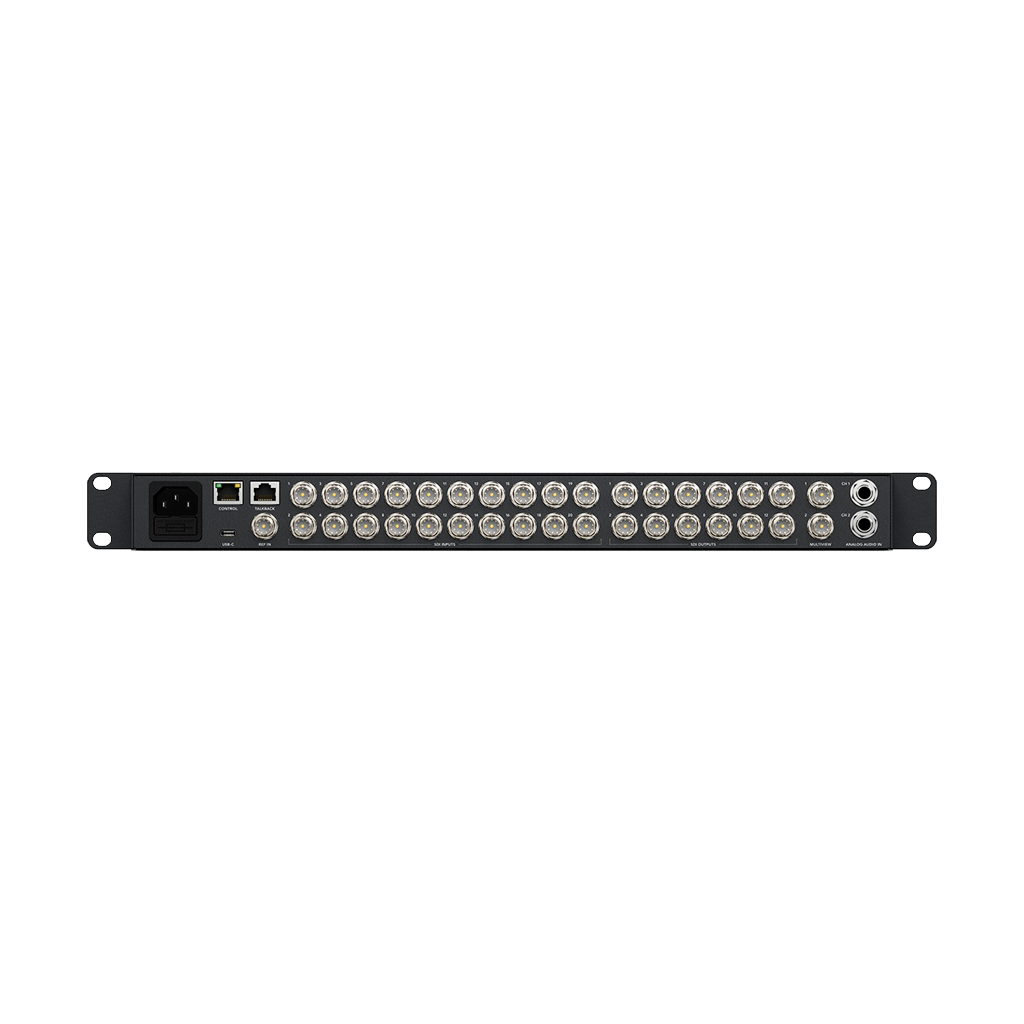

Blackmagic Design ATEM 2 M/E Constellation UHD 4K Live Production Switcher
Choose PayGate at checkout for MobiCred Payments.
- Supports 12G/3G/HD-SDI at 10-Bit
- 20 x 12G-SDI Inputs, 12 x 12G-SDI Outputs
- Up to 16-Multiview Monitoring Windows
- Webcam Output via USB-C
- Frame Rate/Format Converter per Input
- 48-Channel Audio Mixer
- 8 x Upstream, 2 x Downstream Keyer
- Chroma/Luma Keyers
- Color/Pattern Generators
- Hardware/Software macOS/Windows Control
Orms Bellville
Orms Cape Town
Remote Warehouse (Available in 2 - 4 Business Days)
Blackmagic Design ATEM 2 M/E Constellation UHD 4K Live Production Switcher
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Remote Warehouse (Available in 2 - 4 Business Days)
Upper Canterbury Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Supports 12G/3G/HD-SDI at 10-Bit
- 20 x 12G-SDI Inputs, 12 x 12G-SDI Outputs
- Up to 16-Multiview Monitoring Windows
- Webcam Output via USB-C
- Frame Rate/Format Converter per Input
- 48-Channel Audio Mixer
- 8 x Upstream, 2 x Downstream Keyer
- Chroma/Luma Keyers
- Color/Pattern Generators
- Hardware/Software macOS/Windows Control
Choose PayGate at checkout for MobiCred Payments.
- Supports 12G/3G/HD-SDI at 10-Bit
- 20 x 12G-SDI Inputs, 12 x 12G-SDI Outputs
- Up to 16-Multiview Monitoring Windows
- Webcam Output via USB-C
- Frame Rate/Format Converter per Input
- 48-Channel Audio Mixer
- 8 x Upstream, 2 x Downstream Keyer
- Chroma/Luma Keyers
- Color/Pattern Generators
- Hardware/Software macOS/Windows Control
The Blackmagic Design ATEM 2 M/E Constellation UHD 4K Live Production Switcher now include UHD 4K capabilities along with 12G-SDI ports, to the familiar switcher construction of the predecessor. This switcher provides you with powerfull UHD 4K live event switching with 20 individual 12G-SDI inputs with support for 12G/3G/HD-SDI signals, these signals are then delivered to twelve 12G-SDI outputs or webcam USB-C outputs. Further, the switcher has a multiview output with up to 16 routable windows that can display inputs, keyed video, graphics, and stills from the media pool, as well as the program output. Each input is connected to a Fairlight built-in audio mixer providing support for up to 28 channels of audio.
The Blackmagic Design ATEM 2 M/E Constellation UHD 4K Live Production Switcher include a reference video input, and each input features a frame synchronizer, frame rate converter, and format converter. The reference video input allows you to use different cameras, formats that do not feature genlock, and input from computer sources. Upstream and downstream keyers and effects are supported. No rendering is required for this action and all done in real time.
Broadcast-Quality Transitions
The Blackmagic Design ATEM 2 M/E Constellation UHD 4K Live Production Switcher offers you a wide range of broadcast-quality native transitions including mix, dip, wipe, and more. Border colour, border width, position, direction, and a lot more can be adjusted in the system menus for all transitions.
You will also find a powerful digital video effect processor for DVE transitions, used to squeeze the current picture offscreen, to reveal another video under it. You can also use the DVE to create graphic wipe transitions.
Built-In DVE
The two independent DVEs allow you to reposition graphics and create picture-in-picture compositions with customizable 3D borders, shadows, and lighting. The built-in DVE provides you with great quality and supports position, resize, and scale, all in realtime.
SuperSource
Further the DVEs in the M/E rows, the 2 M/E model includes powerful SuperSource multilayer processors with four extra DVE layers plus a background layer, all appearing to ATEM Constellation UHD 4K as an additional input source.
SuperSource is like having an extra multi-layer VFX switcher built-in. SuperSource is perfect for doing picture-in-picture displays for interviews because you can set up the effect while keeping the main DVEs free for other tasks.
Multiview
Configurable to 16, 13, 10, 7, or 4 up view, it includes monitoring of program, preview, inputs, media players, DSK, and clean feed with optional labels and audio meters.
The 2 M/E model includes two multiview outputs.
Professional Broadcast Talkback
The Blackmagic Design ATEM 2 M/E Constellation UHD 4K Live Production Switcher features built-in talkback that supports a 5-pin XLR connector and a rear-mounted RJ12 connector for interfacing with industry-standard talkback systems. Support for SDI talkback is also included that uses channels 15 and 16 allowing for 2-way communication with other Blackmagic Design cameras. You can even use channels 13 and 14 for engineering talkback. It's even possible to mix the talkback mic into the program audio for voiceovers.
Internal Media Pool
Broadcast-quality RGBA graphics and animations can be stored in the media pool and can be played back instantly using two or four media players. This model can hold up to 40 stills and 400 frame animations.
Chroma Keyers
The ATEM chroma keyer features a colour picker to sample background colours for the automatic generation of the key parameters. With precise controls, you are able to adjust edges and flares along with a foreground colour corrector to match the colour of the background layer to seamless compositions.
You will find four upstream keyers per M/E row for the virtual set building. In a four-camera virtual set, you can use a keyer per camera to create cohesive compositions over a custom background. External image processors or build a fixed camera set by loading pre-rendered still image backgrounds from the media players and media pool.
Multi-Rate 12G-SDI
With up to 10 multi-rate 12G SDI connections, the Blackmagic Design ATEM 2 M/E Constellation UHD 4K Live Production Switcher is compatible with various video sources. You can connect equipment in UHD and HD video standards including 720p, 1080i, 1080p, and 2160p formats. Embedded audio from the inputs can also be accommodated to mix the inputs together.
Fairlight Audio Mixer
A built-in Fairlight audio mixer is connected to each SDI input, this includes with 6-band parametric EQ, compressor, limiter, noise gate, and expander. Audio is de-embedded from eh SDI sources and passed to the internal mixer for up to 156 input channels.
Blackmagic Design ATEM 2 M/E Constellation UHD 4K Live Production Switcher
Available M/E Layers | |
Effect Types | |
Downstream Keys | |
Generators | |
Audio Mixing |
Switching Type | |
Latency | |
Processing Resolution | |
Colour Processing |
Number of Video Input Sources | |
Video Inputs | |
Input Video Format | |
Audio Inputs | |
Embedded Audio Input |
Video Output Channels | |
Video Outputs | |
Output Video Format | |
Embedded Audio Output | |
Multiview Output |
Other I/O | |
Video Standard Compliance | |
HDCP Support |
Display Size |
OS Compatibility | |
Processor | |
Wi-Fi | |
Bluetooth | |
Power I/O | |
Power Consumption |
Operating Conditions | |
Storage Conditions | |
Rack Form Factor | |
Dimensions | |
Weight |
