Blackmagic Design

Blackmagic Design ATEM Camera Control Panel

R 70,895.00
R 70,895.00 R 70,895.00
Tax included. Shipping calculated at checkout.

BLA-SWPANELCCU4

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • Control up to 4 Cameras
  • For BMD URSA & Studio Cameras
  • Iris, Shutter Speed & Paint Controls
  • Ethernet Connectivity
  • LCD Screens with Soft Buttons & Encoders
  • 4 x High-Quality Joysticks
  • Recallable Presets

    Have full control over four individual professional cameras with the Blackmagic Design ATEM Camera Control Panel such as your URSA Broadcast, Blackmagic Studio, URSA Mini and Blackmagic Micro Studio camera. The control panel simply performs as a remote that allows you to adjust and monitor a wide range of technical parameters such as gain, colour balance, black levels, iris, shutter speed, white balance and more on each LCD display monitor with comfortable buttons and knobs.

    When making use of the live multi camera programs, it's vital to make sure that all the cameras are balanced correctly in order to get consistent video from every angle. Additionally, the control panel operates with all ATEM switchers and is user friendly with new and experienced operators.

    Control of Four Cameras

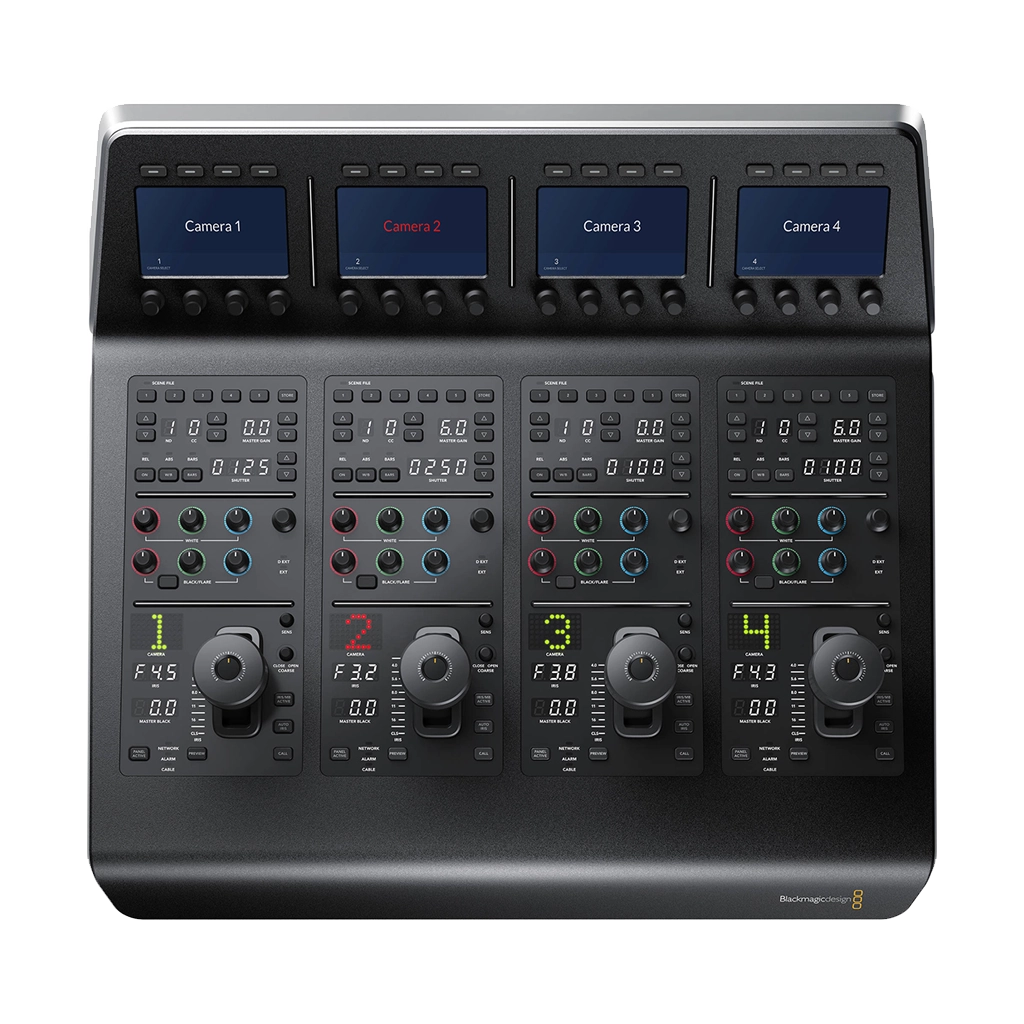

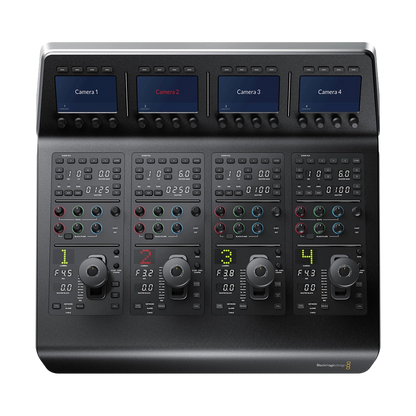

    The Blackmagic ATEM Camera Control Panel allows one individual to control four cameras as it features four camera controllers in one panel, a large LCD display monitor with soft buttons and knobs right on top of the panel, and a variety of professional controls at the bottom of the main body.

    Scene and Camera Controls

     You can save and recall all scene presets with the top section controls so that you can quickly adjust cameras based on changes in the scene such as lighting. Additionally, you have control over your white balance, master gain, bars, load scenes and also have control over your cameras shutter speed.

    Gain and Pedestal Controls

    The center section features individual RGB controls that allows you to adjust your gain and pedestal, or white and black. Also, you can adjust the individual red, green and blue levels in your blacks and whites to compensate for unnecessary colour.

    Lens and Iris Controls

    The bottom section allows you to control the iris and master black with the professional joystick and with an LED camera number that indicates the preview and on-air status. It also includes a call button for talkback with the operator on the other end, along with a panel lock button and indicators for the networks.

    • Blackmagic Design ATEM Camera Control Panel

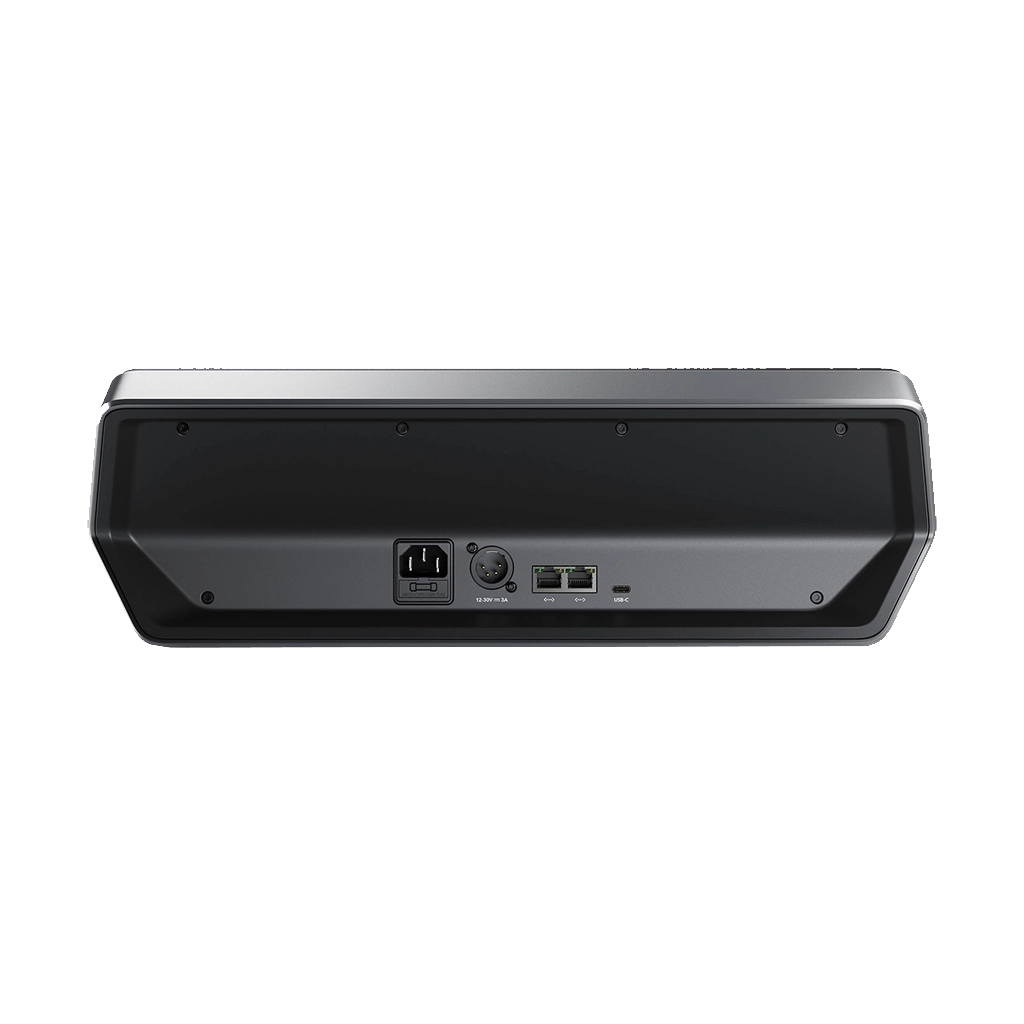

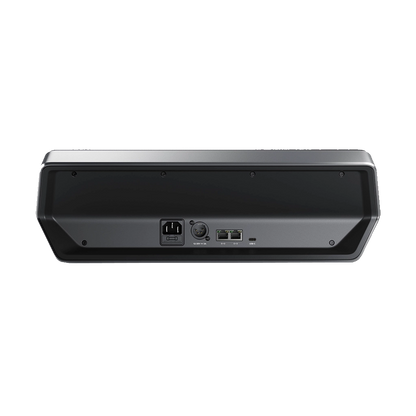

    ConnectionsEthernet: 2 x RJ45
    Firmware: 1 x USB Type-C
    DC Power: 1 x 4-pin XLR
    Mains Power: 1 x IEC
    Camera ControlUp to 4
    Operating System SupportmacOS: 10.12 Sierra, 10.13 High Sierra, or later
    Windows: 8.1 or 10
    Power Input110–240 VAC
    Operating Temperature32 to 104°F / 0 to 40°C
    Storage Temperature-4 to 140°F / -20 to 60°C
    HumidityUp to 95% RH
    Dimensions15.3 x 16.9" / 38.9 x 43 cm
    Weight3.6 kg
