Blackmagic Design ATEM SDI Switcher
Choose PayGate at checkout for MobiCred Payments.
- 4-Channel Live Stream 3G-SDI Switcher
- Input/Output up to 1080p60 10-Bit 4:2:2
- 2-Channel Digital Audio Mixer
- 2 x 3G-SDI Output, Ethernet ATEM Control
- Media Player, Computer Input Support
- Upstream and Downstream Keyers
- DVE Transition, Chroma/Luma Keyers
- Colour and Pattern Generators
- USB Type-C Streaming/Webcam Output
Orms Bellville
Orms Cape Town
Blackmagic Design ATEM SDI Switcher
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 4-Channel Live Stream 3G-SDI Switcher
- Input/Output up to 1080p60 10-Bit 4:2:2
- 2-Channel Digital Audio Mixer
- 2 x 3G-SDI Output, Ethernet ATEM Control
- Media Player, Computer Input Support
- Upstream and Downstream Keyers
- DVE Transition, Chroma/Luma Keyers
- Colour and Pattern Generators
- USB Type-C Streaming/Webcam Output
Choose PayGate at checkout for MobiCred Payments.
- 4-Channel Live Stream 3G-SDI Switcher
- Input/Output up to 1080p60 10-Bit 4:2:2
- 2-Channel Digital Audio Mixer
- 2 x 3G-SDI Output, Ethernet ATEM Control
- Media Player, Computer Input Support
- Upstream and Downstream Keyers
- DVE Transition, Chroma/Luma Keyers
- Colour and Pattern Generators
- USB Type-C Streaming/Webcam Output
The Blackmagic Design ATEM SDI Switcher is designed for multicamera live streaming to the Internet or broadcast applications. This switcher provides gaming consoles, corporate computer streams, or HD cameras with a four-input and integrated control panel.

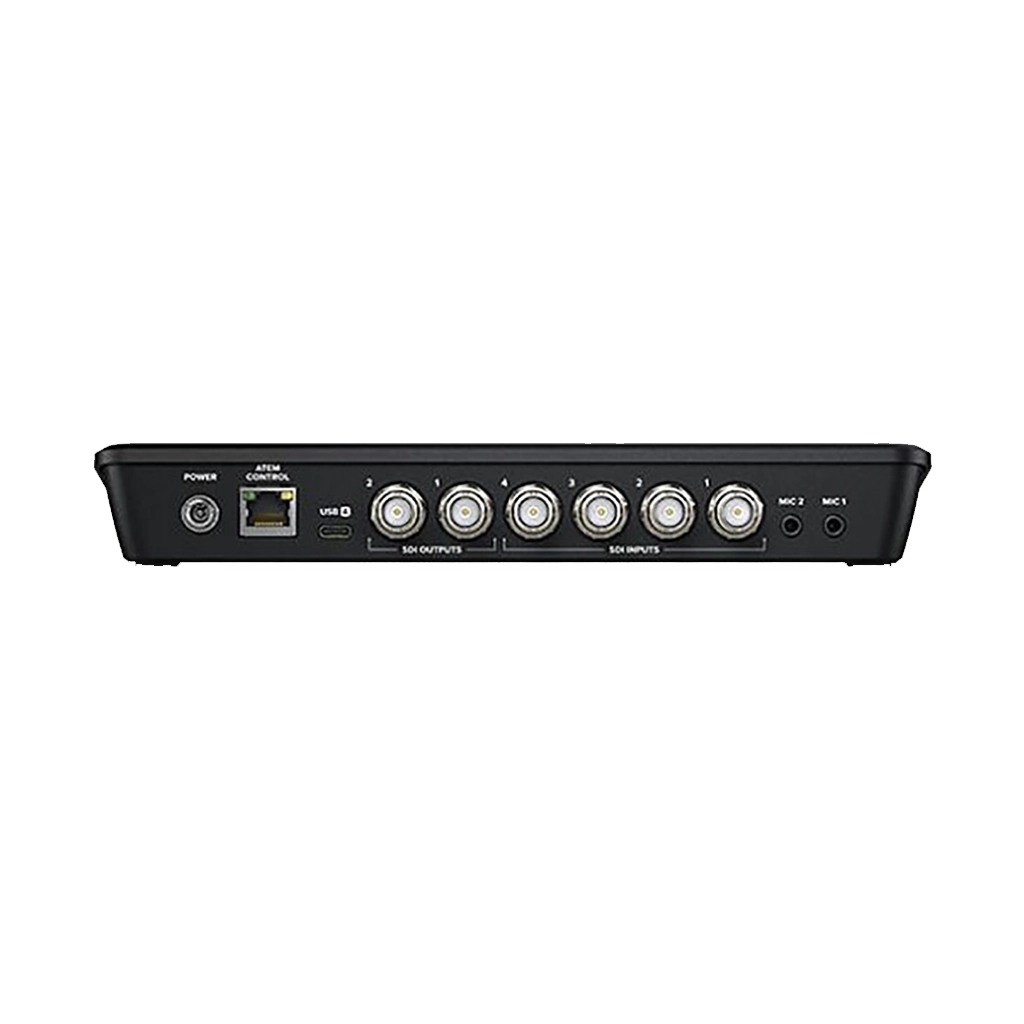

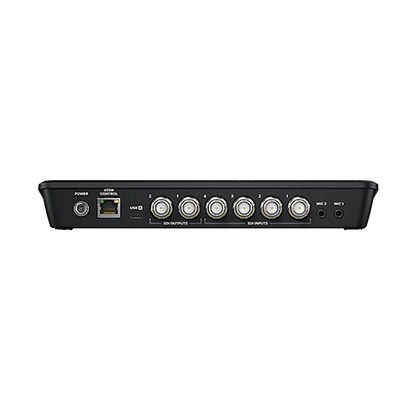

Four SDI inputs are available on the rear of the unit featuring 1080p60 video. Two 3G-SDI outputs are useful for a projector or external monitor, a USB Type-C output for streaming up to 1080p60 video to a computer, and an RJ45, 10/100 Ethernet port for system management, remote control.

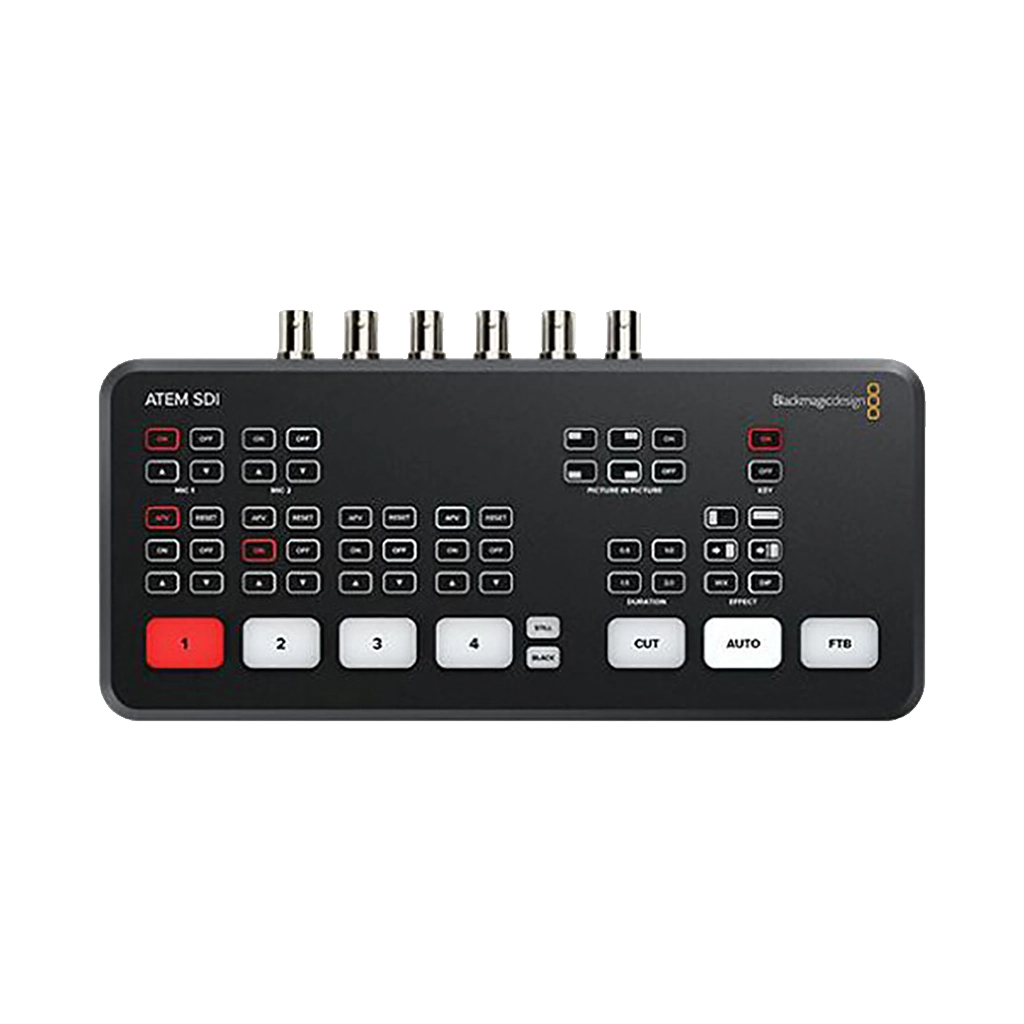

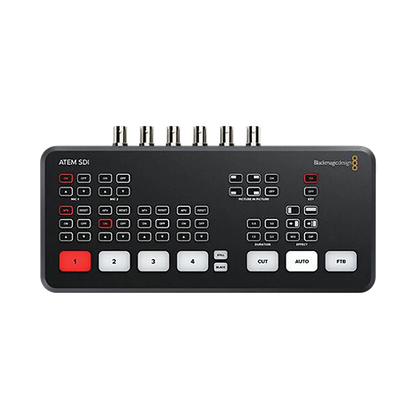

The Blackmagic Design ATEM SDI Switcher control surface features easy-to-see buttons that are backlit to enable camera inputs, controlling transitions, keyers, as well as settings and the DVE. Featuring upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and two colour generators.
You will also find media player support for fill and key images. These support up to 20 stills in PNG, TGA, BMP, and JPEG, as well as TIFF formats.
Transitions
The Blackmagic Design ATEM SDI Switcher allows transitions, including, cut, mix, dip, wipe, DVE.
Upstream Keyer
The upstream keyer lets you layer live video over other video sources. Luma key, linear key, and pattern key can be used, or you can shoot against a green screen.
Downstream Keyer
The Blackmagic Design ATEM SDI Switcher offers you one downstream keyer. This allows you to add quality graphics like logos, bugs and titles from the built-in media player over live stream output.
Audio Mixer
The built-in audio mixer lets you control both camera and external audio with precision level and balance adjustments on all six available audio inputs and two channels. The mixer features selectable On/Off/Audio-Follow-Video per channel, plus it has separate gain control per channel, level and peak metering, and new Fairlight audio enhancements such as compressor, gate, limiter, six bands of parametric EQ, and master gain control.
Media Player
The Blackmagic Design ATEM SDI Switcher store up to 20 broadcast-quality RGBA graphic files in the media pool, this eliminates external character generators. Popular image formats such as PNG, TGA, BMP, GIF, JPEG, and TIFF are supported.
- Blackmagic Design ATEM SDI Switcher
- 12 VDC External Power Supply
General
Available M/E Layers | 5 M/E |
Effect Types | DVE, Transition, Chroma Key |
Generators | 1 x Pattern 2 x Color |
Audio Mixing | 2-Channel Mixing |
Processing
Switching Type | IR Remote, Pushbutton, Software |
Input
Number of Video Input Sources | 4 |
Video Input Connectors | 4 x BNC (3G-SDI) |
Input Video Format | SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 56/59.94/60 fps 720p at 50/59.94/60 fps |
Audio Input Connectors | 2 x 3.5 mm TRS Stereo Analog Female |
Input Audio Format | Analog |
Embedded Audio Input | SDI: 2-Channel (per Input) |
Output
Video Output Channels | 3 |
Video Output Connectors | 2 x BNC (3G-SDI) (Program) |
Output Video Format | SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps USB Type-C (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
Embedded Audio Output | SDI |
Multiview Output | None |
Connectivity
Other I/O | 1 x RJ45 Control Input/Output |
HDCP Support | None |
Hardware
OS Compatibility | macOS 11 macOS 12 or Later Windows 10 Windows 11 |
Power Connector | 1 x Barrel (12 VDC) Input |
Power Consumption | Device: 18 W |
Environmental
Operating Temperature | 5 to 40°C |
Storage Temperature | -10 to 60°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
General
Dimensions | 23.75 x 11.86 x 3.51 cm |
Weight | 678 g |
