BlackMagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers
Choose PayGate at checkout for MobiCred Payments.
- For Any ATEM Mini Pro Streaming Switcher
- HDMI and SDI Outputs
- Up to 1080p60 Resolution Output
- Direct, Network, and Internet Connection
- IP Addressable, Software Controllable
Orms Bellville
Orms Cape Town
Orms Somerset West
BlackMagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Orms Somerset West
Shop 25, Waterstone Village Shopping Centre
Somerset West
Cape Town
Western Cape
7130
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- For Any ATEM Mini Pro Streaming Switcher
- HDMI and SDI Outputs
- Up to 1080p60 Resolution Output
- Direct, Network, and Internet Connection
- IP Addressable, Software Controllable
Choose PayGate at checkout for MobiCred Payments.
- For Any ATEM Mini Pro Streaming Switcher
- HDMI and SDI Outputs
- Up to 1080p60 Resolution Output
- Direct, Network, and Internet Connection
- IP Addressable, Software Controllable

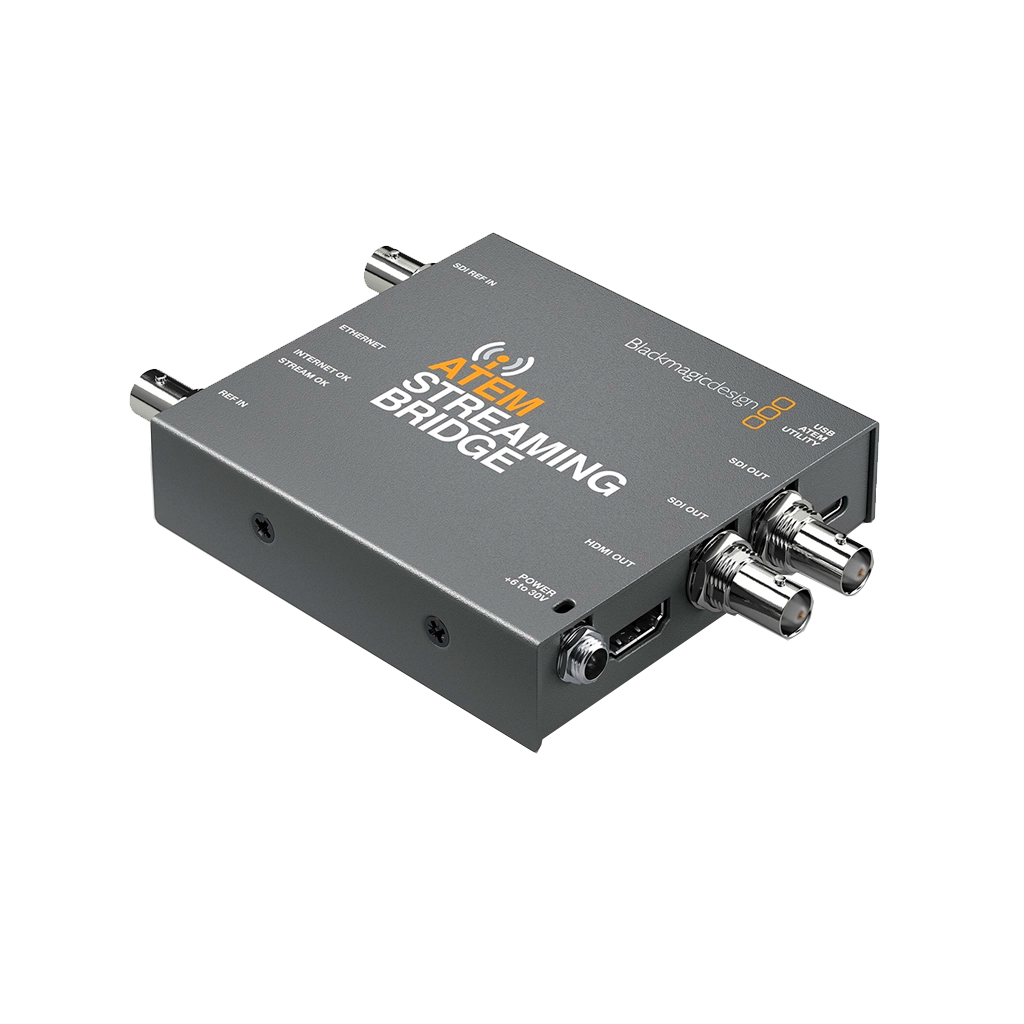

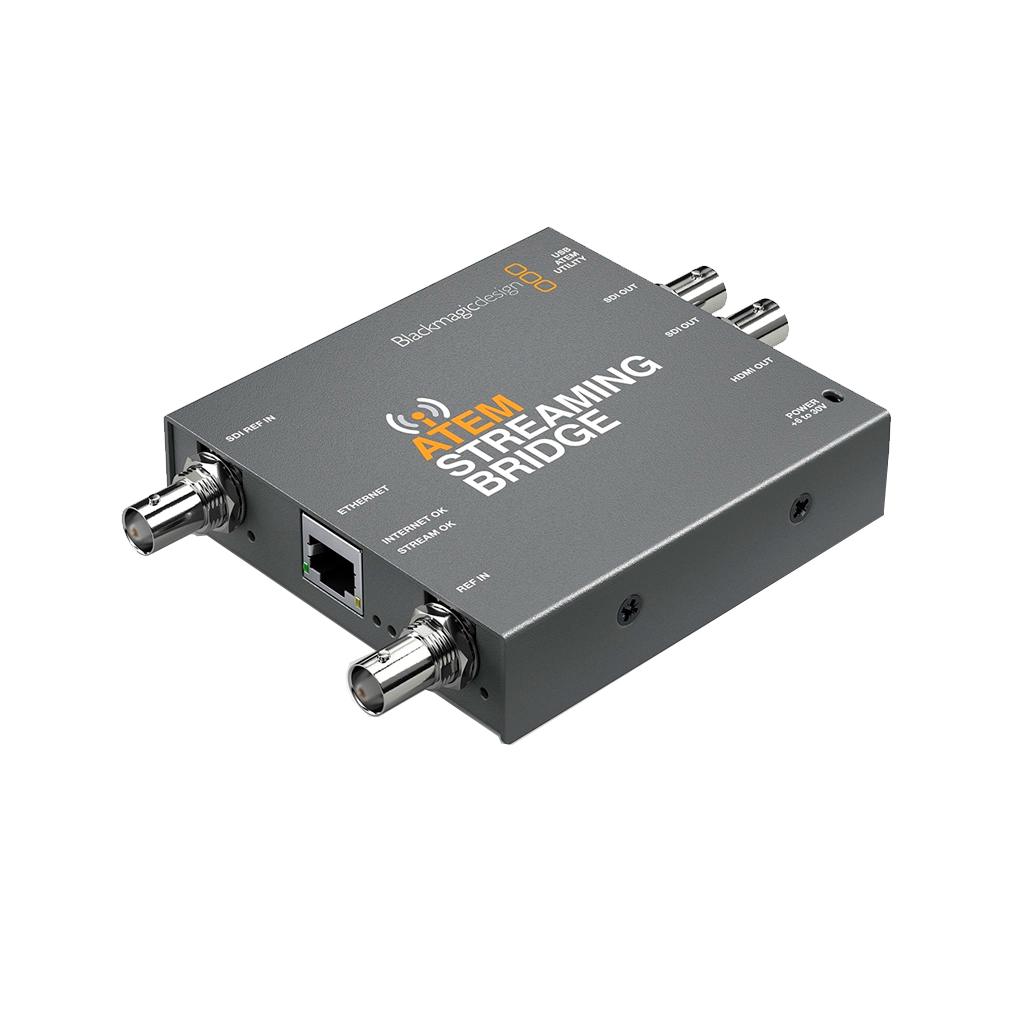

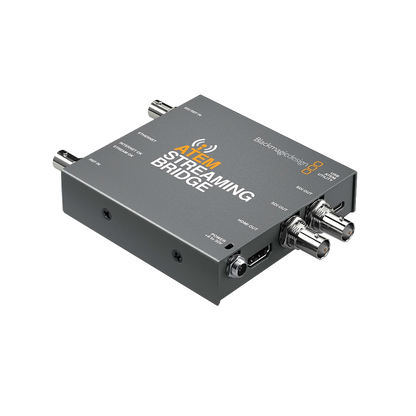

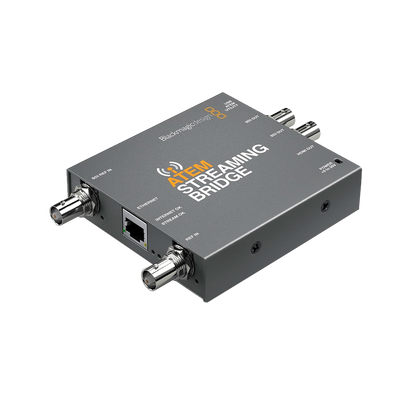

The BlackMagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers is designed to enable you to convert any IP signal to any ATEM Mini Pro unit into SDI and HDMI video. This unit features two SDI outputs as well as one HDMI output with supports for resolutions up to 1080p60.
The BlackMagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers can be connected to the same LAN that a BlackMagic ATEM Pro is connected to, and the two units will find each other to enable streaming across the network.
- BlackMagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers
- Universal Power Supply with International Adapters
Input
| Audio Input Connectors | None |
Output
| Video Output Connectors | 2 x BNC (3G-SDI / HD-SDI) 1 x HDMI (HDMI 1.4) |
| Output Video Format | HDMI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps SDI (10-Bit 4:2:2 YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps |
| Audio Output Connectors | None |
Standards
| Video Standard Compliance | SMPTE 259M/292M/296M/424M-B/425M-A/425M-B |
Connectivity
| Other I/O | 1 x RJ45 2 x BNC Reference |
| Expansion Slots | None |
IP Streaming
| Video IP Decoding | H.264: 1920 x 1080 |
Power
| Power Connector | 1 x Barrel (6 to 30 VDC) Input |
| Power Consumption | Device: 6 W |
Environmental
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 60°C |
| Operating Humidity | 0 to 90% (Recommended) |
General
| Certifications | CE, FCC, Kcc, as per Manufacturer |
| Dimensions | 13.41 x 9.22 x 2.29 cm |
| Weight | 230 g |
