The Blackmagic Design Blackmagic Audio Monitor 12G G3 features a dual-subwoofer design with extra wide-range speakers and Class-D amplifiers. This upgraded version also supports the new SMTPE 2110 input for improved broadcast integration.
It features a 12G-SDI input, a balanced XLR analogue audio input, a balanced AES/EBU digital input audio, HiFi audio inputs, and an HDMI 2.0 output. The Blackmagic Design Blackmagic Audio Monitor 12G G3 features multicoloured audio level meters and a built-in LCD for monitoring video sources on the front panel.
Monitor Anywhere
The Blackmagic Design Blackmagic Audio Monitor 12G G3 (1 RU) can be installed in broadcast racks, audio on decks, video servers, and live transmissions. Simply with the push of a button, switch between stereo pairs of the input, this makes it ideal for monitoring alternative language tracks. The compact size is ideal for portable flyaway kits and broadcast trucks where space is tight or in edit and audio post-production facilities.
Powerful and Loud
With a dual-subwoofer design offers a wide and smooth frequency response response curve with crisp highs and powerful deep bass. It is powerfull enough so you can still hear the audio in loud environments, like areas with lots of cooling fan noise.
Precision Metering
The Blackmagic Design Blackmagic Audio Monitor 12G G3 (1 RU) features two big and bright audio level meters on the front panel with multi-coloured RGB LEDs under each segment. These meters can be switched between VU or PPM or loudness scales and a choice of BCU or BBC meters. A very wide dynamic range can be measured from -20 to +18 dB depending on the scale.
Machined Metal Design

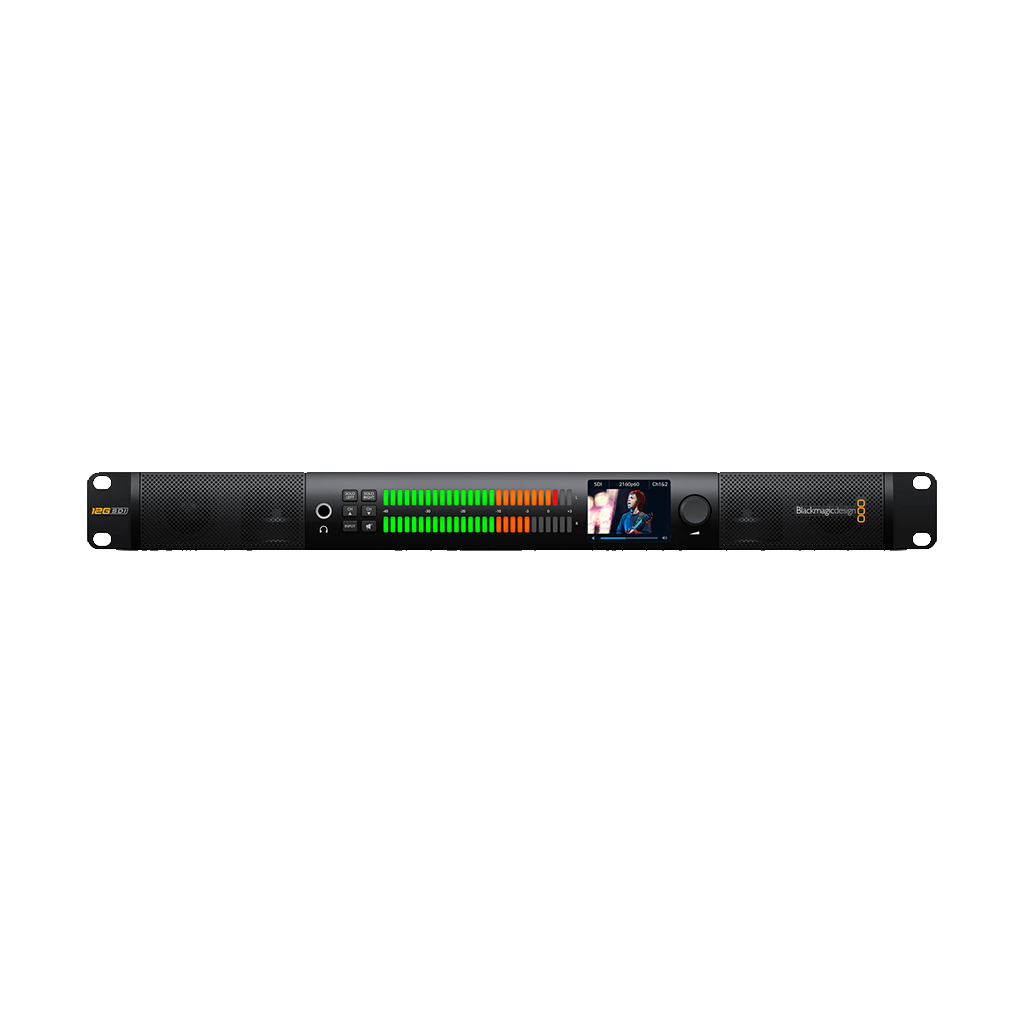

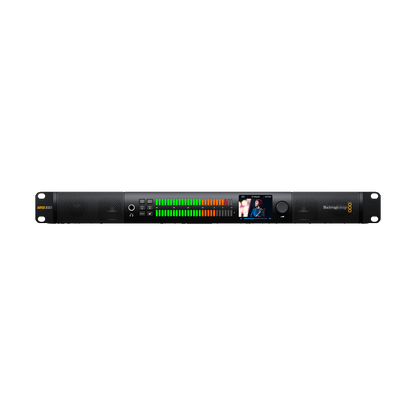

With an extremely strong machined metal design the robust chassis produces better sound quality without rattles and vibrations. On the front panel, you will find audio level meters, an LCD video monitor, and a headphone/speaker volume control knob. You will also find a built-in headphone socket, along with audio pairs, left and right solo, mute, and input. You will also find a built-in illuminated keypad for private monitoring.
Advanced 12G-SDI
Support is provided for all common SD, HD, and Ultra HD video resolutions. 12G-DSI input and HDMI 2.0 output, also high-resolution Ultra HD monitoring.
The 12G-SDI allows work at resolutions and frame rates as high as 2160p at 60 fps over a single cable.
SMPTE 2110 Network Connection
With compliance with IP video 2110 standards, the monitor can connect directly to 2110 IP video systems. This standard specifies the transport, synchronization, and description of video, audio, and ancillary data for broadcast applications. It also supports 2110-10 uncompressed video, Blackmagic IP compressed UHD codec, SMPTE 2110-21 traffic shaping/timing, SMPTE 2110-20 audio, and SMPTE 2110-40 ancillary data.
Audio and Video Channels

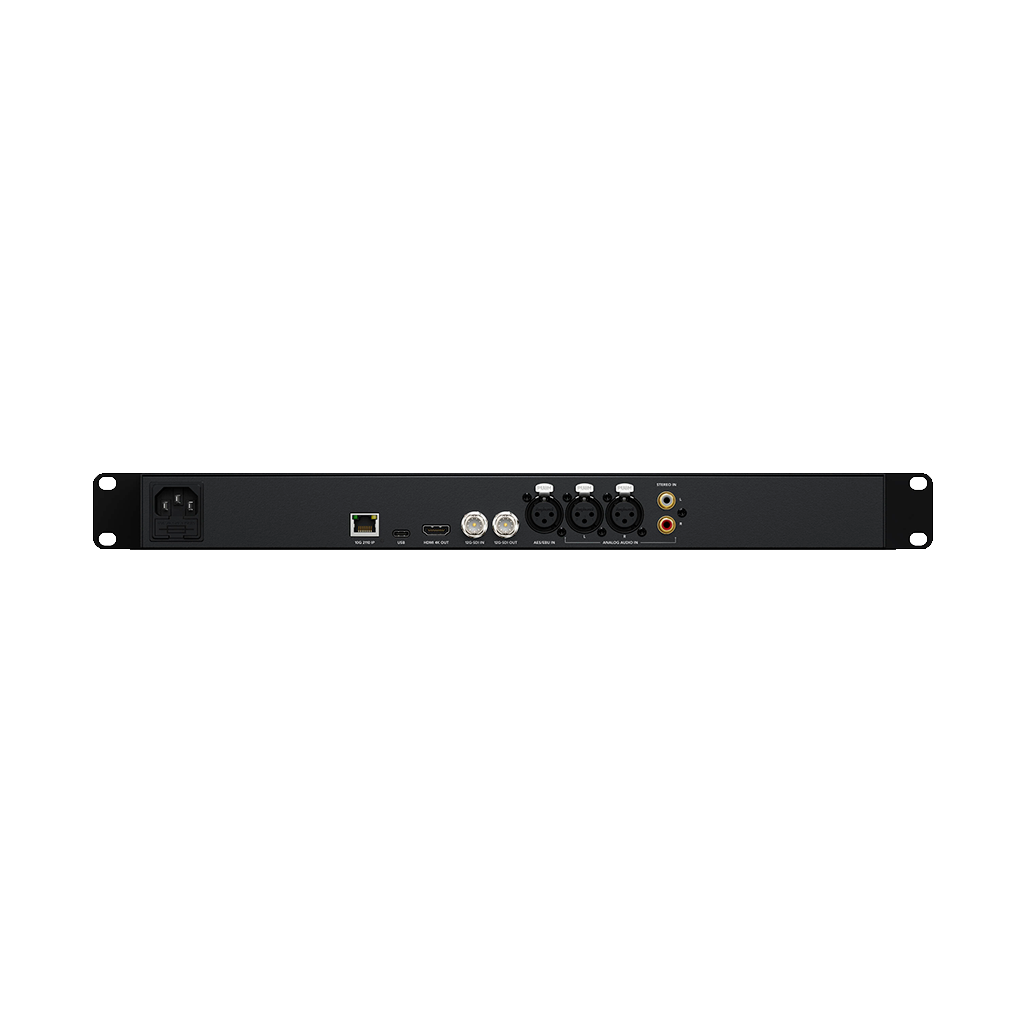

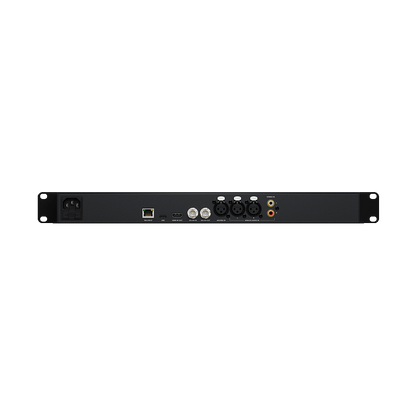

The Blackmagic Audio Monitor 12G G3 features analogue XLR audio, digital AES/EBU audio, and HiFi audio inputs. Selection between inputs can be quickly switched using the input button situated in front of the panel. Both the 12G-DSI video input and HDMI 2.0 output support embedded audio and let you connect the the high-resolution video technology.
Monitoring
The Blackmagic Design Blackmagic Audio Monitor 12G G3 (1 RU) can be used to convert from SDI to HDMI for monitoring with big-screen monitors or video projectors. It automatically switches between SD, HD, and Ultra HD formats. You can monitor in high-resolution Ultra HD using the HDMI output with a single HDMI cable.
- AES/EBU audio inputs support two channels of balanced 110-ohm AES/EBU via XLR
- SDI audio inputs support 16 channels of embedded audio in SD, HD, and Ultra HD 4K
- SDI audio outputs support 16 channels of embedded audio loop out
- HDMI audio outputs support eight channels of embedded audio in SD, HD, and 4K
- Blackmagic Design Blackmagic Audio Monitor 12G G3 (1 RU)
- PPM and Loudness Scale Sticker Set
