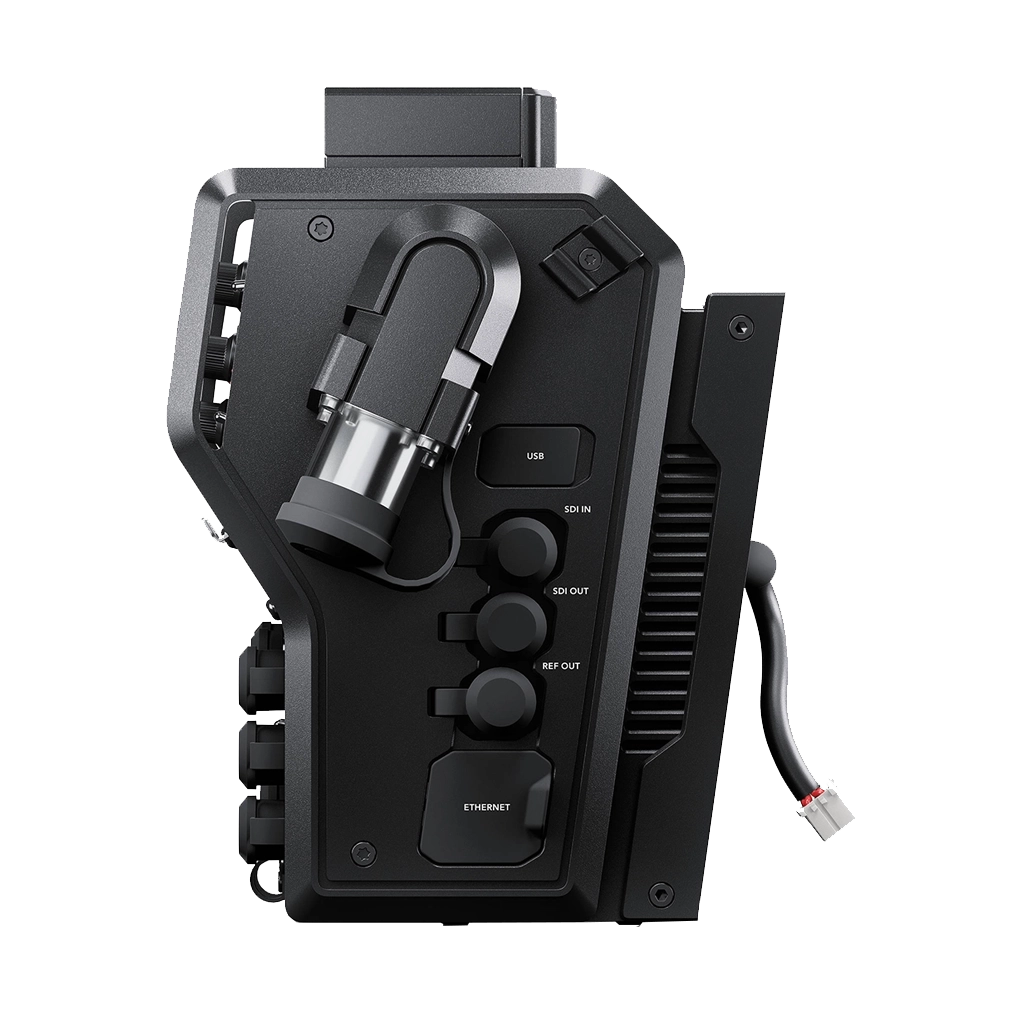

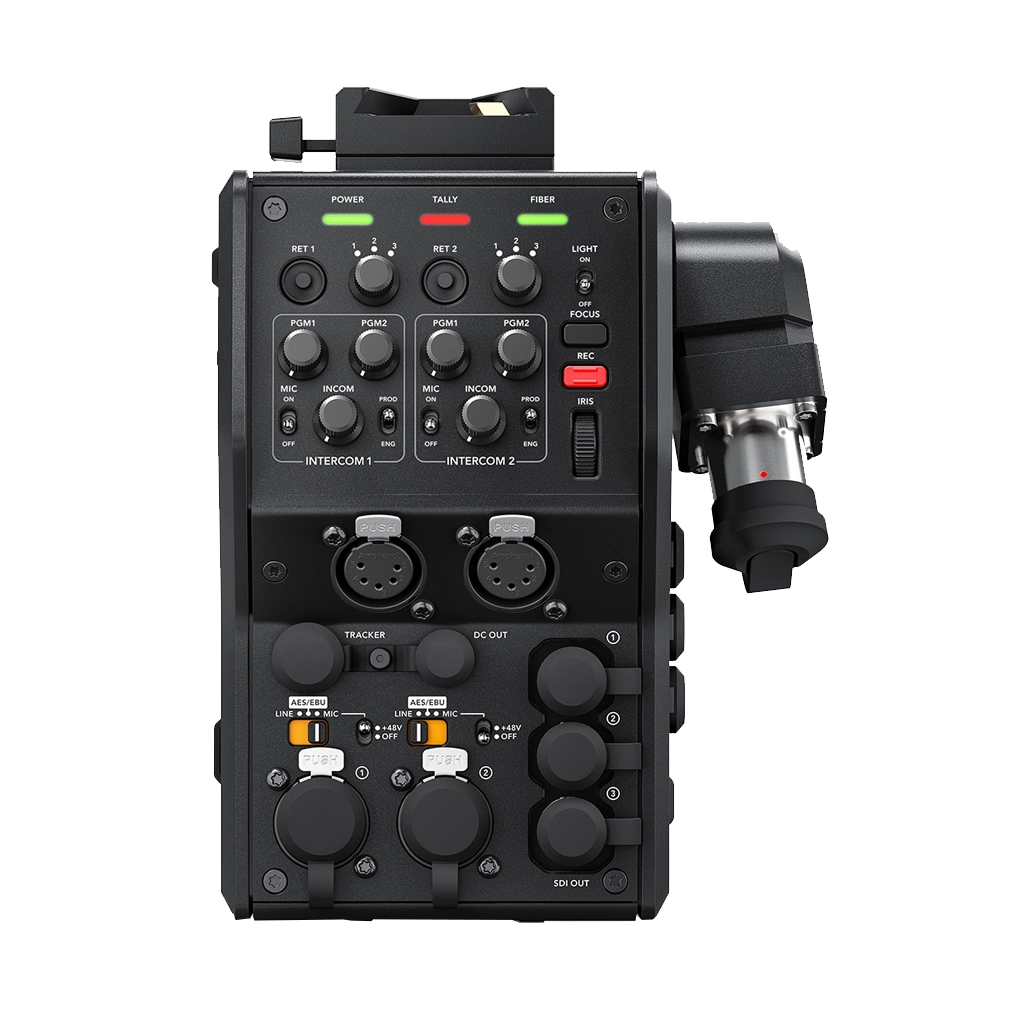

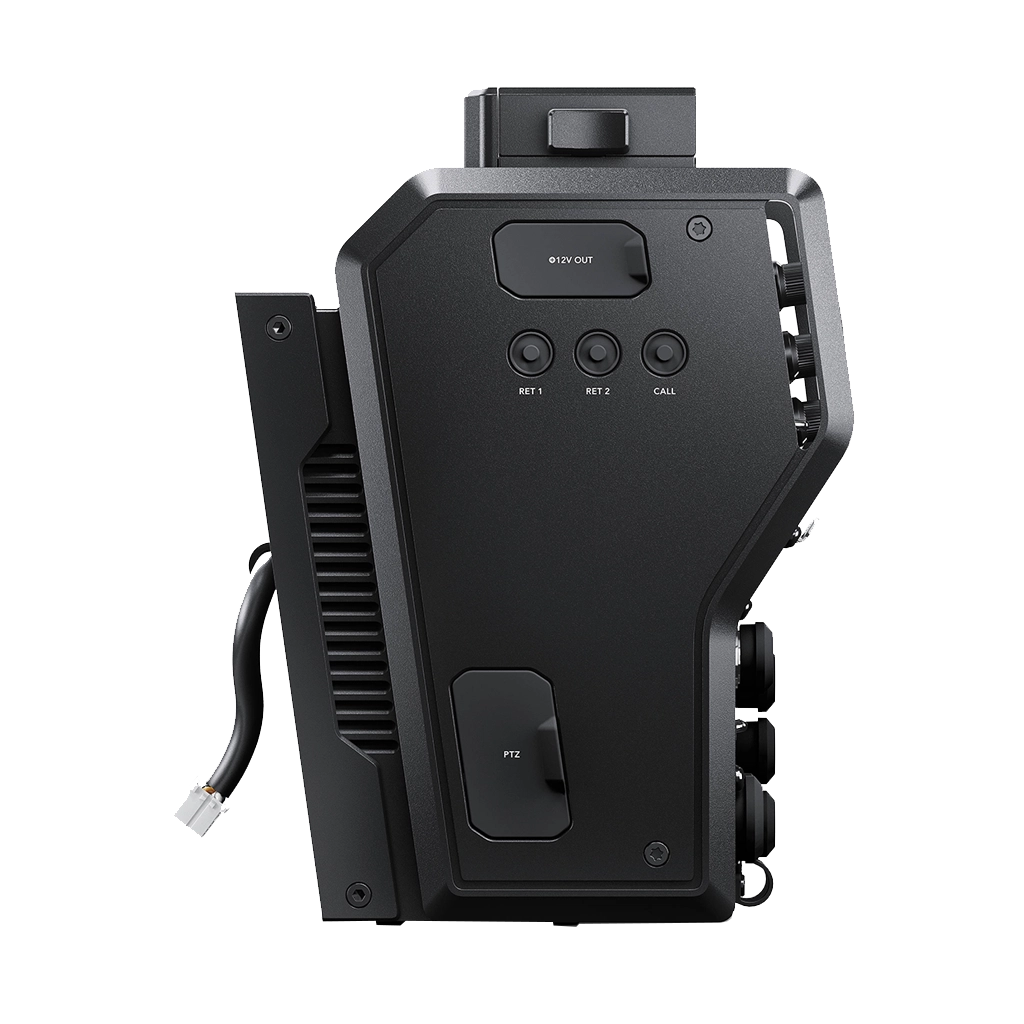

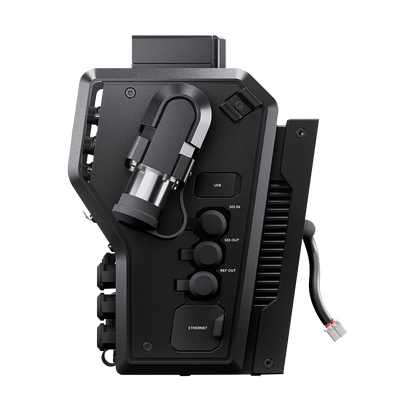

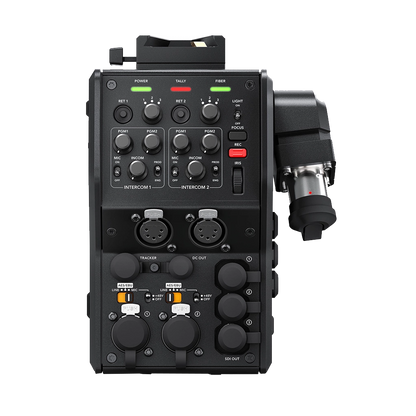

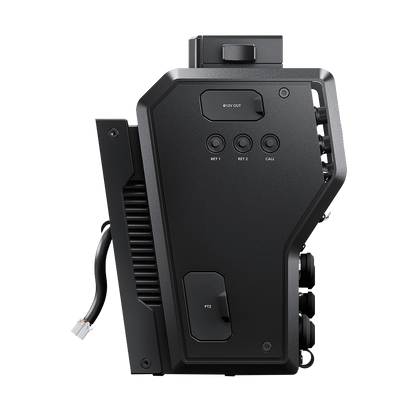

The Blackmagic Design Camera Fiber Converter features a SMPTE fiber interface that securely connects to the back of your Blackmagic URSA Broadcast cameras which simply converts all your audio, video and camera control into fiber up to 2km away and additionally adds professional studio camera controls to the back of your URSA Broadcast camera such as controls for return feeds, dual intercom controls, record, focus and iris controls. The fiber converter consists of a VLock mount plate on top for adding additional accessories such as the professional Blackmagic Studio Viewfinder. Additionally, the Blackmagic Design Camera Fiber Converter allows you to connect for Ultra HD camera feed, 3HD return feeds, full remote control, PTZ, multiple channels of talkback, tally and even more connections that you can add.
- Blackmagic Design Camera Fiber Converter
- Camera Mounting Bracket with Screws
- 3 x SDI Cables
| Connections | SMPTE Optical Fiber: 1 x SMPTE 304 12G-SDI Input: 1 x BNC 12G-SDI Output: 1 x BNC 3G-SDI Return Output: 3 x BNC Talkback Headset: 2 x 5-pin XLR Analog Audio Input: 2 x XLR (AES/mic/line) Computer: 1 x USB Type-C |
| Video Standards | 3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.9 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| SDI Standards | SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M |
| Audio Sampling | 24-bit, 48 kHz |
| Video Sampling | 4:2:2 |
| Bit Depth | 10-bit |
| Color Space | REC 709, REC 2020 |
| Dimensions | 7.5 x 5.5 x 5.4" / 19.1 x 14 x 13.8 cm |
| Weight | 2.2 kg |
