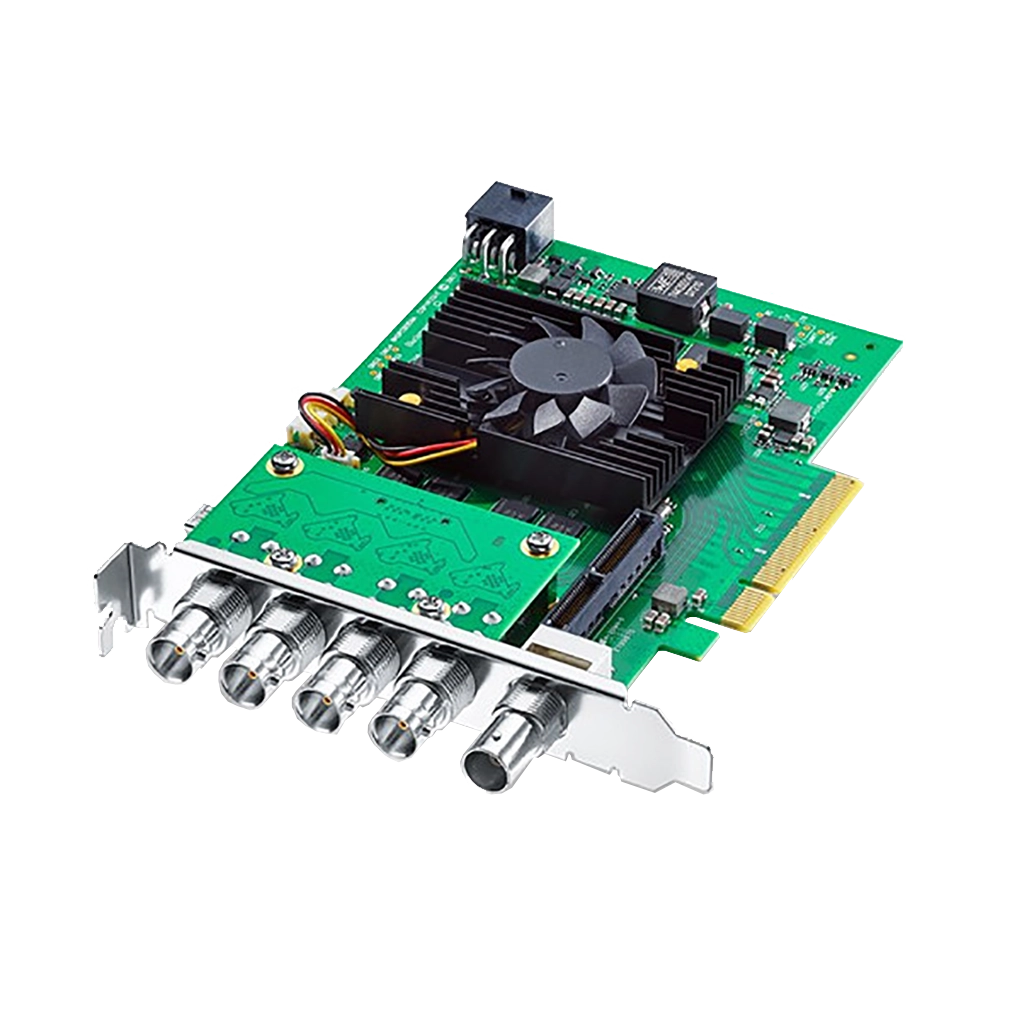

Blackmagic Design Decklink 8K Pro Cinema Capture Card
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
Choose PayGate at checkout for MobiCred Payments.
The Blackmagic Design DeckLink 8K Pro Card is designed for high resolution 8K capture and playback being an advanced 8 lane PCI Express capture and playback card that produces deep colour for precise digital cinema quality images/video which can be installed in MAC, Windows and Linux based workstations.
The Blackmagic Design DeckLink 8K Pro Card supports all SD, HD, Ultra HD, 4K, 8K and 8K DCI frame sizes that works in 8 and 10-bit YUV 4:2:2 as well as 10 and 12-bit RGB 4:4:4 with full Rec. 2020 support. This 8K Pro card also works at up to 60 frames per second up to its beautiful 8K display that's used on daily basis in films, music videos and commercials, as well as up to 64 channels of audio. The connections are also bi-directional so that it can be used to capture or playback quad link 8K and also to capture a single or a dual link SDI source while simultaneously playing back another single or dual link SDI source.
Every DeckLink card features high quality connections so you get pristine video and audio along with compatibility for working with the widest range of professional SDI equipment. DeckLink 8K Pro includes quad link 12G-SDI, while other models feature single and dual link 6G and 12GSDI, or single link 3G-SDI. In addition, some DeckLink cards include a professional analog component, S-video and composite connections, along with 2 channels of AES/EBU and 4 channels of balanced analog audio in and out. All models include Black Burst/Tri-sync reference and serial deck control. The 6G and 12G-SDI cards feature multi rate connections that automatically detect and switch speed for working with all SD, HD and Ultra HD formats. The advanced DeckLink 8K Pro and DeckLink 4K Extreme 12G support additional high resolution DCI formats and higher frame rates.
4 x bi-directional 12Gb/s SD/HD/2K/4K/8K. Supports single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable. 4 x bi-directional 12Gb/s SD/HD/2K/4K/8K. Supports single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable. 16 Channels embedded in SD/HD/2K. 64 Channels embedded in 4K/8K. 16 Channels embedded in SD/HD/2K. 64 Channels embedded in 4K/8K. Tri-Sync or Black Burst. PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots. AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4. DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Firmware built into software driver. Loaded at system start or via updater software. PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements. 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 29.97p, 2K DCI 30p, 2K DCI 50p, 2K DCI 59.94p, 2K DCI 60p 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p, 4K DCI 50p, 4K DCI 59.94p, 4K DCI 60p 8K 23.98p, 8K 24p, 8K 25p, 8K 29.97p, 8K 30p, 8K 50p, 8K 59.94p, 8K 60p 8K DCI 23.98p, 8K DCI 24p, 8K DCI 25p, 8K DCI 29.97p, 8K DCI 30p, 8K DCI 50p, 8K DCI 59.94p, 8K DCI 60p 720p50, 720p59.94, 720p60 SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M, SMPTE 435, SMPTE 2081, SMPTE 2082, ITU-R BT.656 and ITU-R BT.601. RP 188/SMPTE 12M-2 and closed captioning. Television standard sample rate of 48 kHz at 24-bit. 4:2:2, 4:4:4 8, 10, 12-bit RGB 4:4:4 in all modes up to 8K DCI 30p, and 8, 10-bit YUV 4:2:2 in all modes. REC 601, REC 709, REC 2020. SDI video connections are switchable between SD/HD/2K/4K and 8K. Hardware based real time on output. Left eye/right eye dual stream capture & playback. DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. 19 Watt EMC, FCC, CE, KCC and C-Tick 5° to 50° C (41° to 122° F) -20° to 60° C (-4° to 140° F) 0% to 90% non-condensingConnections
SDI Video Inputs
SDI Video Outputs
SDI Audio Inputs
SDI Audio Outputs
Sync Input
Computer Interface
Supported Codecs
Software
Software Included
Internal Software Upgrade
Physical Installation
Video Standards
SD Video Standards
HD Video Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i602K Video Standards
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF, 2K DCI 29.97PsF, 2K DCI 30PsFUltra HD Video Standards
4K Video Standards
8K Video Standards
8K DCI Video Standards
3D SDI Video Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 29.97p, 2K DCI 30p, 2K DCI 50p, 2K DCI 59.94p, 2K DCI 60p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF, 2K DCI 29.97PsF, 2K DCI 30PsF
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p, 4K DCI 50p, 4K DCI 59.94p, 4K DCI 60p
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60SDI Compliance
SDI Metadata Support
Audio Sampling
SDI Video Sampling
SDI Color Precision
Color Space
Multiple Rate Support
Processing
Colorspace Conversion
3D Processing
Real Time Effects
Power Requirements
Power Consumption
EMC Certifications
Environmental Specifications
Operating Temperature:
Storage Temperature:
Relative Humidity:
