Blackmagic Design

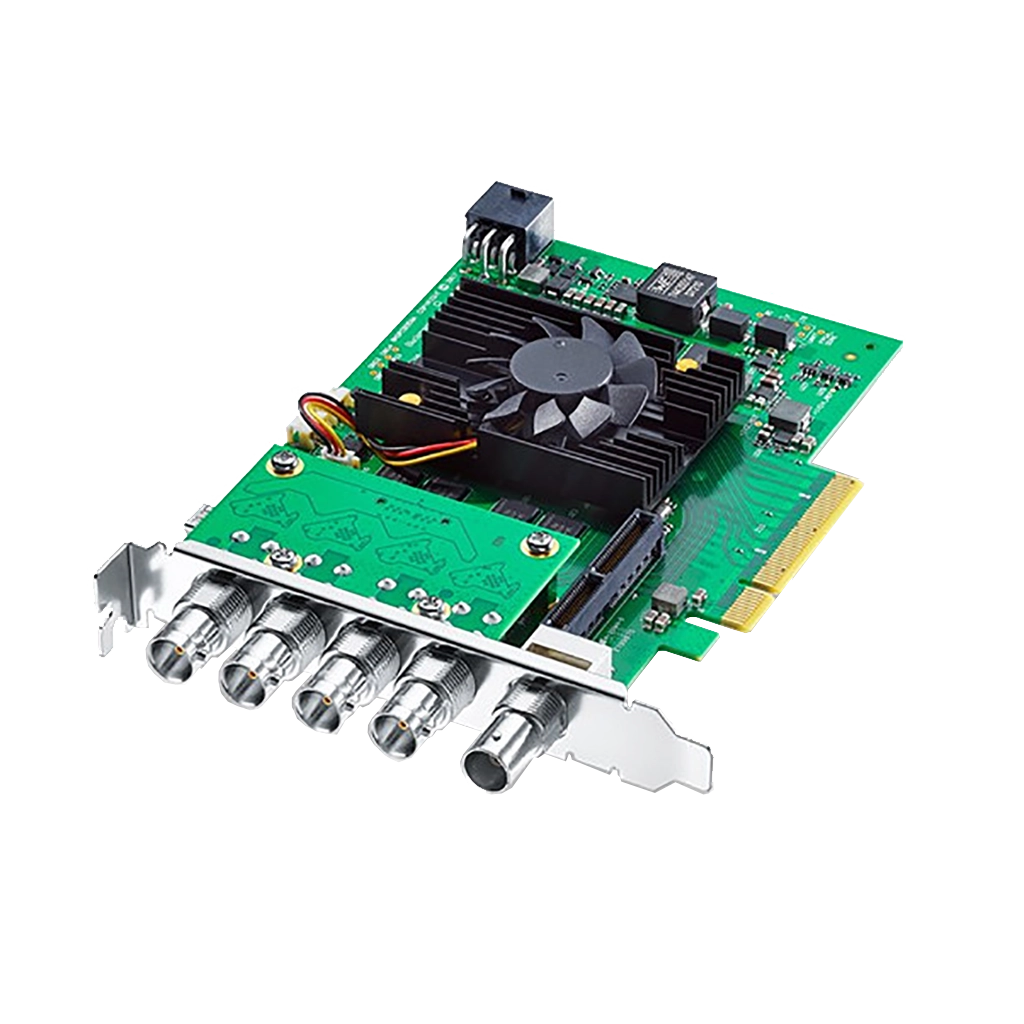

Blackmagic Design Decklink 8K Pro Cinema Capture Card

R 16,195.00
R 16,195.00 R 16,195.00
Tax included. Shipping calculated at checkout.

BLA-BDLKHCPRO8K12G

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • 8-Lane PCIe Gen3 I/O Card
  • Multi-Rate 12G-SDI
  • Supports 8K and DCI 8K Up to 60 fps
  • Single & Dual Link 4:4:4/4:2:2 Signals
  • Compatible with Mac, Windows, and Linux

    The Blackmagic Design DeckLink 8K Pro Card is designed for high resolution 8K capture and playback being an advanced 8 lane PCI Express capture and playback card that produces deep colour for precise digital cinema quality images/video which can be installed in MAC, Windows and Linux based workstations.

    The Blackmagic Design DeckLink 8K Pro Card supports all SD, HD, Ultra HD, 4K, 8K and 8K DCI frame sizes that works in 8 and 10-bit YUV 4:2:2 as well as 10 and 12-bit RGB 4:4:4 with full Rec. 2020 support. This 8K Pro card also works at up to 60 frames per second up to its beautiful 8K display that's used on daily basis in films, music videos and commercials, as well as up to 64 channels of audio. The connections are also bi-directional so that it can be used to capture or playback quad link 8K and also to capture a single or a dual link SDI source while simultaneously playing back another single or dual link SDI source.

    Highest Quality Connections

    Every DeckLink card features high quality connections so you get pristine video and audio along with compatibility for working with the widest range of professional SDI equipment. DeckLink 8K Pro includes quad link 12G-SDI, while other models feature single and dual link 6G and 12GSDI, or single link 3G-SDI. In addition, some DeckLink cards include a professional analog component, S-video and composite connections, along with 2 channels of AES/EBU and 4 channels of balanced analog audio in and out. All models include Black Burst/Tri-sync reference and serial deck control. The 6G and 12G-SDI cards feature multi rate connections that automatically detect and switch speed for working with all SD, HD and Ultra HD formats. The advanced DeckLink 8K Pro and DeckLink 4K Extreme 12G support additional high resolution DCI formats and higher frame rates.

    • Blackmagic Design DeckLink 8K Pro Cinema Capture Card
    • SD card with software and manual

    Connections

    SDI Video Inputs

    4 x bi-directional 12Gb/s SD/HD/2K/4K/8K. Supports single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.

    SDI Video Outputs

    4 x bi-directional 12Gb/s SD/HD/2K/4K/8K. Supports single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.

    SDI Audio Inputs

    16 Channels embedded in SD/HD/2K.

    64 Channels embedded in 4K/8K.

    SDI Audio Outputs

    16 Channels embedded in SD/HD/2K.

    64 Channels embedded in 4K/8K.

    Sync Input

    Tri-Sync or Black Burst.

    Computer Interface

    PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.

    Supported Codecs

    AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

    Software

    Software Included

    DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.

    Internal Software Upgrade

    Firmware built into software driver. Loaded at system start or via updater software.

    Physical Installation

    PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements.

    Video Standards

    SD Video Standards

    525i59.94 NTSC, 625i50 PAL

    HD Video Standards

    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    1080i50, 1080i59.94, 1080i60

    2K Video Standards

    2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 29.97p, 2K DCI 30p, 2K DCI 50p, 2K DCI 59.94p, 2K DCI 60p
    2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF, 2K DCI 29.97PsF, 2K DCI 30PsF

    Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

    4K Video Standards

    4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p, 4K DCI 50p, 4K DCI 59.94p, 4K DCI 60p

    8K Video Standards

    8K 23.98p, 8K 24p, 8K 25p, 8K 29.97p, 8K 30p, 8K 50p, 8K 59.94p, 8K 60p

    8K DCI Video Standards

    8K DCI 23.98p, 8K DCI 24p, 8K DCI 25p, 8K DCI 29.97p, 8K DCI 30p, 8K DCI 50p, 8K DCI 59.94p, 8K DCI 60p

    3D SDI Video Standards

    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    1080i50, 1080i59.94, 1080i60
    2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 29.97p, 2K DCI 30p, 2K DCI 50p, 2K DCI 59.94p, 2K DCI 60p
    2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF, 2K DCI 29.97PsF, 2K DCI 30PsF
    4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p, 4K DCI 50p, 4K DCI 59.94p, 4K DCI 60p
    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

    SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M, SMPTE 435, SMPTE 2081, SMPTE 2082, ITU-R BT.656 and ITU-R BT.601.

    SDI Metadata Support

    RP 188/SMPTE 12M-2 and closed captioning.

    Audio Sampling

    Television standard sample rate of 48 kHz at 24-bit.

    SDI Video Sampling

    4:2:2, 4:4:4

    SDI Color Precision

    8, 10, 12-bit RGB 4:4:4 in all modes up to 8K DCI 30p, and 8, 10-bit YUV 4:2:2 in all modes.

    Color Space

    REC 601, REC 709, REC 2020.

    Multiple Rate Support

    SDI video connections are switchable between SD/HD/2K/4K and 8K.

    Processing

    Colorspace Conversion

    Hardware based real time on output.

    3D Processing

    Left eye/right eye dual stream capture & playback.

    Real Time Effects

    DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.

    Power Requirements

    Power Consumption

    19 Watt

    EMC Certifications

    EMC, FCC, CE, KCC and C-Tick

    Environmental Specifications

    Operating Temperature:

    5° to 50° C (41° to 122° F)

    Storage Temperature:

    -20° to 60° C (-4° to 140° F)

    Relative Humidity:

    0% to 90% non-condensing
