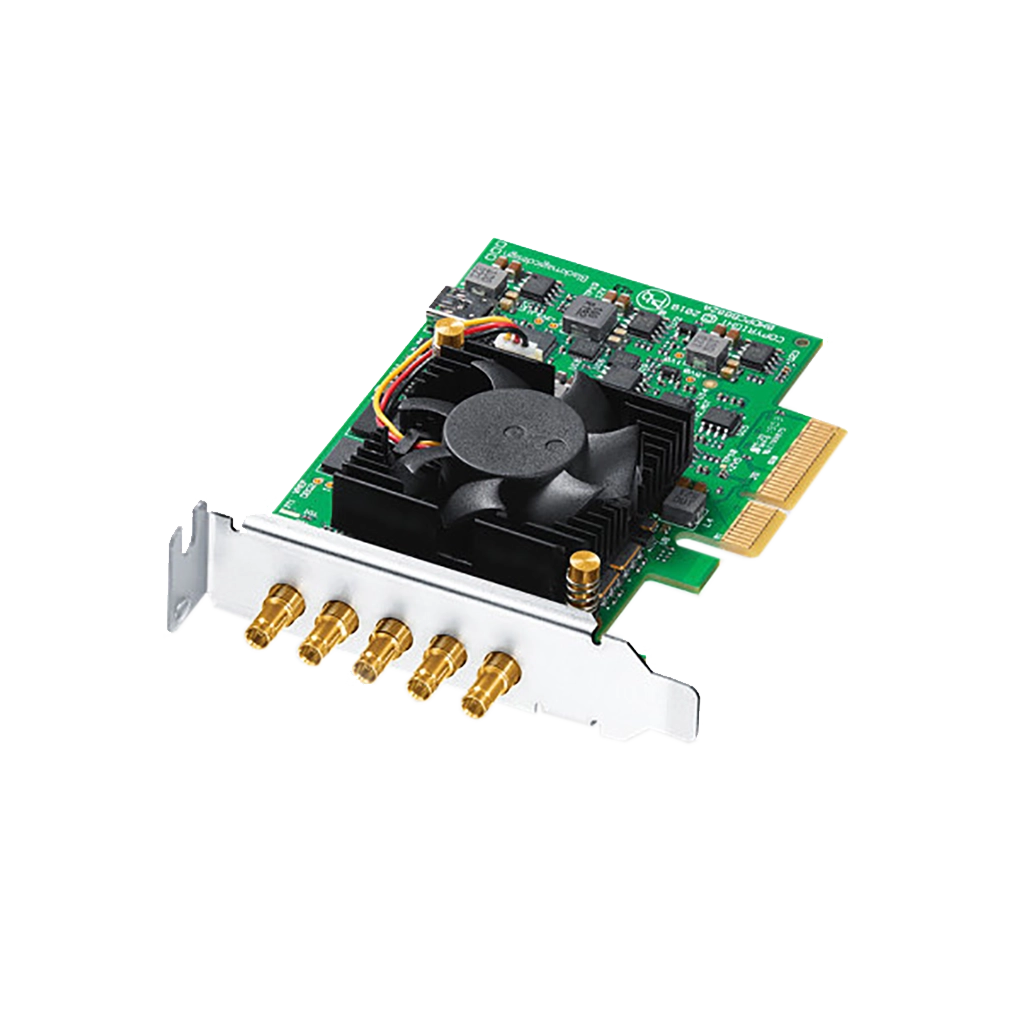

Blackmagic Design DeckLink Duo 2 Mini Capture and Playback Card
Choose PayGate at checkout for MobiCred Payments.
- 3G/HD/SD-SDI Input/Output
- PCIe Interface Card
- Up to 1080p30 10-Bit 4:2:2 in All Modes
- 1080p30 12-Bit 4:4:4 RGB on Playback
Orms Bellville
Orms Cape Town
Blackmagic Design DeckLink Duo 2 Mini Capture and Playback Card
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 3G/HD/SD-SDI Input/Output
- PCIe Interface Card
- Up to 1080p30 10-Bit 4:2:2 in All Modes
- 1080p30 12-Bit 4:4:4 RGB on Playback
Choose PayGate at checkout for MobiCred Payments.
- 3G/HD/SD-SDI Input/Output
- PCIe Interface Card
- Up to 1080p30 10-Bit 4:2:2 in All Modes
- 1080p30 12-Bit 4:4:4 RGB on Playback
With the Blackmagic Design DeckLink Duo 2 Mini Capture and Playback Card, and 4 independent 3G-SDI connections featuring on the design makes it possible so that the card supports SDI formats in SD and HD up to 1080p @ 60 fps.
The 4 independent 3G-SDI connections, youll get 4 separate capture or playback cards in one making it suitable for media play-out systems, multi-screen digital signage servers, and real time multi-channel capture systems.
Connections
SDI Video Inputs 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output.
SDI Video Outputs 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output.
SDI Audio Inputs 16 channels embedded in SD and HD.
SDI Audio Outputs 16 channels embedded in SD and HD.
Sync Input Tri-Sync or Black Burst.
Computer Interface PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10bit 4:4:4Software
Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
- Blackmagic Design DeckLink Duo 2 Mini Capture and Playback Card
- Drivers and Utilities
Supported Operating Systems | macOS 10.13, 10.14 or Later Windows 7, 8.1, 10 (All 64-Bit) Linux |
Inputs/Outputs | 4 x BNC 3G-SDI (Bidirectional, 12-Bit SD/HD) 1 x Reference In |
Sync Input | Tri-Sync or Black Burst |
Computer Interface | PCI Express 4 Lane Generation 2 (Compatible with 4, 8 and 16 Lane PCI Express Slots) |
Audio Channels | 16 x Embedded, HD and SD (Input and Output) |
Video Support | HD: 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080PsF: 23.98, 24, 25, 29.97, 30 1080i: 50, 59.94, 60 720p: 50, 59.94, 60 SD: 525i: 59.94 NTSC 625i: 50 PAL |
Audio Sample Rate | 24-Bit, 48 kHz |
Supported Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-Bit 4:2:2, Uncompressed 10-Bit 4:2:2, Uncompressed 10-Bit 4:4:4 |
Conversion Modes | Playback: 720p to 1080p, 1080p to 720p Up Conversion: SD to 720p or 1080p (Selectable: 4:3, 14:9 Zoom, and 16:9 Zoom) Down Conversion: SD (Selectable: Letterbox and Anamorphic 16:9) Color Space Conversion: Hardware-Based, Real-Time |
Color Space | Rec. 601, Rec. 709 |
SDI Color Precision | 8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30) 8, 10-Bit YUV 4:2:2 (In All Modes) 12-Bit RGB 4:4:4 (Supported in Playback Mode Only) |
SDI Video Sampling | 8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30) 8, 10-Bit YUV 4:2:2 (In All Modes) 12-Bit RGB 4:4:4 (Supported in Playback Mode Only) |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601 |
SDI Metadata Support | RP 188/SMPTE 12M-2 and Closed Captioning |
Power Consumption | 10 W |
Certifications | FCC, CE, and C-Tick |
Operating Temperature | 5 to 40°C |
Storage Temperature | -20 to 45°C |
Relative Humidity (non-condensing) | 0 to 90% |
Length | 9.9 cm |
Weight | 87 g |
