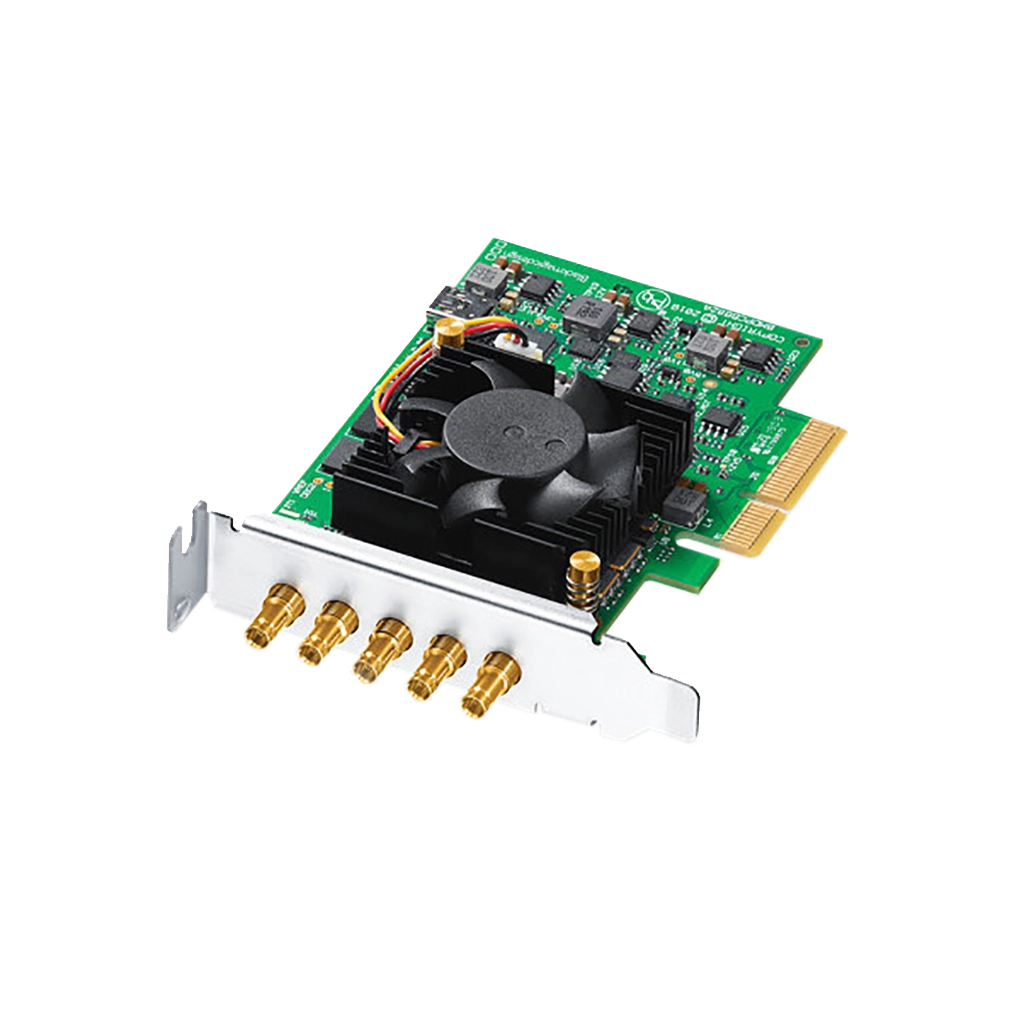

Blackmagic Design DeckLink Duo 2 Mini Capture and Playback Card

R 10,695.00
R 10,695.00 R 10,695.00
Tax included. Shipping calculated at checkout.

BLA-BDLKDUO2LP

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • 3G/HD/SD-SDI Input/Output
  • PCIe Interface Card
  • Up to 1080p30 10-Bit 4:2:2 in All Modes
  • 1080p30 12-Bit 4:4:4 RGB on Playback

    With the Blackmagic Design DeckLink Duo 2 Mini Capture and Playback Card, and 4 independent 3G-SDI connections featuring on the design makes it possible so that the card supports SDI formats in SD and HD up to 1080p @ 60 fps.

    The 4 independent 3G-SDI connections, youll get 4 separate capture or playback cards in one making it suitable for media play-out systems, multi-screen digital signage servers, and real time multi-channel capture systems.

    Connections


    SDI Video Inputs 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output.
    SDI Video Outputs 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output.
    SDI Audio Inputs 16 channels embedded in SD and HD.
    SDI Audio Outputs 16 channels embedded in SD and HD.
    Sync Input Tri-Sync or Black Burst.
    Computer Interface PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.

    Supported Codecs

    AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10bit 4:4:4

    Software

    Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
    Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software.
    Physical Installation PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.

    • Blackmagic Design DeckLink Duo 2 Mini Capture and Playback Card
    • Drivers and Utilities

    Supported Operating Systems macOS 10.13, 10.14 or Later
    Windows 7, 8.1, 10 (All 64-Bit)
    Linux
    Inputs/Outputs 4 x BNC 3G-SDI (Bidirectional, 12-Bit SD/HD)
    1 x Reference In
    Sync Input Tri-Sync or Black Burst
    Computer Interface PCI Express 4 Lane Generation 2 (Compatible with 4, 8 and 16 Lane PCI Express Slots)
    Audio Channels 16 x Embedded, HD and SD (Input and Output)
    Video Support HD:
    1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    1080PsF: 23.98, 24, 25, 29.97, 30
    1080i: 50, 59.94, 60
    720p: 50, 59.94, 60

    SD:
    525i: 59.94 NTSC
    625i: 50 PAL
    Audio Sample Rate 24-Bit, 48 kHz
    Supported Codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-Bit 4:2:2, Uncompressed 10-Bit 4:2:2, Uncompressed 10-Bit 4:4:4
    Conversion Modes Playback: 720p to 1080p, 1080p to 720p
    Up Conversion: SD to 720p or 1080p (Selectable: 4:3, 14:9 Zoom, and 16:9 Zoom)
    Down Conversion: SD (Selectable: Letterbox and Anamorphic 16:9)
    Color Space Conversion: Hardware-Based, Real-Time
    Color Space Rec. 601, Rec. 709
    SDI Color Precision 8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30)
    8, 10-Bit YUV 4:2:2 (In All Modes)
    12-Bit RGB 4:4:4 (Supported in Playback Mode Only)
    SDI Video Sampling 8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30)
    8, 10-Bit YUV 4:2:2 (In All Modes)
    12-Bit RGB 4:4:4 (Supported in Playback Mode Only)
    SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601
    SDI Metadata Support RP 188/SMPTE 12M-2 and Closed Captioning
    Power Consumption 10 W
    Certifications FCC, CE, and C-Tick
    Operating Temperature 5 to 40°C
    Storage Temperature -20 to 45°C
    Relative Humidity (non-condensing) 0 to 90%
    Length 9.9 cm
    Weight 87 g
