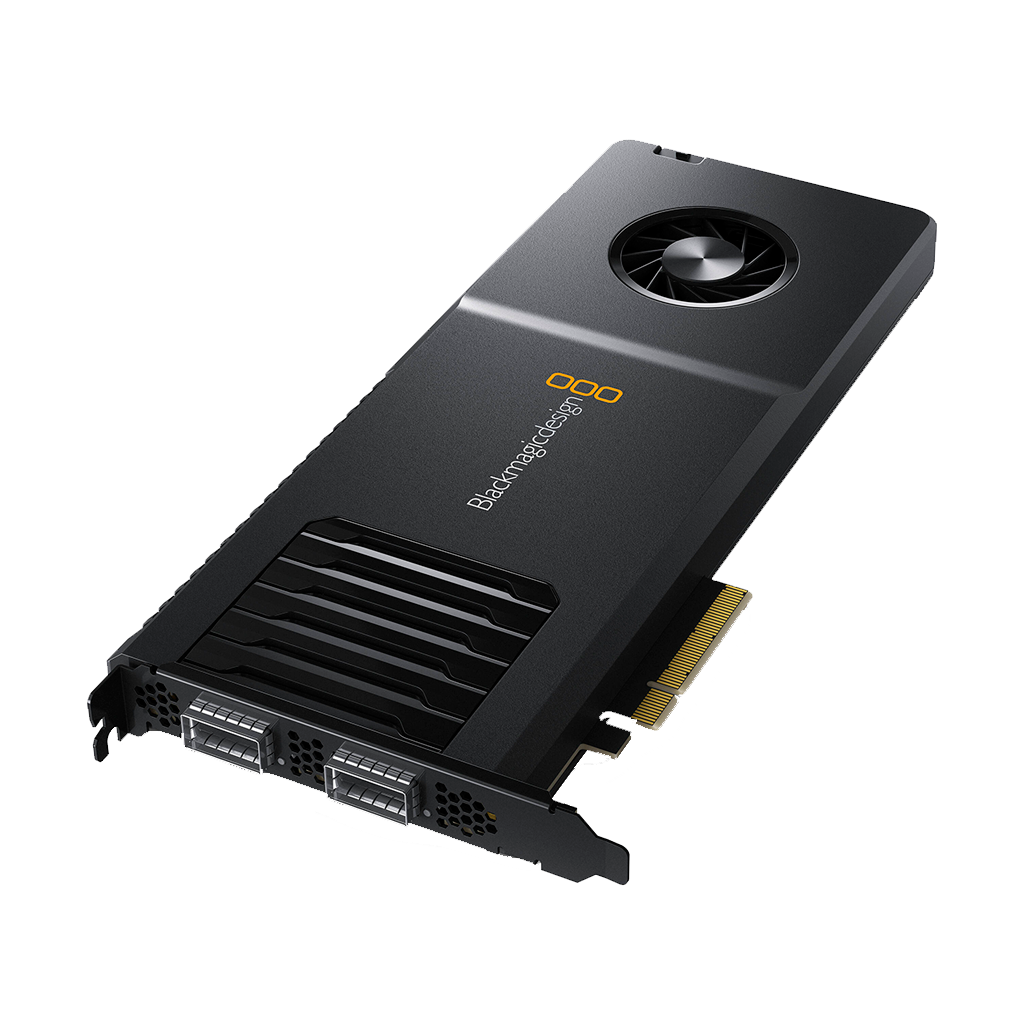

Engineered for professional broadcast environments using SMPTE 2110 IP network systems, the Blackmagic Design DeckLink IP 100G is a powerful PCIe Generation 4 capture and playback card. Specifically engineered to meet the ever-evolving demands of modern live and post-production workflows, supporting up to eight simultaneous UHD video channels via dual 100G Ethernet QSFP28 ports, enabling full redundancy.
The Blackmagic Design DeckLink IP 100G provides full support for GPU Direct RDMA, ensuring ultra-low latency by facilitating direct memory transfers to GPUs. This is especially valuable in real-time graphics rendering, AI processing, and live compositing applications.
The DeckLink IP 100G is built for diverse broadcast infrastructures, the Blackmagic Design DeckLink IP 100G is compatible across macOS, Windows, and Linux systems. This maintains universal compatibility with all video software that includes DaVinci Resolve, Adobe Premiere Pro, Avid Media Composer, and more.
Looking beyond performance, the Blackmagic Design DeckLink IP 100G emphasises flexibility and security. Both compressed and uncompressed, a wide array of video formats is supported, up to 4K120 with 10-bit 4:4:4 colour. Integrated support for SMPTE 2110 standards allows full transport of uncompressed video, audio, and ancillary data over managed IP networks with PTP (Precision Time Protocol) synchronisation while acting as a hardware-level firewall by isolating video transfers to frame buffers, offering protection from rogue software and unauthorised network access.
Advanced Design
- Dual 100 Gb/s QSFP28 Ethernet ports for full redundancy
- PCI Express 8-lane Generation 4, compatible with 8- and 16-lane PCI Express slots
- 6-pin auxiliary power connector for stable high-speed operation
- Built-in active cooling for thermal management under heavy load
Video Standards and Formats
- Up to eight simultaneous channels of HD, UHD 4K, and DCI 4K up to 120 fps
- Supports SD (PAL and NTSC), 720p, 1080p, DCI 2K, UHD 4K, and DCI 4K standards
- Static HDR metadata support with HLG and PQ characteristics
- 8-, 10-, and 12-bit color in RGB 4:4:4; 8- and 10-bit color in YUV 4:2:2
- Rec. 601, Rec. 709, and Rec. 2020 colour spaces
Software and OS Compatibility
- Works with DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro, AVID Media Composer, and more
- Compatible with macOS, Windows, and Linux
- Includes Media Express, DaVinci Resolve, Disk Speed Test, Livekey, and Blackmagic Desktop Video Utility software
Broadcast and Network Protocols
- SMPTE 2110-20 (video), 2110-21 (timing), 2110-30 (audio), 2110-40 (ancillary data)
- SMPTE 2022-7 stream redundancy
- NMOS IS-04 and IS-05 compliant for discovery and connection management
- PTP (Precision Time Protocol) IEEE 1588-2008 for frame-accurate sync
