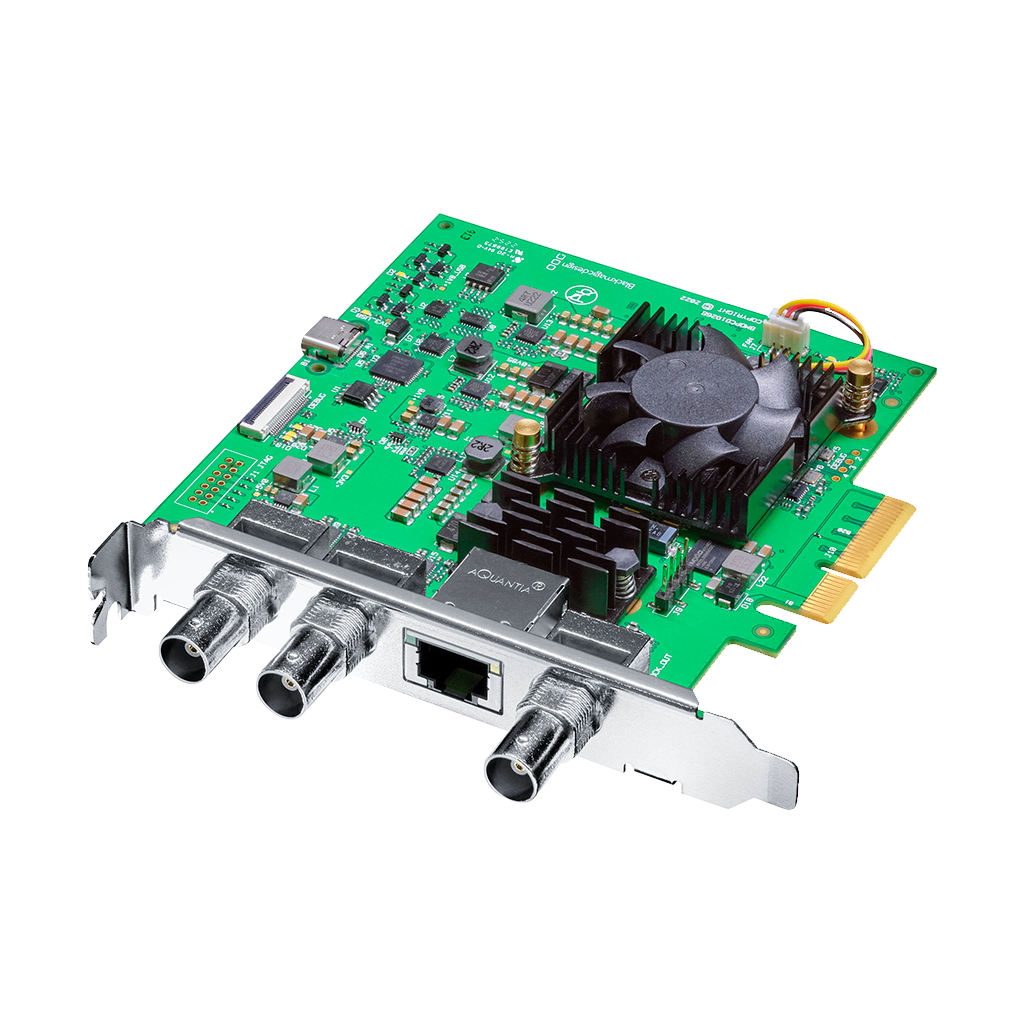

Blackmagic Design DeckLink IP HD 3G-SDI

R 8,595.00
R 8,595.00 R 8,595.00
Tax included. Shipping calculated at checkout.

BLA-BDLKIPFIP/SDI/HD

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • PCIe Playback and Monitoring Card
  • Ideal for 2110 IP Broadcast Systems
  • 10-Bit 1080p60 Uncompressed Video
  • 10G Ethernet Port and 2 x 3G-SDI Ports
  • All Popular Video Software Supported
  • Compatible with Mac, Windows, and Linux
  • NMOS Protocol Support
  • Media Express Software Included

    The Blackmagic Design DeckLink IP HD 3G-SDI allows you to capture and playback video directly into 2110 IP-based broadcast systems. 10-bit uncompressed video can be captured and played back at resolutions of up to 1080p60 with two input and output channels for video over a single RJ45 10G Ethernet connector and two input and two output channels over two bi-directional 3G-SDI ports with embedded audio.

    All popular video software is supported with the Blackmagic Design DeckLink IP HD 3G-SDI, these include DaVinci Resolve, Avid Media Composer, Final Cut Pro, Adobe Premiere, and more. You will also enjoy compatibility with the latest Windows, Mac and Linux operating systems.

    This PCIe 4-lane, generation 2 card supports a very vast range of codecs, including AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, and Uncompressed 8-bit 4:2:2, 10-bit 4:2:2, and 10-bit 4:4:4.

    Other supported applications include: Fusion, Adobe After Effects, Avid Pro Tools, Steinberg Cubase and Nuendo, Adobe Photoshop, Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro and Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X/Studio/Broadcast, Uniplay One/CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard ,Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video WebClip2Go, and Autodesk Flam.

    Ideal Capture and Playback for 2110 IP Broadcast Systems

    The Blackmagic Design DeckLink IP HD 3G-SDI conforms to the SMPTE ST2110 standard for IP video. This specifies the transport, synchronisation and description of video, audio and ancillary data over managed IP networks for broadcast.

    Build-In Video Firewall

    It is virtually impossible for rogue software or hackers to access the 2110 IP network directly. This is due to the Ethernet port that is isolated from anything other on the PC than the video and audio.
    Video and audio are transferred to on-board DeckLink frame buffers where video is managed and then converted to 2110 IP video channels.

    High-Speed 4-Lane PCIe Connection

    A high-speed 4-lane PCIe interface offers a connection to a host computer that is fast enough to handle multiple DH video channels and furthermore simultaneous playback and capture on each of these channels.
    The high-speed PCIe offers you very low latency combined with high accuracy in time sync to the software that is capturing or playing video.

    Supports All SD and HD Formats up to 1080p60

    The Blackmagic Design DeckLink IP HD 3G-SDI is a multi-rate and it also supports all SD and HD formats. In standard definition, this card handles both 525i59.94 and 625i50 standards. In high definition, it supports all 720p video standards up to 720p60, all 1080 interlaced standards up to 1080i60, and all 1080p standards up to 1080p60.

    True 10-Bit Broadcast Video Quality

    You are able to capture and playback video formats such as Apple PrpRes, DNxHD, or even uncompressed 10-bit. This is the most commonly used television standard. Along with ensuring the sharpest green screen keying, seamless VFX compositions, and superior colour correction.

    Build Custom Broadcast Automation Servers

    The Blackmagic Design DeckLink IP HD 3G-SDI is easily integrated into your broadcast automation systems. On the Mac platform, you will have compatibility with tools on air, such as Broadcast Suite, Softron OnTheAir, MovieRecorder, and OnTheAir CG. On Windows compatibility with VidblasterX, Studio and Broadcast, Uniplay, and Playbox AirBox.

    Build Streaming Servers for Global Broadcasting

    This DeckLink IP card allows you to convert any 2110 IP feed and convert it into live streams to as many online platforms as needed. On a Mac streaming solutions such as Open Broadcaster, Wirecast, Livestream Producer, and more are available. While on Windows you have Open Broadcaster, Xsplit Broadcaster, Wirecast, and Livestream Producer.

    Develop Custom Solutions with the DeckLink SD

    The Blackmagic Design DeckLink IP HD 3G-SDI allows you to download the advanced developer SDK for Mac, Windows or Linux, this makes it easy to develop your own custom solutions for in-house use or sell to broadcasters.
    A low level of control of hardware is provided when flexibility is needed and with high-level interfaces when needed to perform that are much easier to use when more common tasks need to be performed.

    Blackmagic Design DeckLink IP HD 3G-SDI

    Inputs / Outputs
    System Connection
    PCIe x4
    Inputs/Outputs
    2x BNC (3G-SDI)
    1x RJ45
    Audio Inputs
    No
    Other I/O
    1x BNC Reference Output
    Format Support
    Input Video Format
    RJ45 / SDI (8/10/12-Bit 4:4:4 RGB)
    1080p at 23.98/24/25/29.97/30 fps
    1080i at 50/59.94/60 fps
    720p at 50/59.94/60 fps
    576i / 625 lines at 50 fps
    480i / 525 lines at 59.94 fps
    RJ45 / SDI (8/10-Bit 4:2:2 YUV)
    1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
    1080i at 50/59.94/60 fps
    720p at 50/59.94/60 fps
    576i / 625 lines at 50 fps
    480i / 525 lines at 59.94 fps
    SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV)
    1080PsF at 23.98/24/25/29.97/30 fps
    Output Video Format
    RJ45 / SDI (8/10/12-Bit 4:4:4 RGB)
    1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
    1080i at 50/59.94/60 fps
    720p at 50/59.94/60 fps
    576i / 625 lines at 50 fps
    480i / 525 lines at 59.94 fps
    RJ45 / SDI (8/10-Bit 4:2:2 YUV)
    1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
    1080i at 50/59.94/60 fps
    720p at 50/59.94/60 fps
    576i / 625 lines at 50 fps
    480i / 525 lines at 59.94 fps
    SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV)
    1080PsF at 23.98/24/25/29.97/30 fps
    Embedded Audio
    LAN (RJ45)/SDI: 16-Channel
    Standards
    Video Standard Compliance
    SMPTE ST-2082/ST-2100/ST-2110
    HDR Support
    ,
    Hardware
    OS Compatibility
    macOS 12 to 13 or Later
    Windows 10 (64-Bit Only)
    Windows 11
    Linux
    Power Consumption
    10 W
    Environmental
    Operating Temperature
    0 to 40°C
    Storage Temperature
    -20 to 45°C
    Operating Humidity
    0 to 90% ()
    General
    Dimensions
    13.77 cm
    Weight
    159 g
