Blackmagic Design DeckLink Mini Monitor 4K
Choose PayGate at checkout for MobiCred Payments.
- SD/HD/3G/6G-SDI Output
- HDMI Output
- PCI-Express 2.0 x4 Interface
- DCI 4K, UHD, HD, and SD Video Support
- 10-Bit Processing
- Hardware Color Space Conversion
- Software HD Down-Conversion
- MacOS X, Windows, and Linux Compatible
Orms Bellville
Orms Cape Town
Blackmagic Design DeckLink Mini Monitor 4K
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- SD/HD/3G/6G-SDI Output
- HDMI Output
- PCI-Express 2.0 x4 Interface
- DCI 4K, UHD, HD, and SD Video Support
- 10-Bit Processing
- Hardware Color Space Conversion
- Software HD Down-Conversion
- MacOS X, Windows, and Linux Compatible
Choose PayGate at checkout for MobiCred Payments.
- SD/HD/3G/6G-SDI Output
- HDMI Output
- PCI-Express 2.0 x4 Interface
- DCI 4K, UHD, HD, and SD Video Support
- 10-Bit Processing
- Hardware Color Space Conversion
- Software HD Down-Conversion
- MacOS X, Windows, and Linux Compatible

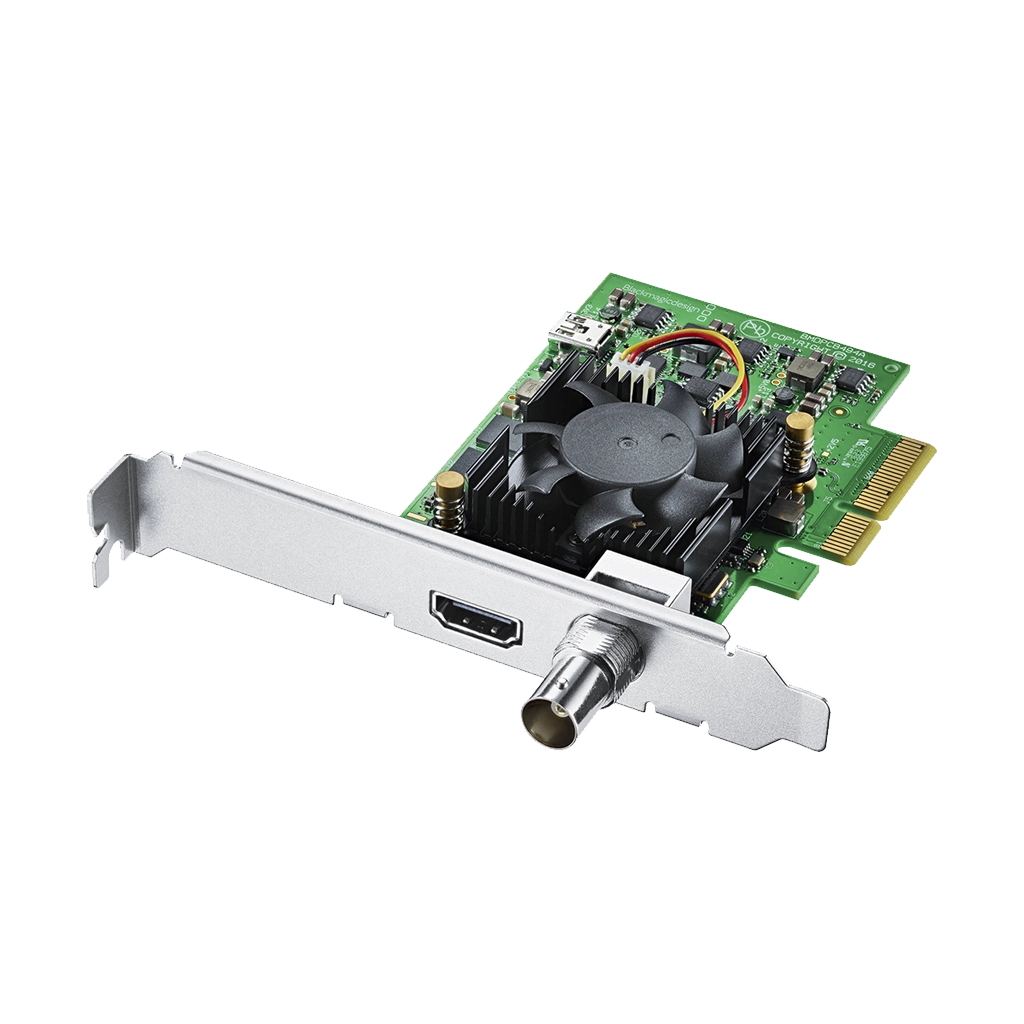

The Blackmagic Design DeckLink Mini Monitor 4K is a low-profile PCI Express playback card that allows you to deliver beautiful 4K footage to high-resolution screens up to 2160p30 as it features 6G-SDI, and the latest HDMI 2.0a cable connection that also supports up to 12-bit deep colour and HDR playback and metadata.
The Blackmagic Design DeckLink Mini Monitor 4K PCI Express playback card is compatible with 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux workstations.
Mac OS systems require a Mac Pro computer with PCI Express slots.
Software Applicications:
Other supported applications include: The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D.
- Blackmagic Design DeckLink Mini Monitor 4K
- Low profile slot bracket
- SD card with software and manual
I/O | 1 x BNC, SD/HD/3G/6G-SDI output 1 x HDMI Type A, v2.0 output |
Computer Interface | PCI-E 2.0 x4 |
Codec Support | AVC-Intra AVCHD Canon XF (MPEG-2) H.264 DV DVCPRO50 DVCPROHD DPX HDV XDCAM EX/HD/HD422 Apple ProRes 4444/422 HQ/422/LT/Proxy Uncompressed 8-bit 4:2:2 Uncompressed 10-bit 4:2:2 |
Resolution Support | 4096 x 2160 23.98/24/25 3840 x 2160 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080i 50/59.94/60 720p 50/59.94/60 NTSC PAL |
SDI Compliance | SMPTE 259M, 292M |
Audio Sampling | 24-bit, 48 kHz |
Video Sampling | 4:2:2 |
Color Precision | 10-bit |
Color Spaces Supported | REC 601, REC 709, REC 2020 |
Operating System Support | MacOS 10.10 or later Windows 7/8.1/10 (64-bit) Linux |
Certification | FCC, CE and C-Tick |
Environmental | Operating Temperature: 32 to 104°F / 5 to 40°C Storage Temperature: -4 to 113°F / -20 to 45°C Humidity: 0-90%, non-condensing |
Dimensions | Length: 4.7" / 119 mm Form Factor: Half-height, half-length Width: Single-slot |
Weight | 90 g |
