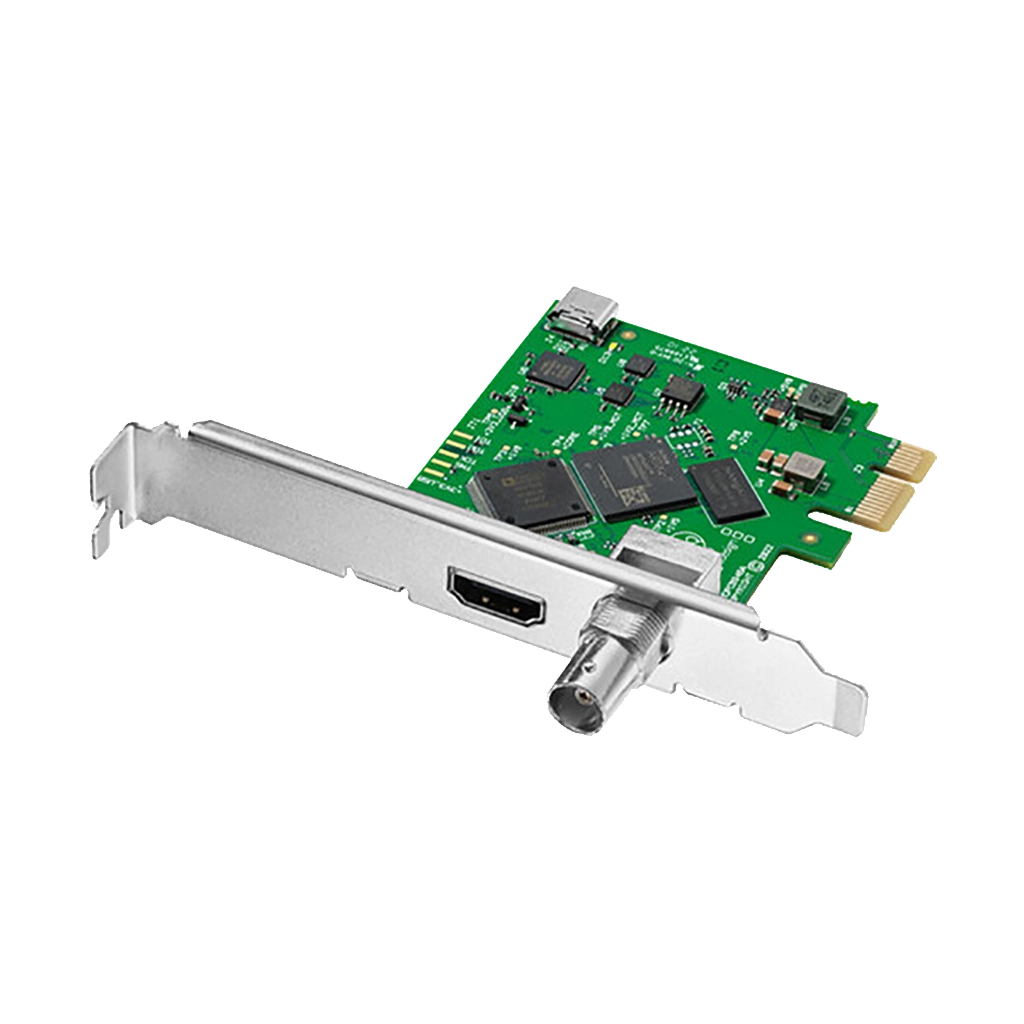

Blackmagic Design DeckLink Mini Monitor HD
Choose PayGate at checkout for MobiCred Payments.
- Broadcast-Quality Playback & Monitoring
- 1-Lane PCIe Slot Card (for 1-16 Lanes)
- SDI and HDMI Outputs
- Up to 1080p60 Resolution Support in HDMI
- Supports up to 2K DCI over SDI
- 8-, 10-, 12-Bit Video, 4:2:2 / 4:4:4
- REC 601/709 Color Space Support
- Mac, Windows, and Linux Compatible
Orms Bellville
Orms Cape Town
Blackmagic Design DeckLink Mini Monitor HD
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Broadcast-Quality Playback & Monitoring
- 1-Lane PCIe Slot Card (for 1-16 Lanes)
- SDI and HDMI Outputs
- Up to 1080p60 Resolution Support in HDMI
- Supports up to 2K DCI over SDI
- 8-, 10-, 12-Bit Video, 4:2:2 / 4:4:4
- REC 601/709 Color Space Support
- Mac, Windows, and Linux Compatible
Choose PayGate at checkout for MobiCred Payments.
- Broadcast-Quality Playback & Monitoring
- 1-Lane PCIe Slot Card (for 1-16 Lanes)
- SDI and HDMI Outputs
- Up to 1080p60 Resolution Support in HDMI
- Supports up to 2K DCI over SDI
- 8-, 10-, 12-Bit Video, 4:2:2 / 4:4:4
- REC 601/709 Color Space Support
- Mac, Windows, and Linux Compatible
The Blackmagic Design DeckLink Mini Monitor HD is designed to monitor the video output via SDI and HDMI on your computer.
The Blackmagic Design DeckLink Mini Monitor HD 1-lane PCIe slot payback features SDI and HDMI outputs. This unit is compatible with 1-, 4-, 8-, and 16-lane PCIe slots, providing you with just the playback and monitoring functionality for delivering broadcast-quality video via HDMI or SDI monitors.
Note: The Blackmagic Design DeckLink Mini Monitor HD is compatible with Mac, though, a Mac Pro is required with a PCI Express Slot
PCIe Compatibility
PCIe 1-lane card, compatible with 1-, 4-, 8-, and 16-lane PCIe slots on Mac, Windows, and Linux (for use on a Mac, a Mac Pro is required with PCI Express slots)
Supported Software Applications
- DaVinci Resolve
- Fusion
- Final Cut Pro
- Adobe Premiere Pro CC, Adobe After Effects CC, Adobe Photoshop CC
- Avid Media Composer, Avid Pro Tools
- Steinberg Cubase, Steinberg Nuendo
- The Foundry Nuke
- Sony Catalyst Production Suite
- Tools On Air Just: Play & Live
- Magix Movie Edit Pro Premium
- Corel VideoStudio Pro
- CyberLink Power Director
- Grass Valley Edius
- Softron Mreplay
- Telestream Wirecast
- Livestream Studio
- Resolume Arena
- Vegas Creative Software Vegas Pro
- VidblasterX Studio and Broadcast
- Unimedia Technologies UniplayOne and Uniplay-CG
- CasparCG Server
- Magicsoft CG
- Xsplit Broadcaster
- DevTek Easy Media Suite
- Boinx Software MimoLive
- StudioCoast vMix
- Renewed Vision ProPresenter
- Ventuz Director
- Class X Liveboard and CoralCG
- Open Broadcaster Software Studio
- Nautilus Studio Nemo3D
- Burst Video Webclip2Go
- Derivative TouchDesigner
- Assimilate Scratch and Live Assist
- NewBlue Title Live and Titler Pro
- SGO Mistika
Supported Codecs
- AVC-Intra
- AVCHD
- Canon XF MPEG2
- Digital SLR
- DV-NTSC
- DV-PAL
- DVCPRO50
- DVCPROHD
- DPX
- HDV
- HEVC
- XDCAM EX
- XDCAM HD
- XDCAM HD422
- DNxHR & DNxHD
- AppleProRes 4444
- Apple ProRes 422 HQ
- Apple ProRes 422
- Apple ProRes 422LT
- Apple ProRes 422 Proxy
- Uncompressed 8-bit 4:2:2
- Uncompressed 10-bit 4:2:2
- Uncompressed 10-bit 4:4:4
Hardware Frame Buffer
v210 (10-bit YUV), 2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), r210 (10-bit RGB), R12B, R12L (12-bit RGB)
Blackmagic Design DeckLink Mini Monitor HD
General
Host Connection | PCIe (Length Unspecified) |
Output
Video Output Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) (Monitor) 1 x HDMI (HDMI 2.0) (Monitor) |
Output Video Format | SDI (8/10/12-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30 fps 1080PsF at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines 59.94 fps SDI (8/10-Bit 4:2:2 YUV) DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2KPsF at 23.98/24/25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (10/12-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (8-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (12-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
Audio Output Connectors | None |
Embedded Audio Output | SDI: 16-Channel (per Output) HDMI: 8-Channel (per Output) |
Standards
Video Standard Compliance | SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1 |
HDR Compatibility | Not Specified by Manufacturer |
Hardware
OS Compatibility | macOS 11.1 macOS 12.0 or Later Windows 10 Windows 11 Linux *As of July 2022: Check with the manufacturer for the most up-to-date compatibility |
Power Consumption | Device: 3 W |
Environmental
Operating Temperature | 5 to 40°C |
Storage Temperature | -20 to 45°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
Storage Humidity | 0 to 90% (Non-Condensing) |
General
Dimensions | 91.95 mm |
Weight | 56 g |
