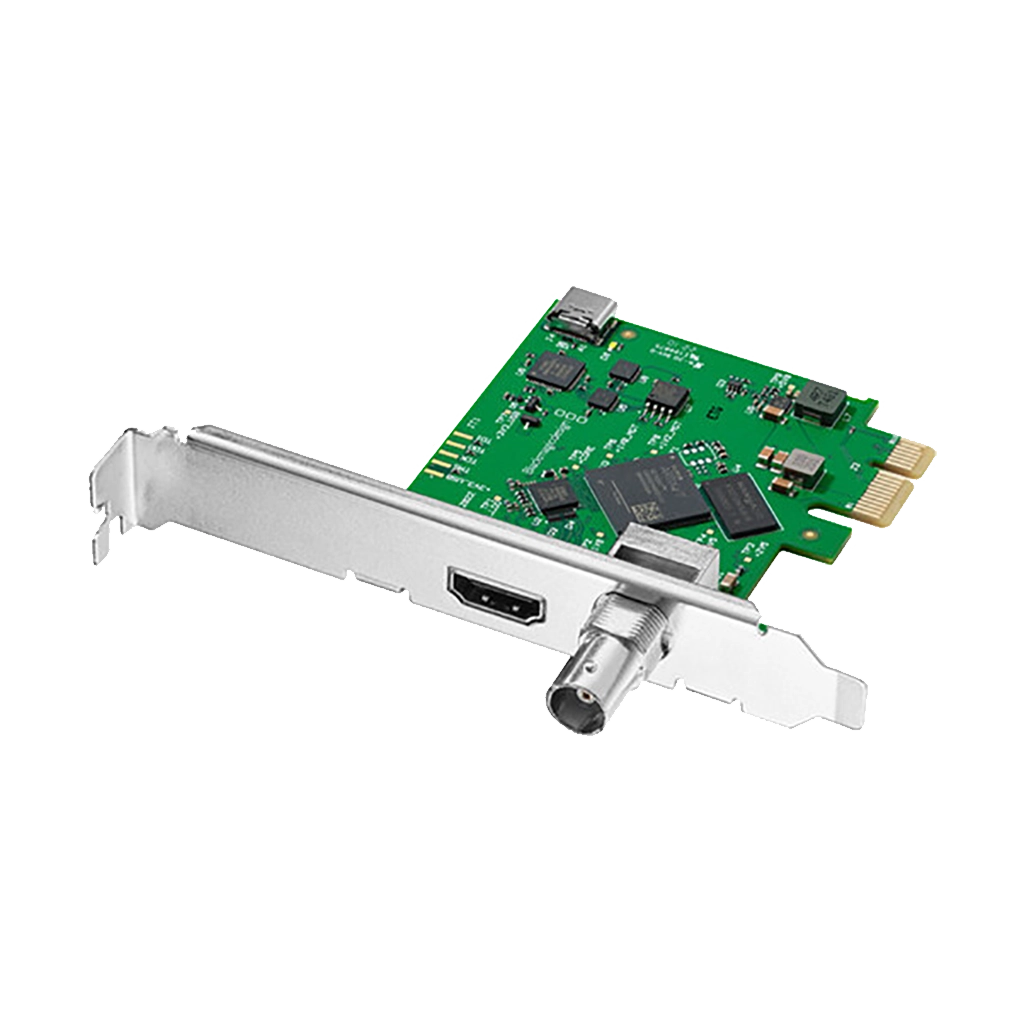

The Blackmagic Design DeckLink Mini Recorder HD is designed to record DSI or HDMI video. The Mini Recorder HD is a 1-Lane PCIe slot playback card with SDI and HDMI inputs and is compatible with 1-, 4-, 8-, and 16-lane PCIe slots, allowing you to capture up to DCI 2K video over SDI, and HD video over HDMI 2.0.
Note: For use on a Mac, a Mac Pro is required with PCI Express slots.
PCIe Compatibility
PCIe 1-lane card, compatible with 1-, 4-, 8-, and 16-lane PCIe slots on Mac, Windows, and Linux (for use on a Mac, a Mac Pro is required with PCI Express slots)
Supported Software Applications
Supported Codecs
- AVC-Intra
- AVCHD
- Canon XF MPEG2
- Digital SLR
- DV-NTSC
- DV-PAL
- DVCPRO50
- DVCPROHD
- DPX
- HDV
- HEVC
- XDCAM EX
- XDCAM HD
- XDCAMHD422
- DNxHR & DNxHD
- AppleProRes 4444
- Apple ProRes 422 HQ
- Apple ProRes 422
- Apple ProRes 422LT
- Apple ProRes 422 Proxy
- Uncompressed 8-bit 4:2:2
- Uncompressed 10-bit 4:2:2
- Uncompressed 10-bit 4:4:4
Hardware Frame Buffer
v210 (10-bit YUV), 2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), r210 (10-bit RGB), R12B, R12L (12-bit RGB)
Blackmagic Design DeckLink Mini Recorder HD
General
Host Connection | PCIe (Length Unspecified) |
Input
Video Input Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) 1 x HDMI (HDMI 2.0) |
Input Video Format | SDI (8/10/12-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps SDI (8/10-Bit 4:2:2 YUV) DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2KPsF at 23.98/24/25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (8-Bit 4:4:4 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (12-Bit 4:4:4 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
Simultaneous Multi-Input Support | Not Specified by Manufacturer |
Audio Input Connectors | None |
Embedded Audio Input | SDI: 16-Channel HDMI: 8-Channel |
Output
Embedded Audio Output | None |
Standards
Video Standard Compliance | SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1 |
HDR Compatibility | Not Specified by Manufacturer |
Hardware
OS Compatibility | macOS 11.1 macOS 12.0 or Later Windows 10 Windows 11 Linux *As of July, 2022: Check with manufacturer for the most up-to-date compatibility |
Power Consumption | Device: 3 W |
Environmental
Operating Temperature | 5 to 40°C |
Storage Temperature | -20 to 45°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
Storage Humidity | 0 to 90% (Non-Condensing) |
General
Dimensions | 91.95 mm |
Weight | 56 g |
