Blackmagic Design

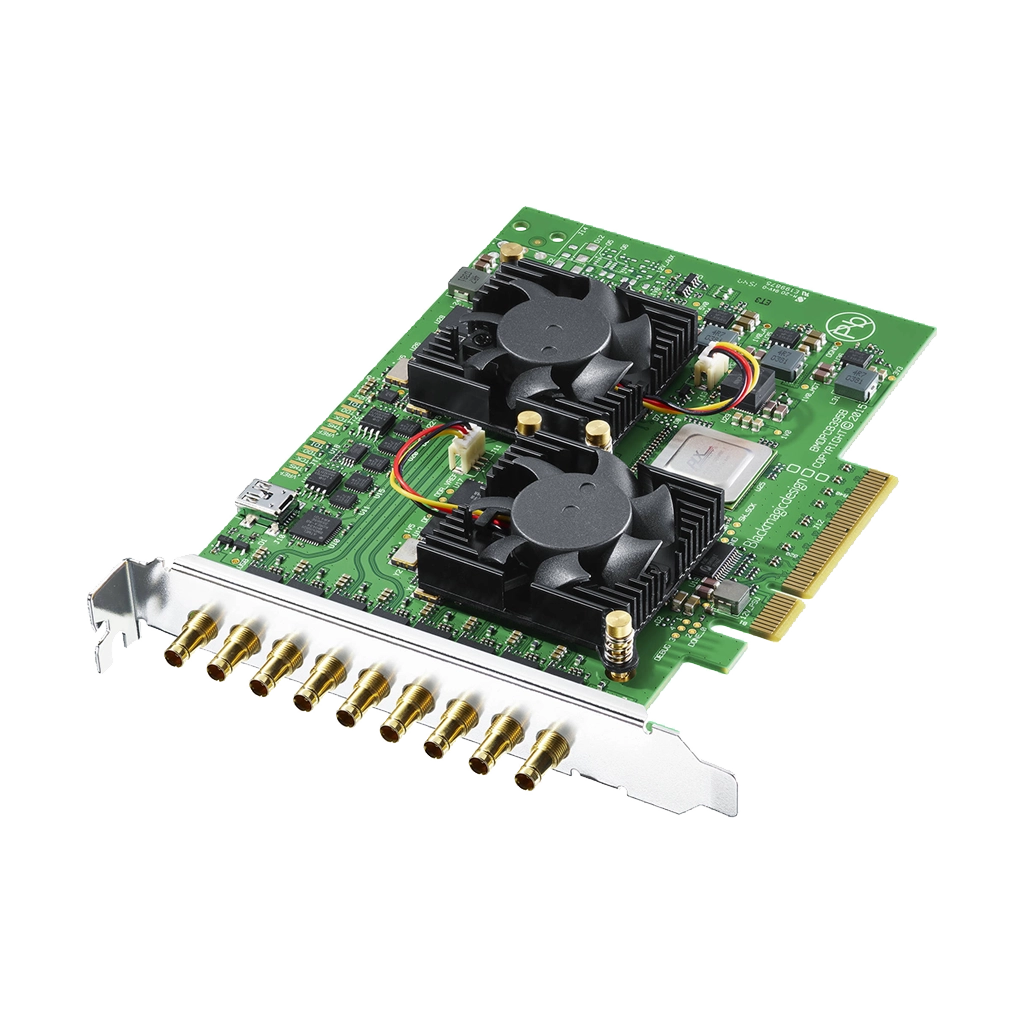

Blackmagic Design DeckLink Quad 2

R 21,595.00
R 21,595.00 R 21,595.00
Tax included. Shipping calculated at checkout.

BLA-BDLKDVQD2

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • 8 x Bidirectional SD/HD/3G-SDI
  • 8-Lane PCIe Interface
  • Resolutions up to 1080p60
  • Micro-BNC/Mini DIN Connectors
  • Inputs/Outputs Independently Switchable
  • Supports Uncompressed RGB 4:4:4 Signals
  • Supports 16 Channels of Embedded Audio
  • Reference In, Up/Down/Cross Conversions
  • Media Express Application Included
  • macOS, Windows, and Linux Compatible

    The DeckLink Quad 2 features 8 independent SDI capture and playback channels in a single card! Fully compatible with the previous 4 channel model, this new model also allows 4 independent capture and playback channels but now also includes 4 extra channels that developers can use for configuring the card in any combination of up to 8 capture or 8 playback channels. This means DeckLink Quad 2 allows each of the 8 3G-SDI BNC connectors to switch direction between capture or playback in SD and HD up to 1080p60 and as a complete independent channel.

    Compatibility

    The Blackmagic Design DeckLink Quad 2 is compatible with Mac, Windows, and Linux computers and supported by a wide range of software applications. For use with applications that don't capture video on their own, Blackmagic's Media Express software is included, allowing you to capture, organize, and manage your media.

    Independent Input/Output

    Each SDI (Micro-BNC) input and output can be a different video standard, as they're all independent

    Video Support

    • Supports uncompressed 10-bit 4:2:2 and 4:4:4 signals
    • Cross conversion between 720p and 1080p on video capture
    • SD upconversion to 720p or 1080p on video capture

    Audio Support

    Supports 16 channels of embedded audio per input/output

    Included Software

    Mac OS and Windows:

    • Media Express
    • Disk Speed Test
    • LiveKey
    • Blackmagic Desktop Video Utility
    • Blackmagic driver

    Linux:

    • Media Express
    • Blackmagic Desktop Video Utility
    • Blackmagic driver

    Supported Codecs

    • AVC-Intra, AVCHD
    • Canon XF MPEG2
    • Digital SLR
    • DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX
    • HDV, XDCAM EX, XDCAM HD, XDCAM HD422
    • DNxHR & DNxHD
    • Apple ProRes 4444, 422 HQ, 422, LT, 422 Proxy
    • Uncompressed: 8-bit 4:2:2, 10-bit 4:2:2, 10-bit 4:4:4

    Software Applications

    • Adobe Premiere Pro CC
    • Adobe After Effects CC
    • Adobe Photoshop CC
    • Apple Final Cut Pro X
    • Avid Media Composer
    • Avid Pro Tools
    • DaVinci Resolve
    • Fusion
    • Steinberg Cubase
    • Steinberg Nuendo

    Other Supported Applications

    • Adobe Flash Media Live Encoder
    • Autodesk Flame
    • Boinx Software MimoLive
    • Burst Video WebClip2Go
    • CasparCG Server
    • Cinegy Capture Pro
    • Class X Liveboard & Coral CG
    • Corel VideoStudio Pro
    • CyberLink PowerDirector
    • DevTek Easy Media Suite
    • Glookast Capturer
    • Grass Valley Edius
    • Imagine Communications Velocity & InfoCaster
    • Livestream Producer
    • Magicsoft CG
    • Magix Vegas Pro & Movie Edit Pro Premium
    • Metus Ingest
    • Nautilus NEMO3D
    • Open Broadcaster Software Studio
    • Renewed Vision ProPresenter
    • Resolume Arena
    • Softron MovieRecorder & MReplay
    • Sony Catalyst Production Suite
    • Telestream Wirecast
    • Tools On Air Just: Play & Live & In
    • Uniplay One & CG
    • Ventuz Director
    • Vidblaster X & Studio & Broadcast
    • vMix Live
    • Xsplit Broadcaster
    • Zoom

    Blackmagic Design DeckLink Quad 2
