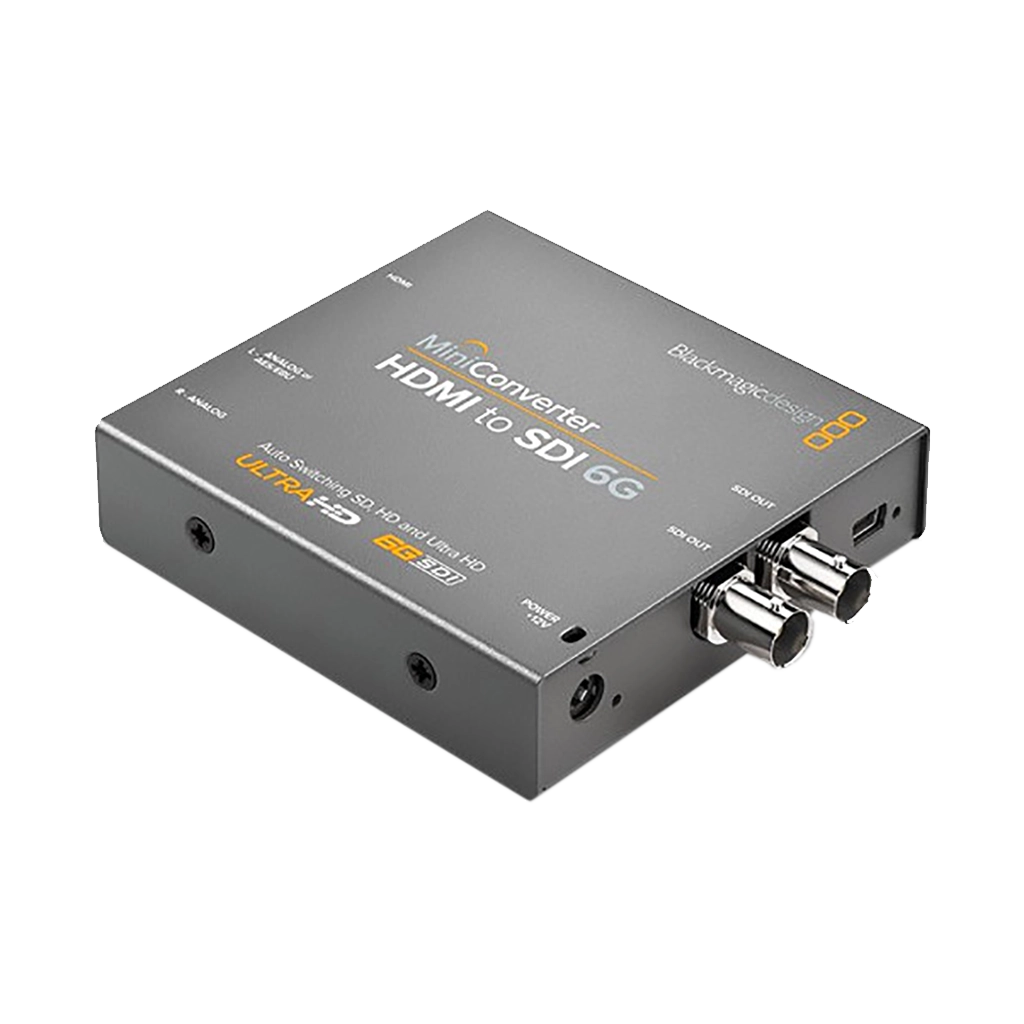

Blackmagic Design HDMI to SDI 6G Mini Converter
Choose PayGate at checkout for MobiCred Payments.
- 4K HDMI Input
- 2 x 6G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 24-Bit, 48 kHz Audio
- Analog & AES-EBU Digital Audio Inputs
- Embeds Audio Into SDI Output
- Settings via Mini Switches or Software
- USB 2.0 Port for Firmware Updates
- 12V Universal Power Supply Included
Orms Bellville
Orms Cape Town
Blackmagic Design HDMI to SDI 6G Mini Converter
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 4K HDMI Input
- 2 x 6G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 24-Bit, 48 kHz Audio
- Analog & AES-EBU Digital Audio Inputs
- Embeds Audio Into SDI Output
- Settings via Mini Switches or Software
- USB 2.0 Port for Firmware Updates
- 12V Universal Power Supply Included
Choose PayGate at checkout for MobiCred Payments.
- 4K HDMI Input
- 2 x 6G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 24-Bit, 48 kHz Audio
- Analog & AES-EBU Digital Audio Inputs
- Embeds Audio Into SDI Output
- Settings via Mini Switches or Software
- USB 2.0 Port for Firmware Updates
- 12V Universal Power Supply Included
The BlackMagic Design HDMI to SDI 6G Mini Converter converts HDMI to SD, HD, 3G, or 6G-SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 30p. This unit is useful for connecting devices that output HDMI signals with professional SDI video equipment. Useful for broadcast, post production, professional AV applications, and many more.
- The BlackMagic Design HDMI to SDI 6G Mini Converter's settings controlled using built-in switchers, or the USB using the control software for Max OS X or Windows.
- The USB port can be used for firmware to be updated.
- 4:2:2 Sampling and color precision
- HD scaler and SD down-conversion
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081, and ITU-R BT.656/BT.601 standards
BlackMagic Design HDMI to SDI 6G Mini Converter
Video Input | 1 x HDMI, Type A |
Video Output | 2 x 6G-SDI |
Multi-Rate Support | Auto detection of SD, HD, 3G, or 6G-SDI signals |
Reclocking | Yes |
Audio Input | Analog: 2 channels with 1 x 1/4" jack per channel AES/EBU: 4 channels with 1 x 1/4" jack |
Format Support | DCI 4K 24p UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC: 525i/59.94 PAL: 625i/50 |
SDI Compliance | SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081 ITU-R BT.656 and ITU-R BT.601 |
SDI Video Rates | Switchable between SD, HD, Ultra HD and DCI 4K |
SDI Video Sampling | 4:2:2 |
SDI Color Precision | 4:2:2 |
SDI Color Space | YUV |
SDI Audio Sampling | 24-bit, 48 kHz |
SDI Auto Switching | Automatically detects SD, HD, or 6G-SDI |
HDMI Format Support | UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC: 525i/59.94 PAL: 625i/50 |
HDMI Color Space | YUV and RGB |
HDMI Color Precision | 4:2:2 4:4:4 |
HDCP Compliance | No. HDMI input is unable to capture from copy-protected HDMI sources |
Format Conversion | HD down-conversion |
Settings Control | Mini switchers or USB software |
Firmware Upgradeable | Via USB |
Power Supply | 12 VDC |
Power Consumption | 4.44 W |
Operational Voltage Range | 12 to 31 VDC |
Operating Temperature | 0 to 40 °C |
Storage Temperature | -20 to 45 °C |
Relative Humidity | 0 to 90% non-condensing |
Dimensions | 11.40 x 9.22 x 2.29 cm |
Weight | 243.8 g |
