Blackmagic Design HyperDeck Shuttle 4K Pro
Choose PayGate at checkout for MobiCred Payments.
- 7" Touchscreen Display
- Broadcast Deck Controls with Search Dial
- Records to SD/USB-C Disk/Network Cards
- DCI 4K Video, HDR Colour Space
- H.264/265, ProRes, and DNx File Formats
- 12G-SDI Input, 2 x 12G-SDI Output
- 10 Gb/s Ethernet, Remote I/O
- HDMI I/O, Monitor Outputs, Reference I/O
- Webcam Ability, Teleprompter Function
Orms Bellville
Orms Cape Town
Orms Somerset West
Remote Warehouse (Available in 2 - 4 Business Days)
Blackmagic Design HyperDeck Shuttle 4K Pro
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Orms Somerset West
Shop 25, Waterstone Village Shopping Centre
Somerset West
Cape Town
Western Cape
7130
South Africa
Remote Warehouse (Available in 2 - 4 Business Days)
Upper Canterbury Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 7" Touchscreen Display
- Broadcast Deck Controls with Search Dial
- Records to SD/USB-C Disk/Network Cards
- DCI 4K Video, HDR Colour Space
- H.264/265, ProRes, and DNx File Formats
- 12G-SDI Input, 2 x 12G-SDI Output
- 10 Gb/s Ethernet, Remote I/O
- HDMI I/O, Monitor Outputs, Reference I/O
- Webcam Ability, Teleprompter Function
Choose PayGate at checkout for MobiCred Payments.
- 7" Touchscreen Display
- Broadcast Deck Controls with Search Dial
- Records to SD/USB-C Disk/Network Cards
- DCI 4K Video, HDR Colour Space
- H.264/265, ProRes, and DNx File Formats
- 12G-SDI Input, 2 x 12G-SDI Output
- 10 Gb/s Ethernet, Remote I/O
- HDMI I/O, Monitor Outputs, Reference I/O
- Webcam Ability, Teleprompter Function
The Blackmagic Design HyperDeck Shuttle 4K Pro offers a compact design, allowing you to run multiple I/O and connect to a computer or ATEM switch control media playback using the built-in 7" touchscreen display, large seek dial, and intuitive buttons. Built in, you will also find a teleprompter for use without the need to use third-party software.
The Blackmagic Design HyperDeck Shuttle 4K Pro runs on Blackmagic OS that supports ProRes and DNx fle formats, and is fully compatible with a wide range of editing software like Premiere Pro, Avid, and DaVinci Resolve.
The HyperDeck Shuttle can additionally be used to stream H.264/265 video to streaming services such as YouTube or Vimeo. Record video using its SD card slot, M.2 PCIe card slot, or USB-C output to an optional drive or connect to the Blackmagic MultiDock to record to multiple SSDs. The Ethernet port provides external control and file transfers over a network.
Mastering Recorder
The Blackmagic Design HyperDeck Shuttle 4K Pro provides support for H.264/265, ProRes, and DNx files, which allows you can record true broadcast masters. You can even select between PCM or AAC audio. This is great for higher-quality mastering when used with ATEM Mini switchers.
Media Player
The large machined dial on the top panel of the HyperDeck Shuttle allows you to visually browse your clip library. You can use the previous clip button to cue the start of the clip. After playing, simply press the clip button again to stop the playback of your clip. You can even use ATEM switchers to control the Shuttle via Ethernet.

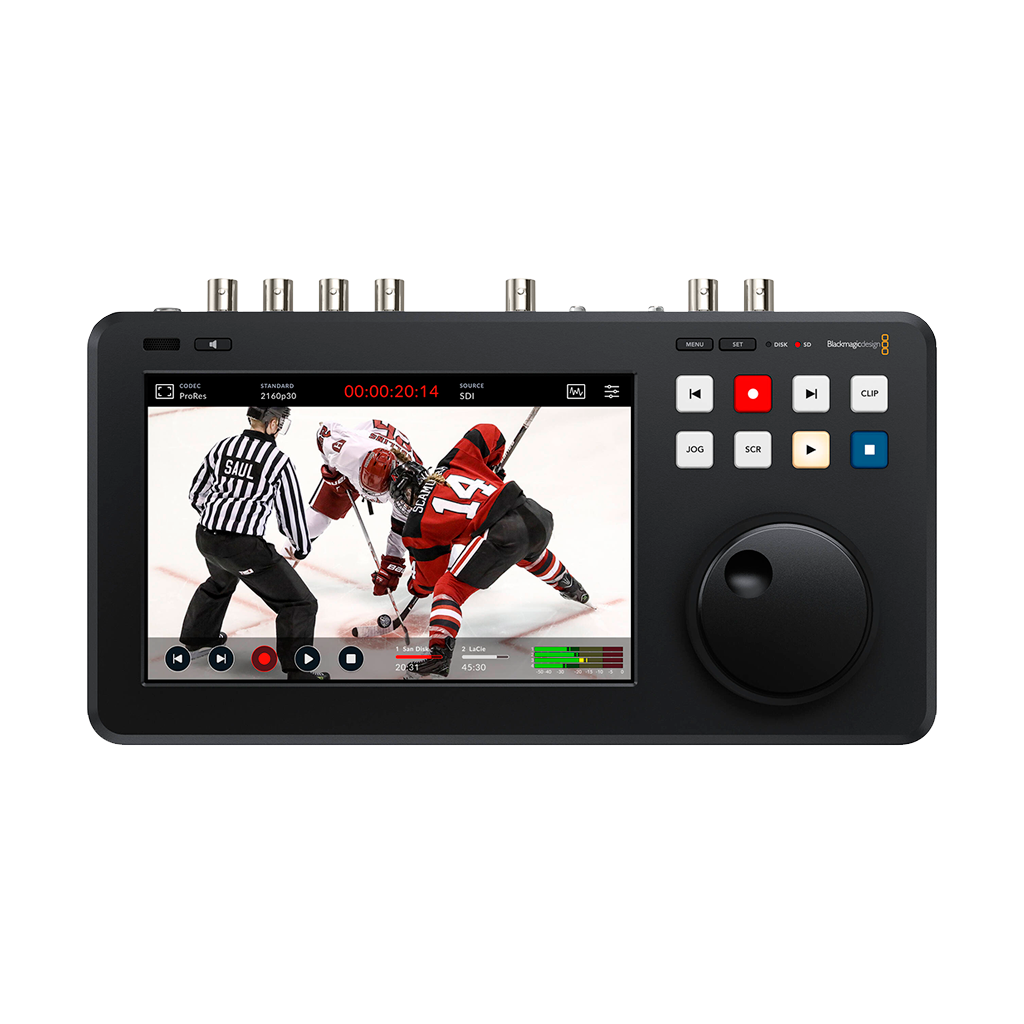

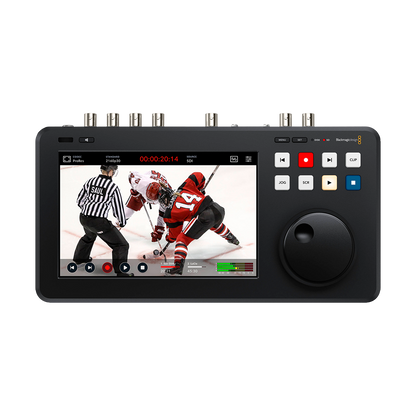

Built-In 7" Touchscreen
On the front panel, you will find a 7" touch interface with built-in monitoring and menu adjustment. An intuitive control experience is provided via the buttons for playback, pause, and recording functions, as well as a mini playback timeline for clip scrubbing. The HUD heads-up display overlays timecode, media status, and audio meter information.
Traditional Broadcast Deck Controls
The Blackmagic Design HyperDeck Shuttle 4K Pro features an easy-to-use control panel that is similar in layout to a traditional broadcast deck. On the control panel, you will find a machined metal search dial, supporting shuttle, jog, and scroll so you can find clips fast. Use the intuitive touchscreen interface to toggle different visual overlays and scrub media files to find what you need.
Record to Internal or External Network Storage
This unit is designed to record straight to network storage to keep all your media in a central place. Additionally, it has space for an M.2 flash card storage, so the network storage is then built in.
Supports SD Cards and USB-C Disks
The Blackmagic Design HyperDeck Shuttle 4K Pro is compatible with both standard SD cards and UHS-II cards. Alternatively, you can also record to external USB disks. In H.264, the files are very small, so you can get very long recordings on relatively small cards.
The USB-C expansion port lets you plug in an external flash disk for recording. You can even add a Blackmagic MultiDock 10G that has four separate SSD media slots, so you can add compatibility with SSD media. There are also options for managing external disks in the settings menu.
Popular ProRes, DNx, and H.264/265 Files
Supporting most codecs currently in use, including broadcast-quality DNx and ProRes file formats. You also get space-saving H.264/265 when recording in NTSC, PAL, 720p, 1080p, or 1080i interlaced formats. That means you get tight 60:1 to 285:1 compression ratios for very small files at full broadcast quality.
Uncompressed PCM or even AAC audio can be chosen when uploading files to YouTube. The HyperDeck Shuttle can be mounted to both Windows on PCM and Mac on HFS+ disk formats.
Video and Control Connections
HDMI input can be connected to cameras and switchers such as an ATEM Min, and the HDMI output can be monitors for presentations or ATEM Mini switchers as a long-form media player.

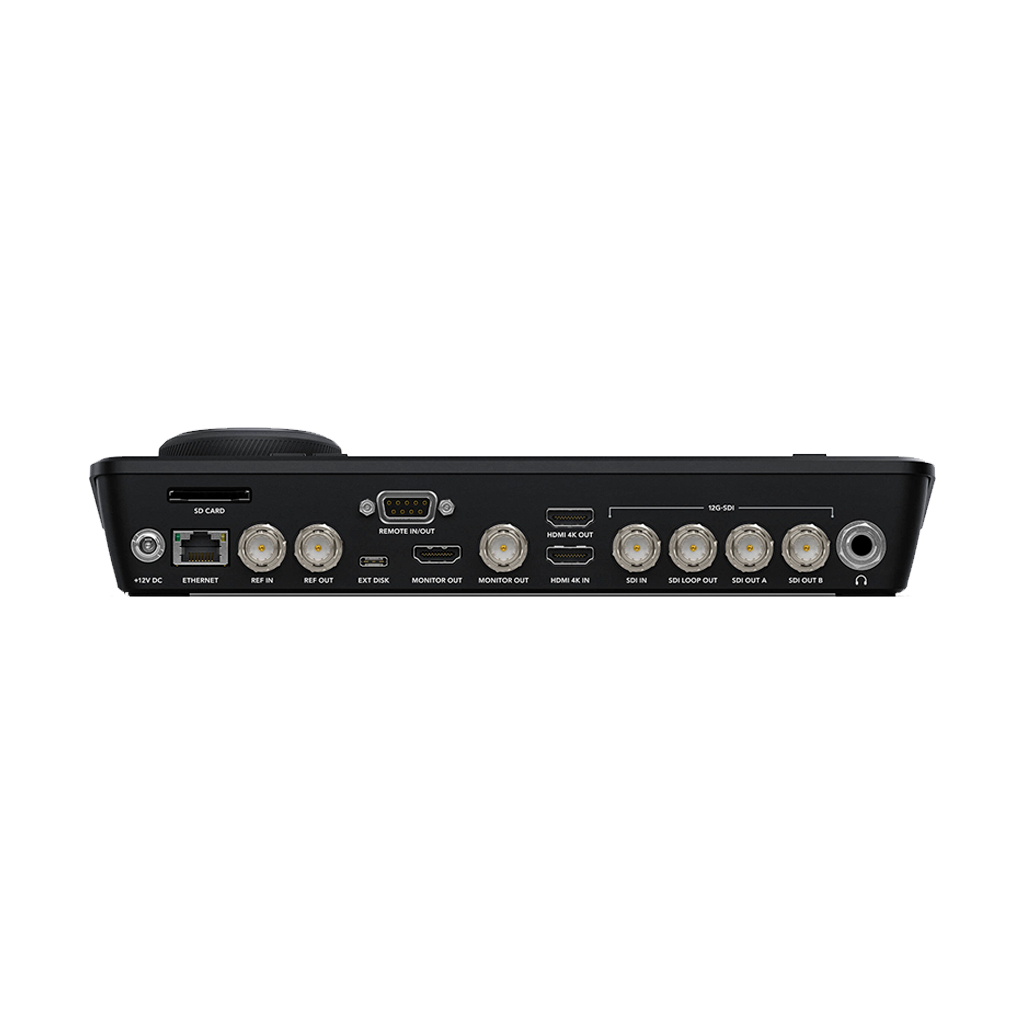

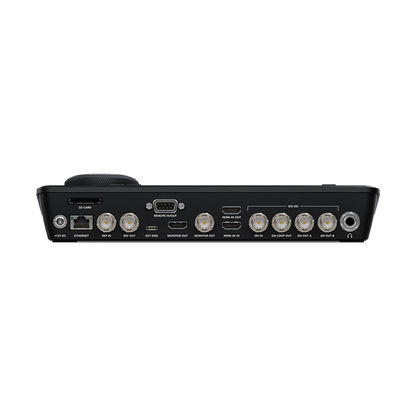

Additional connectivity includes an SDI monitor output, reference I/O ports, 4K HDMI I/O ports, an SDI input, two SDI outputs, an SDI loop output, a remote I/O interface, and a headphone jack for monitoring. On the rear panel, you will also find a 12 VDC power input, and a power supply is included. The 10G Ethernet connection allows for control and remote file uploads.
Multi-Rate SDI Connections
The Blackmagic Design HyperDeck Shuttle 4K Pro model includes the latest 12G-SDI video connections. 12G-SDI is multi-rate, so a single connection can connect to SD, HD, and UHD equipment using up to DCI 4K resolutions. There is also support for both level A and level B when working in 3G-SDI rates.
HDMI Compatibility with ATEM Mini Switchers
Cameras, monitors, televisions, video projectors, and even ATEM Mini Switchers can be plugged into the Shuttle via the built-in HDMI input and output. These connectors will automatically switch video standards to handle both SD and UHD 4K equipment.
10G Ethernet Network
10G Ethernet connectivity allows for access to the HyperDeck M.2 storage over your network. Using an Ethernet connection and a simple text-based protocol that can be tested with a simple telnet client.
USB Webcam Output
The Blackmagic Design HyperDeck Shuttle 4K Pro features webcam support via the USB connection. If you're not recording to an external USB disk, you can plug the HyperDeck USB connection directly into a computer to get live video into any video software. The computer is tricked into thinking the HyperDeck is a common webcam, but it's really a broadcast-quality video source. This feature works with any video software, including Zoom and Microsoft Teams, or streams live with Open Broadcaster, XSplit Broadcaster, and more.
Advanced HDR Support
Working with the latest HDR workflows due to the HDR screen and wide colour gamut. The bright LCD has a wider colour gamut and can handle both Rec. 2020 and Rec. 709 colour spaces. The built-in HyperDeck Shuttle LCD colour gamut can even handle 100% of the DCI‑P3 format.
Built-In Teleprompter
Taking full advantage of the large search dial on the HyperDeck Shuttle, it can also be used as a teleprompter. When selecting the teleprompter in the menu, it will read standard RTF text files like scripts without the need for custom software.
You can move between multiple scripts with the previous and next clip buttons. You can also live scroll the script like a traditional teleprompter, and adjust the size on font.
Supports Blackmagic Cloud
The Blackmagic Design HyperDeck Shuttle 4K Pro can accommodate a built-in M.2 flash memory storage card, transforming it into network storage. This means multiple users can access files over the local network, further, files can be synced to the Blackmagic Cloud.
The HyperDeck Shuttle records H.265 HD proxy files that upload in seconds. The proxy also syncs while recording, meaning remote DaVinci editors get media before recording is stopped.
Direct Metadata Entry
Metadata can be added fast to any shot with an advanced digital slate and metadata features. Digital slate can be brought in by swiping on the screen. You can select to add take numbers that can be automatically added on every start and stop recording, so you do not need to add them manually in post.
All metadata is saved with files and available in post-production with software such as DaVinci Resolve, so you can simply scroll and select the required shots.
Powered by Blackmagic OS
The HyperDeck Shuttle runs on Blackmagic OS and has been designed for high-performance broadcast products. It also includes video recording, timecode, audio, menu overlays, fast networking, multi-disk media management, and even localisation.
Compatible with Software and Streaming Sites
The Blackmagic Design HyperDeck Shuttle 4K Pro is fully compatible with almost all post-production software, plus when recording in H.264, you can upload directly to streaming services such as Facebook, Twitter, Vimeo and YouTube. HyperDeck uses the same file formats as post-production software as DaVinci Resolve, Apple Final Cut Pro, Adobe Premiere Pro, or Avid Media Composer. Due to HyperDeck recording to disks formatted on computers, you simply need to mount the disk to any computer and start editing without the need to copy any files to the computer.
- Blackmagic Design HyperDeck Shuttle 4K Pro
- Blackmagic Design 12 VDC Universal Power Supply
