Blackmagic Design HyperDeck Studio 4K Pro
Choose PayGate at checkout for MobiCred Payments.
- 1 RU File-Based Video Recorder
- Uncompressed & H.264/H.265 10-Bit 4:2:2
- Records Compressed in ProRes / DNxHD
- 1 x 12G-SDI Input, 2 x 12G-SDI Outputs
- 2 x 2.5" SSD Slots & 2 x SD Card Slots
- 1 x HDMI Input, 1 HDMI Output
- 1 x SDI Loop Output, 1 x USB Type-C Out
- Speaker, Remote, 10G Ethernet Port
- Front-Panel Buttons, Jog Wheel, LCD
- Timecode, Reference & RS-422 In/Out
Orms Bellville
Orms Cape Town
Blackmagic Design HyperDeck Studio 4K Pro
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 1 RU File-Based Video Recorder
- Uncompressed & H.264/H.265 10-Bit 4:2:2
- Records Compressed in ProRes / DNxHD
- 1 x 12G-SDI Input, 2 x 12G-SDI Outputs
- 2 x 2.5" SSD Slots & 2 x SD Card Slots
- 1 x HDMI Input, 1 HDMI Output
- 1 x SDI Loop Output, 1 x USB Type-C Out
- Speaker, Remote, 10G Ethernet Port
- Front-Panel Buttons, Jog Wheel, LCD
- Timecode, Reference & RS-422 In/Out
Choose PayGate at checkout for MobiCred Payments.
- 1 RU File-Based Video Recorder
- Uncompressed & H.264/H.265 10-Bit 4:2:2
- Records Compressed in ProRes / DNxHD
- 1 x 12G-SDI Input, 2 x 12G-SDI Outputs
- 2 x 2.5" SSD Slots & 2 x SD Card Slots
- 1 x HDMI Input, 1 HDMI Output
- 1 x SDI Loop Output, 1 x USB Type-C Out
- Speaker, Remote, 10G Ethernet Port
- Front-Panel Buttons, Jog Wheel, LCD
- Timecode, Reference & RS-422 In/Out

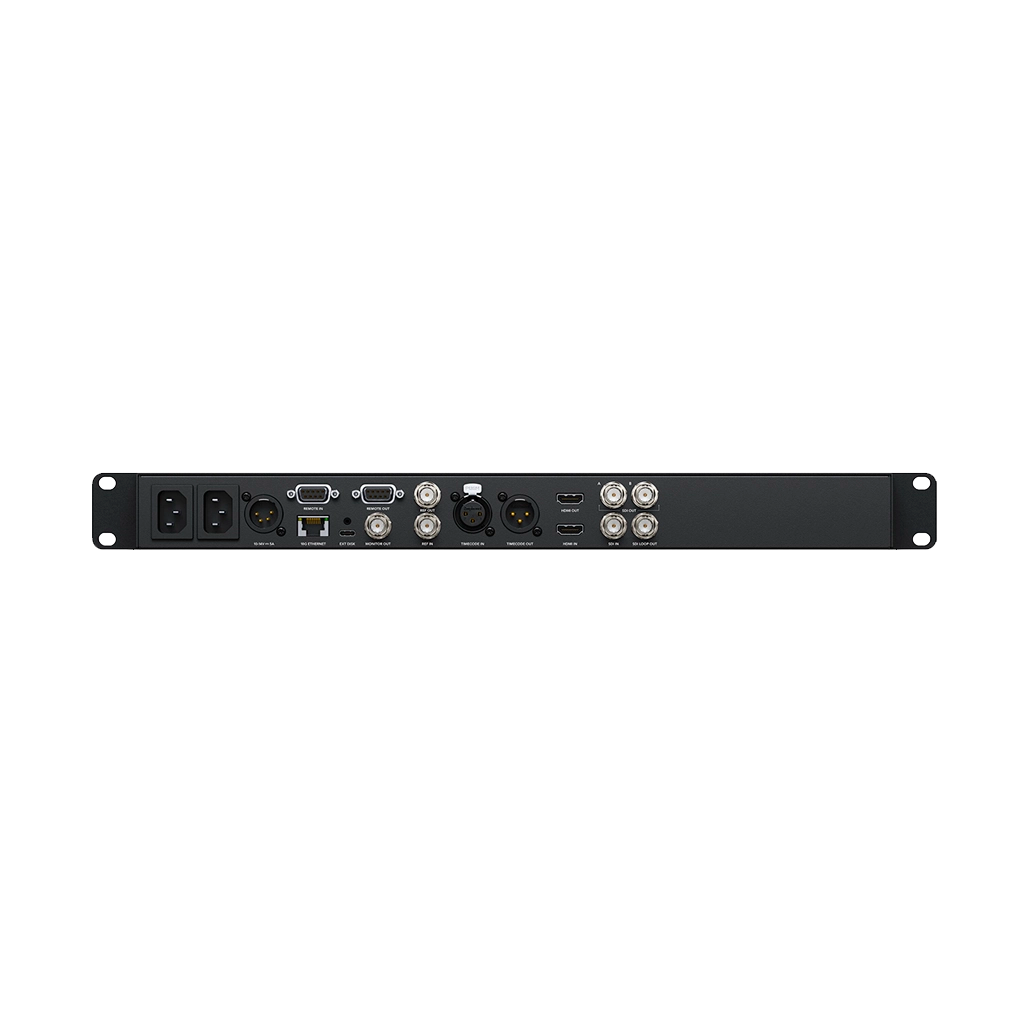

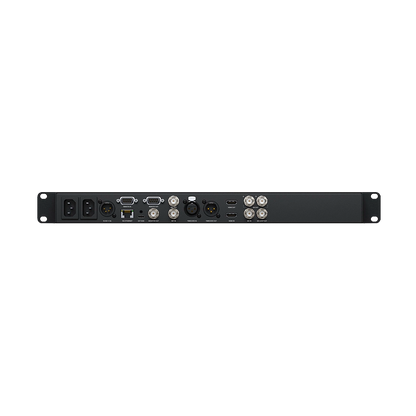

The Blackmagic Design HyperDeck Studio 4K Pro is an updated 1 RU file-based deck, featuring the same functionality and control of a professional tape deck in a digital design.
The new model updates previous HyperDeck Studio Models with several features, such as 12G-SDI support, two added SD card slots, USB Type-C recording output, timecode input and output, Ref input and output, a redesigned jog/shuttle wheel, 10G Ethernet, and a speaker on the front.
The Blackmagic Design HyperDeck Studio 4K Pro record uncompressed video with 10-bit 4:2:2 colour using either ProRes or DNxDX codecs, as well as the H.264 and H.265 compression format. Two SSD slots and two SD card slots can be used to almost record endlessly, as one gets full, the other continues recording, and the SD card slots are hot-swappable as well.
As well as one 12G-SDI input, two 12G-SDI outputs, a loop-through SDI output, a dedicated SDI monitor output, and there's also one HDMI input and one HDMI output that can all output up to DCI 4K. The Blackmagic Design HyperDeck Studio 4K Pro can also play ProRes 4444 files in true UHD for fill and key outputs. The 3-pin XLR timecode input and output allow you to sync timecode with other devices, and it also allows you to daisy-chain with other devices to create a timecode sync chain.
Professional Broadcast Deck

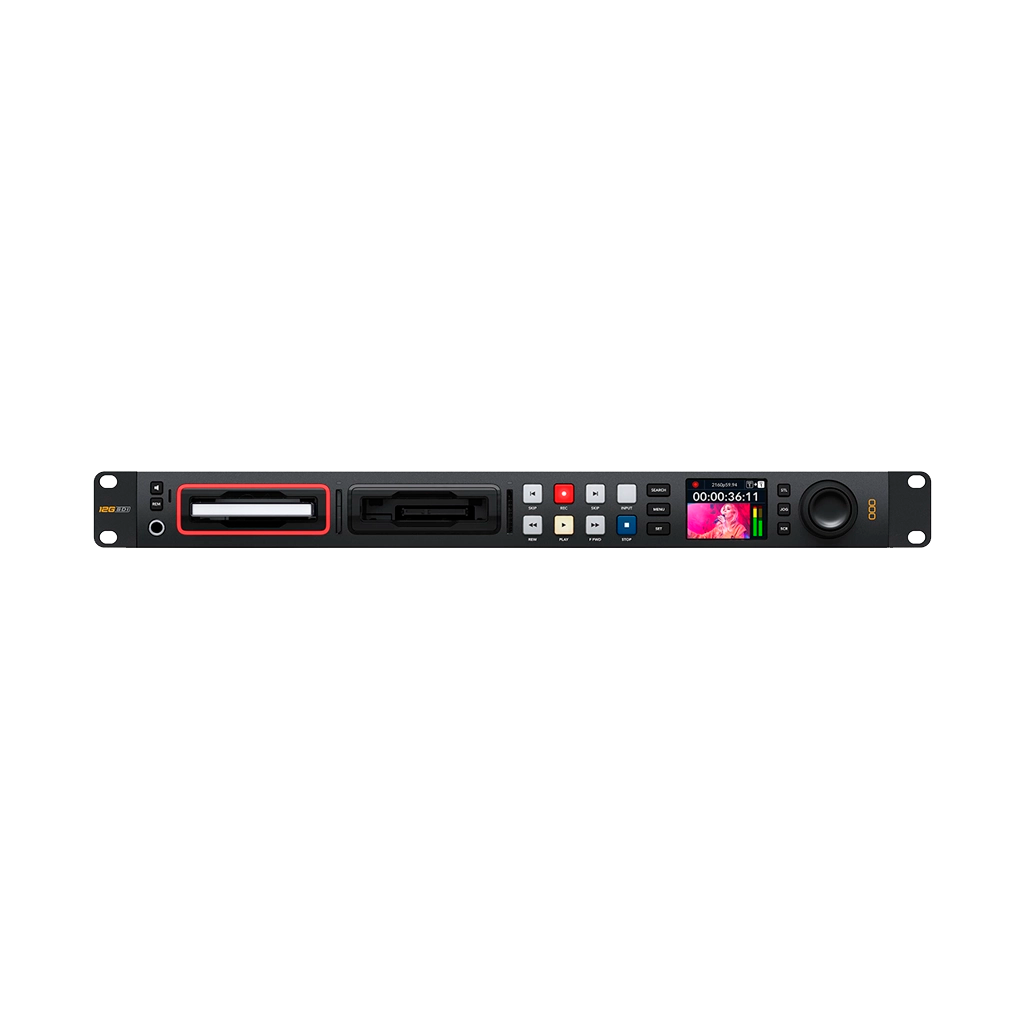

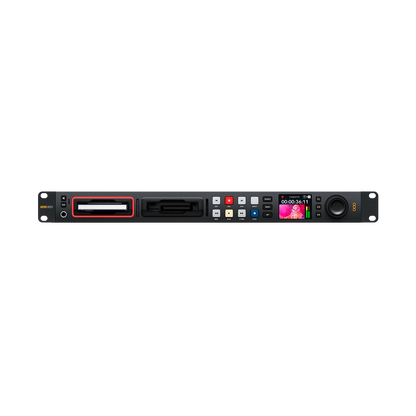

The redesigned Blackmagic Design HyperDeck Studio HD Pro now features broadcast-style front panel controls and more connections on the rear panel. On the pro models, a machine metal search dial with increased mass and a soft rubber surface can be found.
Master Recorder
Recording to H.264, ProRes, and DNx files, so are perfect for broadcasting use, the 4K model adds H265 recording to UHD files. The Blackmagic Design HyperDeck Studio HD Pro even use PCM or AAC audio.
ISO Recording
All HyperDeck units use timecode and reference generators, with outputs to loop more units.
Record to External USB Type-C Media Decks
The USB Type-C expansion port allows for endless continuous recording, you can also record to array disks use for editing purposes.
USB Webcam Output for Video Software
For compatibility with a wide range of computer software, HyperDeck Studio features webcam support using the USB connection. If you're not recording to an external USB disk, you can plug the HyperDeck USB connection directly into a computer to get live video into any video software. The computer is tricked into thinking the HyperDeck is a common webcam, but it's really a broadcast-quality video source. That guarantees full compatibility with any video software and in full resolution 1080 HD quality. HyperDeck Studio's USB webcam feature works with any video software including Zoom, Microsoft Teams, and Skype, or get live streaming with Open Broadcaster, XSplit Broadcaster, and more.
Blackmagic Design HyperDeck Studio 4K Pro
Video Input | 1 x BNC 12G-SDI 1 x HDMI 2.0 |
Video Output | 1 x BNC SDI Loop-Through 2 x BNC 12G-SDI 1 x SDI Monitor Output 1 x HDMI 2.0 |
Embedded Audio | Input: 16 x Channels SDI 16 x Channels HDMI Output: 8 x Channels SDI 8 x Channels HDMI |
Audio Output Connector | 1 x 1/4" Headphone Jack |
Network | 1 x RJ45, 10 Gb/s |
SSD Interface | 2 x 2.5" SATA 3 Gb/s |
Reference Input | 1 x BNC |
Reference Output | 1 x BNC |
Timecode Input | 1 x BNC |
Timecode Output | 1 x BNC |
Device Control | 1 x RS-422 Input 1 x RS-422 Output |
Display Size | 2.2" LCD |
Speaker | Mono |
Format Support | DCI/UHD 4K 2160p: 30/25/24 2K 1440p: 30/25/24 1080p: 60/50/30//25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 PAL 525i 625i 50 480p60 and 576p50 via HDMI Only |
Supported Operating Systems | macOS 10.15 Catalina macOS 11.1 Big Sur or Later Windows 10, 64-Bit |
Other Outputs | 1 x USB 3.1 Gen 2 Type-C for External Recording or Webcam Use |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2084, and SMPTE 2108-1 |
SDI Metadata Support | HD RP188 and closed captioning CEA-708 HDR Metadata Supported on SDI |
Sampling | Video: 4:2:2 YUV Audio: 24-Bit, 48 kHz |
Color Precision | 10-Bit |
Color Space | REC 601, REC 709, REC 2020 3D LUTS can be Applied to SDI Monitor Out |
Multiple Rate Support | Autodetection of SD, HD, 6G-SDI, and 12G-SDI |
HDR Support | Hybrid Log Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 |
Codecs Supported | ProRes HQ QuickTime ProRes 422 QuickTime ProRes LT QuickTime ProRes Proxy QuickTime for all Formats up to 2160p30 Playback Only of: ProRes 4444 QuickTime up to 1080p60 with Auto Routing of Fill and Key over SDI A and B Outputs DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD Formats up to 60 fps DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p Formats up to 30 fps H.265 SDI 4:2:2 10-Bit, H.265 High 4:2:0 10-Bit, H.265 Medium 4:2:0 10-Bit, H.265 Low 4:2:0 10-Bit for all 2160p Formats up to 60 fps H.264 SDI 4:2:2 10-Bit, H.264 High 4:2:0 8-Bit, H.264 Medium 4:2:0 8-Bit, H.264 Low 4:2:0 8-Bit for all Progressive formats up to 1080p60 |
Media Slots | 2 x 2.5" SSD 2 x SD Card |
Rack Size | 1 RU |
Power Input | 1 x 110 to 240 VAC, 50/60 Hz Power Input 1 x 12 VDC, 4-Pin XLR Input |
Power Consumption | 100 W Maximum |
Operating Temperature | 32to 104°F/ 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Relative Humidity | 0 to 90% Non-Condensing |
Dimensions | 48.3 x 23.6 x 4.4 cm |
Weight | 2.5 kg |
